EFS4WD
Reference: 10-1053
Track bars

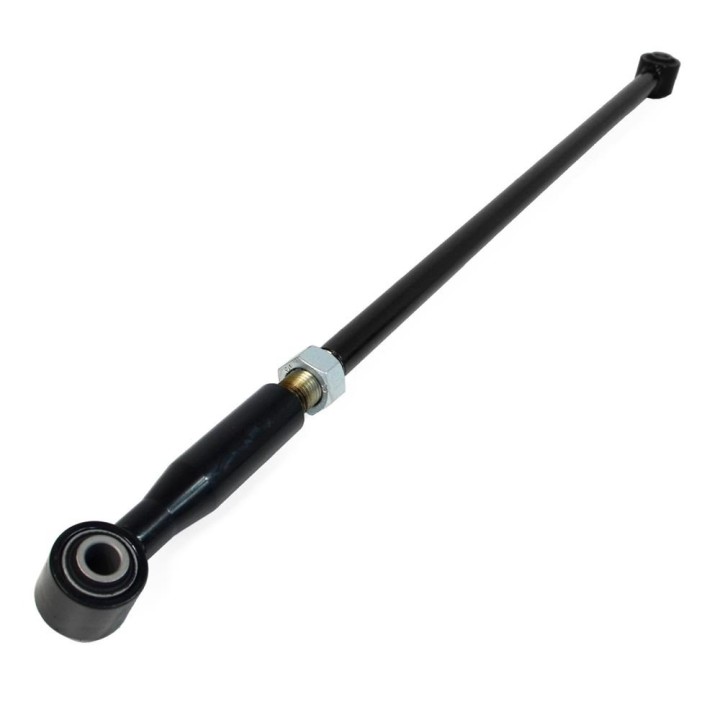

EFS Rear Adjustable Panhard Rod, 3-5" Lift — Toyota Land Cruiser 80 and 105
EFS rear adjustable Panhard rod for the Toyota Land Cruiser 80 and 105, designed for 3-5 inch lifts. It replaces the factory rod, letting you recentre the rear axle after raising the suspension and restore correct handling. Five year warranty with no mileage limit.
EFS Rear Adjustable Panhard Rod, 3-5" Lift — Toyota Land Cruiser 80 and 105
On the Land Cruiser 80 and 105 the rear axle is located laterally by a fixed-length Panhard rod. Raise the vehicle three inches and that fixed length starts working against you: the axle shifts sideways and one tyre creeps towards its arch.
This adjustable EFS rod fixes it without fabrication — it replaces the original and you set the length until the axle sits centred again. It is often left out of a lift budget, and without it the whole raised suspension works differently from the way it was designed to.
Position Rear, adjustable | Lift range 3-5 inches | Warranty 5 years, unlimited km |
Key benefits
- Adjustable length recentres the axle after a 3-5 inch lift, so both wheels sit square in their arches.
- Direct replacement for the factory rod — no changes to the chassis or axle brackets.
- A correctly located axle means calmer road behaviour and fuller suspension travel off-road.
- Five year warranty with no mileage limit.
Technical data
- Type: rear adjustable Panhard rod
- Lift range: 3-5 inches
- Application: Toyota Land Cruiser 80 and Toyota Land Cruiser 105
- Weight: 5.92 kg (EFS manufacturer data)
- Dimensions: 108 x 5 x 5 cm (EFS manufacturer data)
- Warranty: 5 years, unlimited kilometres
- Manufacturer: EFS (Australia)
- Part number: 10-1053
It suits any 80 or 105 series being built for larger tyres and real off-road use, from a full expedition rig to a straightforward three-inch build. If you only need the rubber bushes for the rod, they are listed under part number 10-1053BKR.
Fitting notes
The rod replaces the factory item. Set the length with the vehicle standing on its wheels and check the axle position relative to the body — not on a hoist with the suspension hanging at full droop. Our Szekla4x4 workshop can fit and set it for you.
Why it is worth it
- It completes the lift — without it the axle stays permanently offset.
- The adjustment remains useful if you change springs later on.
- Five year warranty with no mileage cap.
Specify it alongside the lift kit for an 80 or 105 — it is one of those parts people remember only after the first drive.
Frequently Asked Questions
What lift height is this rod designed for?
Lifts of 3 to 5 inches.
Front or rear?
This is the rear rod. The front version for the same vehicles is part number 10-1061.
Which vehicles does it fit?
The Toyota Land Cruiser 80 and the Land Cruiser 105.
Does fitting require modification?
No. The EFS rod is used as a direct replacement for the original when changing to lifted suspension.
What warranty is offered?
Five years with no mileage limit.
