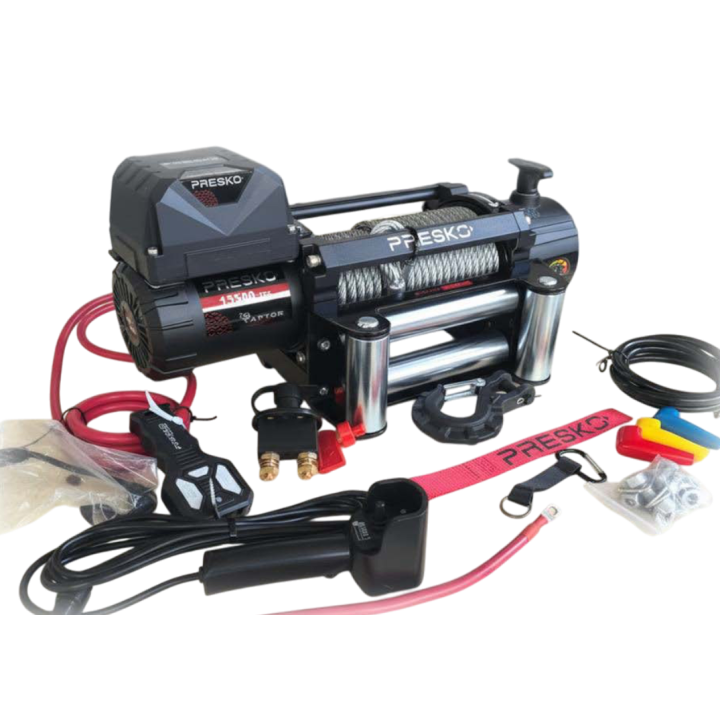

Presko Raptor 13500lbs Winch – Steel Rope | 12V | 6130 kg Pulling Capacity
The Presko Raptor 13500lbs winch with steel rope delivers massive 6130 kg pulling power and a strong 6.0 hp motor. Built for heavy 4x4 vehicles, expedition rigs and professional recovery. Includes remotes and full wiring.
Presko Raptor 13500lbs Winch – Steel Rope | 12V | 6130 kg Pulling Capacity
The Presko Raptor 13.5 is a powerful and heavy-duty winch built for full-size off-road vehicles, expedition rigs, pickup trucks, 4x4s and professional applications. With an impressive pulling force of 13500 lbs (6130 kg), a strong 6.0 hp (4.5 kW) motor and a durable 265:1 gear ratio, the Raptor delivers exceptional performance in extreme terrain and demanding recovery scenarios.
Equipped with a 9.5 mm × 24 m steel rope, this model offers maximum durability, abrasion resistance and reliability when working in rocks, mud, steep climbs or under heavy loads. It’s engineered for users who expect rugged, uncompromising performance.
Key Features of the Presko Raptor 13.5 (Steel Rope):
- 6130 kg (13500 lbs) pulling capacity – ideal for full-size 4x4s, pickups and expedition vehicles.
- 6.0 hp / 4.5 kW motor – immense power and high overload resistance.
- Steel rope 9.5 mm × 24 m – extremely durable, perfect for harsh and rocky environments.
- 265:1 gear ratio – stable and consistent performance under heavy load.
- Reinforced construction – designed for extreme off-road and professional recovery.
- Strong braking system – full control and safety during difficult recoveries.
- Weight (steel version): 37 kg – robust, heavy-duty design.
- Compatible with most 4x4 bumpers and mounting plates.
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage | 12V (24V version also available) |
| Pulling capacity | 13500 lbs / 6130 kg |
| Motor power | 6.0 hp / 4.5 kW |
| Gear ratio | 265:1 |
| Drum size | 64 mm × 224 mm |
| Dimensions (L × W × H) | 540 × 165 × 187 mm |
| Mounting bolt pattern | 254 × 114.3 mm |
| Weight (steel rope) | 37 kg |
| Steel rope | 9.5 mm × 24 m |
Included in the Set
- Presko Raptor 13500lbs winch with steel rope
- Hook with safety latch
- Wireless remote control
- Wired/manual controller
- Mounting plate (if included by manufacturer)
- Relay with complete wiring
- Mounting hardware
Perfect for demanding off-road applications
The Presko Raptor 13.5 is the ideal choice for:
- heavy expedition and overlanding vehicles,
- fully loaded 4x4s and pickup trucks,
- professional recovery and rescue operations,
- forestry, agricultural and utility work,
- extreme off-road conditions requiring maximum pulling power.
