METALCLOAK
Reference: MC7030
Coil springs
JK Wrangler Coils 2 Door 3.5" |4 Door 2.5" True Dual Rate Coils Front
MetalCloak True Dual Rate front coil springs for Jeep Wrangler JK (2007–2018). Set up for 3.5” front lift on a 2-door JK or 2.5” front lift on a 4-door JKU. Built to improve articulation and keep a stable, controlled ride height. Includes a pair of front coils and upper front coil isolators
MetalCloak 7030 True Dual Rate – Front Coils for Jeep Wrangler JK (2007–2018)
The front end of a lifted JK has to do it all: stay predictable on-road, keep the tires planted off-road, and handle added weight from bumpers or a winch. MetalCloak True Dual Rate front coils are designed around that reality. The dual-rate layout helps the suspension move more freely for traction and comfort, while still providing stronger support as loads increase and the suspension compresses.
Key features
- Lift fitment: 3.5” front lift for JK 2-door or 2.5” front lift for JKU 4-door.

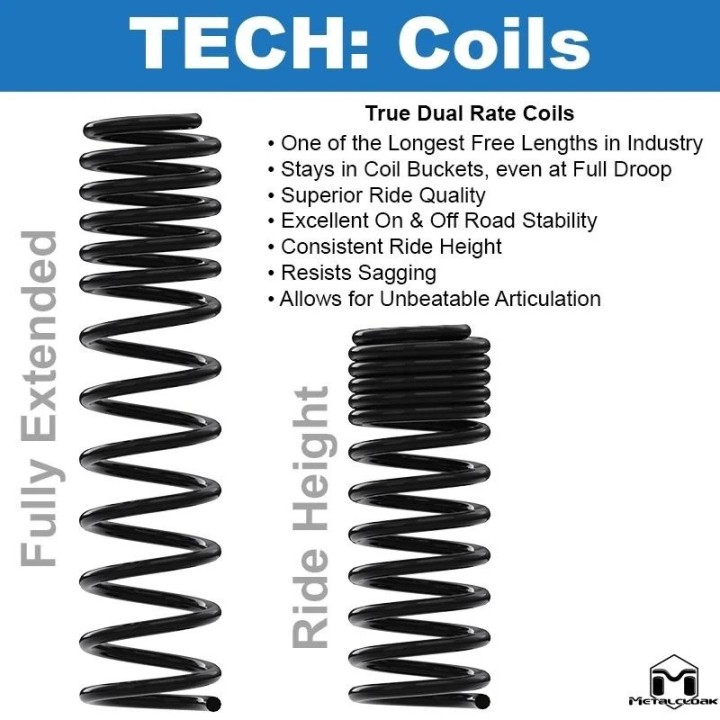

- Long free length to help maximize droop and front-end articulation.
- Stable in the buckets — designed to stay seated even at full droop.
- Controlled ride quality with better stability on-road and off-road.
- Consistent ride height with resistance to sagging over time.
- Upper front coil isolators included for a quieter, better-seated install.
Technical data
- Product ID: 7030
- Vehicle fitment: Jeep Wrangler JK 2007–2018 (front)
- Spring type: True Dual Rate front coil springs
- Steel: high-tensile chrome silicon steel alloy
- Coating: black powder coat
- Free length: 21.5”
- Solid height: 8”
- Coil isolator material: thermoset elastomer

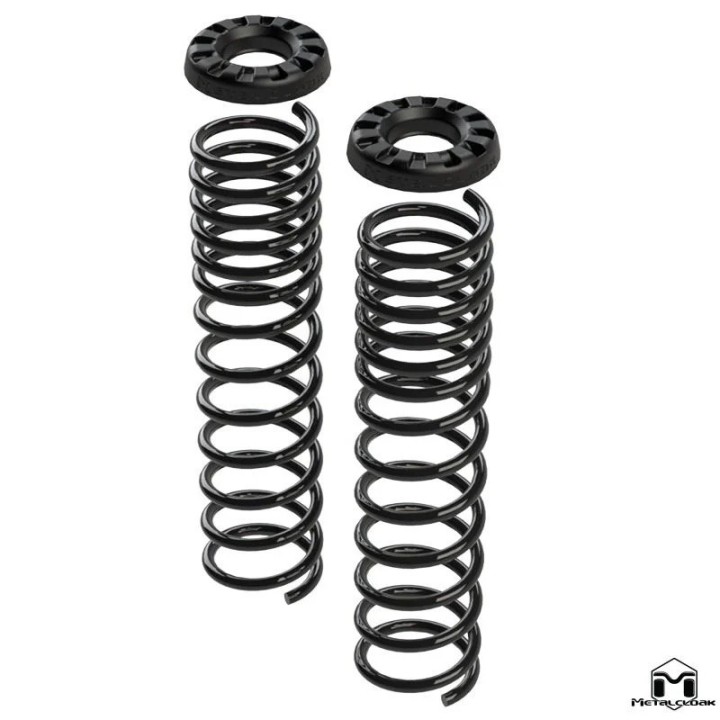

What’s included
- (2) Front True Dual Rate coils
- (2) Upper front coil isolators
Optional add-on: Front coil sleeves
You can add dedicated front coil sleeves to help protect the powder-coated surface from abrasion in harsh conditions. The sleeves are made from a high-durometer elastomer and act as a cushioning layer.
Installation notes
- Recommended pairing (manufacturer note): designed to perform best with Duroflex control arms and 6Pak or RockSport shocks.
- Powder coating warning: the manufacturer does not recommend re-powdercoating; heat can affect spring properties and may void warranty.
- Alignment: after installation, a suspension specialist alignment is recommended.
- Install info: difficulty: Easy; body modification: None; typical time: 1–2 hours.
Summary (for fast scanning)
MetalCloak 7030 are front True Dual Rate coils for Jeep Wrangler JK 2007–2018, intended for 3.5” front lift (2-door JK) or 2.5” front lift (4-door JKU). Specs include 21.5” free length, 8” solid height, and black powder coat. The kit includes (2) coils and (2) upper front coil isolators.
