heated water tank Toyota Land Cruiser 250 LC250

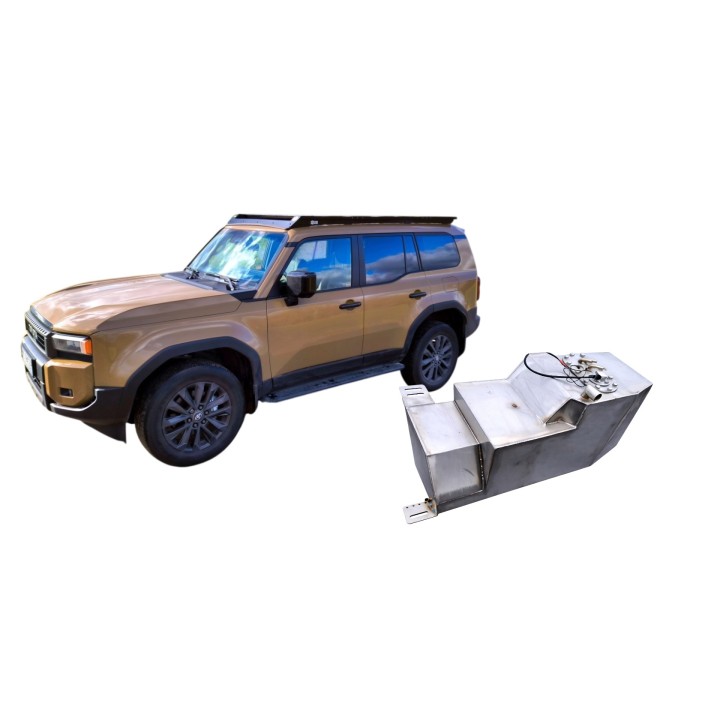

Heated underbody water tank for Toyota Land Cruiser 250 (LC250). Approx. 55L capacity, stainless steel construction with internal baffles. Heated via engine coolant through a heat exchanger and controlled by an electronic temperature controller. Includes 52 mm water level gauge, circulation and outlet pumps, and shower quick connector. Mounted to factory points – no drilling required.
Heated Water Tank for Toyota Land Cruiser 250 (LC250) – Comfort for Overland Travel
This heated underbody water tank is designed for Toyota Land Cruiser 250 (LC250) owners who want reliable access to warm water during overland trips. Mounted underneath the vehicle, it keeps weight low and preserves interior cargo space – a practical solution for serious 4x4 and expedition builds.
Key Benefits

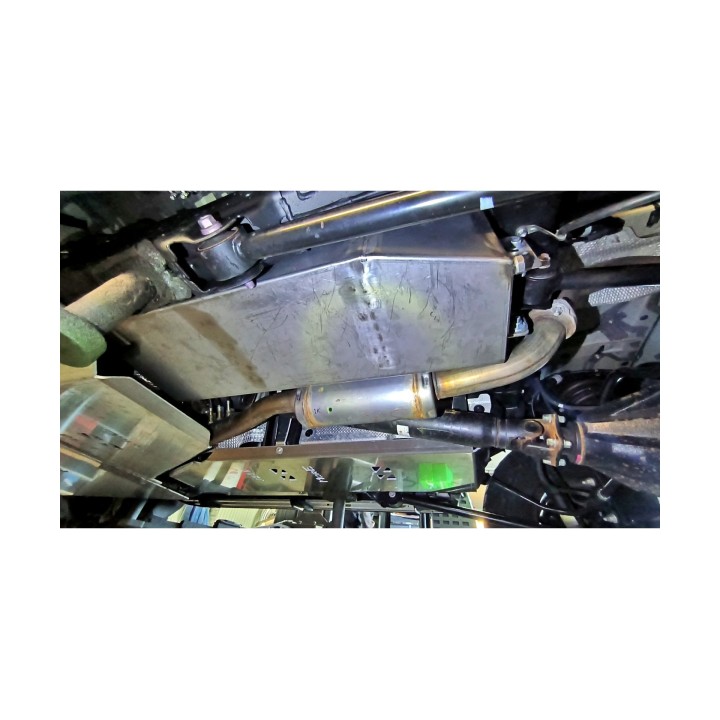

- Underbody installation – low center of gravity and no tank protruding below the frame.

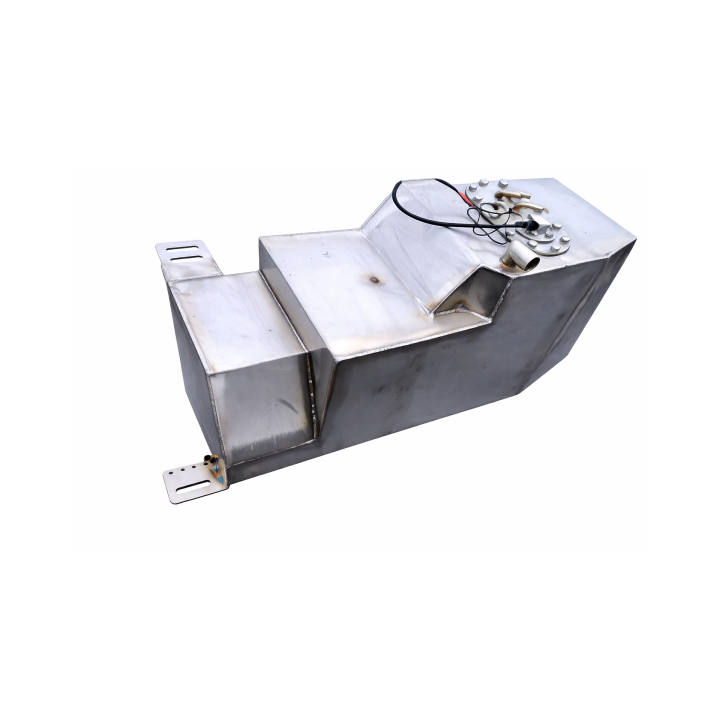

- Stainless steel construction with internal baffles to reduce water movement while driving.
- Heating via engine coolant – integrated heat exchanger connected to the heater circuit.
- Electronic temperature controller – set and maintain desired water temperature automatically.
- 52 mm illuminated water level gauge for easy monitoring.
- External shower outlet with pump and quick connector.

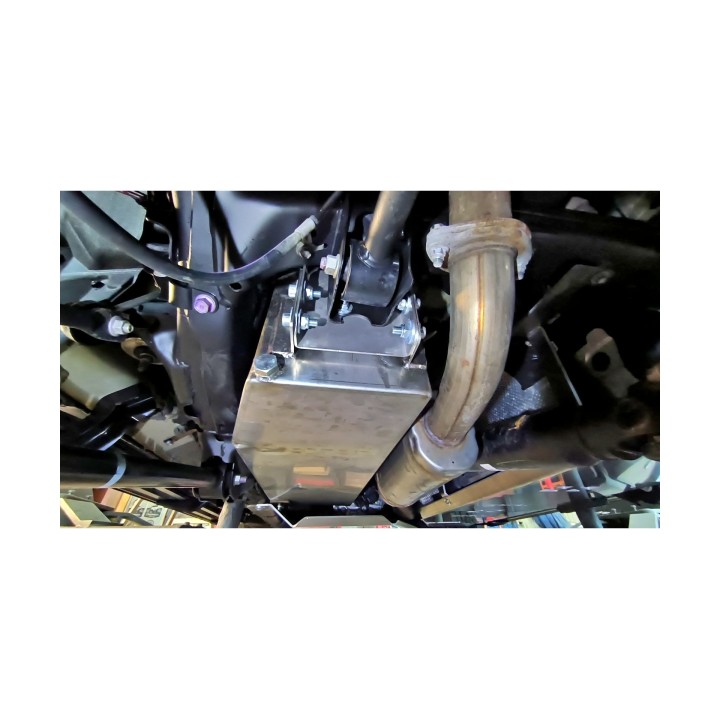

- Bolt-on installation using factory mounting points – no drilling or welding required.
Technical Specifications
| Capacity | Approx. 55 liters |
|---|---|
| Weight | Approx. 19 kg |
| Material | Stainless steel |
| Heating system | Heat exchanger connected to vehicle cooling system |
| Water level gauge | Illuminated 52 mm dial |
| Mounting location | Underbody |

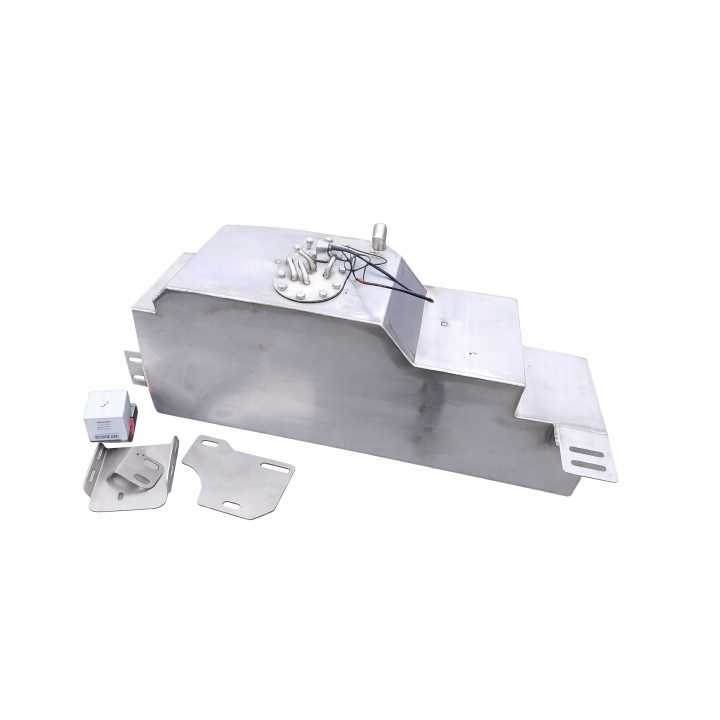

Kit Includes
- Water tank
- Water level gauge
- Electronic temperature controller
- Heat exchanger with fittings
- Circulation pump for heat exchanger
- Water outlet pump
- Quick connector for shower (shower head and 5 m hose available separately)
Note: Installation hardware such as tees, clamps, filler components, hoses and wiring should be sourced separately. A dedicated mounting kit may be available depending on configuration.
Compatibility
- Toyota Land Cruiser 250 (LC250)
Who Is It For?
Ideal for overlanders and 4x4 enthusiasts who require a durable, integrated off-road water system for showering, cooking or campsite use – without sacrificing storage space or vehicle capability.
