Rear shock absorber Ironman 4x4 Foam Cell Comfort, 2" lift — Mitsubishi Pajero Sport (24645FES)

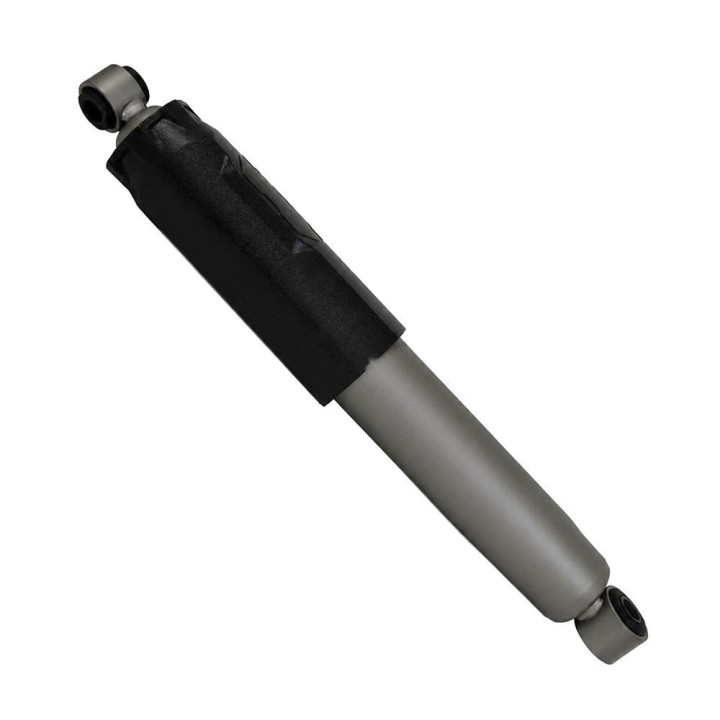

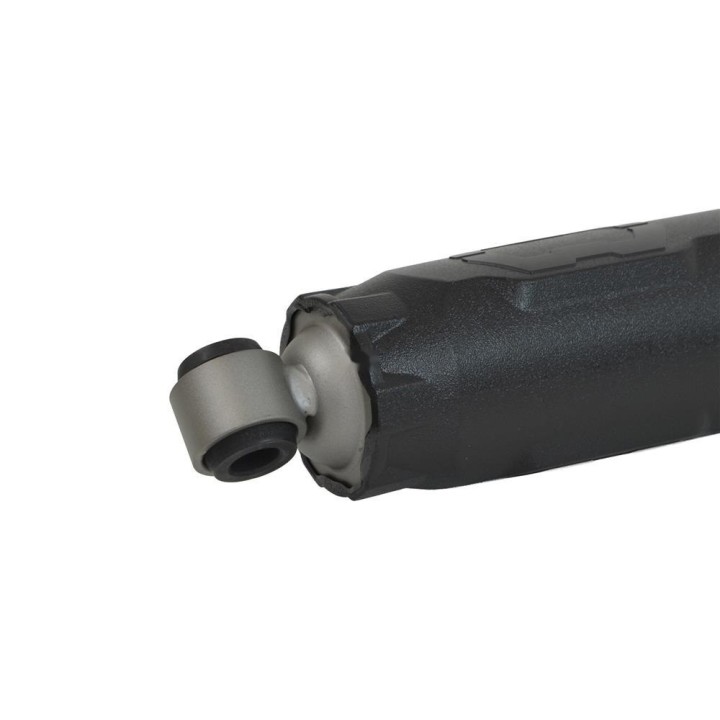

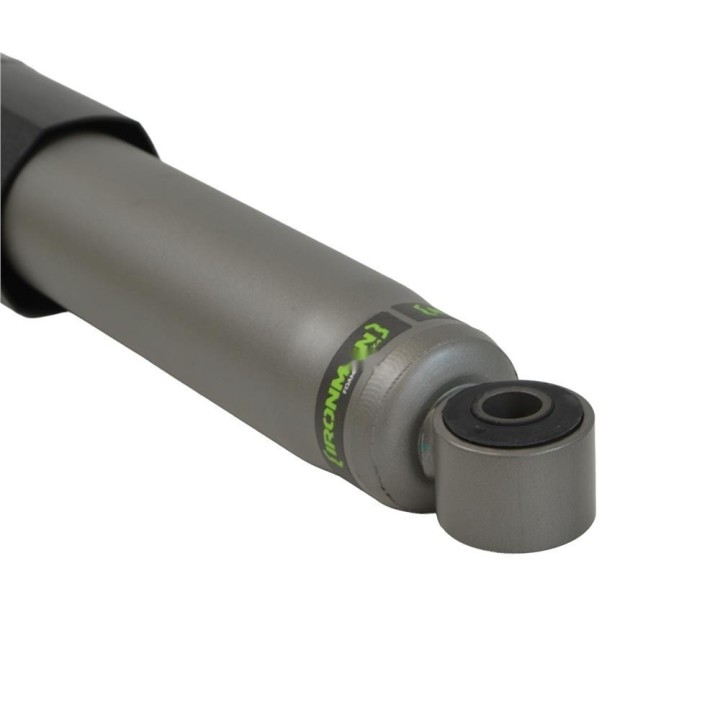

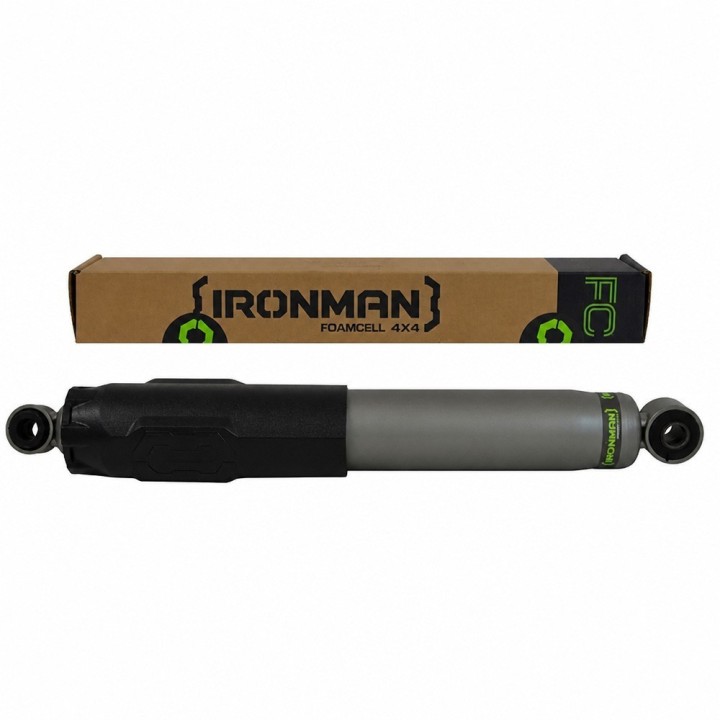

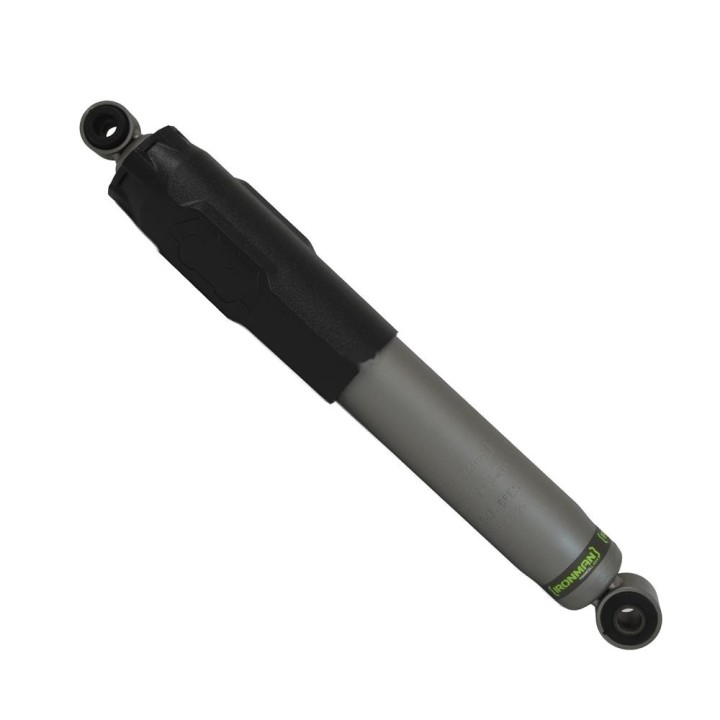

Lifting a car by 2 inches changes the geometry the suspension works in, and the factory shock stops using the travel it has. 24645FES is a rear shock absorber by Ironman 4x4 built for a 2" lift.

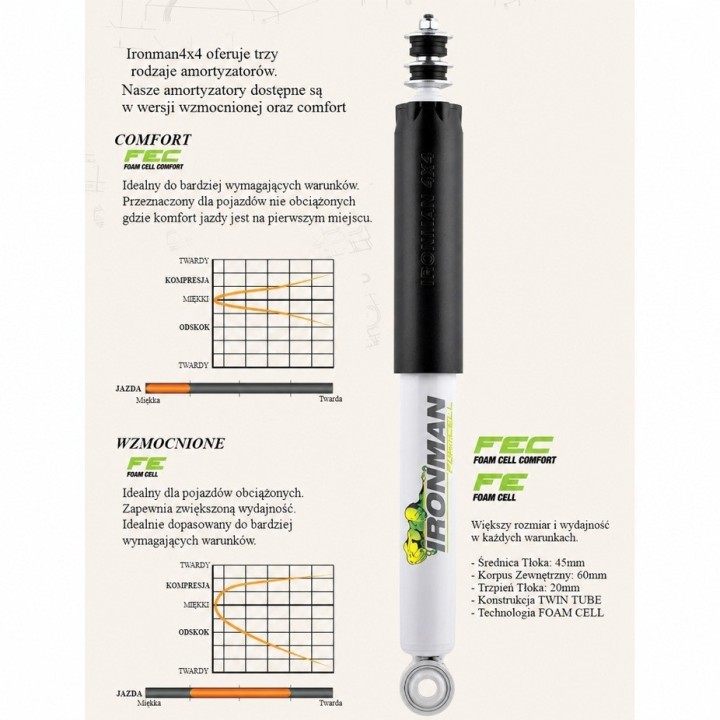

Foam Cell is an oil-filled design with a foam insert instead of gas. The Comfort version is meant for cars that are not permanently loaded — it favours ride comfort. Working length is 520–328 mm, eye to pin mounting.
Position
rear | Lift
2" (approx. 51 mm) | Series
Foam Cell, Comfort | Length
520–328 mm |
Key features
- Working length 520–328 mm — matched to a lifted suspension.
- Mounting eye to pin.
- Foam Cell construction.
- Comfort damping — it favours ride comfort.
- Sold each — two are needed per axle.
Vehicle fitment
- Mitsubishi Pajero Sport 7/2019+
- Mitsubishi Pajero Sport 2015-7/2019R
- Mitsubishi Pajero Sport 2009-2015R
Technical data
| Part number | 24645FES |
| Manufacturer | Ironman 4x4 |
| Position on the car | rear |
| Length max–min | 520 mm – 328 mm |
| Mounting | eye to pin |
| Lift | 2" |
| Shock model | Foam Cell |
| Damping | Comfort |
| EAN | 9326626011338 |
Fitting and notes
The shock absorber is sold per piece — one axle needs two. The 520–328 mm figure is the extended and compressed length; it is worth comparing it with what is on your car, because one model often came with several suspension variants.
We fit these in our own workshop in Warsaw. While the car is apart we check the springs, bushings and top mounts — replacing shocks alone is rarely the whole job.
Frequently asked questions
Will it fit a car with standard ride height?
This one is matched to a 2" lift. On a standard car it would work on the wrong part of its travel — for factory height, choose the standard version.
Comfort or Heavy Duty?
Comfort suits a car used without permanent load. If you carry a canopy, a loaded roof rack or tow a trailer, take the Heavy Duty version.
How many do I need?
Two per axle. A full set for both axles is four shocks — the front ones have a different part number.
Why buy it here
Ironman 4x4 is an Australian brand built for vehicles that really work off-road and carry weight. We fit everything we sell in our own workshop in Warsaw, so if you are not sure which version suits your car, write to us — we will work it out with you.
