Reference: WMMaster10.4x4
Winch Mounting Plates

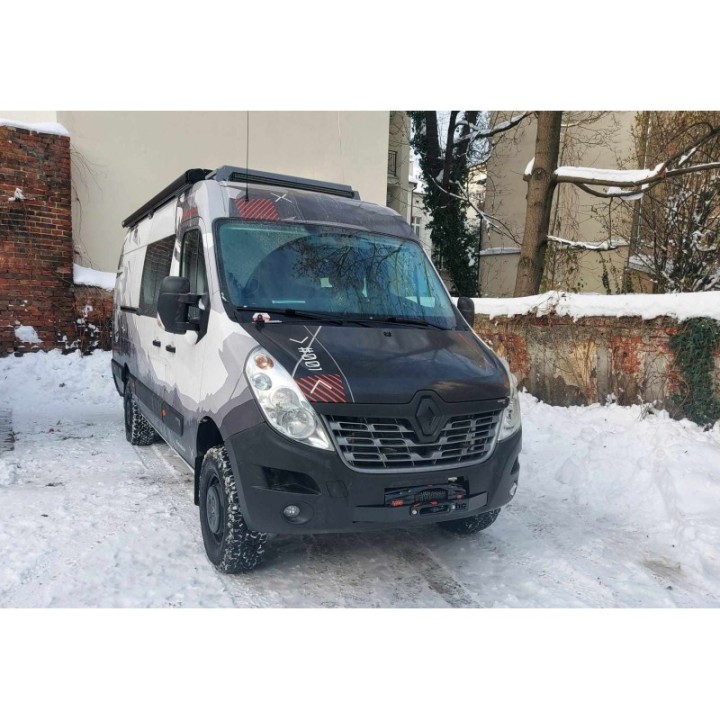

Winch Mounting Plate — Renault Master 4x4 2010-2020
Winch mounting plate for winches up to 12,500 lbs in the Renault Master 4x4 2010-2020. One-piece welded 6 mm structural steel that bolts to the frame rails with no drilling or welding — only 30 mm of its front edge protrudes past the bumper.

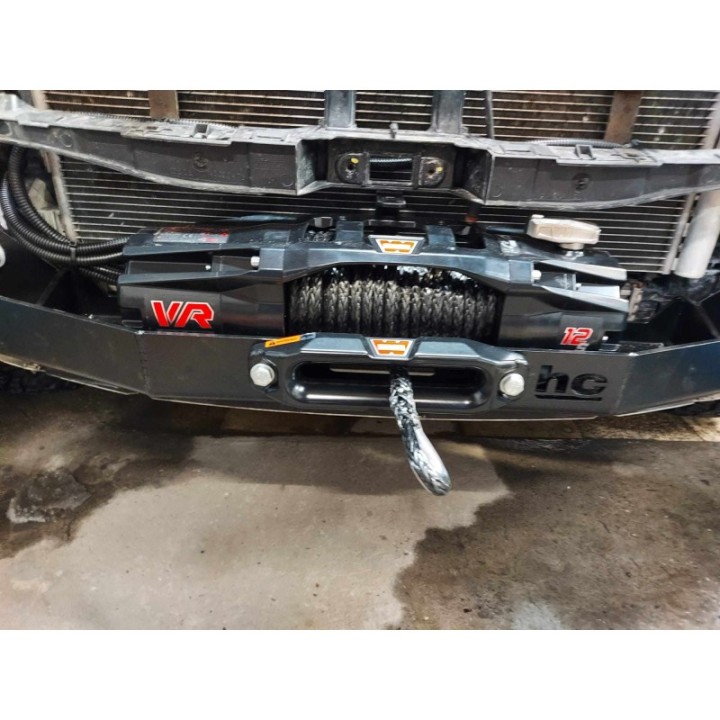

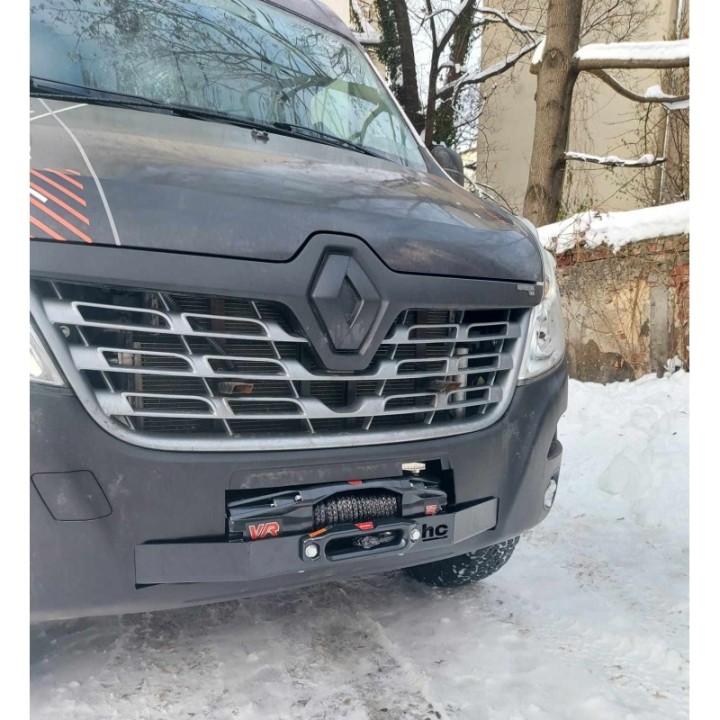

The Master 4x4 will take a crew and their gear past the end of the sealed road — and out there a winch rated up to 12,500 lbs is worth having within reach. This mounting plate keeps it almost entirely behind the factory bumper: only 30 mm of the front of the plate stands proud.

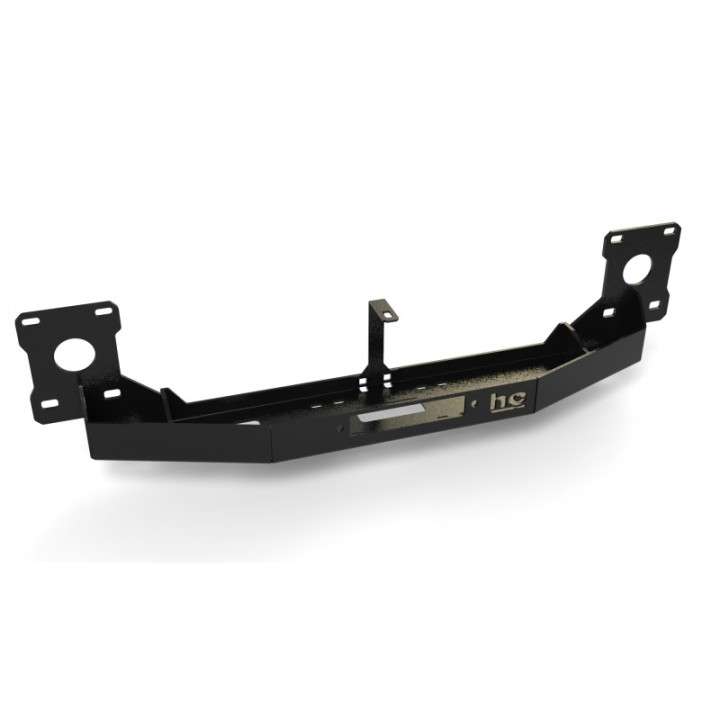

The plate is welded as a single piece with no bolted-on sections, which, at this size, is what gives it high stiffness and low weight. It bolts to the frame rails in place of the front bumper beam, using bolts that are already on the vehicle — no drilling, no welding. Material is 6 mm structural steel, shot-blasted and powder-coated in a two-layer textured finish; a cut-out under the drum makes it easier to clear dirt off the rope.
Specification:
- 6 mm structural steel, welded as one piece
- for winches rated up to 12,500 lbs
- two-layer textured powder coating
- bolts to the frame rails using factory bolts, no drilling or welding
- complete mounting hardware included
- weight approx. 17.9 kg
Important: the product has no road homologation.
