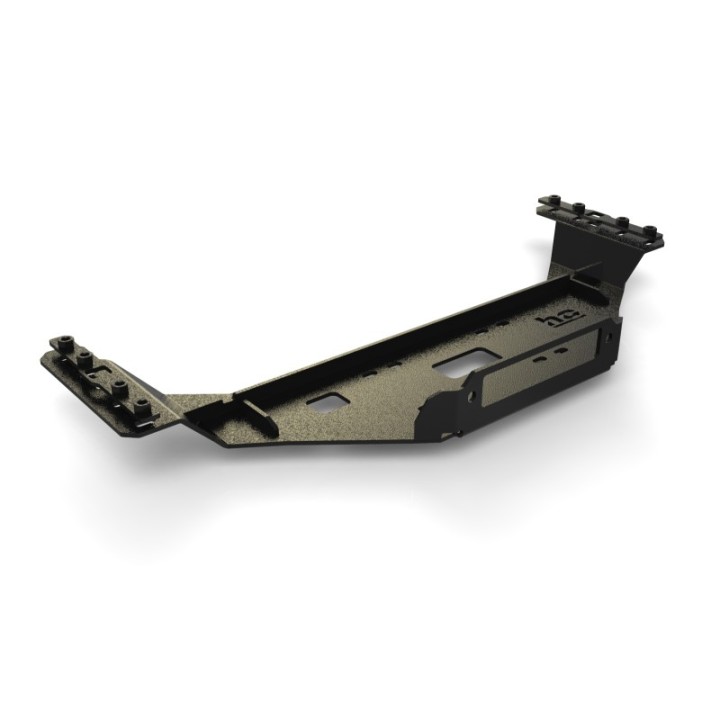

An expedition Sprinter with a manual gearbox deserves a winch you cannot see. This mounting plate hides it completely behind the factory bumper without blocking the radiator air intake. It bolts to the chassis rails and is built as a single welded assembly with no bolted-together parts — which is what makes it both stiff and light.

The material is 6 mm structural steel, shot-blasted and powder coated in a two-layer textured finish. Fitting requires eight holes drilled from below in the ends of the chassis rails. A cut-out under the winch drum makes it easier to clear dirt off the rope.

Specification:

• 6 mm structural steel
• one welded assembly, no bolted-together parts
• bolts to the chassis rails — eight holes drilled from below
• cut-out under the winch drum
• weight approx. 12.7 kg

Important: this is the manual-gearbox version — it does not fit vehicles with an automatic gearbox, for which a separate plate is available. It does not fit vehicles from 2021 on with the 2.0d engine. This product has no type approval.
