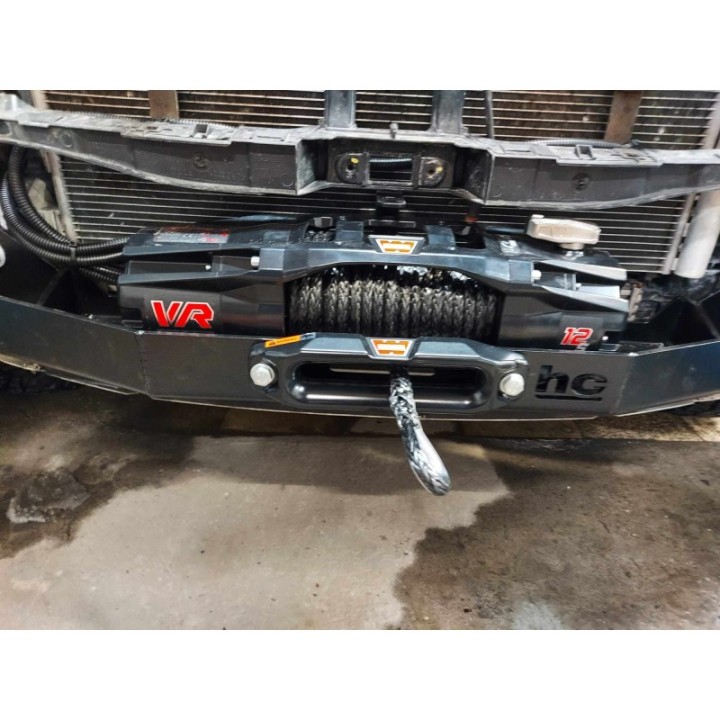

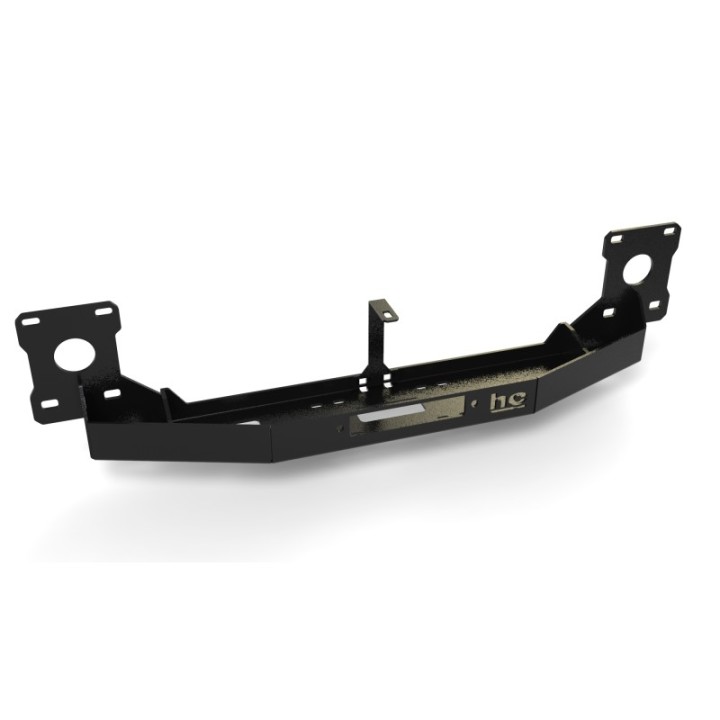

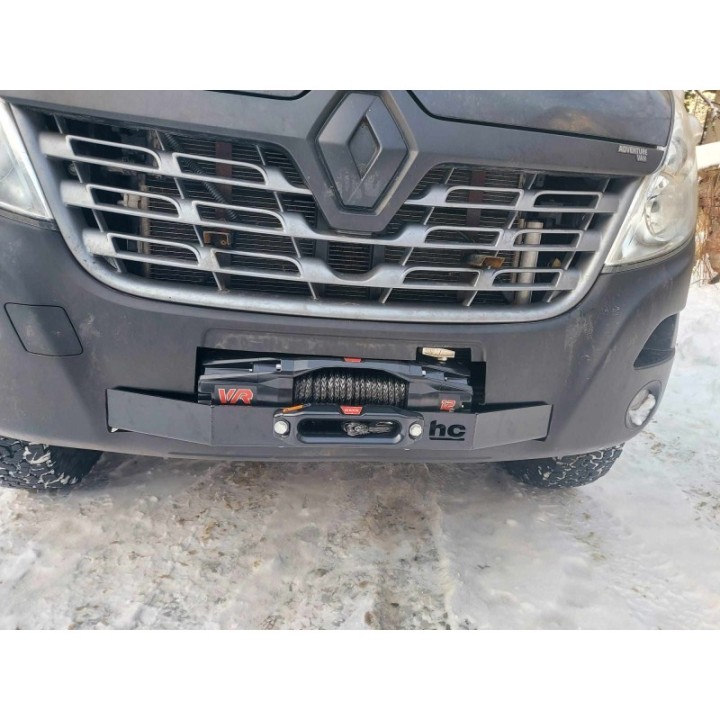

A Master buried up to its axles is the end of a working day — unless there is a winch on board. This mounting plate takes a unit rated up to 12,500 lbs and keeps it almost entirely behind the factory bumper; only 30 mm of the front of the plate stands proud of it. The structure is welded as a single piece with no bolted-on sections, which gives it high stiffness at a low weight despite its size.

The plate bolts to the frame rails in place of the front bumper beam — every bolt it needs is already on the vehicle, so the installation requires no drilling and no welding. It is made from 6 mm structural steel, shot-blasted and powder-coated in a two-layer textured finish. A cut-out under the drum makes it easier to clear dirt off the rope.

Specification:

• for winches rated up to 12,500 lbs
• 6 mm structural steel, welded as one piece
• bolts to the frame rails — no drilling, no welding
• cut-out under the winch drum
• complete mounting hardware included
• weight approx. 17.6 kg

Important: the product has no road homologation.
