Winch Mounting Plates

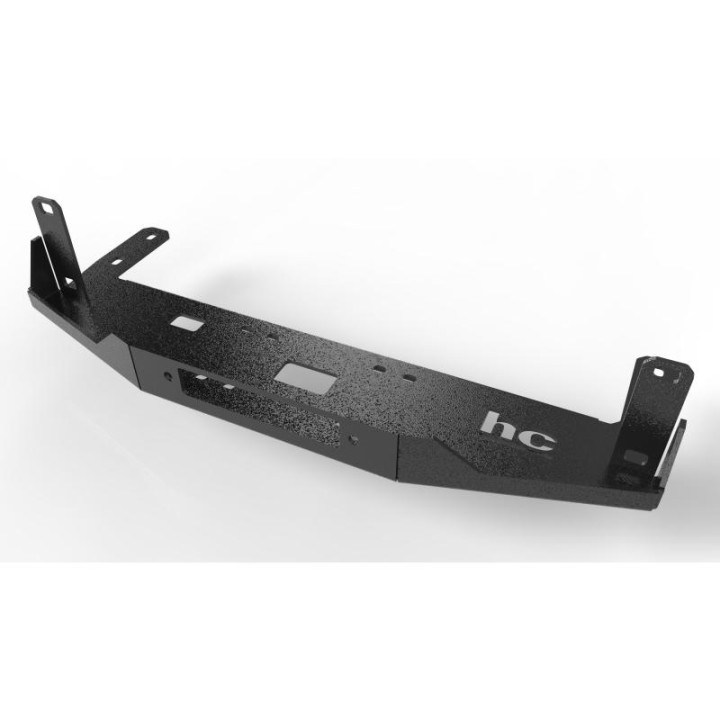

Winch Mounting Plate — Nissan Pathfinder R51 2005-2010
Winch mounting plate that hides a winch rated up to 12,500 lbs completely behind the factory bumper of the Nissan Pathfinder R51 2005-2010. 6 mm structural steel, bolts into existing chassis holes. Not for the V6 4.0 engine.
A winch stowed so well that nobody notices it — until the moment it is needed. On the Pathfinder R51 this mounting plate holds a unit rated up to 12,500 lbs entirely behind the original factory bumper, with the fairlead as the only visible clue. Extended mounting points under the chassis let you keep the factory towing eye, or both eyes, solidly bolted in place.
The plate goes in where the beam under the bumper sits and bolts into the existing holes in the chassis — no welding, no drilling. It is made from 6 mm structural steel plate, shot-blasted and finished with a two-layer textured powder coat.
Specification:
- for winches rated up to 12,500 lbs
- 6 mm structural steel
- bolts into existing chassis holes — no drilling, no welding
- extended mounts for the factory towing eye or eyes
- weight approx. 12 kg
Important: it does not fit vehicles with the V6 4.0 engine. This product has no type approval.
