Reference: WMBT50-2006-p
Winch Mounting Plates

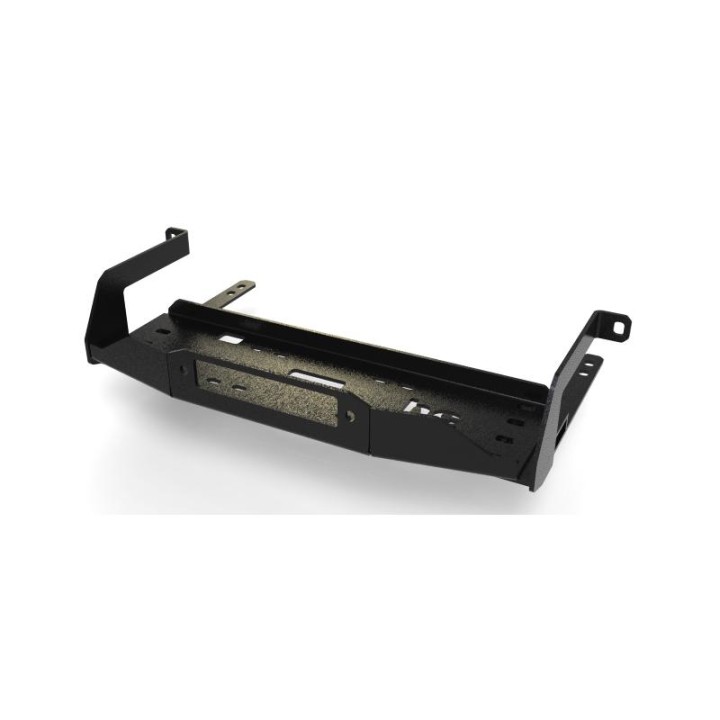

Winch Mounting Plate, petrol — Mazda BT-50 2006-2011
Winch mounting plate for winches up to 12,500 lbs on the petrol Mazda BT-50 2006-2011, seated in the original bumper. 6 mm structural steel with extended mounts for the factory tow eye, approx. 13.3 kg.
A petrol BT-50 with a winch keeps going where four-wheel drive alone runs out of answers. This mounting plate takes a winch of up to 12,500 lbs and seats it in the original factory bumper — the plate and winch protrude partly in front of the bumper. Extended mounts under the frame allow the factory tow eye or eyes to be fitted securely.
Made from 6 mm structural steel sheet, shot-blasted and finished with a two-layer textured powder coat. It bolts into the factory holes in the frame — installation needs no welding and no drilling.
Specification:
- for winches with up to 12,500 lbs of pull
- 6 mm structural steel
- bolts into factory frame holes — no drilling or welding
- extended mounts for the factory tow eye or eyes
- weight approx. 13.3 kg
Important: it fits petrol-engined vehicles only — it does not fit the diesel version. This product has no type approval.
