Heavy Cruiser - Osłony i płyty do wyciągarek
Reference: WMBT50-2020
Winch Mounting Plates

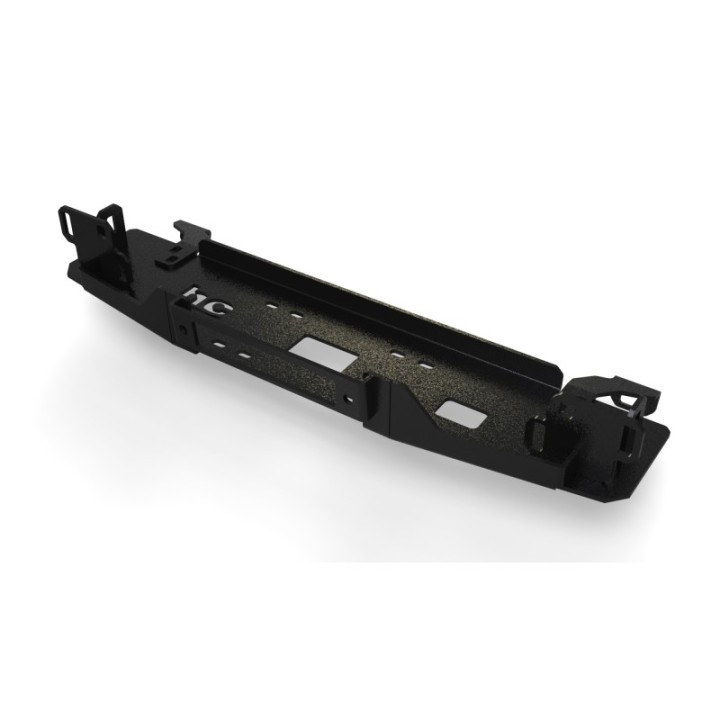

Winch Mounting Plate — Mazda BT-50 III 2020+
Winch mounting plate that hides a winch of up to 12,500 lbs completely behind the factory bumper of the Mazda BT-50 III from 2020. 6 mm structural steel, bolted to the frame in place of the bumper beam, approx. 12 kg.
Once a BT-50 is buried up to its axles, the only thing that counts is whether the winch has something solid to hold on to. This mounting plate takes a winch of up to 12,500 lbs and hides it completely behind the factory bumper — the truck keeps its stock appearance and gains a real way of getting itself out.
The plate bolts to the vehicle frame in place of the bumper beam. It is made from 6 mm structural steel sheet, shot-blasted and finished with a two-layer textured powder coat. A cut-out under the winch drum makes it easier to clear dirt off the rope after working in mud.
Specification:
- for winches with up to 12,500 lbs of pull
- 6 mm structural steel
- two-layer textured powder coating
- bolts to the frame in place of the bumper beam
- cut-out under the drum that makes rope cleaning easier
- weight approx. 12 kg
Important: this product has no type approval.
