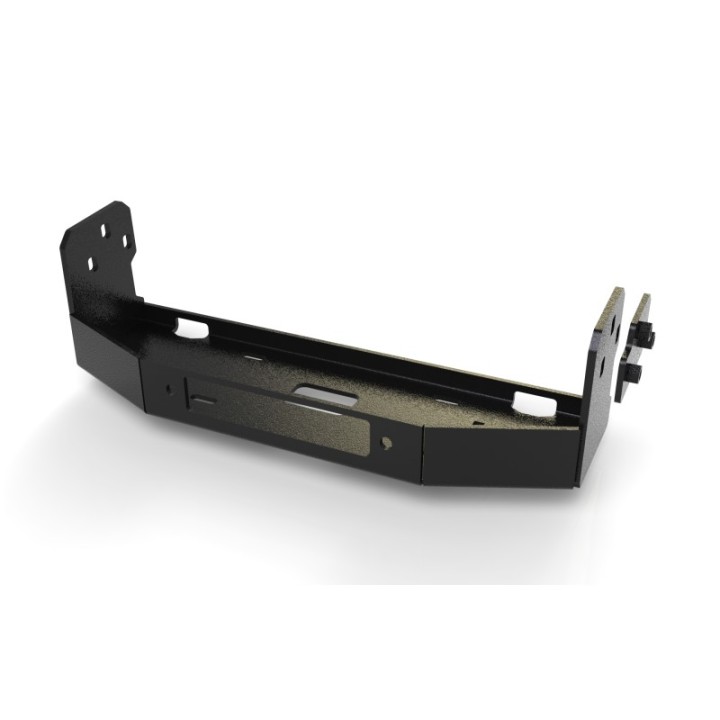

The Patrol Y60 has been carrying people where roadside assistance does not reach for decades — so in this truck a winch is basic equipment, not a gadget. This plate in the STANDARD version lets you mount a winch of up to 12,500 lbs securely behind the factory bumper.

The plate bolts to the frame through the original holes — no drilling, no welding. On the left you simply slide the supplied nut plate into the frame rail; on the right the factory threads are used. It is built from 6 and 8 mm structural steel sheet, shot-blasted and finished with a two-layer textured powder coat. Cut-outs at the rear of the plate and under the winch drum make it easier to clear dirt off the rope.

Specification:

• for winches with up to 12,500 lbs of pull
• 6 and 8 mm structural steel
• two-layer textured powder coat
• bolts into the original frame holes — no drilling or welding
• cut-outs that make rope cleaning easier
• weight approx. 9.5 kg

Important: this product has no type approval.
