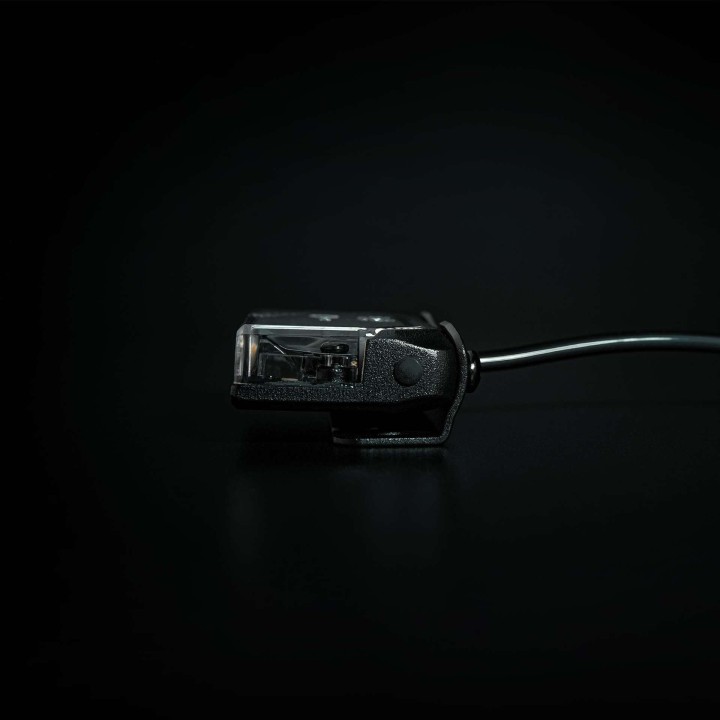

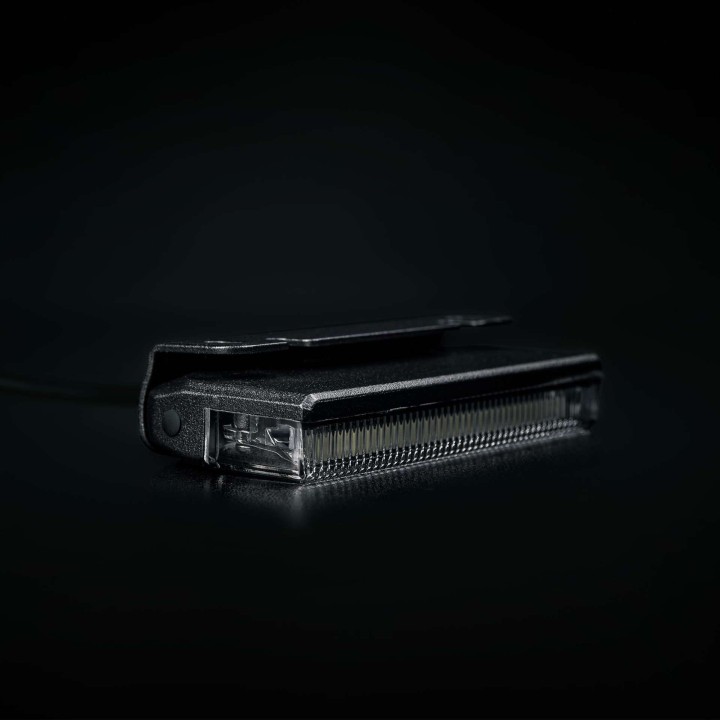

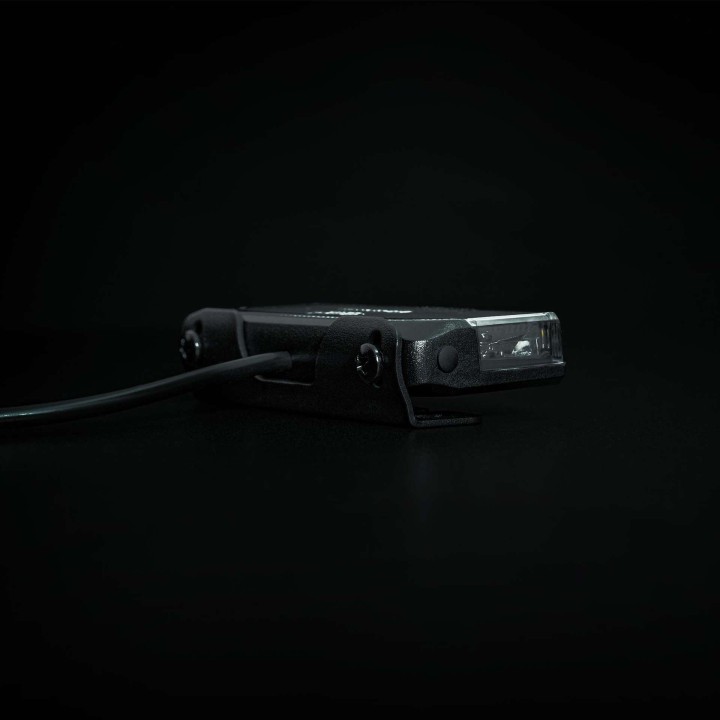

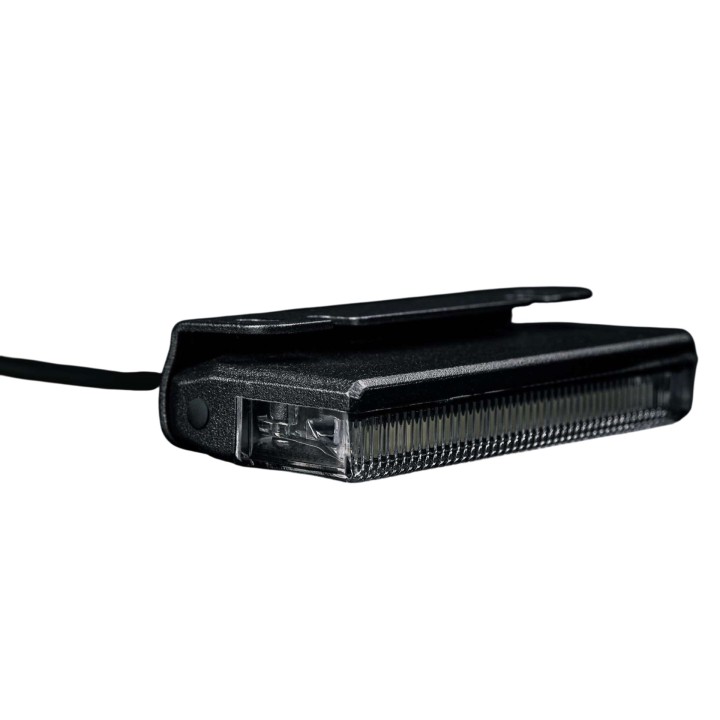

The Unity Ultra Flat 22W is an exceptionally slim LED work light designed for installation in places where a standard lamp housing would take up too much space. Its compact 90 × 40 × 15 mm body makes it easier to fit between bodywork components, under the vehicle, near a roof rack or at the rear of an off-road vehicle.

The lamp provides an actual light output of 1370 lm and uses a wide Flood Beam pattern. This allows it to illuminate a broad working area around the vehicle instead of concentrating the light in one narrow spot. A range of 1 lux at 32 metres makes it suitable for manoeuvring, handling equipment and carrying out work after dark.

The aluminium housing is combined with a clear polycarbonate lens and an additional coating that improves protection against salt and dirt. IP68 and IP69K protection ratings make the lamp suitable for demanding off-road conditions where lighting is exposed to water, mud and heavy contamination.

Key features

• Ultra-slim housing for installation in limited spaces
• Actual light output of 1370 lm
• Wide Flood Beam for illuminating the area around the vehicle
• Light range of 1 lux at 32 m
• Power consumption of 22 W
• Aluminium housing and polycarbonate lens
• IP68/IP69K protection rating
• Additional protection against salt and dirt

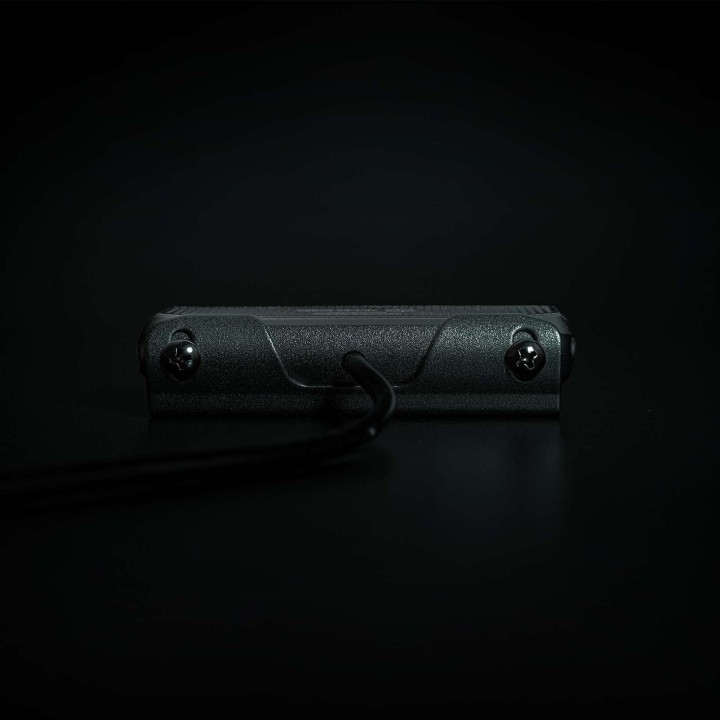

• Rear or side mounting options
• Rubber pad helps protect the mounting surface
• Operating temperature range from -30°C to +65°C
• 3-year warranty

Technical specifications

• Product type: LED work light
• Part number: 800552
• Voltage: 10–32 V DC
• Power consumption: 22 W
• Actual light output: 1370 lm
• Range: 1 lux at 32 m
• Beam pattern: Flood Beam
• Housing material: aluminium
• Lens material: polycarbonate
• Lens colour: clear

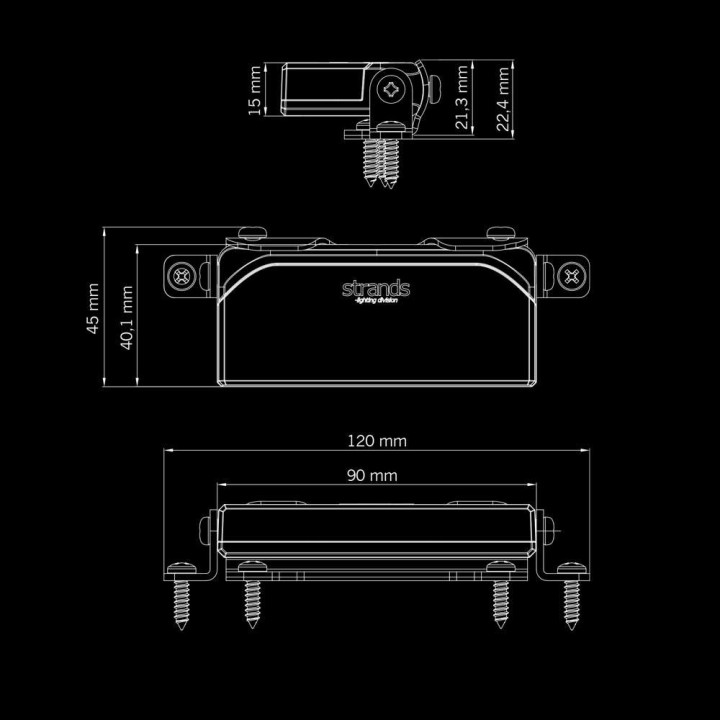

• Lamp dimensions: 90 × 40 × 15 mm
• Height with bracket: 22.4 mm
• Cable length: 500 mm
• Protection rating: IP68/IP69K
• Operating temperature: from -30°C to +65°C
• Electromagnetic compatibility: ECE R10.06
• Approved for use as road lighting: no

Off-road and 4x4 applications

The Unity Ultra Flat 22W can be used as additional work lighting on an off-road vehicle, expedition vehicle or overlanding build. Its wide beam is useful for illuminating the area behind the vehicle when reversing, setting up camp, operating a roof rack or handling off-road equipment. The low-profile housing also helps where larger work lights could interfere with bodywork or vehicle accessories.

Why buy from Szekla4x4.pl

By choosing the Unity Ultra Flat from Szekla4x4.pl, you get a compact work light suited to the practical needs of 4x4 and overlanding users. Clearly presented specifications make it easier to assess the mounting location, electrical connection and beam pattern before installation.
