OSRAM
Reference: LEDBL201 SET
Flashlights

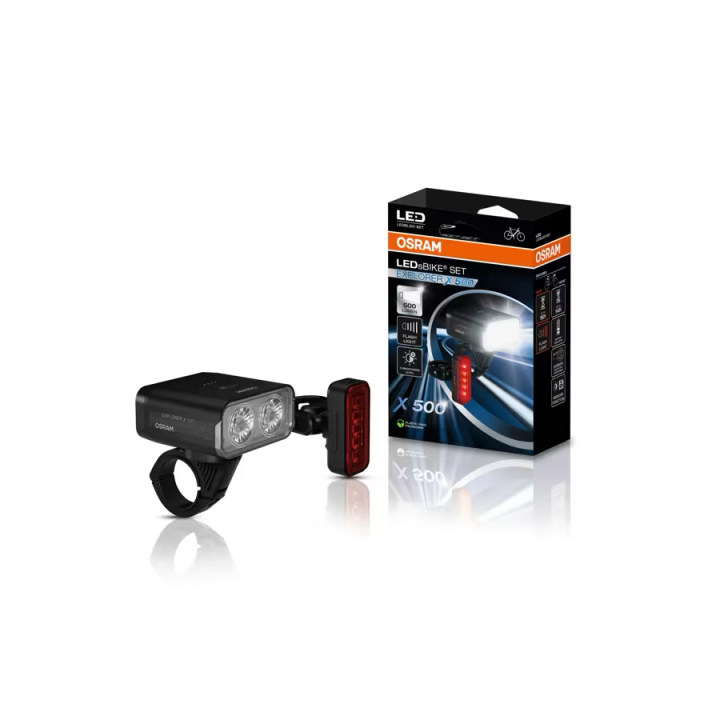

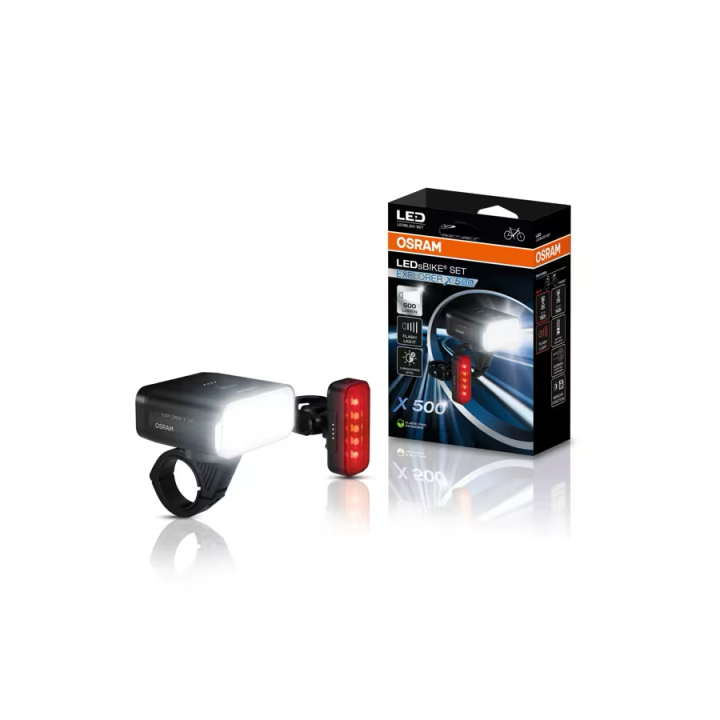

OSRAM LEDsBIKE EXPLORER X 500 SET – LED bicycle light set, 500 lm, USB-C, IP54

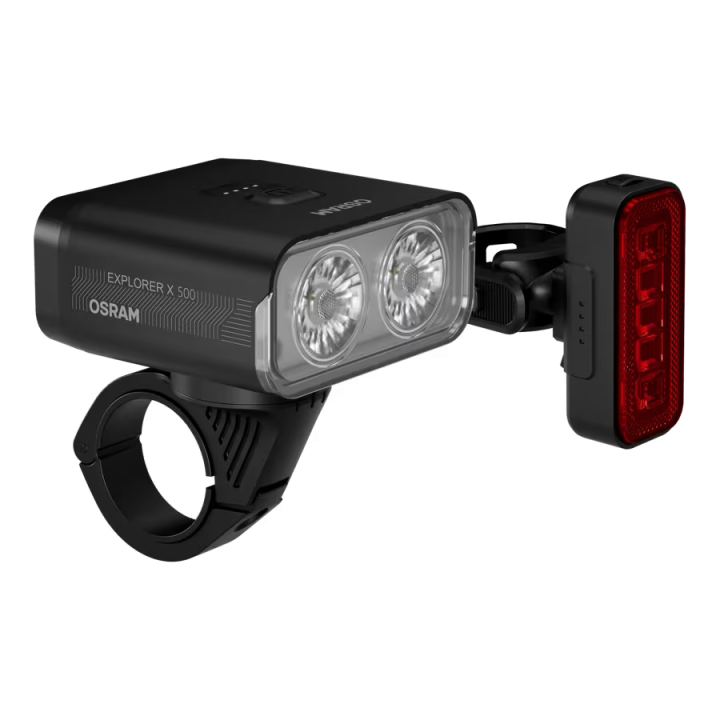

OSRAM LEDsBIKE EXPLORER X 500 SET is a rechargeable bicycle lighting set with an up-to-500 lm front light and a red rear light. The front unit offers 100%, 50%, 25% and flash modes, while the rear light provides steady and flash operation. Both lights recharge via USB-C and the set is rated IP54. German StVZO approval is not provided.
OSRAM LEDsBIKE EXPLORER X 500 SET – adaptable lighting for rides and trails

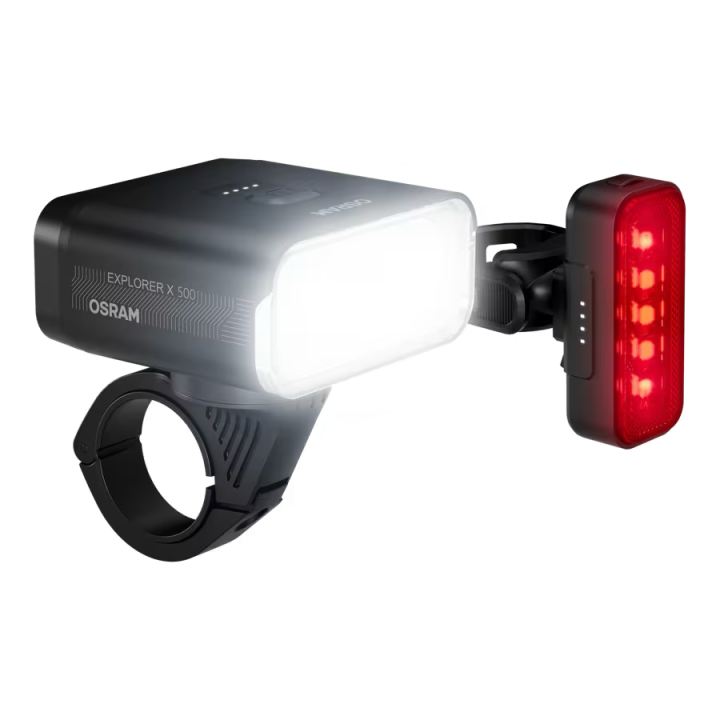

OSRAM LEDsBIKE EXPLORER X 500 SET combines a rechargeable front light delivering up to 500 lm with a red rear light. Multiple brightness settings, flashing modes, USB-C charging and a versatile handlebar mounting system make it suitable for riders who want to balance light output with battery runtime.
Key benefits
- Up to 500 lm front output for illuminating the route in low-light conditions.
- Three brightness levels plus Flash – High 100%, Low 50%, Eco 25% and flashing mode.
- Long battery runtime – up to 14 hours at the front in Eco and up to 30 hours at the rear in Flash mode.
- USB-C charging – approximately 3 hours for the front light and 2 hours for the rear.
- IP54 rating as specified by OSRAM.
- Ø 22.2–35 mm handlebar compatibility for flexible installation.
Light modes and runtime

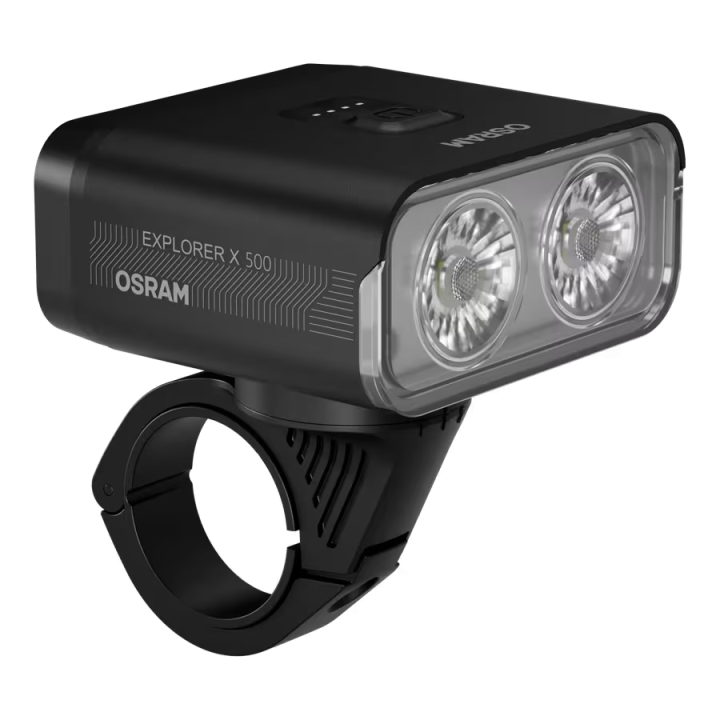

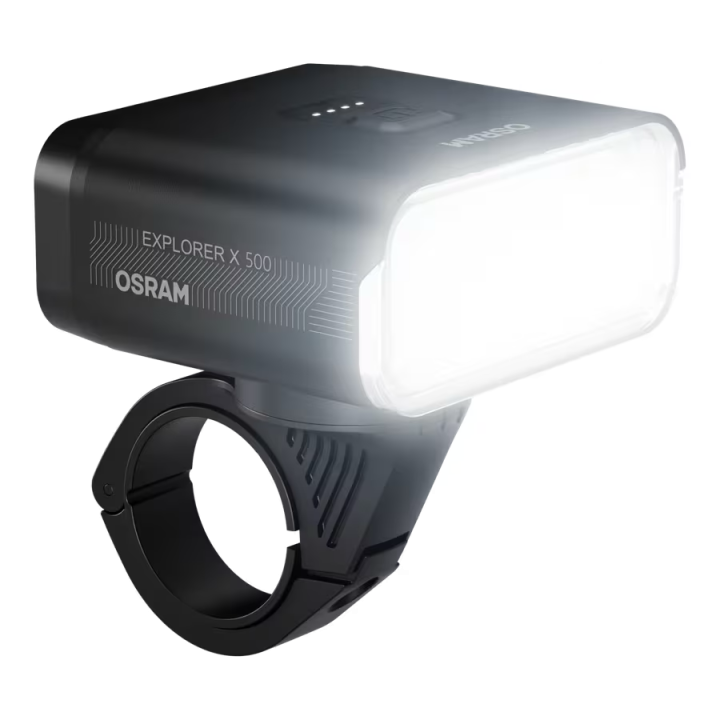

The front light has a maximum specified luminous flux of 500 lm and a colour temperature of 5,800 K. High, Low and Eco settings allow the rider to trade maximum output for longer operating time. OSRAM does not specify a beam angle, 1-lux range or candela value for this model, so these figures should not be estimated in the product specification.
| Light | Mode | Specified runtime |
|---|---|---|
| Front | High 100% | 3 h |
| Front | Low 50% | 7 h |
| Front | Eco 25% | 14 h |
| Rear | Steady | 16 h |
| Rear | Flash | 30 h |
Mounting

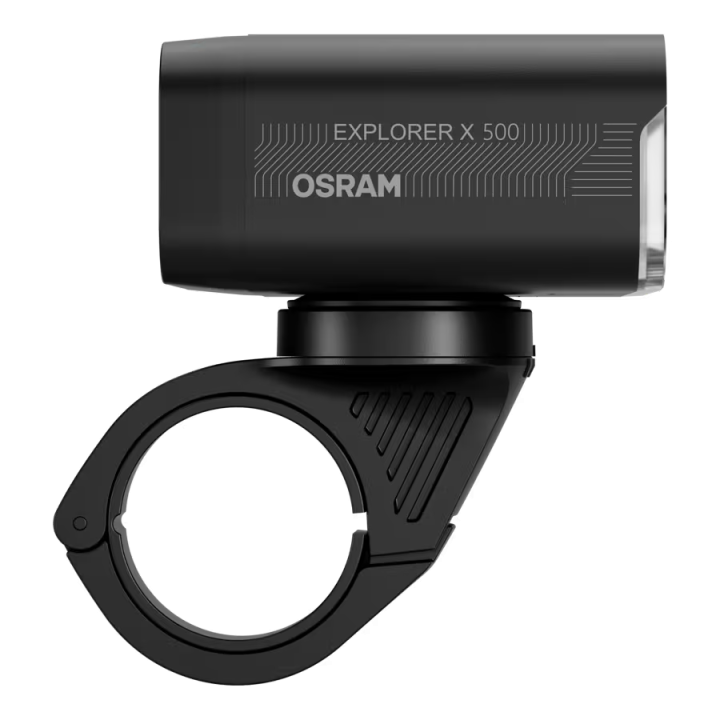

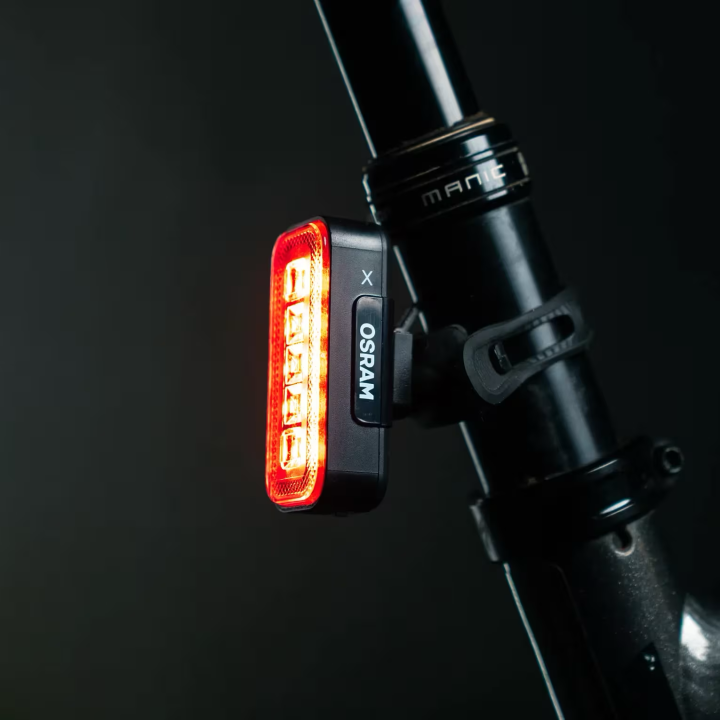

The front-light mount is Garmin-compatible and supports handlebars measuring 22.2 mm, 25.4 mm, 31.8 mm or 35 mm in diameter. The light can be released from the bracket without removing the handlebar clamp. The rear light uses a flexible strap mounting system.
Road use
OSRAM states that the LEDsBIKE EXPLORER X 500 SET is not approved for use within the scope of the German StVZO regulations. This is a German-market restriction and should not be presented as a universal prohibition on public-road use.
For use in Poland, the complete bicycle must comply with Polish lighting requirements. These include a white or selective-yellow front position light, a red rear position light and a separate non-triangular red rear reflector. Flashing bicycle position lights are permitted, but the lighting must be correctly positioned and must not dazzle other road users.
Important: the light set does not replace the mandatory rear red reflector required on the bicycle.
Construction and charging
OSRAM specifies an aluminium housing and a transparent acrylic lens, together with an IP54 protection rating. The integrated lithium-ion batteries operate at a nominal 3.7 V, so the product is a self-contained bicycle lighting system and does not require a 12/24 V vehicle electrical system, relay or automotive wiring harness.
Technical specifications
| Specification | Value |
|---|---|
| Brand | OSRAM |
| Model | LEDsBIKE EXPLORER X 500 SET |
| MPN | LEDBL201 SET |
| GTIN/EAN | 4062172426046 |
| Front luminous flux | up to 500 lm |
| Colour temperature | 5,800 K |
| Nominal voltage | 3.7 V |
| Battery | Lithium-ion |
| Charging | USB-C |
| Charging time | front approx. 3 h / rear approx. 2 h |
| Protection rating | IP54 |
| Compatible handlebar diameters | 22.2 / 25.4 / 31.8 / 35 mm |
| Manufacturer warranty | 2 years |

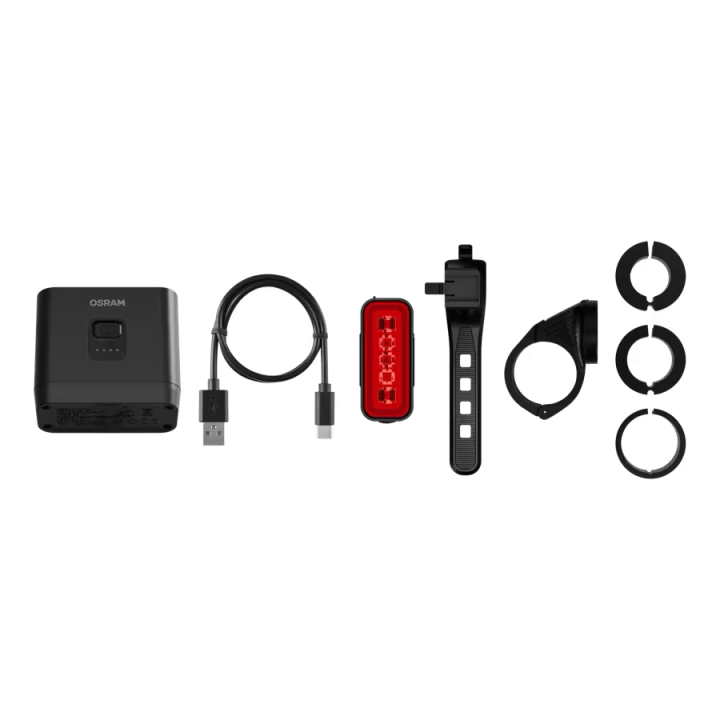

Package contents
Manufacturer documentation confirms a front light, rear light, bicycle mounting components and a USB-A to USB-C charging cable. Handlebar adapters are shown in the installation instructions. An Allen key is illustrated during installation, but OSRAM does not provide a textual packing list that explicitly confirms it as an included component.
