Reference: OTIR1600ESN
Compressors and accessories

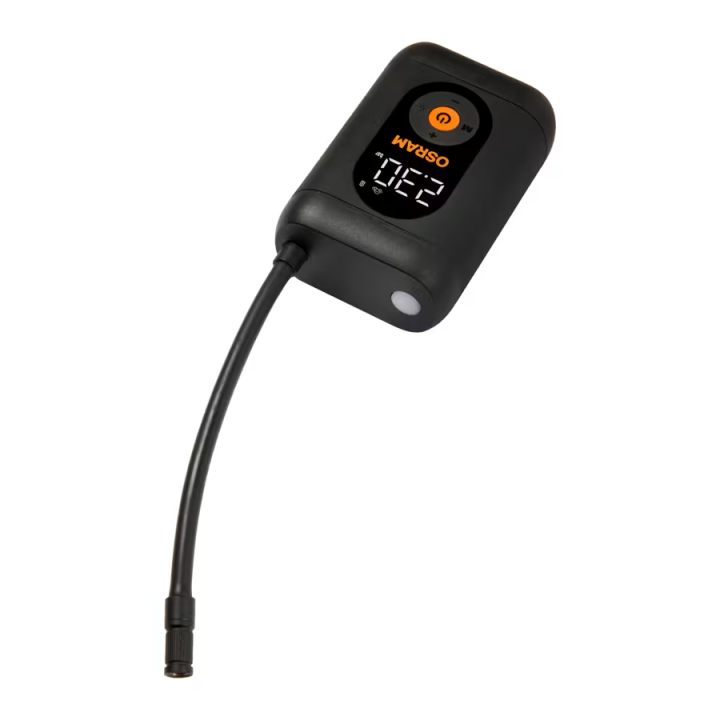

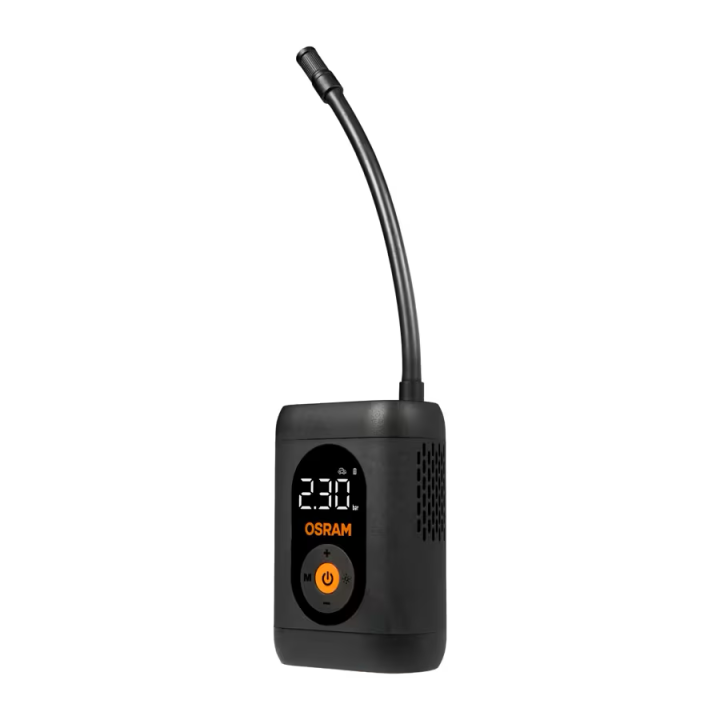

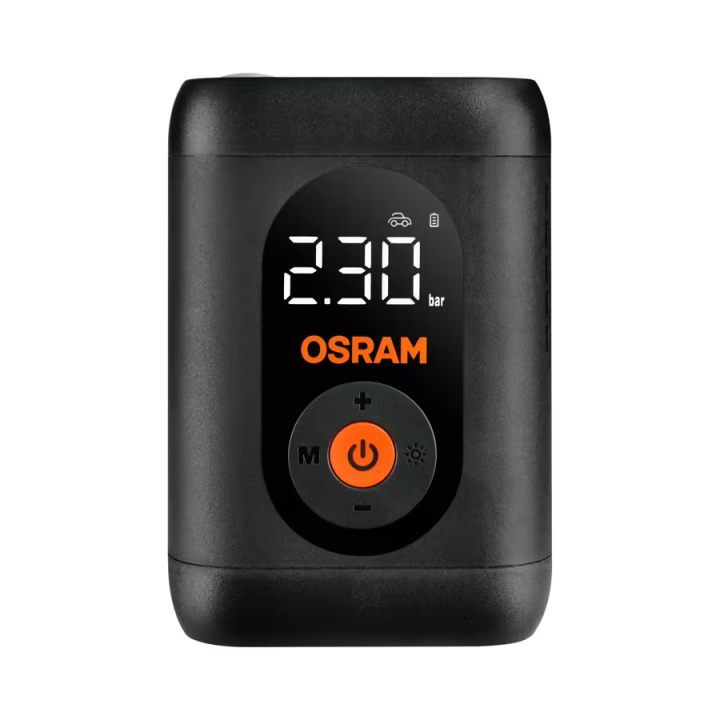

OSRAM TYREinflate 1600 ESSENTIAL – cordless digital tyre inflator, USB-C, 7 bar
OSRAM TYREinflate 1600 ESSENTIAL is a compact cordless digital tyre inflator for cars, 4x4s, vans and bicycles. It combines Auto-stop, bar/psi/kPa pressure display, ±0.1 bar accuracy, a 7 bar maximum pressure and an integrated LED light. The internal battery charges via USB-C, while OSRAM states around six minutes to inflate a flat 13" tyre to 2.4 bar.
OSRAM TYREinflate 1600 ESSENTIAL – compact cordless tyre inflation for the road

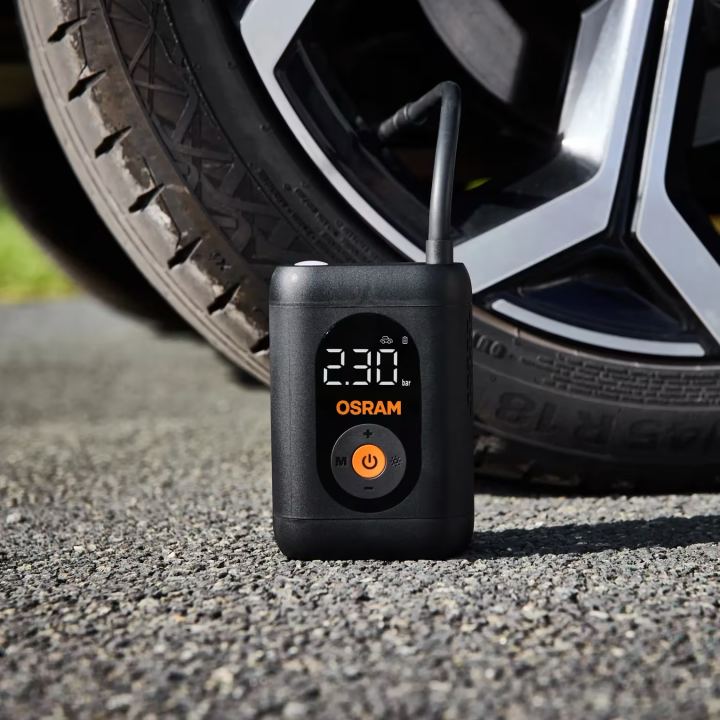

OSRAM TYREinflate 1600 ESSENTIAL is a rechargeable digital tyre inflator designed for checking and topping up tyre pressure without relying on a vehicle's 12 V socket during normal cordless use. Its compact format makes it suitable for carrying in a passenger car, 4x4, van, trailer or touring vehicle.
Key benefits
- Auto-stop – select your target pressure and the inflator stops automatically once it is reached.
- Maximum pressure of 7.0 bar / 100 psi according to the current product datasheet.
- ±0.1 bar stated accuracy with a digital display in bar, psi or kPa.
- Approx. 6-minute inflation time in OSRAM's test using a flat 13" tyre inflated to 2.4 bar.
- Rechargeable and cordless with USB-C charging.

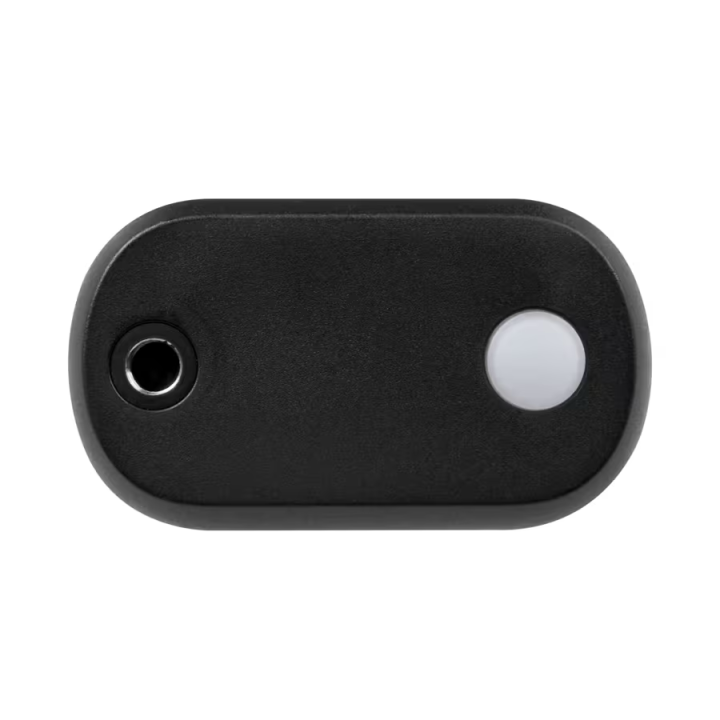

- Integrated white LED light for easier operation in low-light conditions.
Useful for 4x4 and travel vehicles

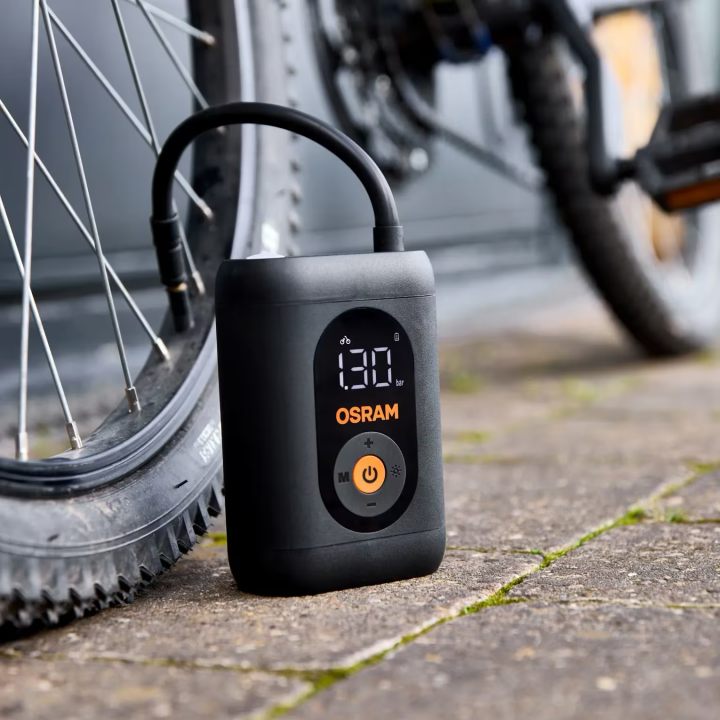

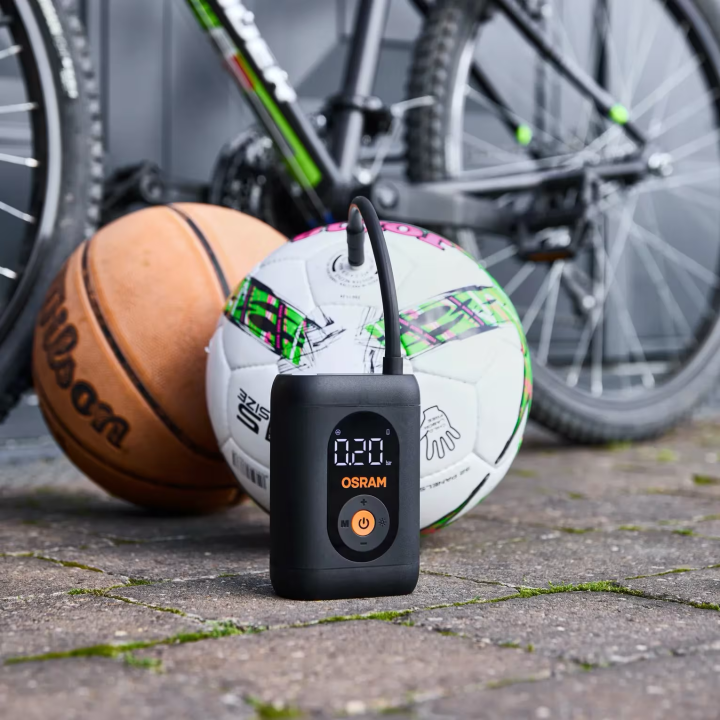

OSRAM lists cars, small vans, 4x4s, large vans, trailers, bicycles, balls and inflatables among the recommended applications. The quoted six-minute figure applies specifically to a 13" tyre, so it should not be treated as an inflation-time guarantee for larger off-road tyres.
Digital pressure control and Auto-stop

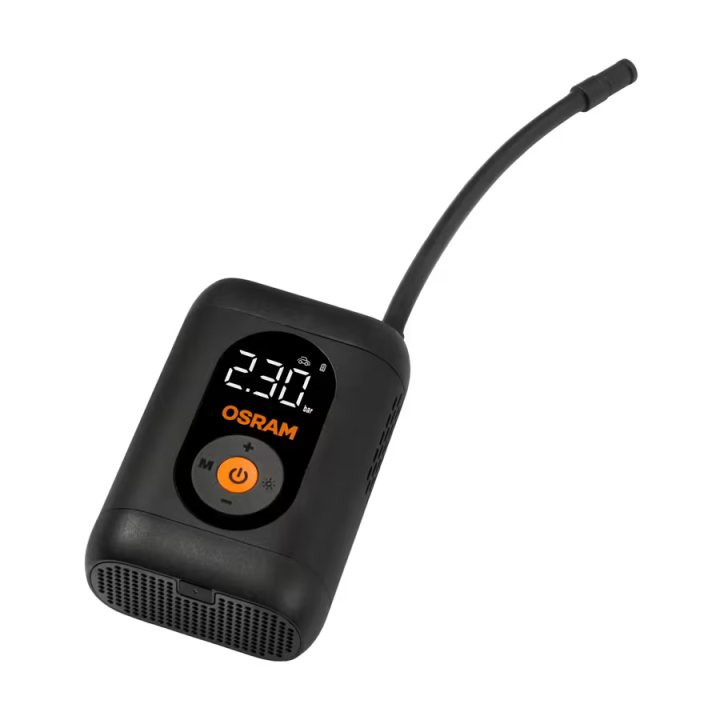

The digital display shows pressure in bar, psi or kPa. Auto-stop allows the target pressure to be selected in advance, reducing the need to monitor the gauge continuously while topping up a tyre. OSRAM states a pressure accuracy of ±0.1 bar.
Compact dimensions

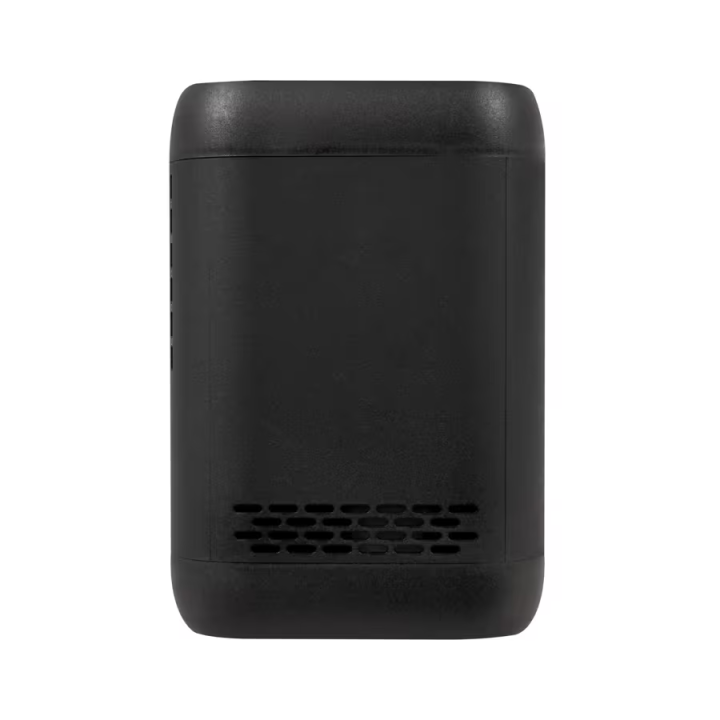

The unit measures 85 × 49 × 123 mm and the exact-model instruction lists a product weight of 475 g. OSRAM also specifies a noise level of 88 dB.
Technical specifications
| Specification | Value |
|---|---|
| Brand | OSRAM |
| Model | TYREinflate 1600 ESSENTIAL |
| MPN | OTIR1600ESN |
| Maximum pressure | 100 psi / 7.0 bar |
| Inflation time | approx. 6 min – flat 13" tyre to 2.4 bar |
| Pressure accuracy | ±0.1 bar |
| Units | bar, psi, kPa |
| Auto-stop | Yes |
| Display | Digital |
| LED light | Yes |
| Rated power | 74 W |
| Rated voltage | 7.4 V |
| Battery | Li-ion, 2 × 2,000 mAh |
| Charging | USB-C, 5 V / 2.5 A input |
| Air hose | 20 cm |
| Dimensions | 85 × 49 × 123 mm |
| Product weight | 475 g |
| Noise level | 88 dB |
| Operating temperature | −10 to +40°C |
| Manufacturer warranty | 2 years |
| GTIN / EAN | 4062172420778 |

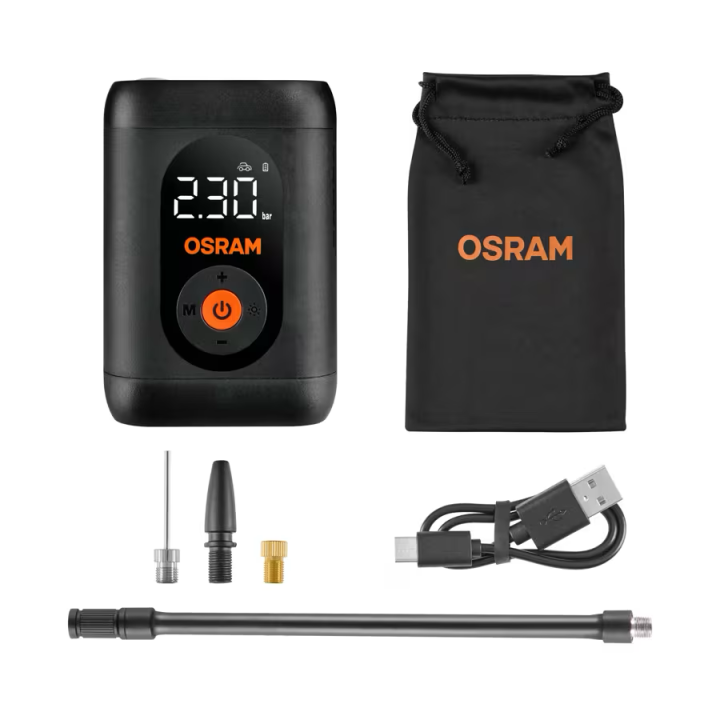

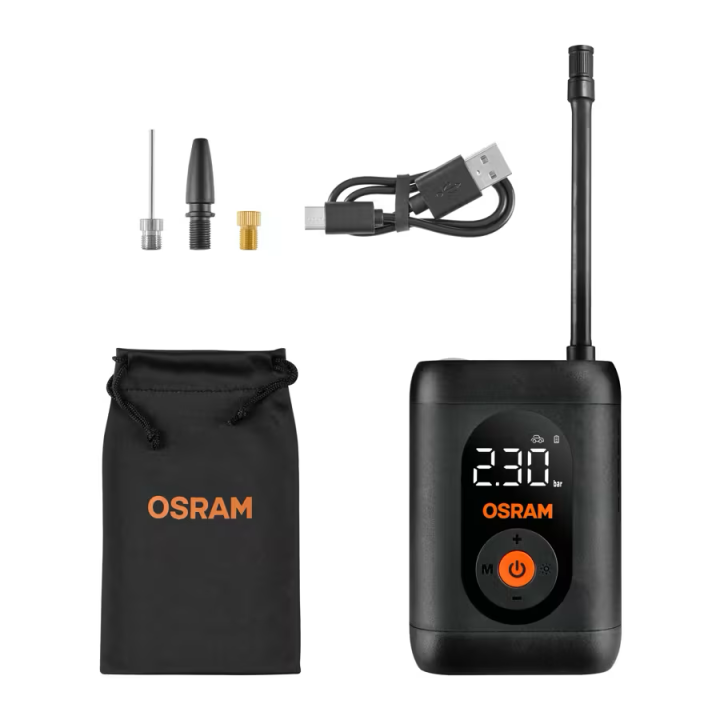

Package contents
- OSRAM TYREinflate 1600 ESSENTIAL inflator,

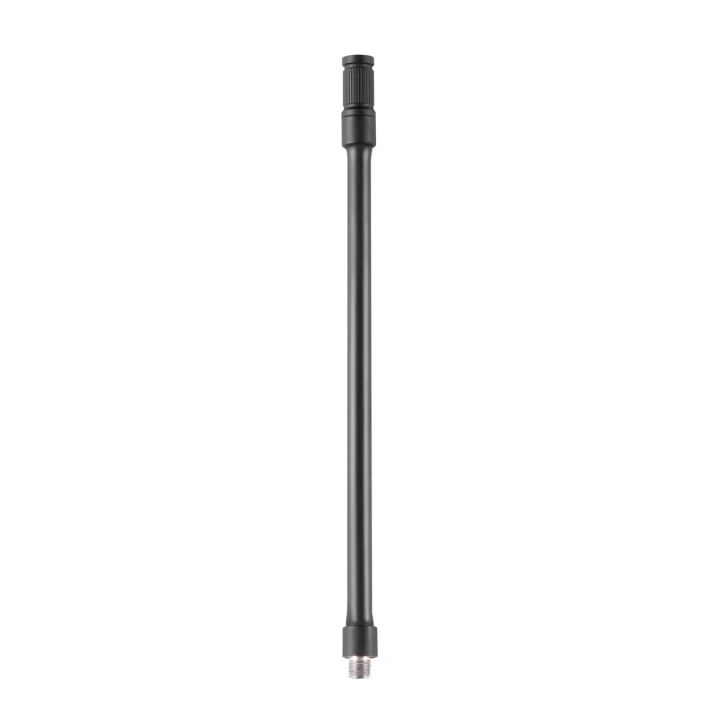

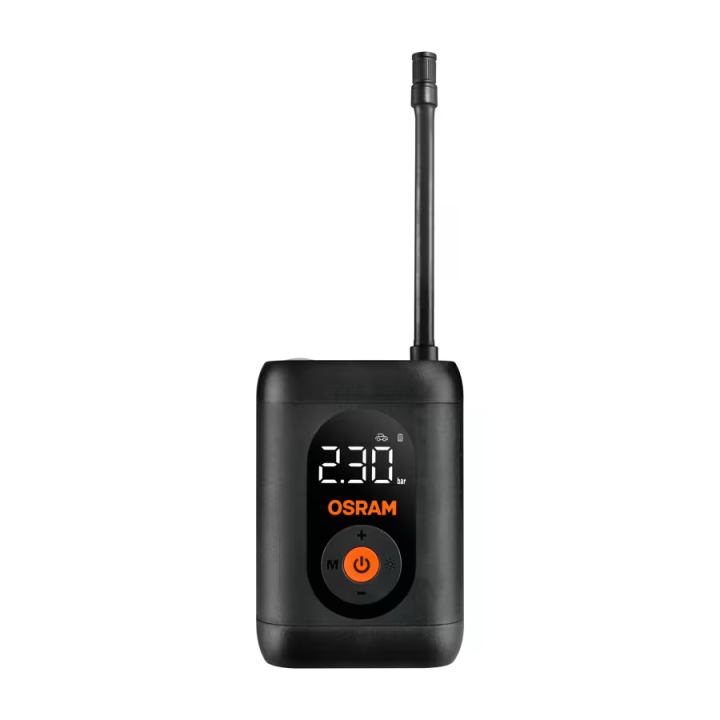

- 20 cm detachable air hose,

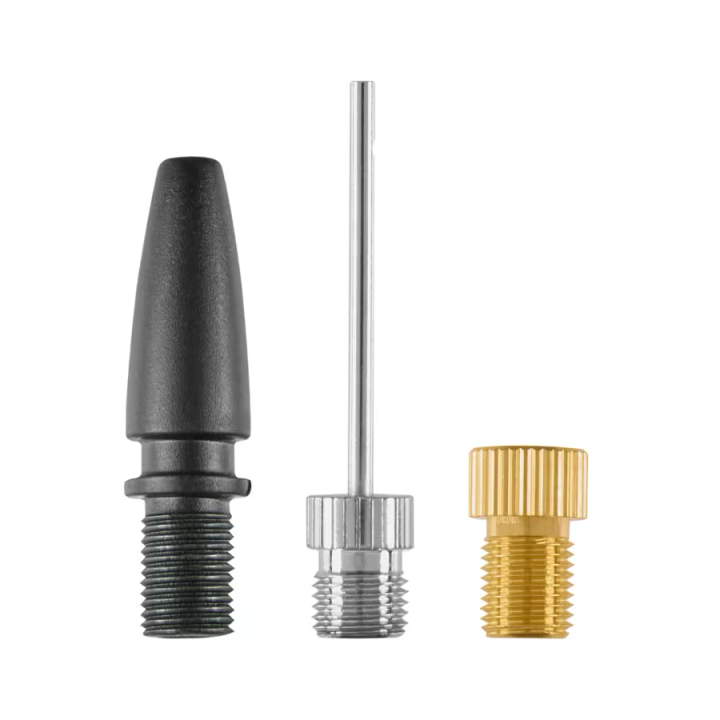

- three-piece adaptor set for balls, air mattresses and bicycles,

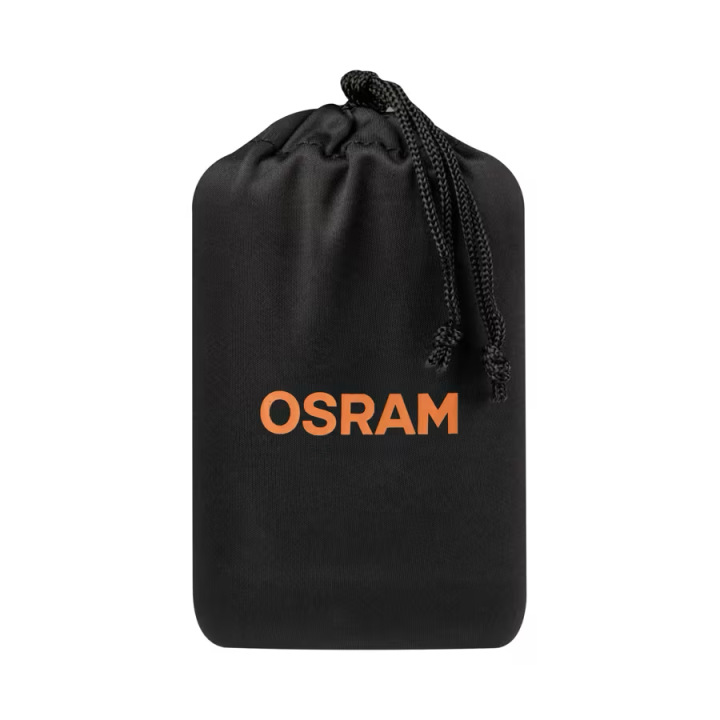

- soft storage bag.

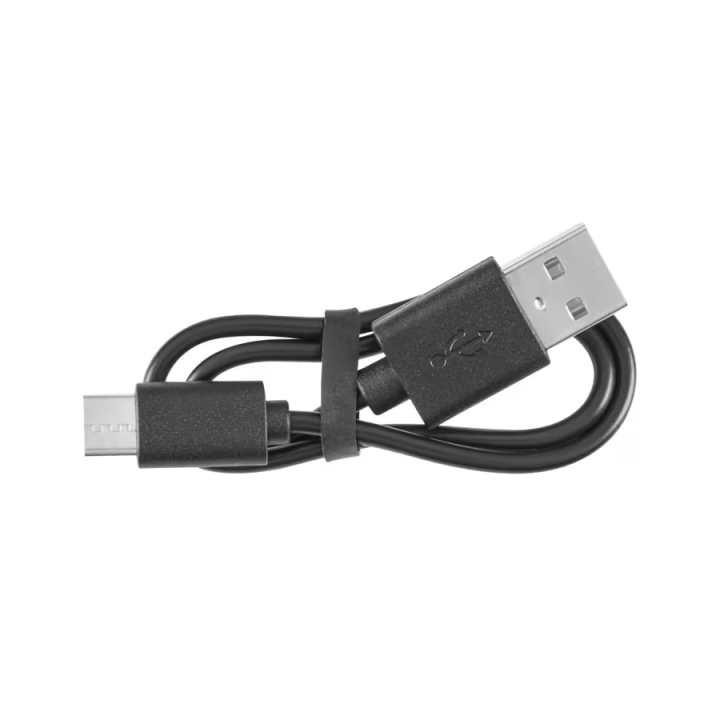

The available product data does not clearly confirm that a USB-C charging cable is supplied in the retail box, so it is not listed as included.
Frequently asked questions
Can it be used for a 4x4?
Yes. 4x4 vehicles are included in OSRAM's recommended applications. The six-minute inflation figure, however, relates to a 13" test tyre and should not be transferred directly to a large off-road tyre.
Does it need a 12 V socket?
Not for normal cordless operation. The inflator runs from its internal rechargeable battery and charges via USB-C.
What maximum pressure should I use as the product specification?
The current OSRAM product datasheet specifies 100 psi / 7.0 bar, which is the value used on this product page.
Does it stop automatically?
Yes. The Auto-stop function ends inflation when the selected target pressure is reached.
