MetalCloak Muffler Skid Reinforcement for the Ineos Grenadier

The factory muffler skid on the Grenadier does its job on a gravel road, but it shows its limits off-road: lean it hard on a rock and it bends, and a deformed plate starts pressing into the very thing it was meant to protect. The problem is not that there is no skid — it is that nothing is holding it up.

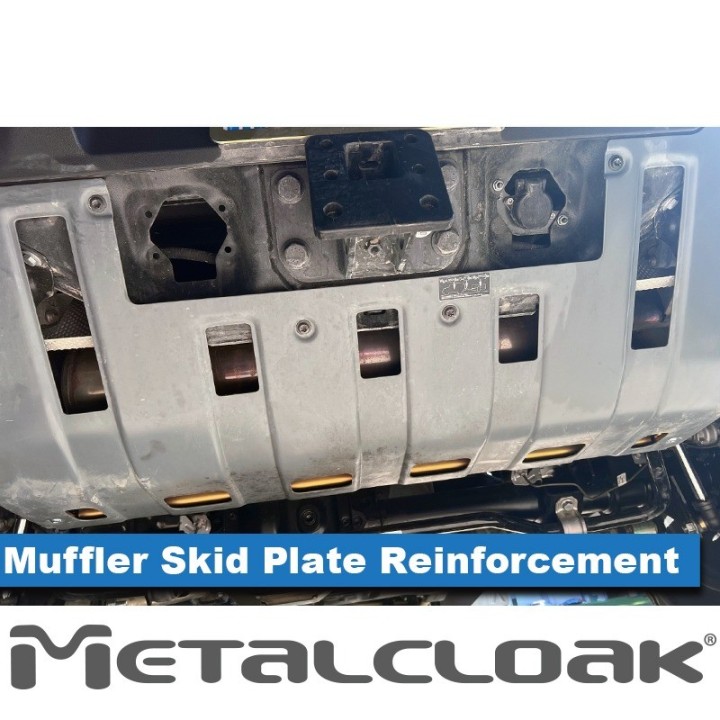

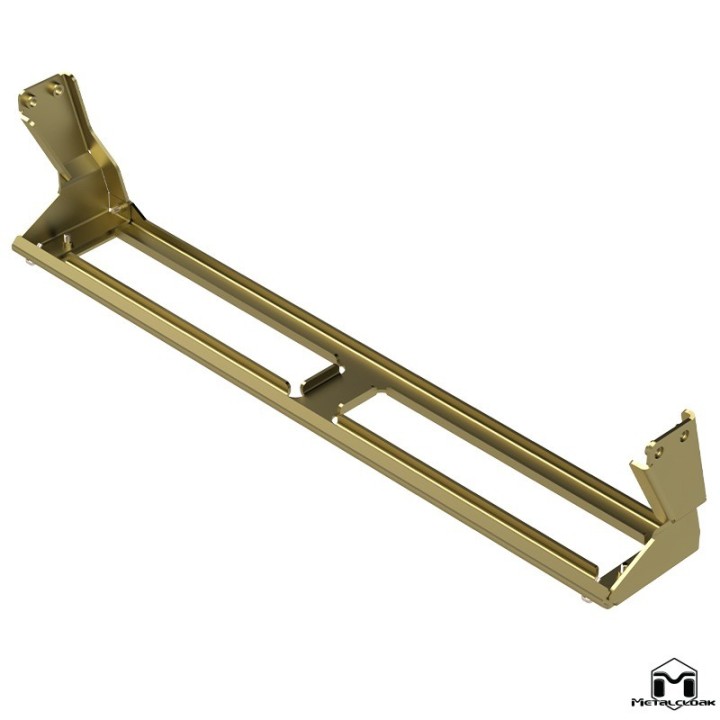

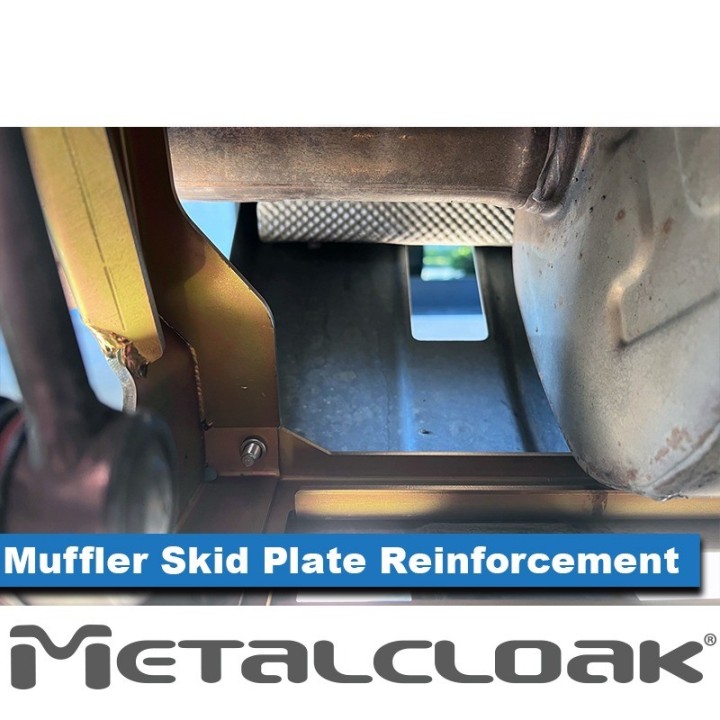

This reinforcement fits directly beneath the factory skid and takes the impacts in its place. Formed 3/16 inch steel (about 4.8 mm) spreads the load, and fully welded hangers made from the same steel keep the whole assembly where it belongs. The underbody still looks stock.

Key benefits

• Braces the factory skid instead of replacing it – the plate sits under the original and stiffens it, so the stock layout and appearance of the underbody stay intact.
• Limits warping and permanent deformation – a bent skid is the real problem in practice, because once deformed it no longer fits and starts working against the muffler.

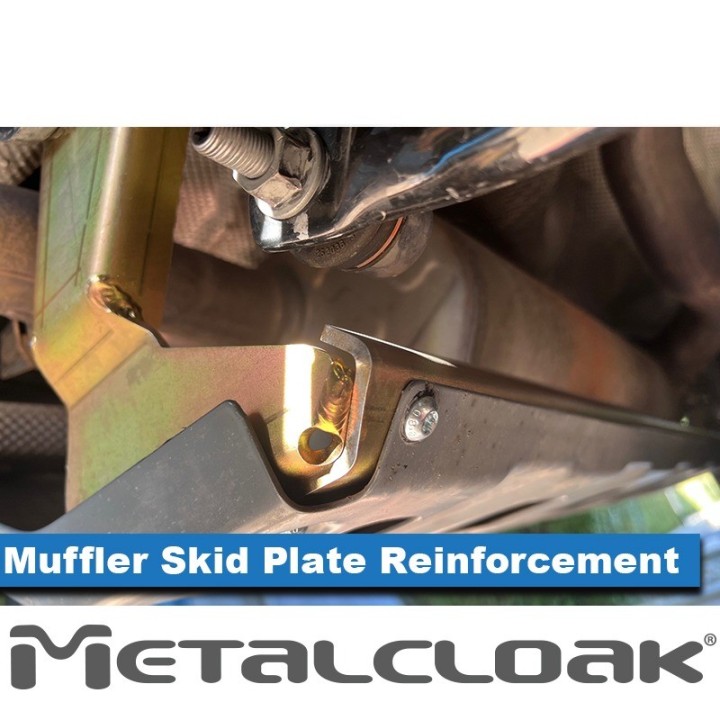

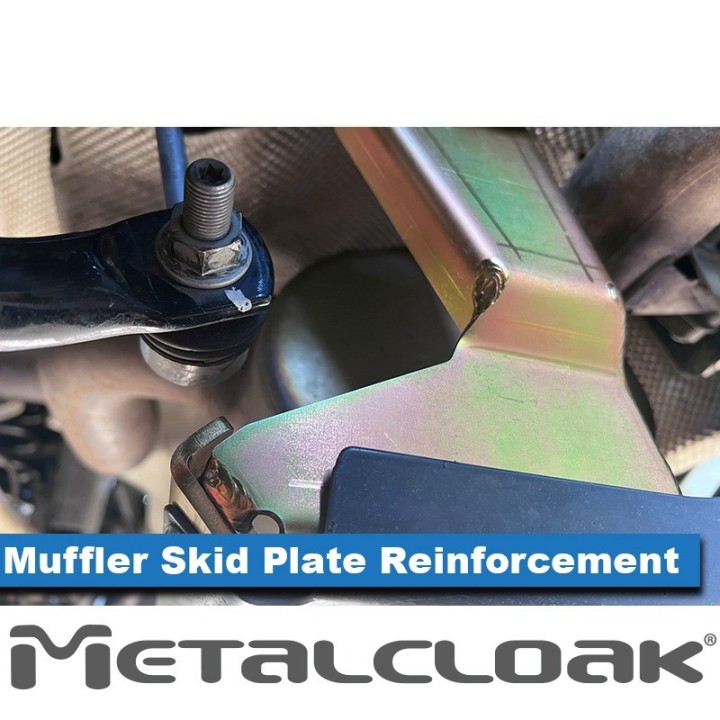

• Fully welded 3/16in steel hangers – not bolted-together sections, but a welded assembly built for genuine off-road loads.
• Gold zinc chromate finish – corrosion protection for a part that lives in water, mud and salt.
• Replacement mounting hardware included – the kit comes with the bolts that replace the factory skid fasteners.
• 100% bolt-on – no drilling, no grinding.
• Made in the USA.

What's in the kit

• 1 × muffler skid reinforcement
• reinforcement hangers
• all required hardware

Technical data

• Application: Ineos Grenadier, 2024 and newer
• Position: beneath the factory muffler skid plate
• Reinforcement material: formed 3/16in hot rolled steel (approx. 4.8 mm)
• Hanger material: 3/16in hot rolled steel, fully welded
• Coating: gold zinc
• Installation difficulty: easy
• Installation time: 1–2 hours
• Body modification: none, 100% bolt-on
• Country of manufacture: USA

Who it is for

For Grenadiers driven where the underbody actually touches down – rocks, deep ruts and ledges. It is also the natural next step if you are building protection in stages: the exhaust runs long, sits low and usually stays unprotected once the axles and differentials already have their plates. It earns its place on loaded expedition builds too, where ground clearance drops in practice.

Installation notes

MetalCloak rates the install as easy and quotes 1–2 hours. Everything bolts on – no drilling, no grinding and no body modification. Replacement hardware for the factory skid mounting is included, so there is nothing extra to source.

If you would rather have it done and the rest of the underbody checked at the same time, our workshop can take care of it – Szekla4x4.pl is an authorised MetalCloak dealer.

Why it is worth it

• It strengthens a part the Grenadier already has instead of forcing a full skid replacement.
• Thick steel and welded hangers rather than a sheet-metal compromise.

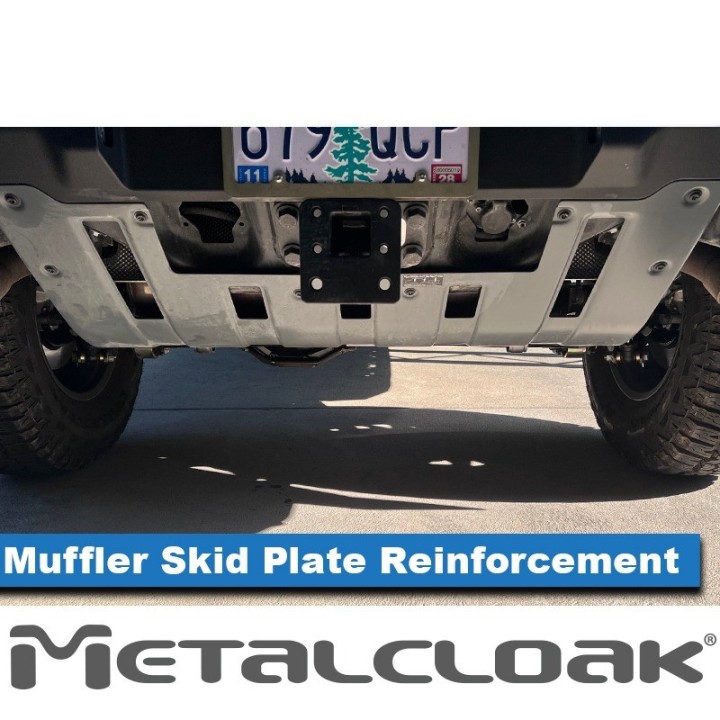

• Keeps the underbody looking stock – nothing protrudes and the geometry of the truck is unchanged.

Putting together underbody protection for your Grenadier? Get in touch and we will help you plan the order of work.

Frequently asked questions

Does this replace the factory muffler skid?

No. It is a reinforcement that installs directly beneath the factory skid and stiffens it. The original plate stays in place.

Is drilling or grinding required?

No. MetalCloak lists the installation as 100% bolt-on, with no drilling and no grinding.

Is the hardware included?

Yes. The kit includes the reinforcement hangers and all required hardware, including replacement bolts for the factory skid mounting.

Does it change how the underbody looks?

No. MetalCloak designed it to maintain the factory appearance – the reinforcement works underneath the original skid.

Which model years does it fit?

The Ineos Grenadier from the 2024 model year to current production.
