MetalCloak UnderCloak Skid Plate System, Ineos Grenadier
A complete, integrated MetalCloak UnderCloak skid plate system for the Ineos Grenadier. It protects the oil pan and motor (1/4in steel), the transmission, transfer case and fuel tank (3/16in steel), with shaped edges that let obstacles slide underneath instead of catching. Gold zinc finish, oil service access retained.

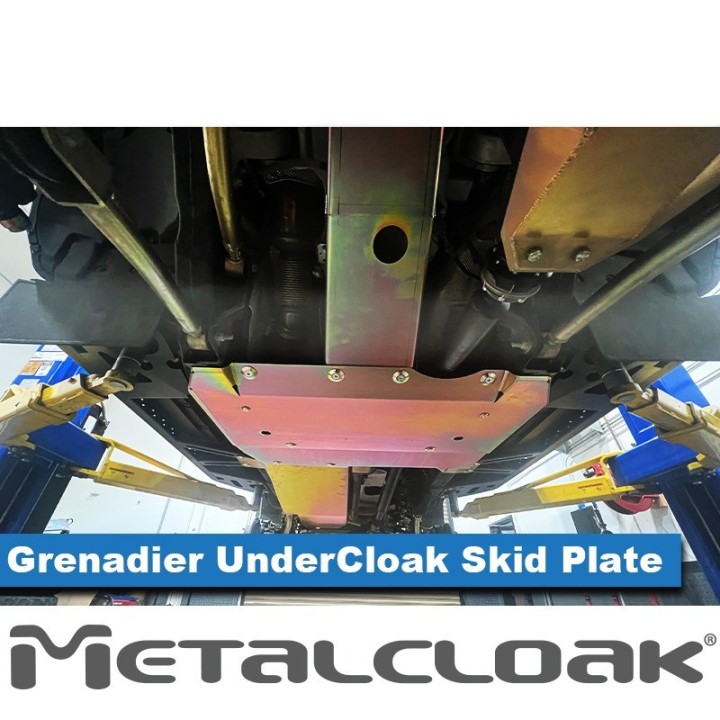

MetalCloak UnderCloak Integrated Skid Plate System for the Ineos Grenadier
A single skid plate protects a single component. The trouble is that off-road an obstacle does not stop where the plate ends — it travels under the vehicle and catches on whatever hangs down next. That is why the UnderCloak is not a set of separate plates but one system, with the edges of each plate shaped so a rock or a log slides underneath and comes out the other side.
The system covers the oil pan and motor, the transmission, the transfer case and the fuel tank. The motor and oil pan skid is formed, welded 1/4 inch steel (about 6.4 mm) — the thickest piece in the kit, tucked as high as possible so it does not spoil the approach angle. The remaining plates are 3/16 inch steel with upturned side edges.
| VEHICLE Ineos Grenadier 2023 and newer | STEEL 1/4in and 3/16in, gold zinc coated | INSTALLATION 3–4 hours, no modification |
What it covers

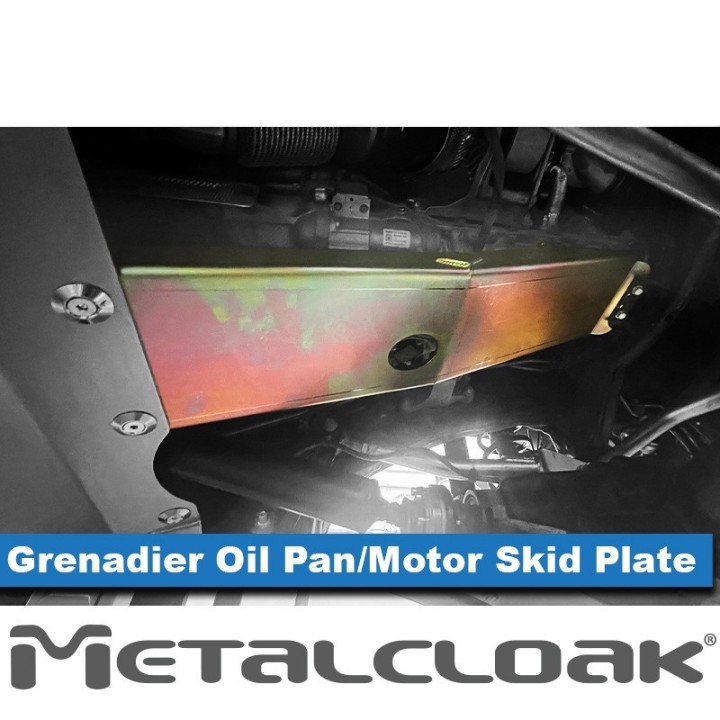

- Oil pan and motor – formed, welded 1/4in steel (approx. 6.4 mm), tucked as high as possible to preserve the approach angle, with integrated access to the oil filter and drain plug.

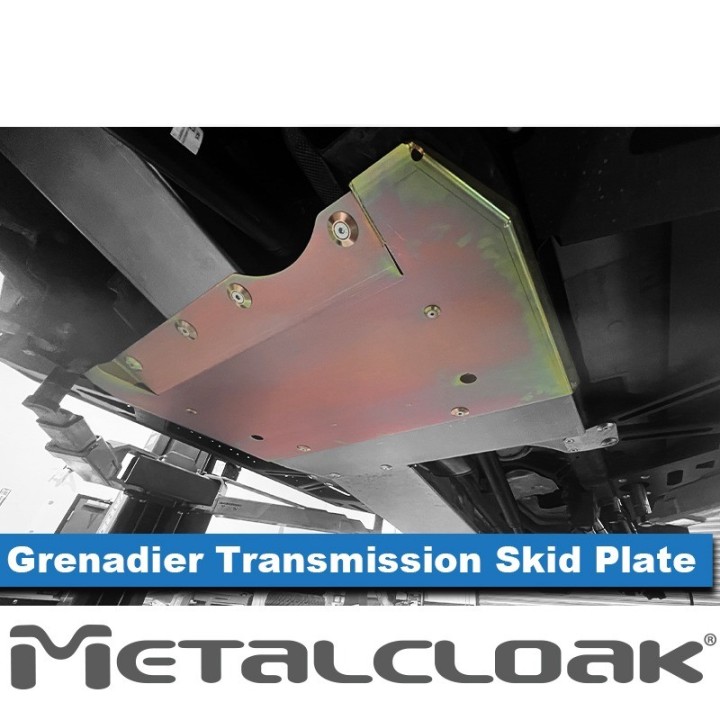

- Transmission – 3/16in steel (approx. 4.8 mm).

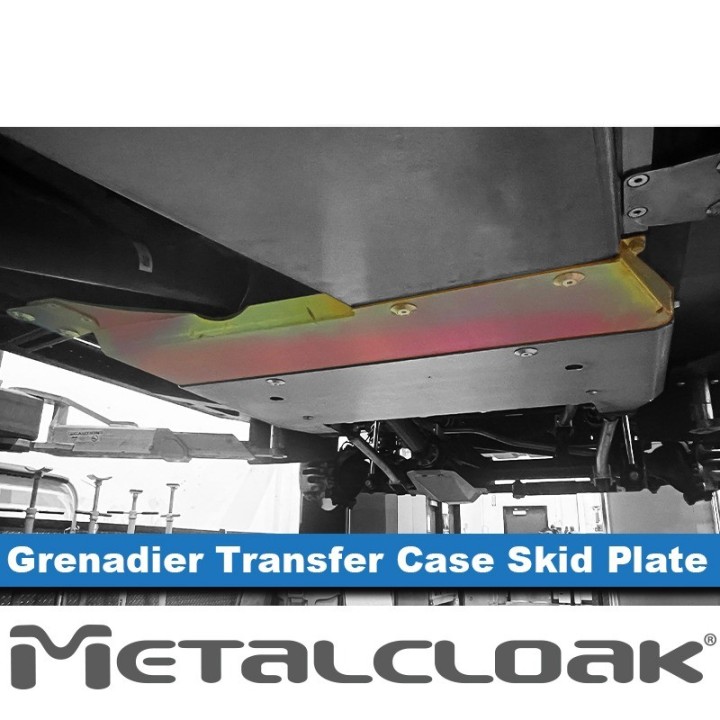

- Transfer case – 3/16in steel.

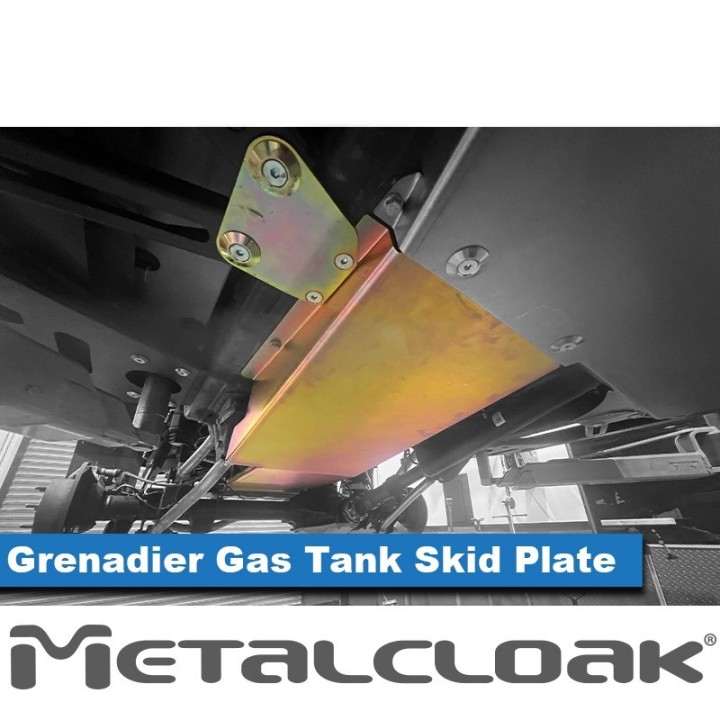

- Fuel tank – 3/16in steel with upturned side edges, so obstructions glide rather than catch.
- Fuel tank hanger – 1/8in steel (approx. 3.2 mm).
Key benefits
- Edges designed around approach and departure angles – not cosmetic, but the difference between clearing an obstacle and hanging up on it.
- Bolt heads shielded by skid guard washers – the hardware in critical areas is protected and the holes are slotted. In practice that means the system still comes apart and goes back together after a season on the trail, even once things have shifted.
- Gold zinc chromate coating – it bonds to the steel, so it keeps protecting where rocks have scratched the surface. The finish is paintable if you want a custom colour.
- CAD designed, laser cut, CNC formed – repeatable fitment, without fettling during the install.
- Oil service access retained – the skid does not have to come off for an oil change.
 |  |

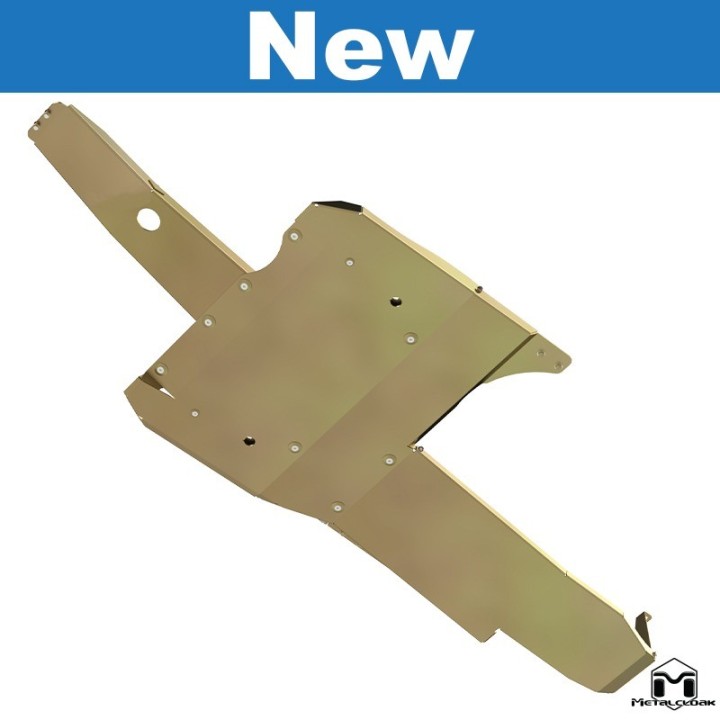

What's in the kit
- oil pan skid plate
- transmission skid
- transfer case skid
- gas tank skid
- gas tank hanger
- all required hardware
Technical data
- Application: Ineos Grenadier, 2023 and newer
- Oil pan / motor skid: 1/4in hot rolled steel (approx. 6.4 mm)
- Transmission skid: 3/16in steel (approx. 4.8 mm)
- Transfer case skid: 3/16in steel
- Gas tank skid: 3/16in steel
- Gas tank hanger: 1/8in steel (approx. 3.2 mm)
- Coating: gold zinc, paintable surface
- Approximate weight: 150 lbs (about 68 kg)
- Installation difficulty: moderate
- Installation time: 3–4 hours
- Body modification: none
What it does not cover
The UnderCloak does not protect the differentials — MetalCloak makes separate front and rear diff skids for those, and both are in our range. It also leaves the catalytic converter exposed, and that is deliberate: enclosing it would trap too much heat.
Who it is for
For Grenadiers driven where the underbody actually works: rocks, ruts, ledges and trips you cannot simply be recovered from. If you are building the truck in stages, this is the part to fit before the first gouge appears in the oil pan — the repair costs many times what the plate does.
The UnderCloak system
MetalCloak's own footage of the UnderCloak system.
Installation notes
MetalCloak rates the install as moderate and quotes 3–4 hours, with no body modification. This is a heavy kit — around 68 kg — so a lift and a second pair of hands are the sensible way to do it.
If you would rather have it done properly in one go, our workshop can take care of it. Szekla4x4.pl is an authorised MetalCloak dealer and can match the missing pieces of underbody protection at the same time.
Why it is worth it
- One coherent system instead of several independent plates that can catch on each other off-road.
- Quarter-inch steel where an impact costs the most — under the oil pan.
- Details that matter later: slotted holes, shielded bolt heads and retained oil service access.
Not sure whether to start with underbody protection or suspension? Get in touch and we will help you order the work around how you actually drive.
Frequently asked questions
Does the kit cover the differentials?
No. The differentials have their own skid plates — MetalCloak offers them as part numbers 8240 (front) and 8241 (rear). Both are available in our shop.
Does it cover the catalytic converter?
No, and that is by design. The plates are tucked up around it — enclosing the converter would hold too much heat.
Does an oil change require removing the skid?
No. The skid has an access hole for the drain plug, so oil changes are unaffected.
How much does it weigh?
MetalCloak lists approximately 150 lbs in the specification, so around 68 kg. It is a kit that calls for a lift during installation.
Can the plates be painted a different colour?
Yes. The gold zinc surface is paintable if you want a custom finish.
Which model years does it fit?
The Ineos Grenadier from the 2023 model year to current production.
