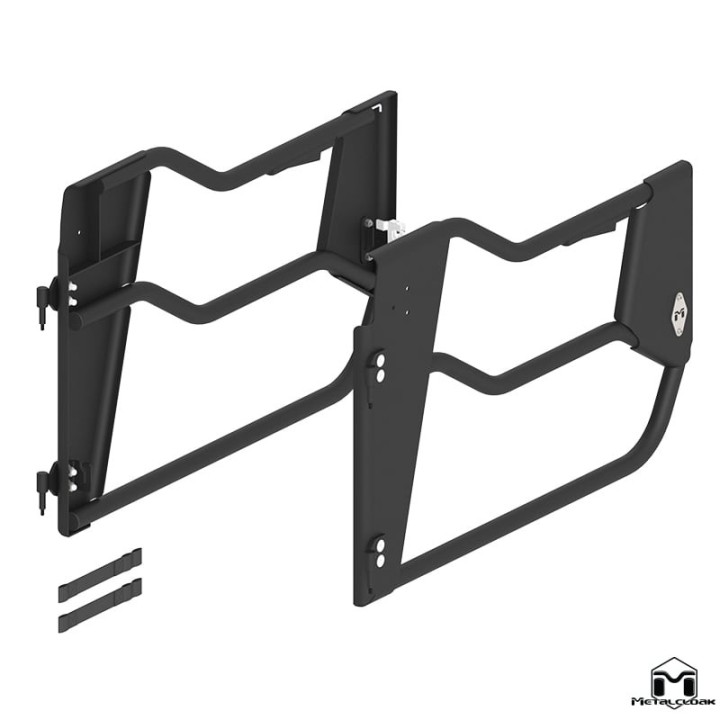

MetalCloak Open Frame — aluminium front tube doors, Jeep Wrangler JK

Tube doors are the simplest way to run open-air without giving up doors altogether. The open frame gives you a clear view of the obstacle right next to the tyre — in a tight line you can see where you are placing the Jeep instead of guessing.

This set is all aluminium: 1/8in plate and 1.25in × .125 tube, finished in black powder coat. Aluminium instead of steel means real weight off the hinges and no rust in the place that rusts first.

What you get

• A pair of doors — driver and passenger
• Actuator handles
• Reinforcement latch plate with the “M” logo
• Stainless hinge pins
• Door limit straps
• All required hardware

How the latch works

On most tube doors the weak point is the closure. MetalCloak kept the factory latch mechanism and backed it with a laser-cut steel plate carrying the “M” logo, then solved opening with a cable-driven Actuator Handle. The doors open and close like the factory ones — no reaching inside, no yanking on a tube.

• Adjustable clasp — take up latch play with a bolt, no improvising
• Billet aluminium hinge plates, machined from solid
• Stainless steel hinge pins — they will not seize after a winter
• Door limit straps included

Mirrors — ordered separately

Tube doors have no mirrors. That is what the MetalCloak mirror kit (part no. 4102) is for — three-bolt mounting, four-position articulating arm. Exterior mirrors are mandatory on public roads in Poland, so if you drive on tube doors on tarmac, order them with the doors.

⚠ Before you order — road legality

The manufacturer marks these doors Off Road Use Only. They carry no European type approval, and have no glass and no side-impact protection. On Polish public roads this can be challenged at a roadside check or at the periodic inspection. If your Jeep is registered and driven on the road, contact us before ordering and we will talk it through.

Specifications

• Fits: Jeep Wrangler JK and JK Unlimited (2- and 4-door), 2007–2018
• Manufacturer part number: 4100
• Material: 1/8in aluminium plate + 1.25in × .125 aluminium tube
• Finish: black powder coat (the only option offered)
• Hinges: billet aluminium plates, stainless steel pins
• Install difficulty: easy; body modification: none; time: about 1 hour
• Shipping weight of the set: about 16.0 kg (our estimate — the manufacturer does not publish one)
• Made in the USA
• ✅ Manufacturer lead time: 2–3 business days
• ⚠ Manufacturer marking: Off Road Use Only

FAQ

Any drilling or cutting?

No. The doors go on the factory hinges; no body modification is needed.

Do they lock?

There is no key lock — the frame is open, so anyone could reach inside anyway. This is a weekend-in-the-rocks solution, not a city car park one.

Do the factory mirrors fit?

No. You need the MC4102 kit.

Do they fit both the 2-door and the 4-door?

Yes — the front doors are the same on both JK bodies.

Are there reviews?

The manufacturer has no reviews on this product yet.
