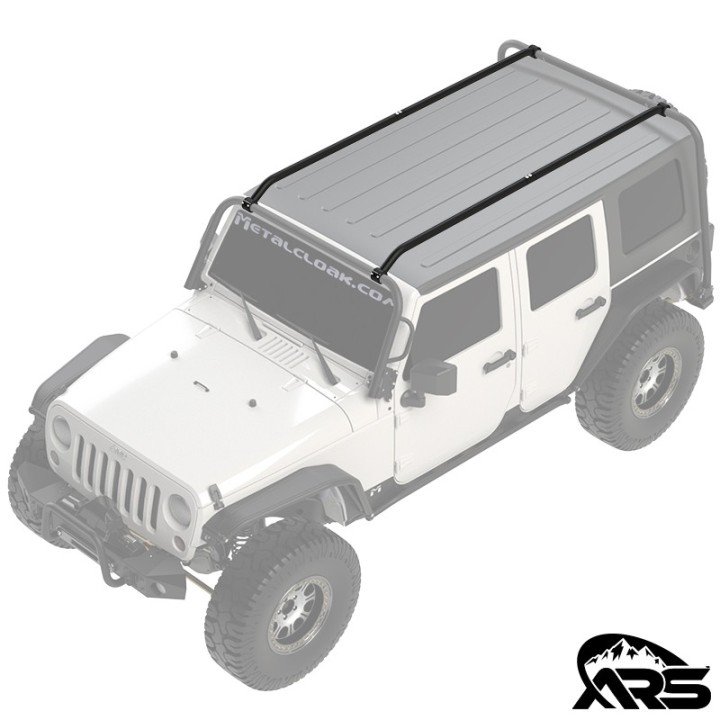

Rocklander — roof trusses, Jeep Wrangler JK 4-door

The trusses tie the front and rear hoops together and turn two separate arches into a rigid load-bearing frame. They are what carries the cargo weight and what platforms and accessories mount to.

The Rocklander system is built by ARS (Adventure Rack Systems) — MetalCloak's sister brand, dedicated to cargo management for Jeeps. Made in the USA.

Why the bends

The manufacturer uses specifically engineered front tube bends — not for looks, but because a bent layout is stiffer than a straight beam of the same mass. The result is less flex on washboard and in corners.

• 2in × .120 wall steel tube
• CNC clamps with threaded bolt holes — accessories bolt straight on, with no drilling and no nuts underneath
• Low profile — the load sits low, so the Jeep rolls less
• Allows Freedom Top removal
• Industrial grade hardware, black textured powder coat

? The trusses alone are not a rack

The manufacturer states it plainly: the trusses require the Rocklander front hoop and rear hoop. We stock both:

• R55015 — front hoop (2D and 4D)
• R55024 — rear hoop (2D and 4D)

⚠ If you are building from scratch, the complete kit is cheaper: R55000 (4-door) or R55010 (2-door).

What mounts on the trusses

• The Mod-Rack Stealth platform (R55061) — an aluminium cargo deck
• Roof tent cross beams (R75500)
• Light bar mounts (R60000)

Specifications

• Fits: Jeep Wrangler JK 4-door
• Manufacturer part number: R55020
• Material: 2in × .120 wall steel tube
• Clamps: CNC, with threaded bolt holes
• Finish: black textured powder coat
• Capacity: 850 lbs static / 375 lbs dynamic
• Requires: the front hoop (R55015) and rear hoop (R55024)
• Shipping weight: about 27.0 kg (our estimate — the manufacturer does not publish one)
• Made in the USA
• Manufacturer lead time: 1–2 weeks

FAQ

Are the trusses enough on their own?

No. Both hoops are required.

Can I still take the Freedom Top off?

Yes.

Do accessories need drilling?

No — the clamps come with threaded holes.
