METALCLOAK
Reference: MC1006
Shocks

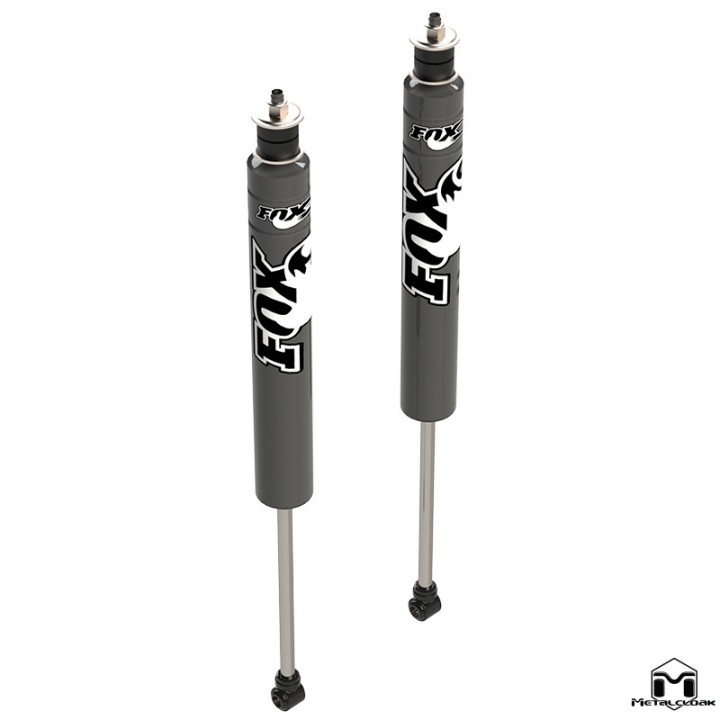

Rear Fox BDS Shocks 4.5in Pair Jeep Wrangler JK MetalCloak
A pair of rear Fox shocks with the BDS tune for a 4.5in lift on the Jeep Wrangler JK. Cold-forged 6061 T6 aluminium body - it sheds heat three times faster than steel. 5/8in chrome shaft induction hardened past 55 HRC. Internal floating piston - no oil aeration or cavitation. 2.0 Performance series.
Fox / BDS — rear shocks for a 4.5in lift, pair, Jeep Wrangler JK
Fox shocks with the BDS tune, valved for suspension systems that want softer compression and higher rebound — which is exactly what MetalCloak kits want. That is not a coincidence: the manufacturer says so directly.
Why the aluminium body matters
The body is cold-forged 6061 T6 aluminium. The manufacturer gives a specific figure: it dissipates heat three times faster than a conventional steel body.
In practice that means a 2.0in shock runs as cool as a 2.5in steel shock in the same application. And temperature is what decides whether, half an hour into a washboard road, the shock is still damping or just bouncing.
The shaft
- 5/8in chrome shaft — thicker than typical
- Induction case hardened to over 55 Rockwell C — the manufacturer states this virtually eliminates scratches from rust and debris
That matters more than it sounds. A scratched shaft destroys the seal, and a shock that loses its seal loses its damping and its oil.
Internal floating piston
The internal floating piston design separates the oil from the high-pressure nitrogen chamber. The result is no aeration and no cavitation — damping that does not fade after a few minutes of hard work, and a suspension response that stays predictable.
Specifications
- Fits: Jeep Wrangler JK 2007–2018, rear axle, 4.5in lift
- Part number: 1006 (manufacturer PN 98224959)
- Body: 6061 T6 aluminium, cold forged, 2.0 Performance series
- Shaft: 5/8in chrome, induction hardened > 55 HRC
- Design: internal floating piston (IFP), nitrogen chamber
- Components: CNC machined aluminium
- Tune: BDS — for MetalCloak suspension
- Sold as: a pair
- Shipping weight: about 7.5 kg (our estimate — the manufacturer does not publish one)
- Manufacturer lead time: 2–3 business days
Reviews
Manufacturer rating: 100% of 100 from 1 review.
FAQ
Do they suit a lift other than 4.5in?
This set is valved for 4.5in. For another height, contact us and we will pick the right variant.
Are these reservoir shocks?
No. These are the 2.0 Performance series without an external reservoir — but with a floating piston and an aluminium body that makes up for it in heat rejection.
Will they work with another brand's suspension?
The BDS tune is matched to MetalCloak's characteristics. They will work with other systems, but not optimally.
A pair per axle or per vehicle?
A pair for one axle. A full set also needs the other axle's shocks.
