Center Shaft Gearbox-Transfer Case Suzuki Jimny SN413

Vibration under acceleration, a metallic clunk on direction changes, or play between the gearbox and the transfer case - these are the usual signs of a worn center shaft on an older Jimny. This component carries drive straight from the gearbox output to the transfer case input, before power is split to the front and rear axles, so its condition directly affects how the vehicle responds to throttle and how the whole drivetrain behaves.

Location Between the gearbox and the transfer case

Fitment Suzuki Jimny SN413: JB23/JB33/JB43/JB53 (1998-2018)

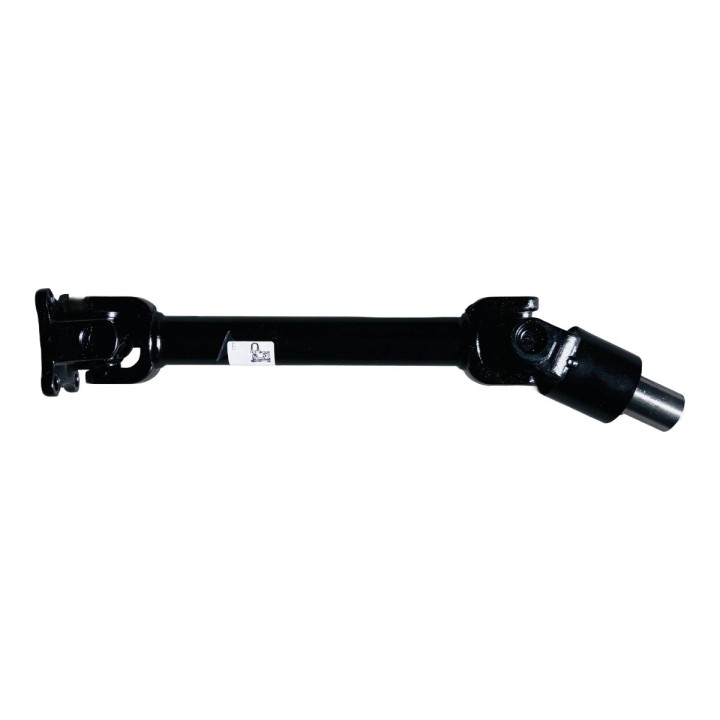

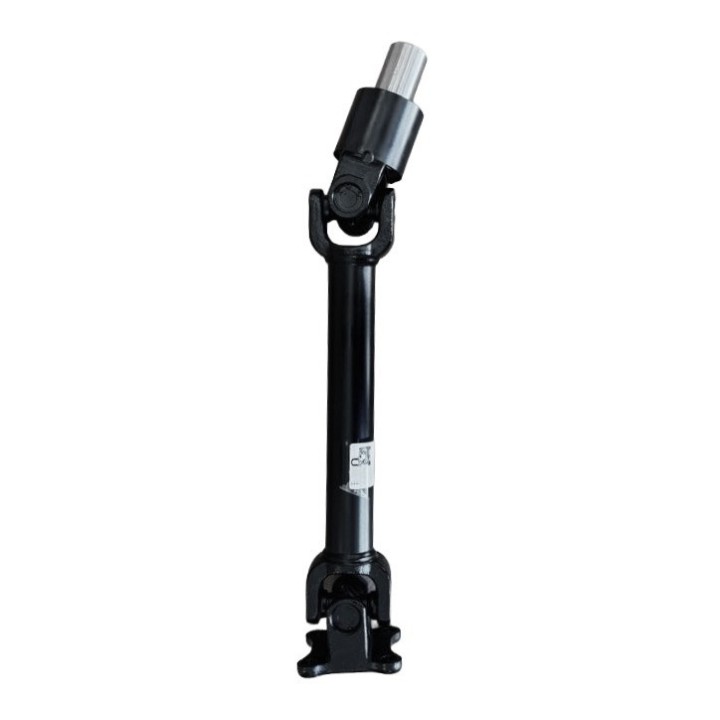

Design 2 universal joints, 4-bolt flange + splined slip yoke

Key benefits

• Direct bolt-in replacement - a 4-bolt flange on one end and a splined slip yoke on the other, matching the original mounting points with no modifications.
• Two fresh universal joints instead of a worn original - removes the play and vibration transmitted to the gearbox and transfer case on every load change.
• The slip yoke compensates for small drivetrain movement as the engine shifts on its mounts, so the shaft doesn't lock the assembly rigidly in place.

Technical data / facts

• Reference: NOM-1203004, Nomadtech brand
• Application: gearbox-to-transfer case drive link
• Universal (Cardan) joints: 2
• Ends: 4-bolt mounting flange on one side, splined slip yoke on the other
• Fitment: Suzuki Jimny with chassis code SN413 (JB23/JB33/JB43/JB53), built 1998-2018

Who it's for / application: This shaft is built exclusively for the older, third-generation Suzuki Jimny with chassis code SN413 - meaning the JB23, JB33, JB43 and JB53 versions produced from 1998 to 2018. It is NOT a shaft for the current Jimny JB74 (2018 onward) - that model uses a different drivetrain layout and needs its own dedicated shaft. Check your vehicle's chassis code before ordering if you're unsure which generation you have.

Why it's worth it

• Fresh universal joints instead of sourcing individual cross kits for a tired shaft.
• Ready-made original mounting points - flange and slip yoke that fit directly onto the gearbox and transfer case on the Jimny SN413.

If vibration or clunking has shown up around the gearbox and transfer case on your Jimny SN413, this shaft addresses the cause directly instead of masking it with mount adjustments.

Frequently Asked Questions

Does this shaft fit the new Jimny JB74?

No. This shaft is designed exclusively for the older, third-generation Jimny with chassis code SN413 (JB23/JB33/JB43/JB53, produced 1998-2018). The new Jimny JB74 (2018 onward) requires a different, model-specific shaft.

Do I need a longer version of this shaft after installing a suspension lift?

No, that should not be necessary. This shaft connects the gearbox to the transfer case - both units are bolted rigidly to the frame, so their relative position does not change when the suspension is lifted. That is different from the front/rear driveshafts (which connect the frame to the axles), where larger lifts can call for a longer shaft or one with a wider working angle.

How many universal joints does this shaft have and how is it built?

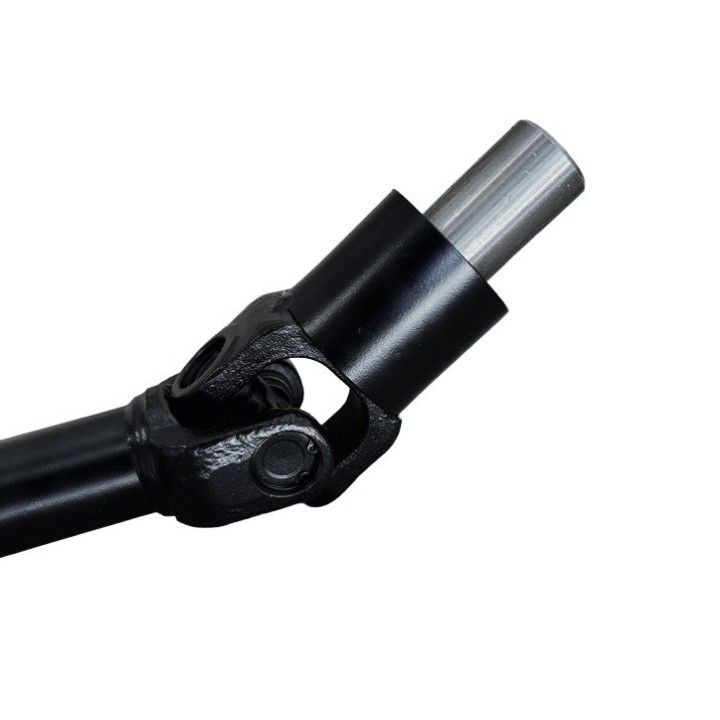

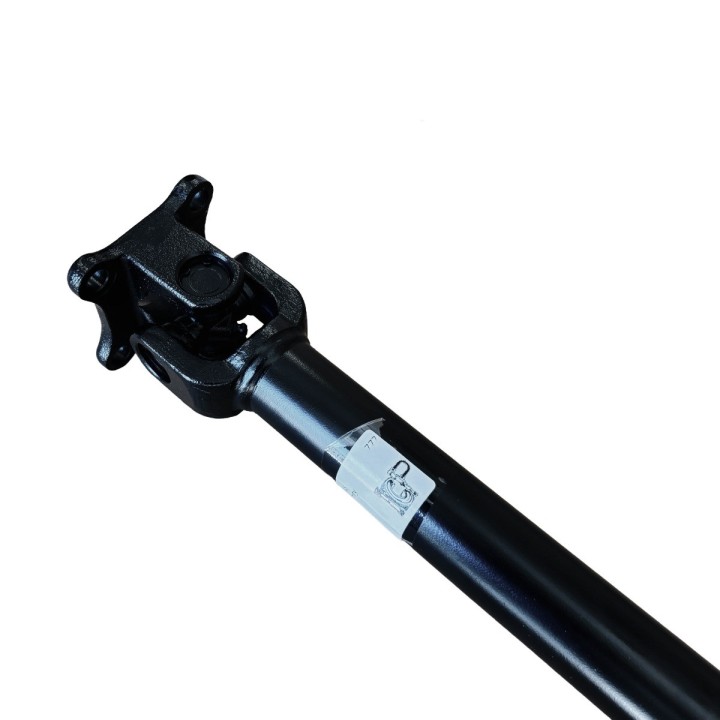

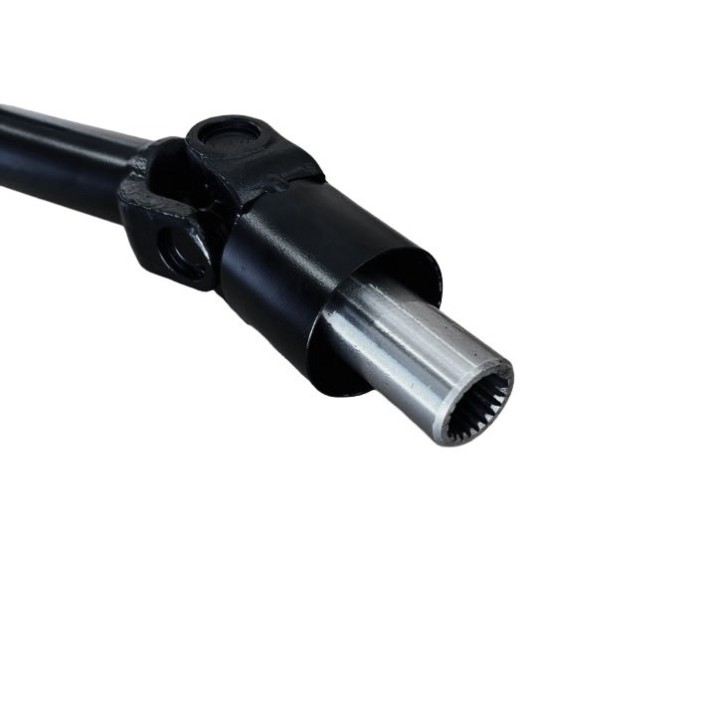

The shaft has two universal (Cardan) joints. One end terminates in a 4-bolt mounting flange, the other in a splined slip yoke that slides onto the splined output stub of the mating component.

Does the store also carry the front and rear driveshaft for this Jimny model, in case those need replacing too?

Yes, the front driveshaft and the rear driveshaft for the Suzuki Jimny JB33/JB43/JB53 are available separately - these are different, independent driveline components from the center gearbox-to-transfer-case shaft described here.
