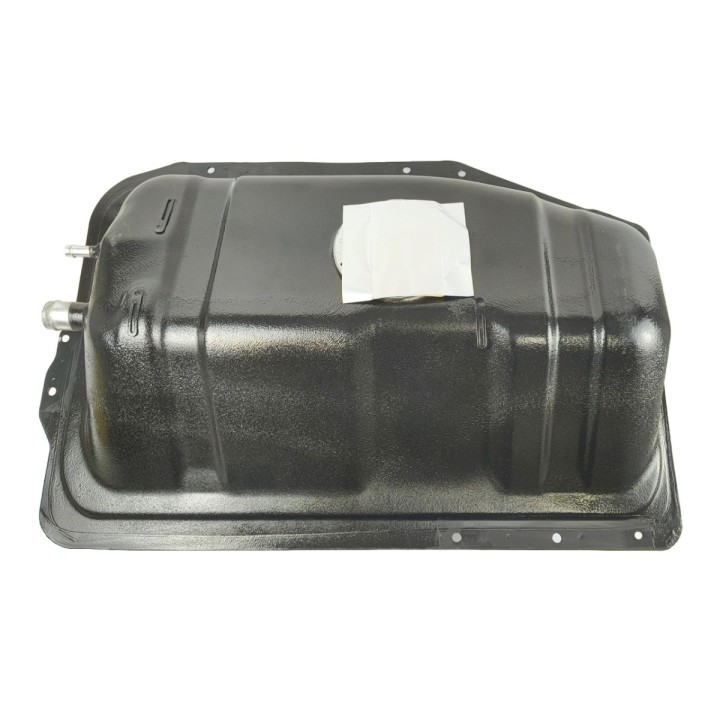

Fuel Tank for Suzuki Jimny JB33/JB43 — Steel, 1998-2017 Model Years

A rusted-through or rock-punctured fuel tank on an older Jimny is not something you can put off — a leaking fuel system means the car should not keep driving. This steel tank replaces the factory unit on the Suzuki Jimny JB33/JB43, model years 1998-2017, and installs in the original mounting location under the body.

Part number NOM-1209002

Fitment Suzuki Jimny JB33/JB43, 1998-2017

Material Steel, painted/coated

Key benefits

• Steel construction — more resistant to mechanical damage than plastic alternatives, which matters when you are running trails where rocks and stumps are a real risk.
• Built to install in place of the original tank on a JB33/JB43 Jimny, with no bodywork modifications.
• An oval access opening on top gives you a way to reach the fuel pump and fuel level sensor for future service without pulling the whole tank out of the car.

Technical details / facts

• Part number: NOM-1209002
• Fitment: Suzuki Jimny JB33/JB43, model years 1998-2017
• Material: steel, painted/coated on the outside
• The tank ships empty, without a fuel pump or fuel level sensor installed

Who it's for
This is for Suzuki Jimny JB33/JB43 owners (1998-2017) whose original tank has rusted through from road salt, been punctured by a rock on the trail, or is simply too worn to safely hold fuel. That covers both daily-driven and heavily off-road-used trucks — tank corrosion after years on the road is a common issue on this generation of Jimny.

Installation notes

The tank goes into the factory mounting location, but since it ships without a fuel pump or fuel level sensor installed (you can see the empty, capped access opening in the product photo), you need to transfer that hardware over from your old tank — or source it separately — before installing it, and check the condition of the gasket and fuel lines while you're in there. This is work on the fuel system, so if you haven't done this kind of repair before, have a workshop handle the install.

Why buy it

• Steel construction instead of patching up a corroded original tank again.
• A ready-made shape and mounting points for the JB33/JB43 Jimny, no fabrication needed.

Not sure it fits your exact model year, or what else you'll need for the install? Get in touch — we can advise based on your VIN and the condition of your current tank.

[{'q': 'Which Jimny models does this fuel tank fit?', 'a': 'Suzuki Jimny JB33/JB43, model years 1998-2017.'}, {'q': 'What material is the tank made of?', 'a': 'Steel, painted/coated on the outside for protection.'}, {'q': 'Does the tank come with the fuel pump and fuel level sensor installed?', 'a': 'No — the tank ships empty (you can see the capped, empty access opening in the product photo). You transfer the fuel pump and fuel level sensor over from your old tank, or source them separately.'}, {'q': 'Does installation require specialist knowledge?', 'a': "This is work on the fuel system — it involves transferring hardware (pump, sensor) from your old tank and checking the gasket and fuel lines. If you haven't done this kind of repair before, have a workshop handle the installation."}]
