Reference: 5906630816699
Zestawy Lamp LED dedykowanych do samochodów

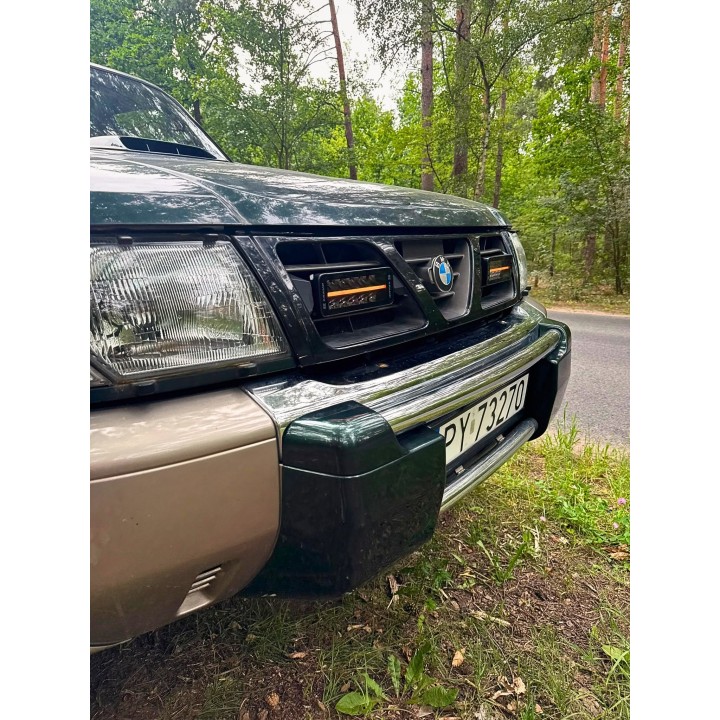

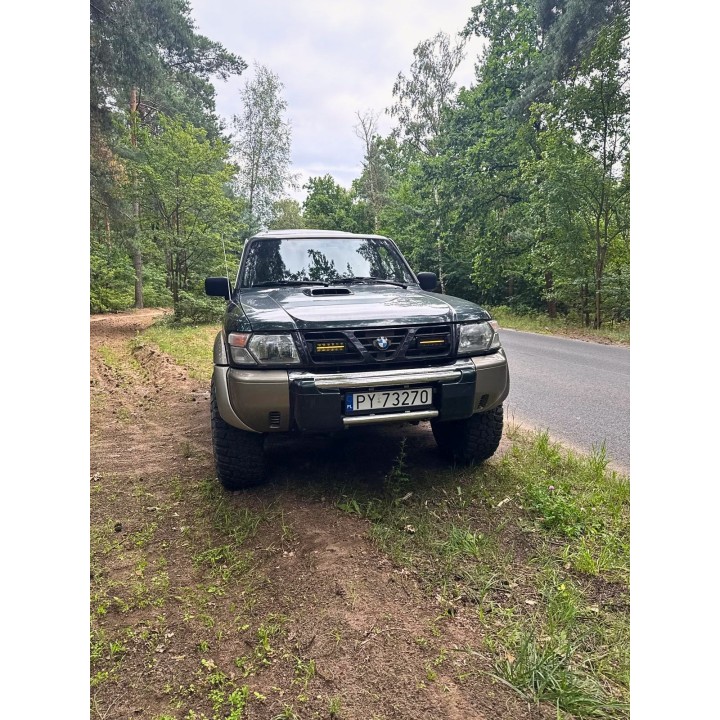

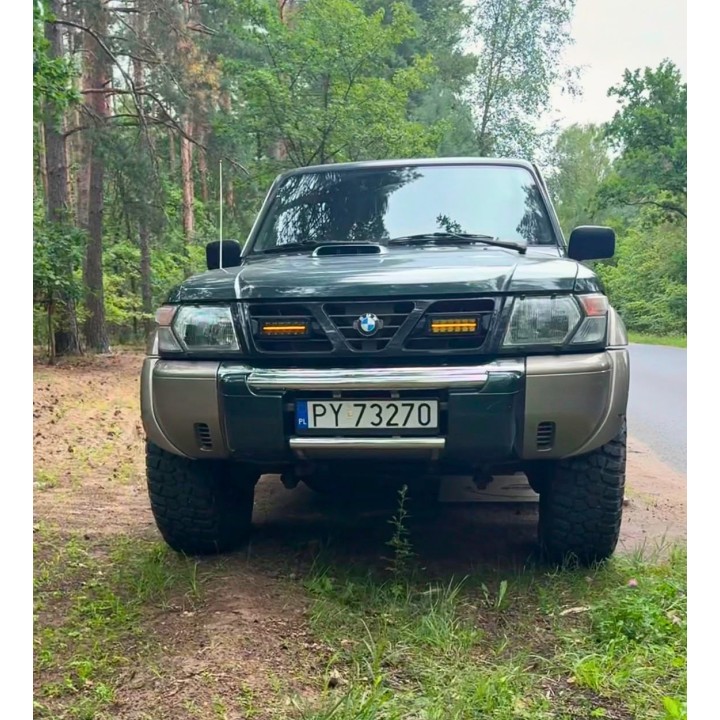

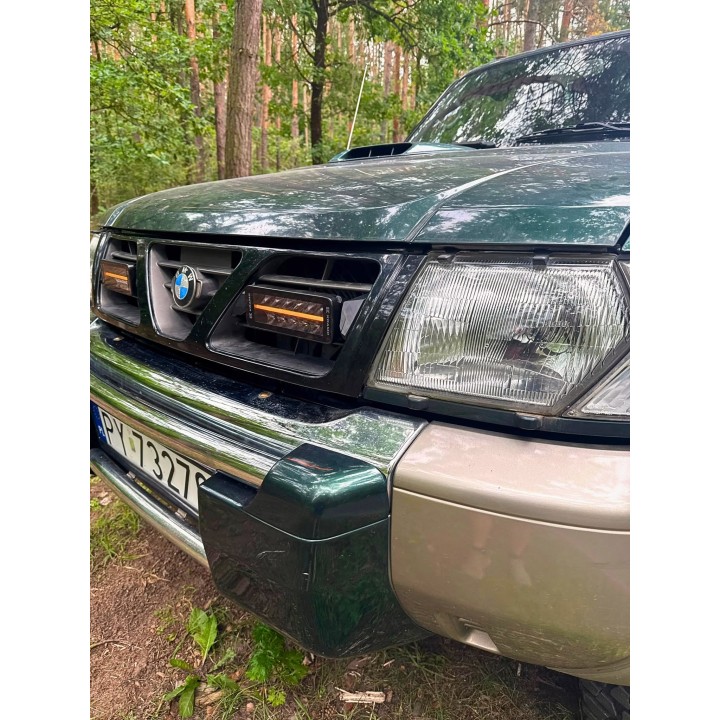

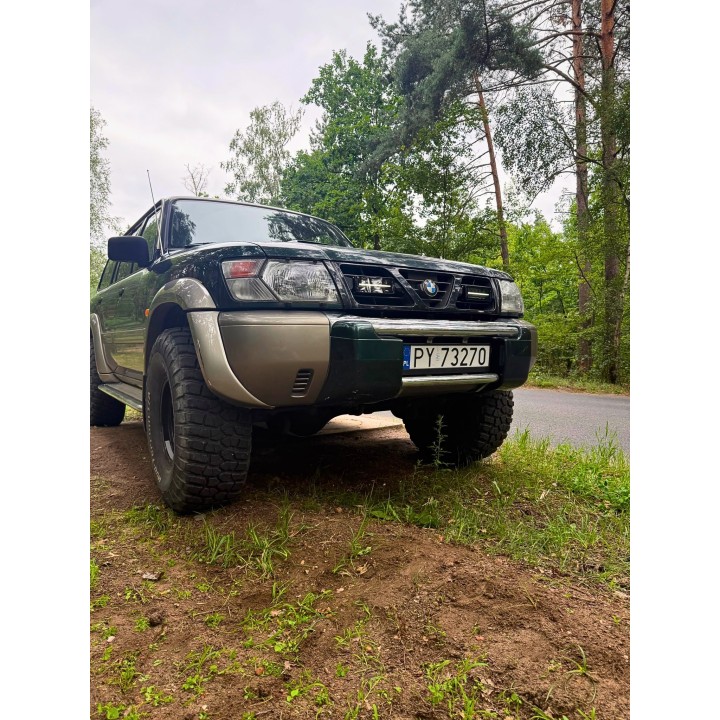

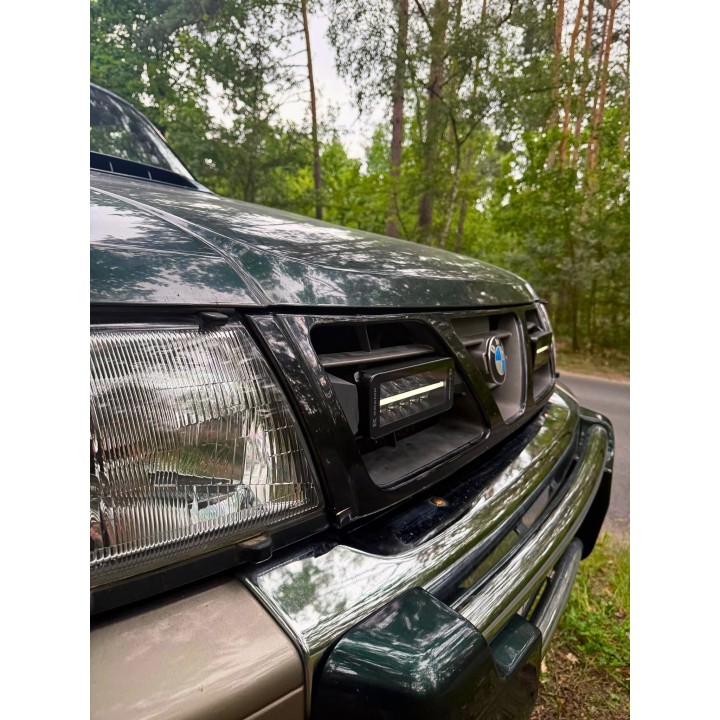

Two Kramp LED Lamps with ORAX Systems Grille Brackets — Nissan Patrol Y61
A complete ORAX Systems kit for the Nissan Patrol Y61: two Kramp LA10811 LED lamps giving 120 W and 10,080 lm together with dedicated 3D-printed brackets for the original grille. Combo beam, three modes, white and amber output. Fitting requires cutting the grille.
A Y61 carries people through forest, fields and roads that are not on any map — and usually does it after dark. This kit solves that without a roof bar or a structure in front of the bumper: two LED lamps go into the original radiator grille and the vehicle keeps its outline.
It arrives as one package with nothing left to source separately: lamps, dedicated brackets and hardware.

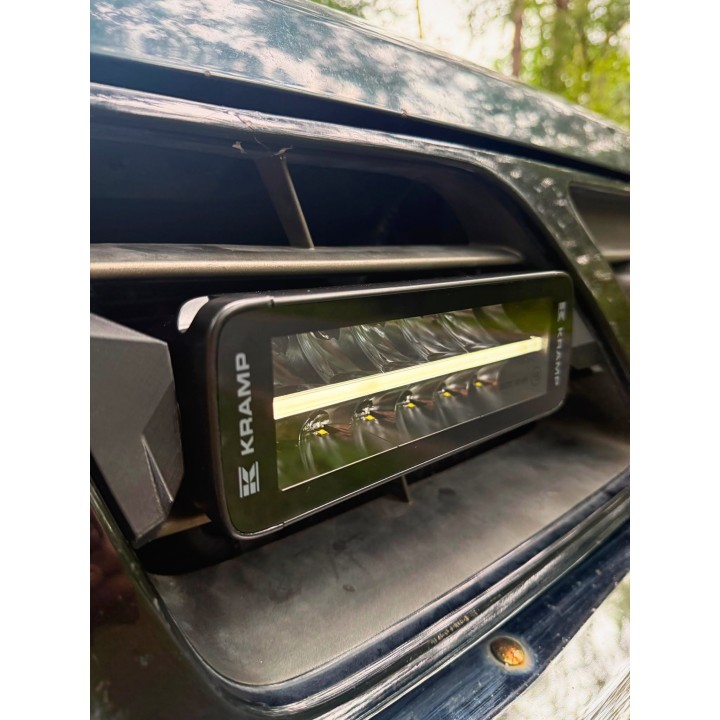

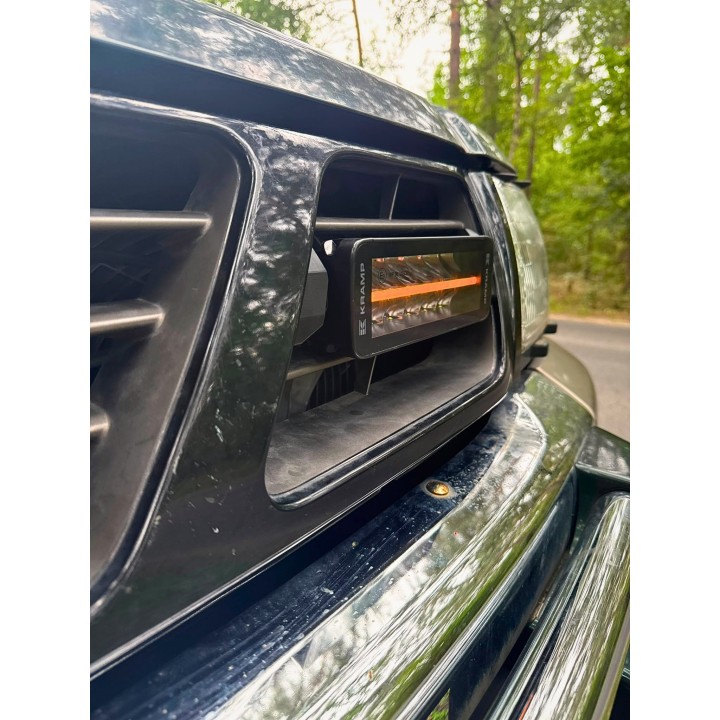

The lamps — Kramp LA10811
- 60 W per lamp, 120 W for the pair
- 5040 lm per lamp, 10,080 lm in total
- 12 LEDs, colour temperature 5700 K
- Combo beam — wide foreground coverage combined with a focused spot
- three lighting modes, white and amber output, E-BOOST with last-mode memory
- 12 V / 24 V supply, 10-30 V range, Deutsch DT4P connector, 4-core 0.9 m lead
- aluminium housing, polycarbonate lens, black finish
- IP68 and IP69K sealing, rated life at least 30,000 hours
- lamp dimensions 204 × 70 × 67 mm
- ECE R10 approval for electromagnetic compatibility, plus CE, UKCA, RCM and RoHS marking
The amber output is not decoration — in dust, fog and falling snow warm light scatters off droplets and particles far less than cold white, so you see the road instead of a wall.
The ORAX Systems brackets
The parts are 3D printed in black material resistant to UV and elevated temperature. The geometry is matched to the Y61 grille so the lamps sit securely and level with the grille line.
Fitting — read this before you order
Fitting the Kramp LA10811 requires cutting away selected parts of the original radiator grille. Test-fit the lamps together with the brackets and mark what has to be removed before cutting — the grille cannot be returned to its factory state afterwards.
In the box
- 2 × Kramp LA10811 LED lamps
- dedicated ORAX Systems brackets for the Nissan Patrol Y61 grille
- complete set of mounting bolts
Who it is for
For Y61 owners driving at night away from tarmac who want a real gain in light without changing the shape of the car. The ECE R10 approval covers electromagnetic compatibility only — road use of auxiliary lighting is governed by separate regulations. Szekla4x4.pl can carry out the installation in its own off-road workshop.
