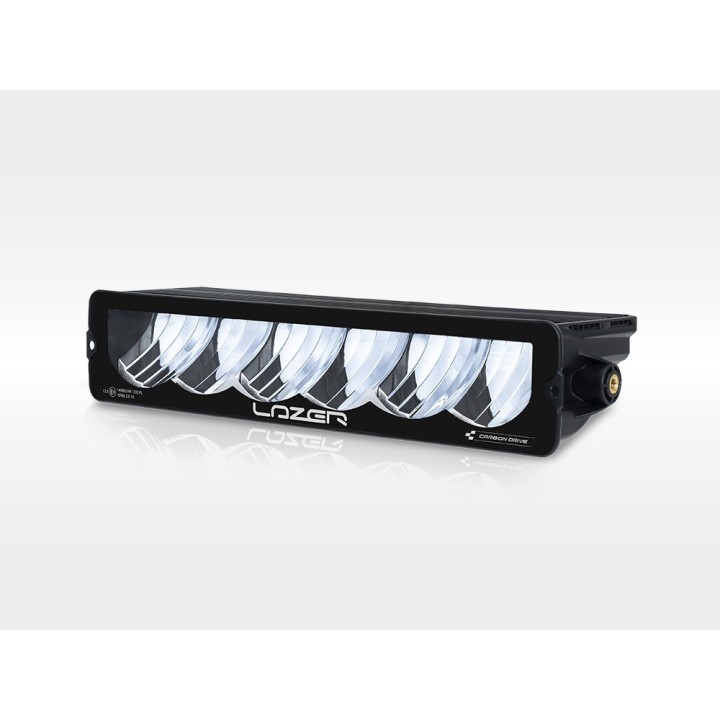

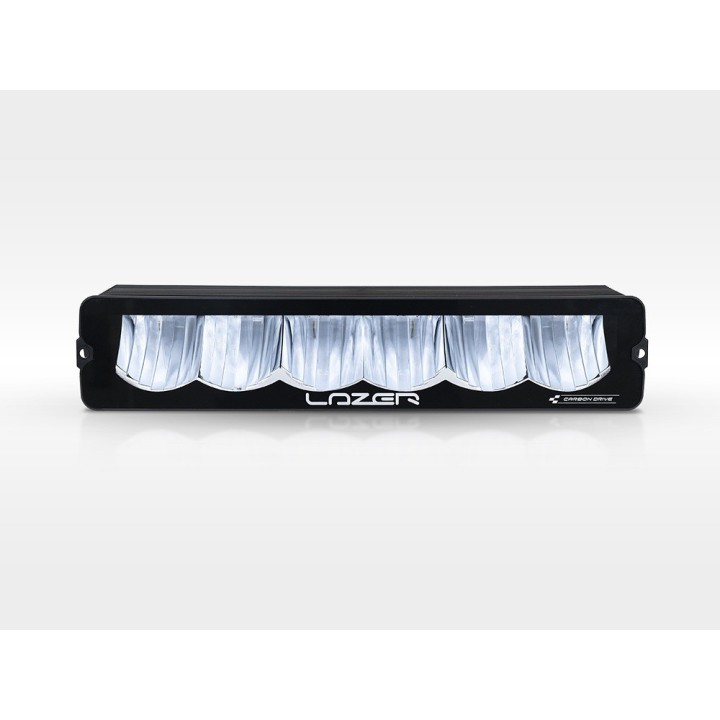

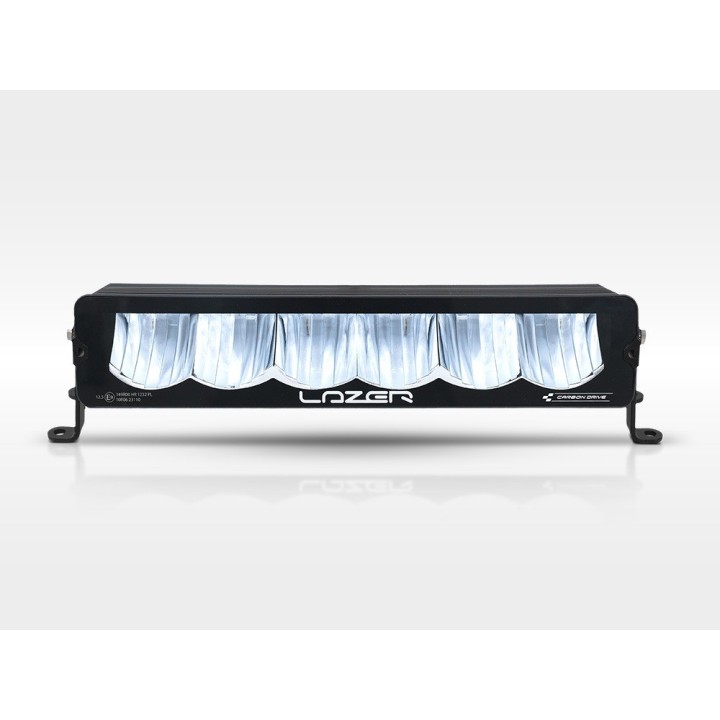

LAZER Carbon-6 Drive (Gen 3) — lightweight LED bar for grille installs

An aluminium bar of this output usually weighs over a kilogram — the Carbon-6 weighs 0.45 kg. That matters wherever the lamp hangs off a plastic grille or a bonnet rather than a steel bar.

The Drive optic spreads light across 60° horizontally, lighting the verge and the entry to a corner, not just the point straight ahead.

Key features

• Ultra-lightweight, PC-ABS material housing
• Combination of high intensity ‘matrix’ LEDs
• Available with Spot or Drive optics
• Full-beam mode can be limited to operate with UNECE E-mark regulation limits
• Secondary ‘dip/low’ beam mode
• Additional lighting modes possible with variable PWM input signals
• Active Power Management regulates current draw (max 7.3A) at low voltages
• Carefully selected 5000K colour temperature maximises sharpness and definition

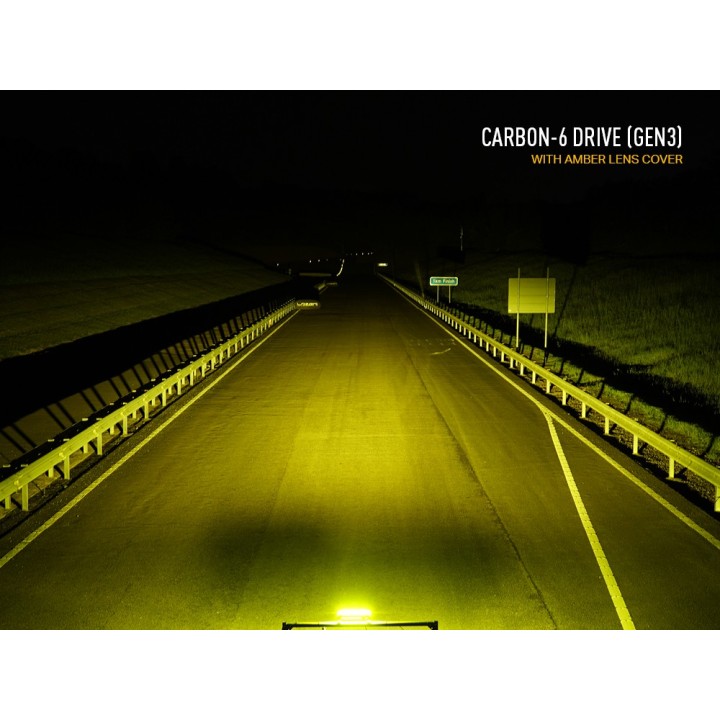

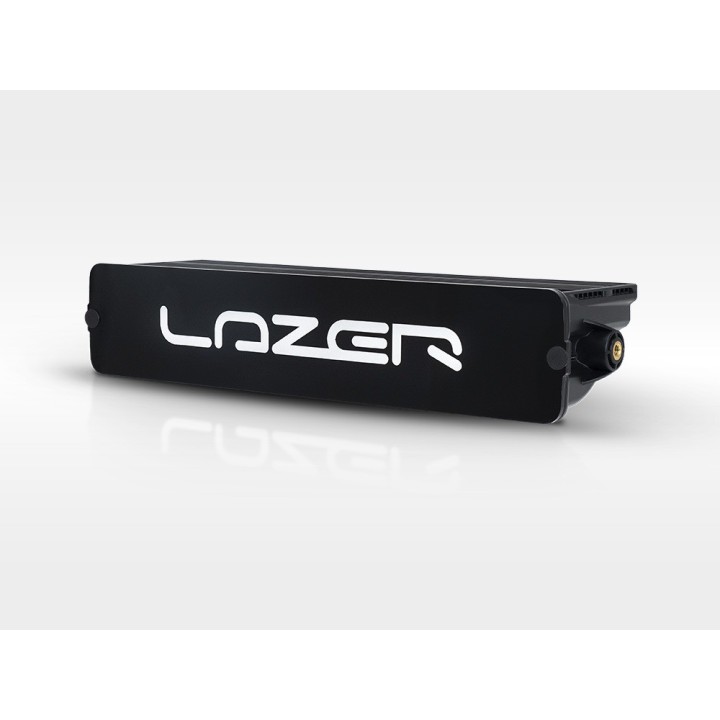

• Included quick fit and release lens covers – Amber and Black
• CAE-optimised heatsink requires minimal airflow to maintain 100% light output
• Dynamic drive modulation preserves electronic components in adverse conditions
• Low profile, edge-to-edge design for improved aerodynamic performance

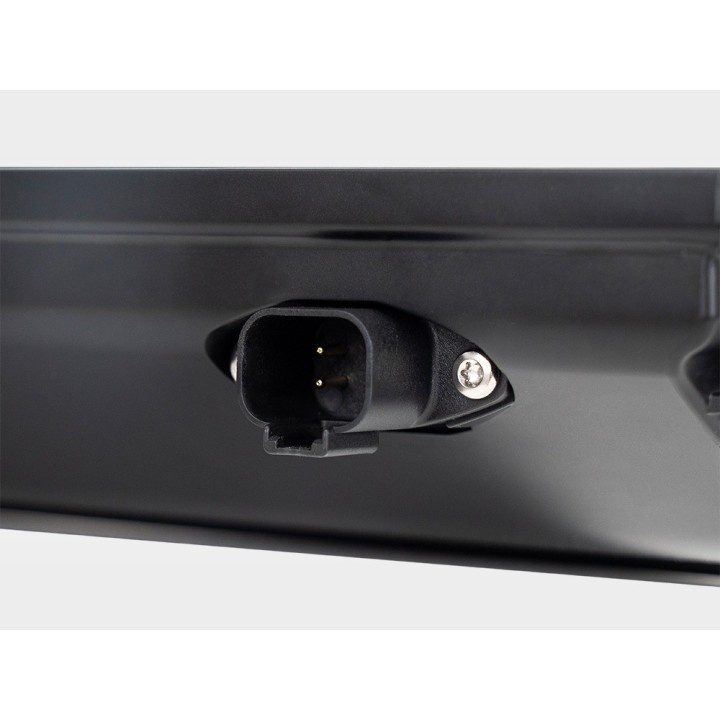

• Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)
• Vehicle side connector, plus 300mm cable length supplied with each lamp.
• Compatible 2-lamp and 4-lamp wiring looms available

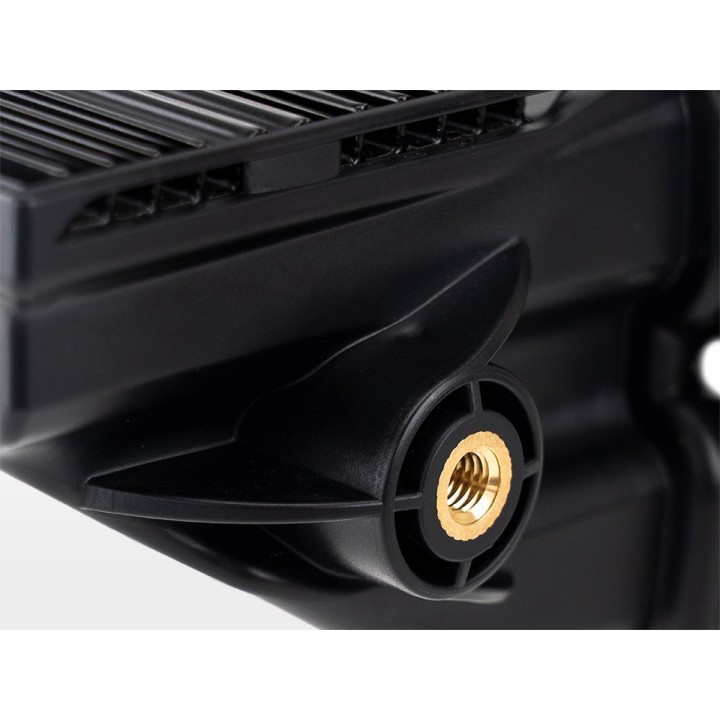

• Rally mounting solutions available including carbon-fibre rally pods
• Fine tune adjustment mechanism on each light for accurate aiming (when used with compatible rally pods)
• ‘Unbreakable’ polycarbonate lens
• IP68 watertight
• 5-year warranty
• Designed & manufactured in Britain

What is in the box

• x1 Carbon-6 Drive LED Lamp
• x1 Amber Lens Cover
• x1 Black Lens Cover
• x1 Installation Instructions

Technical data

• 1x CARBON-6 DRIVE: BOOST MODE / LOW OUTPUT MODE *
• Voltage Range (DC): 10-32V
• LED Life: 50,000 hours
• Weight: 0.45 kg
• Total Luminous Flux: 9360 Lm / 2340 Lm
• Total Driver 'FOV' Flux: 6550 Lm / 1638 Lm
• Colour Temperature: 5000K
• Power Consumption: 85 Watts / 22 Watts
• Peak Current Draw: 7.2 Amps / 1.8 Amps
• Current Draw (14.4V): 5.9 Amps / 1.5 Amps
• Connector: 4-Pin Deutsch DT (+25cm Cable)

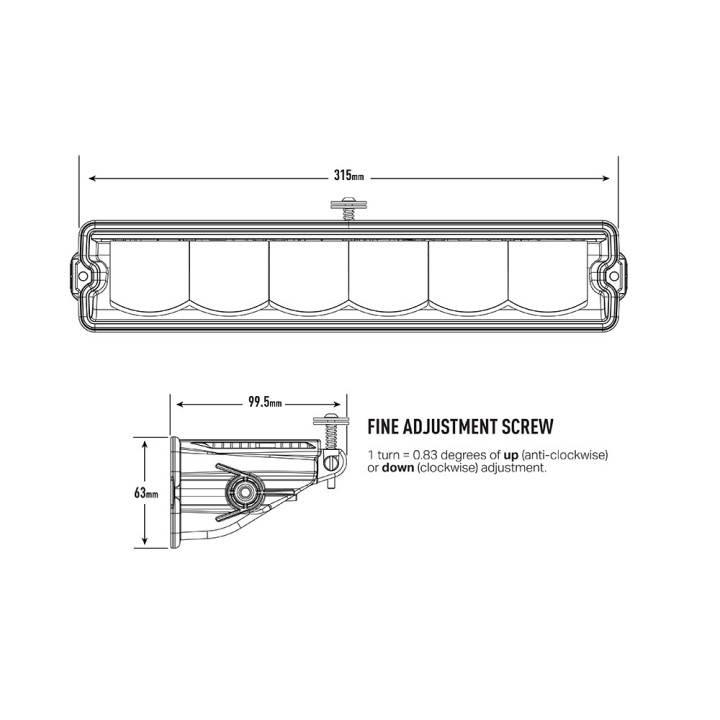

• Width: 315 mm
• Depth: 99 mm
• Height: 63 mm
• IP Rating: IP68
• High Beam (E9 approval): ECE R149 - Ref: 37.5 (in Low Output Mode only)
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2

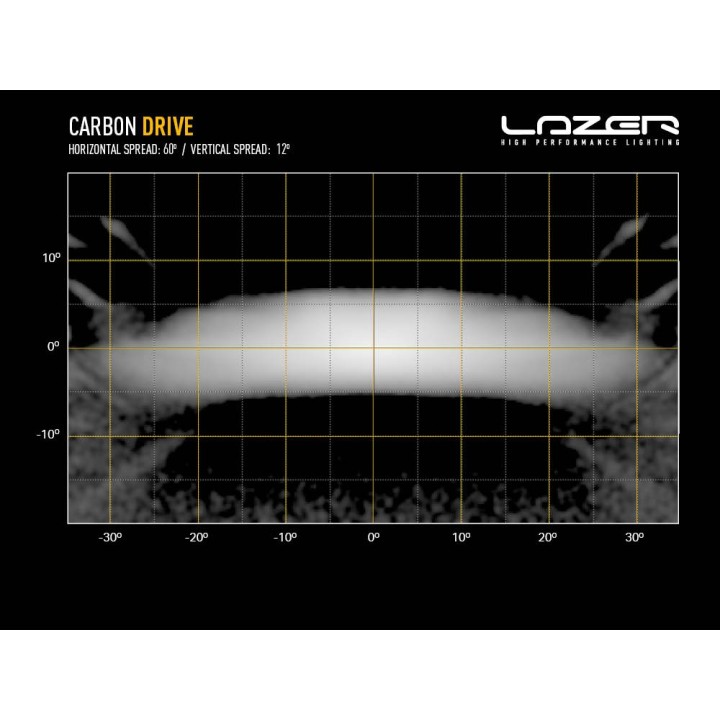

• Horizontal / Vertical Beam Angle: 60° / 12°
• 0.25 Lux: 959m / 429m
• 0.5 Lux: 678m / 303m
• 1 Lux: 480m / 214m
• 3 Lux: 288m / 124m

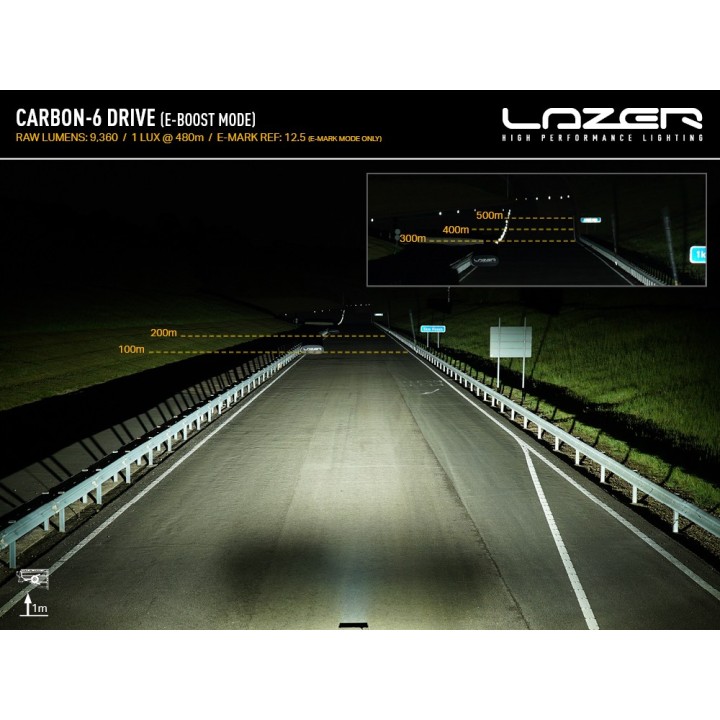

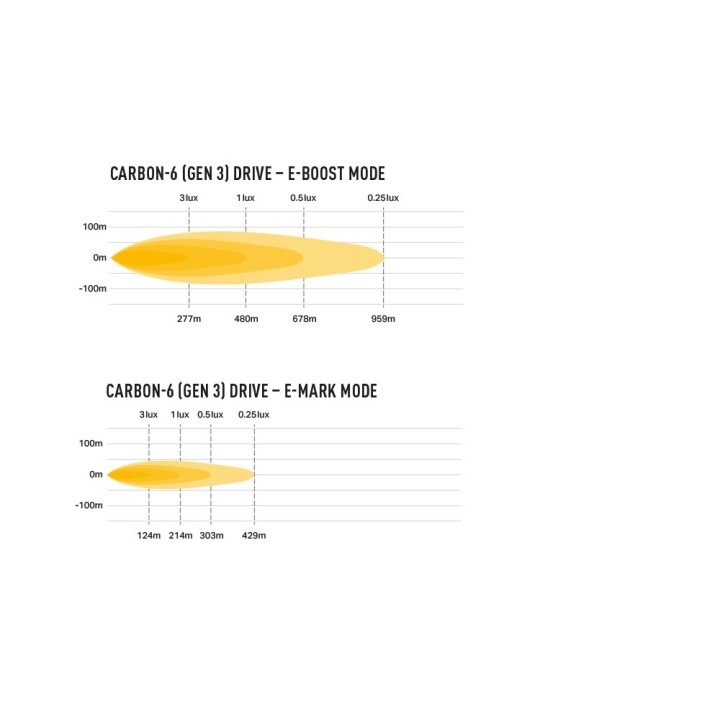

Beam range

Who it is for

For vehicles where every kilo on the nose is a problem: rally cars, light grille installs, bonnet mounting. It also complements a long-range bar — Drive adds the width a spot optic cannot give.

The two lens covers in the box let you change the look of the front end, or switch the lamp to work-light duty, with nothing else to buy.

Fitting and notes

The lead ends in a 4-pin Deutsch DT connector with 25 cm of cable. A relay wiring kit is sold separately.

ECE R149 approval covers the low output mode only — the full 9,360 lm is an off-road mode.

Why it is worth it

• 9,360 lm at 0.45 kg — the best output-to-weight ratio in the LAZER range
• Wide Drive optic, 60° horizontal
• Two lens covers included, IP68 sealed

Frequently asked questions

Why is the Carbon-6 so light?

The manufacturer specifies a very light PC-ABS housing instead of the usual aluminium body.

What is the difference between Drive and Spot?

They are two optics of the same lamp. Drive gives a wide spread (60° horizontal), Spot a narrower long-range beam.

What is in the box?

The Carbon-6 Drive lamp, an amber and a black lens cover, and fitting instructions.

What are the dimensions?

Width 315 mm, depth 99 mm, height 63 mm.

Is the lamp road approved?

The manufacturer lists ECE R149 (Ref. 37.5) for the low output mode only, plus ECE R10 for electromagnetic compatibility.
