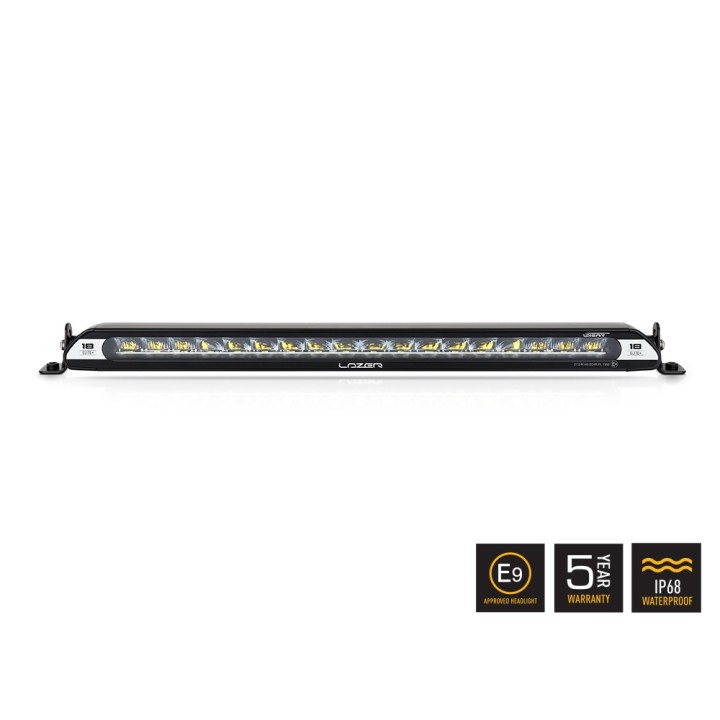

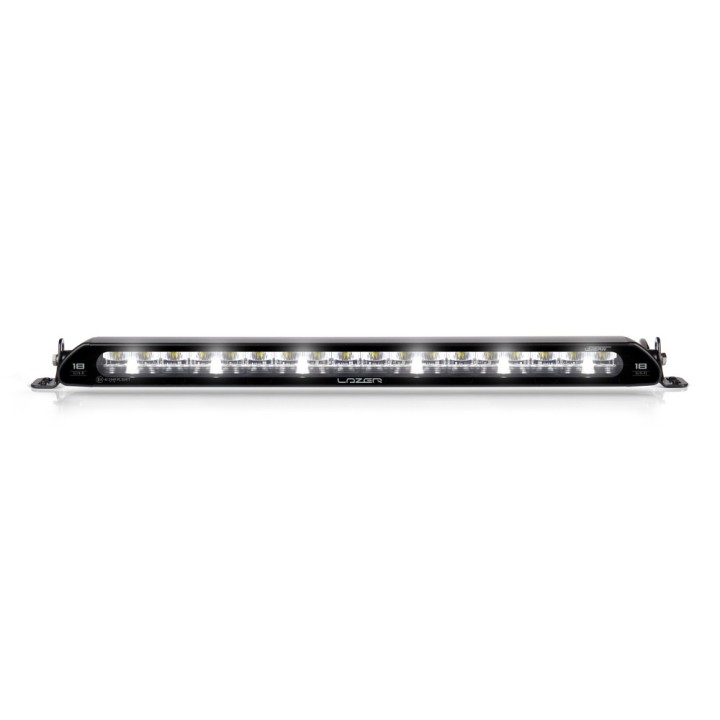

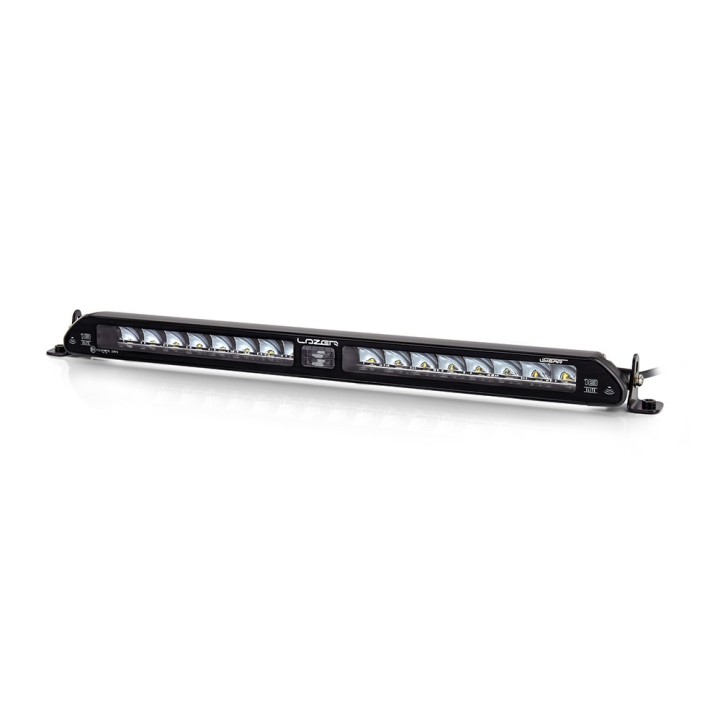

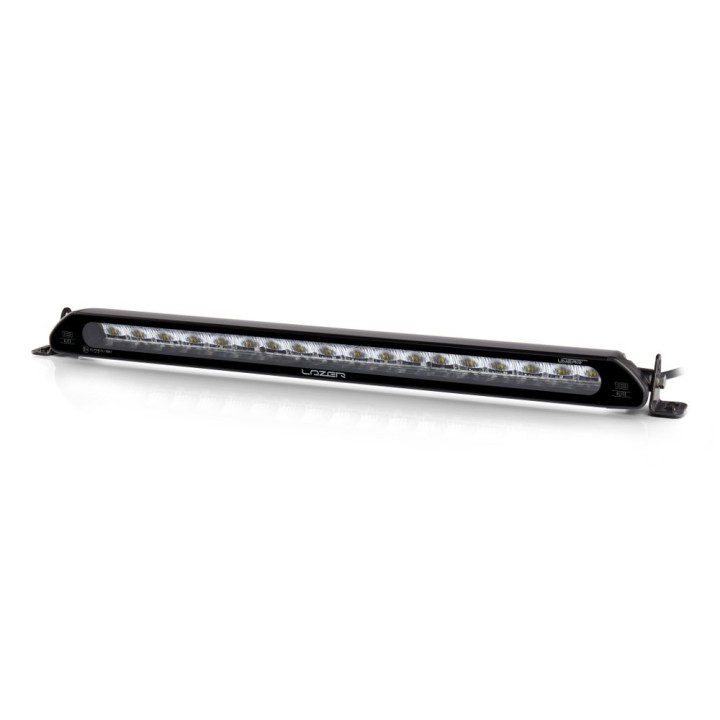

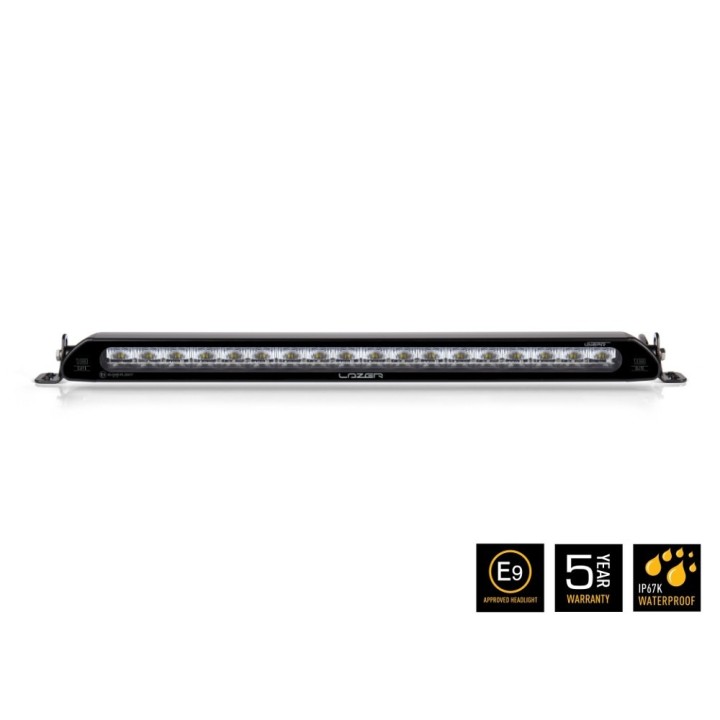

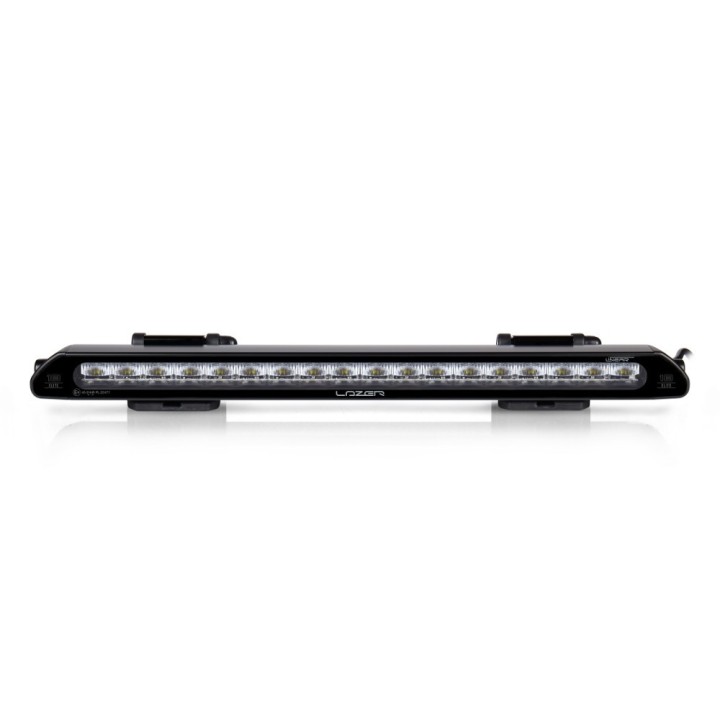

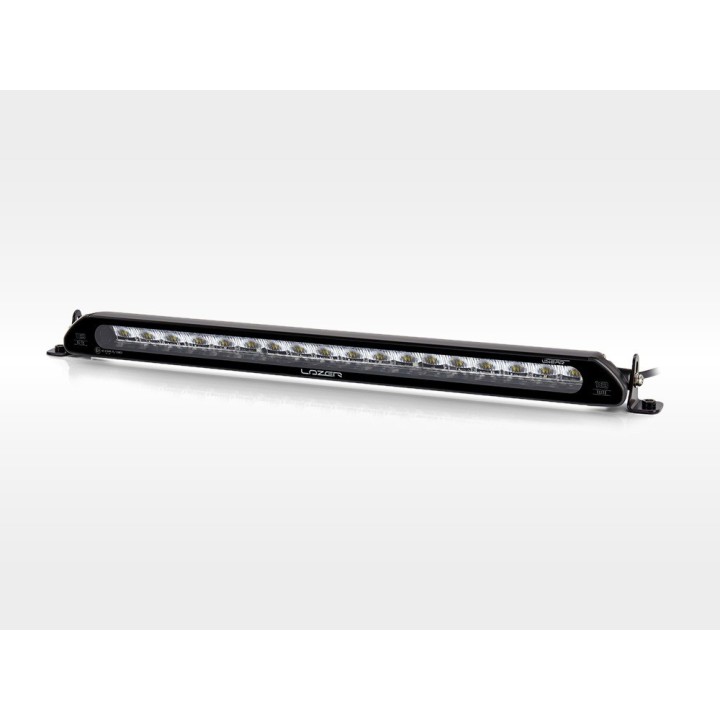

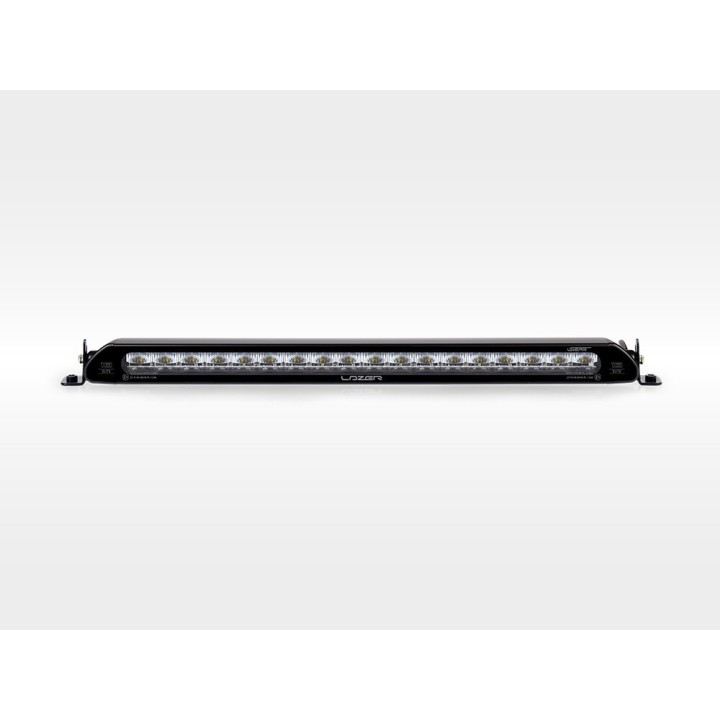

LAZER Linear-18 Elite (Double E-Mark) — 532 mm LED light bar

40 mm tall and 532 mm wide are the proportions that fit above a number plate or inside a lower bumper intake — and still deliver 13,500 lumens and over a kilometre of lit road.

The double E-mark means two legal output levels: full power, and a reduced level once the E-Mark Cap (sold separately) is fitted.

Key features

• Combination of highly efficient 3W ‘premium bin’ LEDs
• Dual-output mode allows the light to be operated at a lower UNECE E-mark reference (requires Linear E-Mark Cap – sold separately)
• 5000K LED colour temperature and 80CRI maximises sharpness and definition
• Vacuum-metallised optics deliver wide spread of light
• Reduced up/down spread of light suits even low mounting positions, or roof mounting
• Sleek, low profile design eases installation
• Aero design virtually eliminates wind noise on roof installations

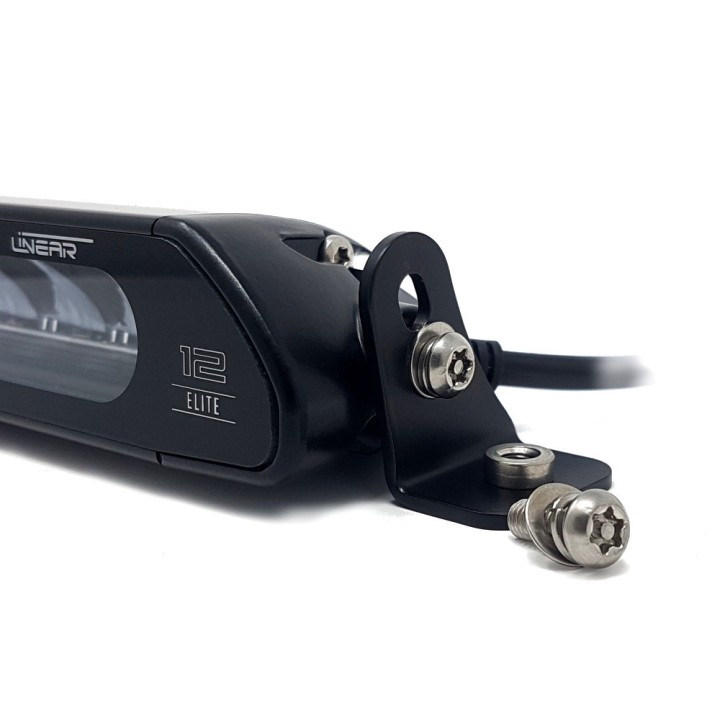

• Flexible mounting options – anti-theft side mounting brackets included
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

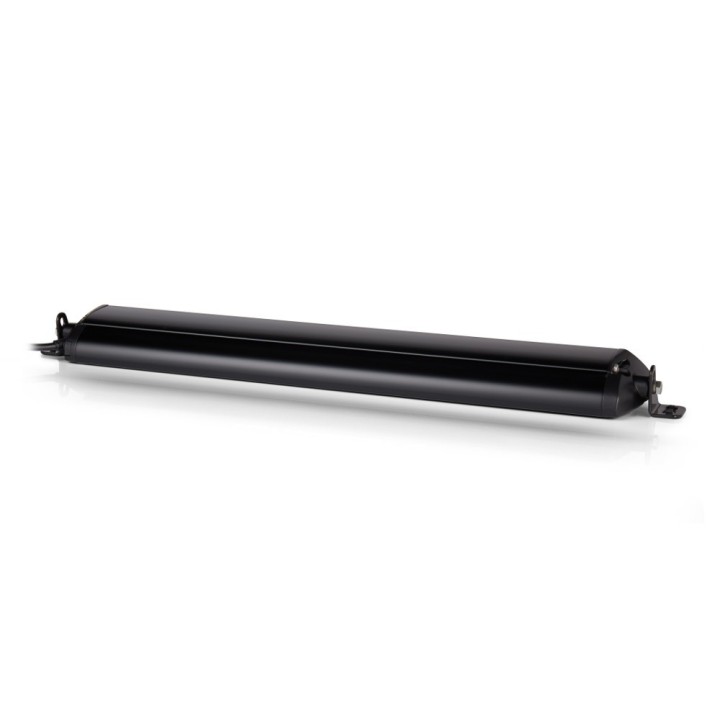

• CAE optimised heatsink offers improved thermal dynamics
• Over voltage protected
• Reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function
• UNECE approved Reg 10
• IP68 watertight
• 5 year warranty
• Supplied with pre-wired male/female 2-pin Superseal connectors
• Designed and manufactured in UK

What is in the box

• Linear-18 Elite (Double E-Mark) LED Lamp
• Anti-Theft Side Mount (1127k)
• Installation Instructions

Technical data

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hrs
• Weight: 1.09 kg
• Total Luminous Flux: 13,500 Lm
• Total Driver 'FOV' Flux: 9,612 Lm
• Colour Temperature: 5000K
• Power Consumption: 130 Watts
• Current Draw (14.4V): 9 Amps
• Peak Current Draw: 13 Amps
• Connector: 2-Pin Superseal (+20cm Cable)
• IP Rating: IP68

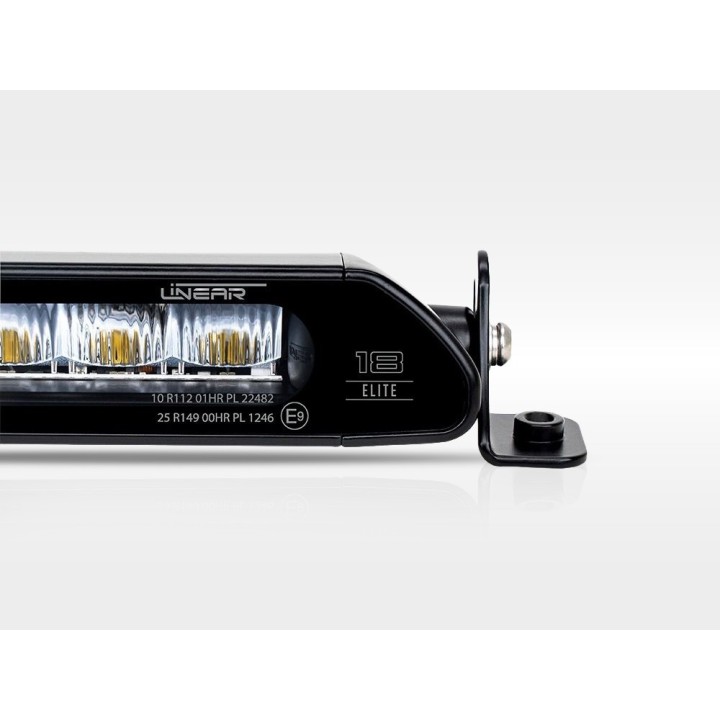

• High Beam (E9 approval): ECE R149 (Double E-Mark) - Ref: 2x 25 (Ref 2x 10 with E-Mark Cap - ECE R112)
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2
• Horizontal: 64 degrees
• Vertical: 15 degrees
• Width: 532mm
• Depth: 62mm
• Height: 40mm

Beam range

Who it is for

For drivers who want real long-range light without a tall bar above the cab — the Linear-18 Elite hides in the bumper line and does not add the drag of a classic light bar.

The Elite version uses stronger LEDs and comes with anti-theft brackets as standard — made for a vehicle that parks in public, not only in a garage.

Fitting and notes

1127K anti-theft side mounts are included. The lead ends in a 2-pin Superseal connector with 20 cm of cable; the wiring kit is separate.

Running in the lower approval mode (ECE R112) requires the Linear E-Mark Cap, which is not part of the kit.

Why it is worth it

• 13,500 lm and 1,023 m of range from a 40 mm tall housing
• Anti-theft side brackets as standard
• IP68, ISO 9227, 5-year manufacturer warranty

Frequently asked questions

What does "Double E-Mark" mean?

The lamp holds two approved output levels: ECE R149 at reference 2× 25, and ECE R112 at 2× 10 with the E-Mark Cap fitted.

Is the E-Mark Cap included?

No — the manufacturer lists it as a separately sold accessory.

Which brackets are supplied?

The 1127K anti-theft side mounts, with fitting instructions.

How much does it weigh?

The manufacturer states 1.09 kg.

What is the power draw?

130 W, i.e. 9 A at 14.4 V, with a 13 A peak.
