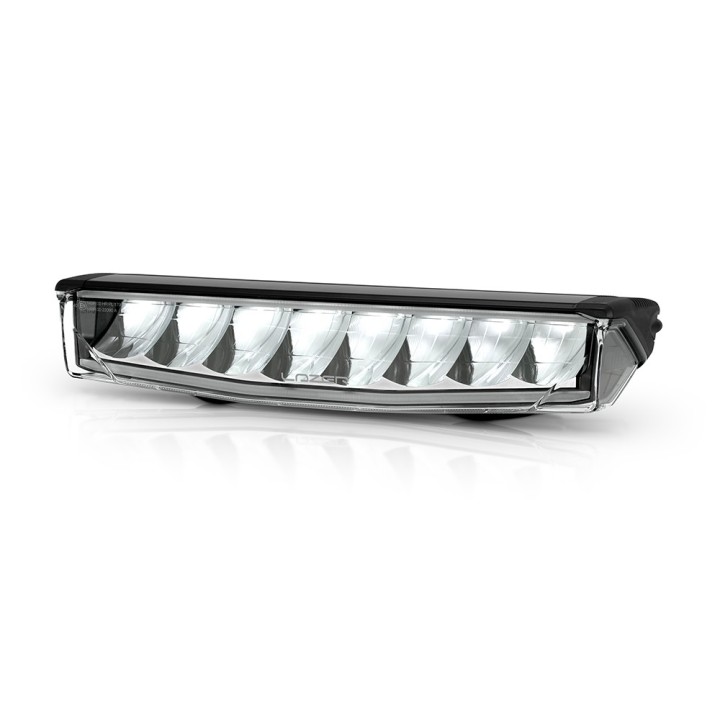

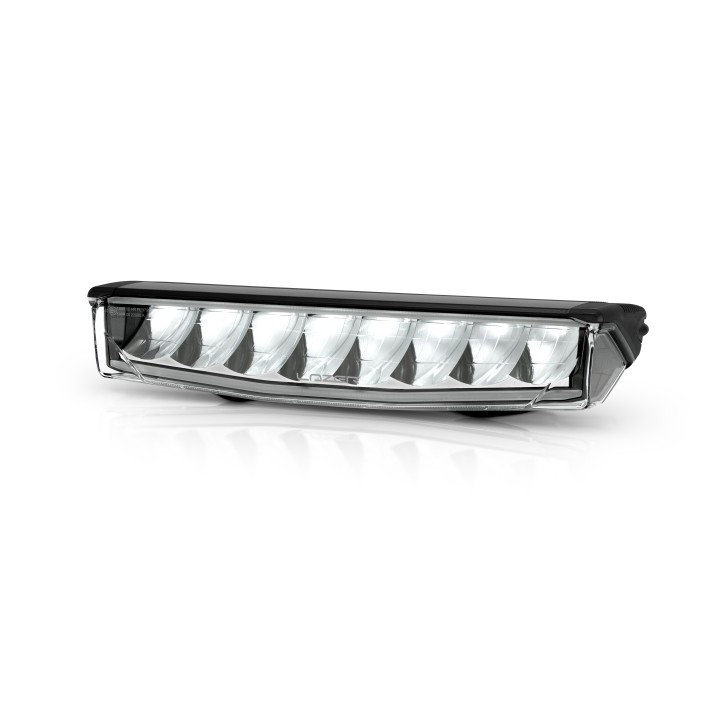

LAZER AIR-55 — LED bar with an approved position light

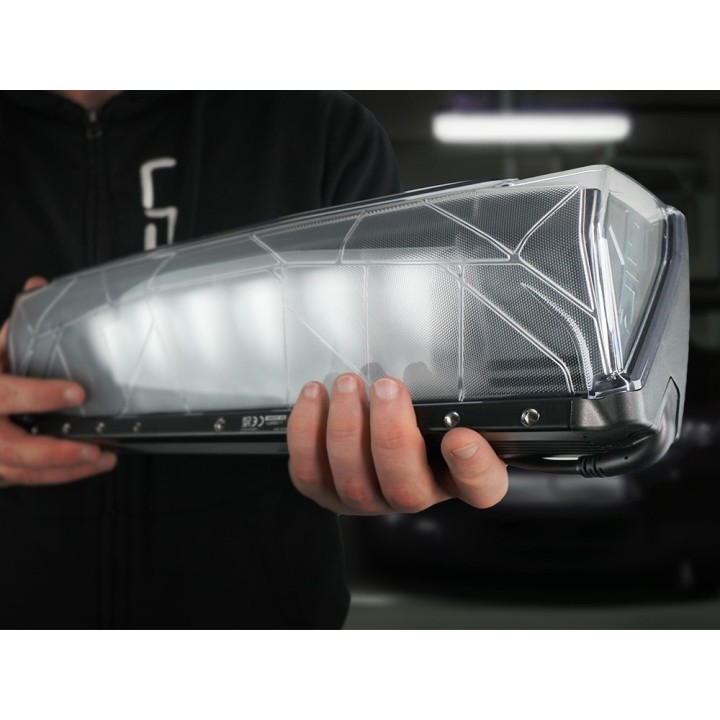

A conventional LED bar always looks bolted on after the fact. The AIR-55 uses a one-piece monocoque lens with an integrated position light — on the front of a vehicle it reads as part of the design rather than an accessory.

Behind that housing sit 6,800 lumens and 800 metres of range, so it is not a styling part only.

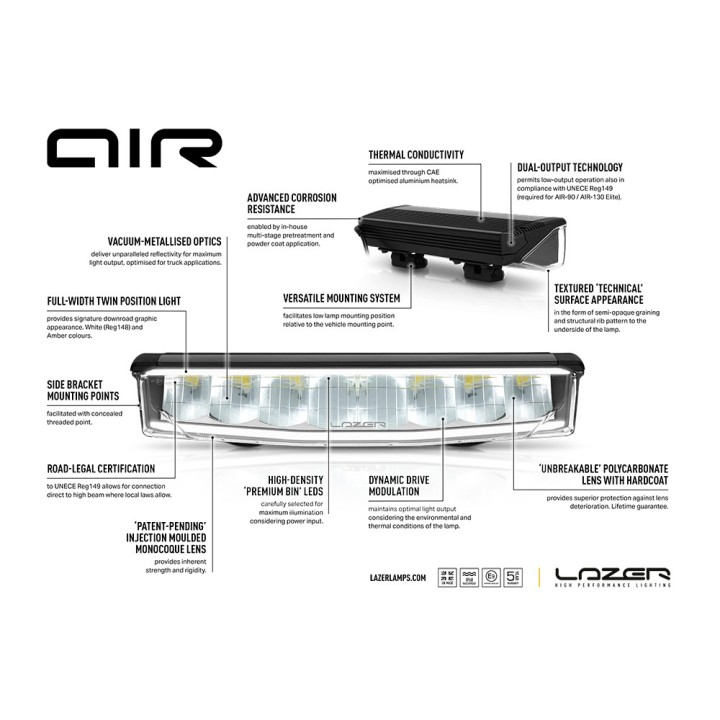

Key features

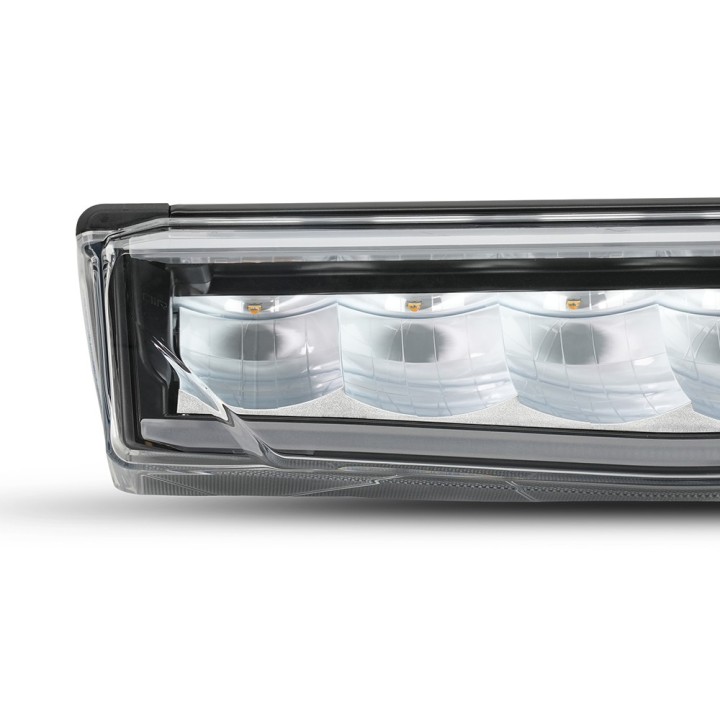

• Patent-pending injection moulded monocoque lens with texture effect to the underside

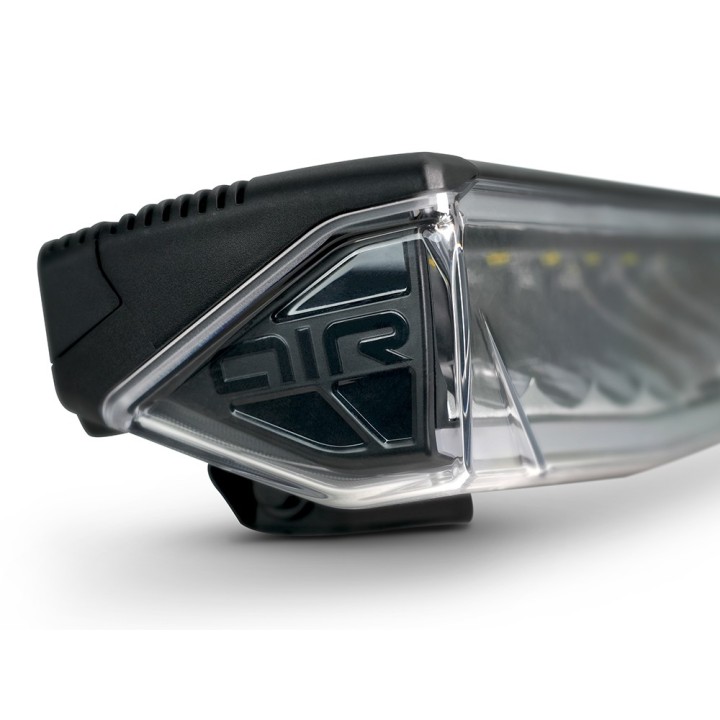

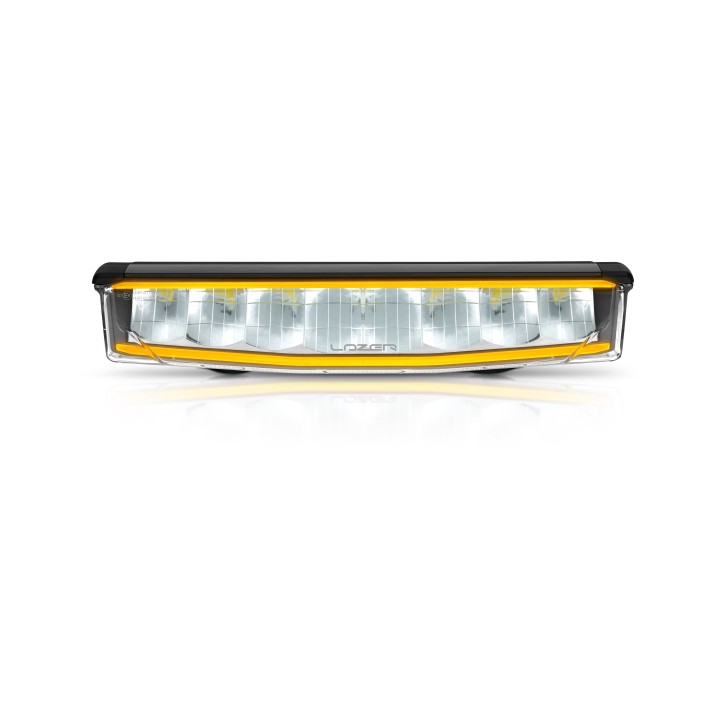

• Integrated white or amber position light guides
• Adoption of the latest high-efficiency premium-bin LEDs
• Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road
• Patent-pending lamp design

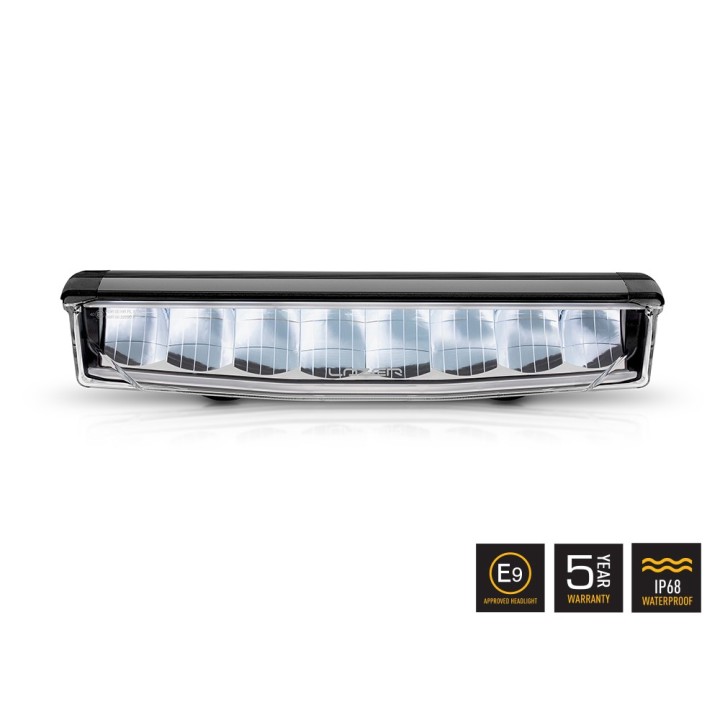

• ECE approved for on-road high beam (E-Boost technology) and position/side light function (white only)

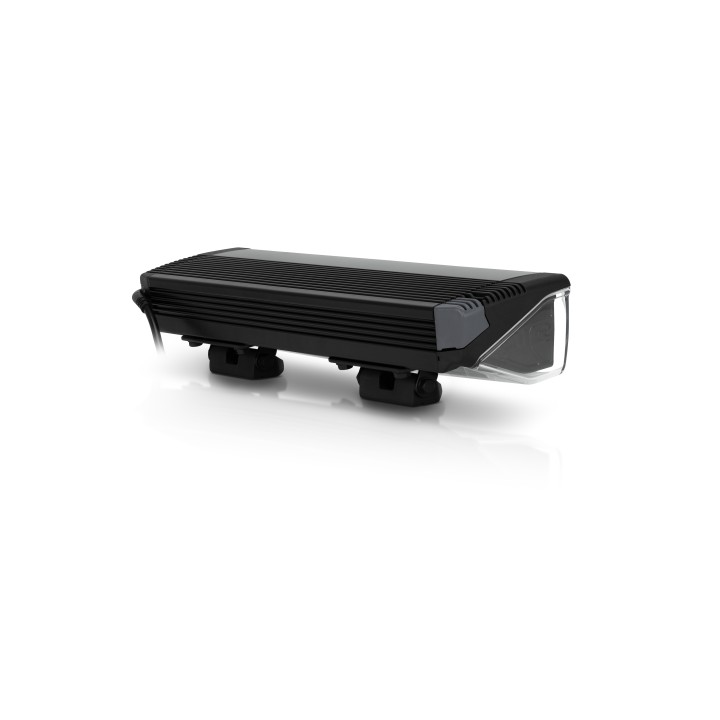

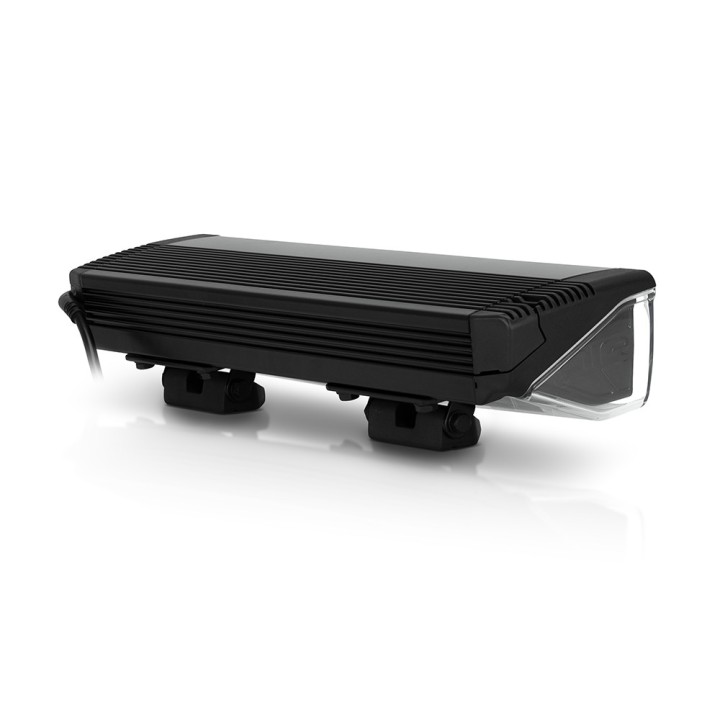

• Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.
• Threaded mounting locations to enable side mounting (brackets sold separately)
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management
• ‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee
• 20cm lamp cable complete with male/female 3-pin Superseal connectors
• IP68 watertight
• 5-year warranty
• Vehicle wiring kits available
• Designed & manufactured in the UK

What is in the box

• x1 AIR-55 LED Lamp
• x2 Centre Mounting Kit (1151K)
• Installation Instructions

Technical data

• Voltage Range (DC): 10-32V
• LED Life: 50,000 hrs
• Weight: 1.65 kg
• Total Luminous Flux: 6,800 Lm
• Total Driver 'FOV' Flux: 4,488 Lm
• Colour Temperature: 5000K
• Power Consumption: 55 Watts
• Current Draw (14.4V): 4 Amps
• Peak Current Draw: 6.1 Amps
• Connector: 3-Pin Superseal (+20cm Cable)
• IP Rating: IP68
• High Beam (E9 approval): ECE R149 - Ref: 40
• Postion Light (white): ECE R148
• EMC Certification: ECE R10
• Salt Spray Test: ISO 9227
• Dump Load Protection: ISO 7637-2
• Horizontal: 34 degrees
• Vertical: 13 degrees
• Width: 411mm
• Depth: 106mm
• Height: 82mm

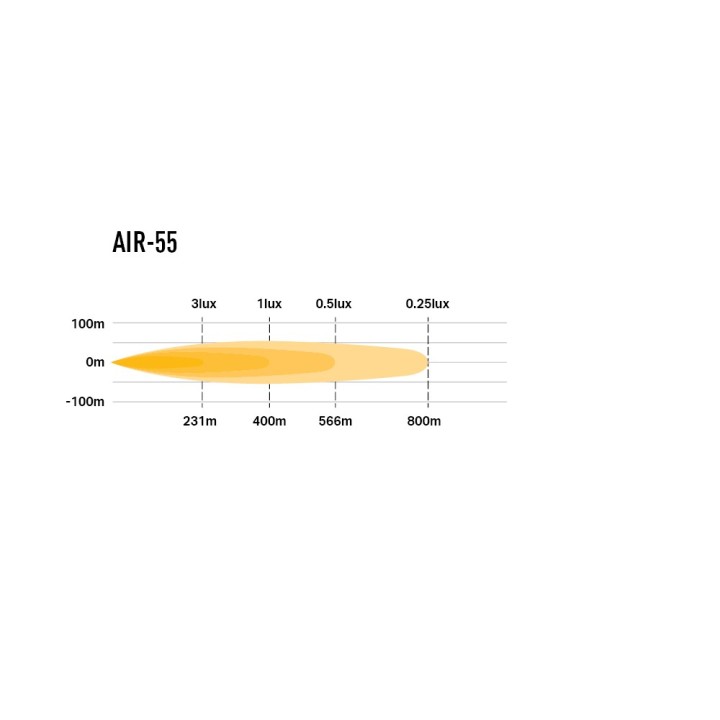

Beam range

Who it is for

For vehicles where the look of the front matters as much as the light: pickups, SUVs, campers, trucks with a factory roof bar. The integrated position light gives an effect a separate LED strip cannot match.

At 411 mm wide and 82 mm tall it fits typical roof bars and brackets.

Fitting and notes

Two 1151K centre mounting kits and installation instructions are included. A relay wiring kit is sold separately.

The manufacturer lists ECE R149 approval for the driving beam and ECE R148 for the white position light.

Why it is worth it

• 6,800 lm and 800 m of range with road approval
• Integrated, type-approved position light
• One-piece monocoque lens, IP68, 5-year warranty

Frequently asked questions

What does the monocoque lens do?

The manufacturer describes a patent-pending one-piece injection-moulded lens textured on the underside — a single part instead of a lens plus bezel assembly.

Is the position light approved?

Yes, the manufacturer lists ECE R148 for the white position light.

What is in the box?

The AIR-55 lamp, two 1151K centre mounting kits and installation instructions.

What are the dimensions and weight?

Width 411 mm, depth 106 mm, height 82 mm, weight 1.65 kg.

What is the power draw?

The manufacturer quotes 55 W for the driving beam function.
