LAZER High Performance LED Lighting
Reference: 00C6-SPOT-G3
Light Bars

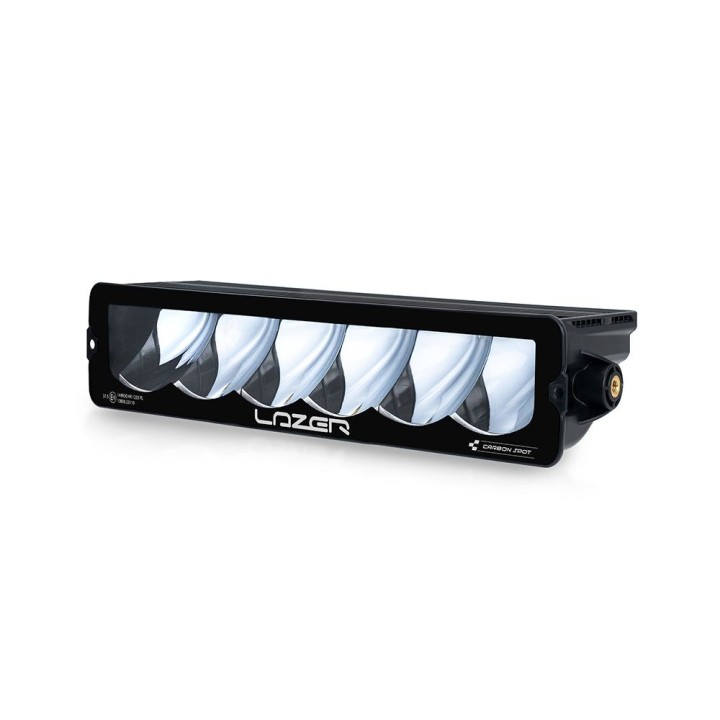

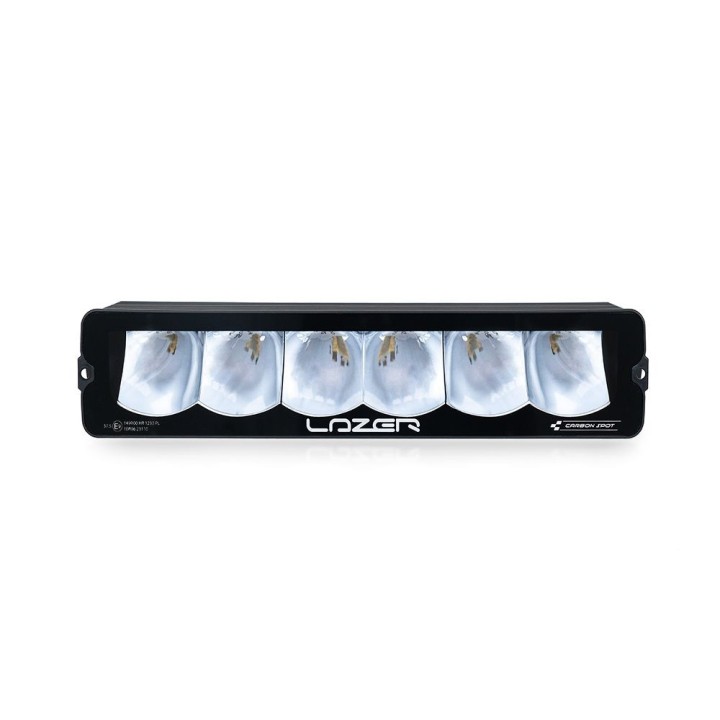

LAZER CARBON-6 Spot (Gen. 3)
LAZER CARBON-6 Spot (Gen. 3). The manufacturer quotes luminous flux: 9360 lm, range at 0.25 lx: 1536m, power consumption: 85 W. ECE R149 - Ref: 37.5 (in Low Output Mode only) approval allows it to be used as a driving light.
LAZER CARBON-6 Spot (Gen. 3)
Factory main beam runs out exactly where the real risk begins — an animal on the verge, a pothole, a blind corner.
The manufacturer quotes 9360 lm of output, 315 mm wide, 0.45 kg. ECE R149 - Ref: 37.5 (in Low Output Mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.
Luminous flux 9360 lm | Range (0.25 lx) 1536m | Beam angle (horizontal / vertical) 32° / 12° |
Key features
- Ultra-lightweight, PC-ABS material housing
- Combination of high intensity ‘matrix’ LEDs
- Available with Spot or Drive optics
- Full-beam mode can be limited to operate with UNECE E-mark regulation limits
- Secondary ‘dip/low’ beam mode
- Additional lighting modes possible with variable PWM input signals
- Active Power Management regulates current draw (max 7.3A) at low voltages
- Carefully selected 5000 K colour temperature maximises sharpness and definition

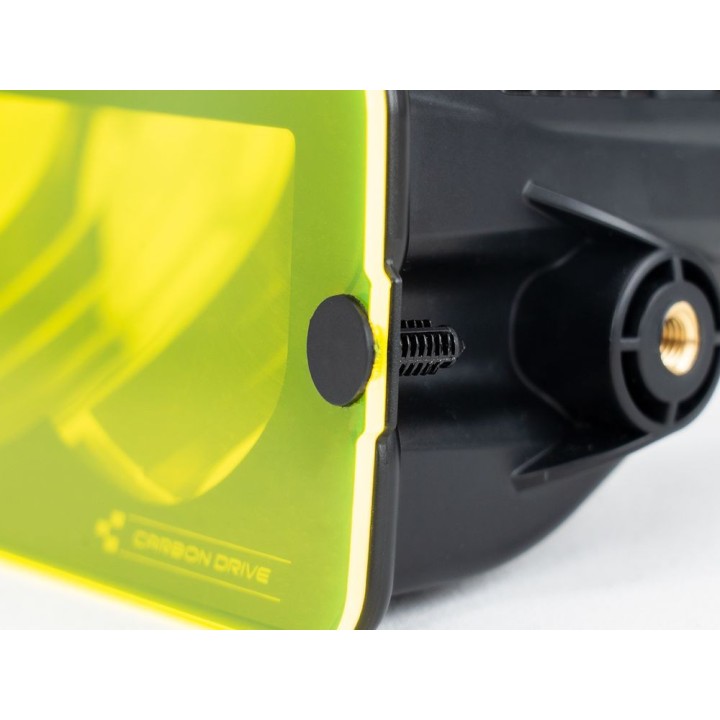

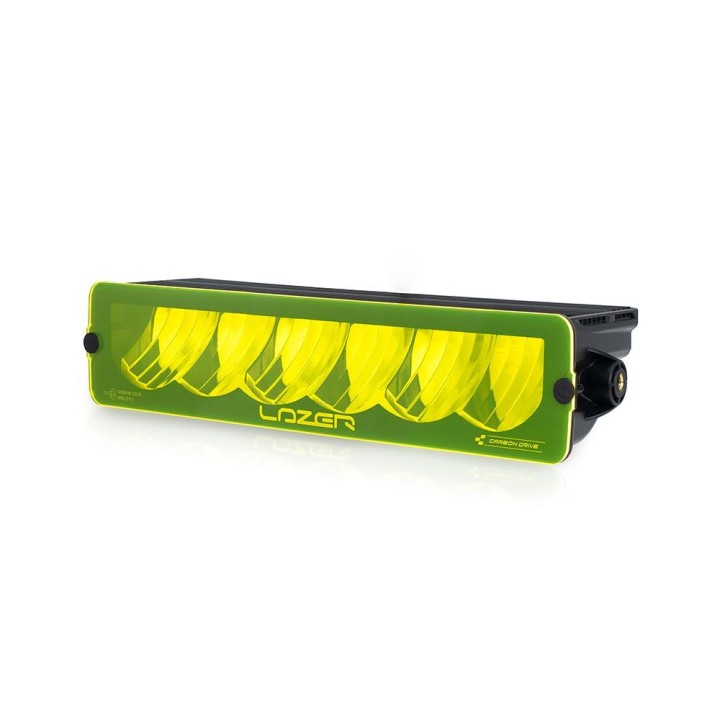

- Included quick fit and release lens covers – Amber and Black
- CAE-optimised heatsink requires minimal airflow to maintain 100% light output
- Dynamic drive modulation preserves electronic components in adverse conditions
- Low profile, edge-to-edge design for improved aerodynamic performance

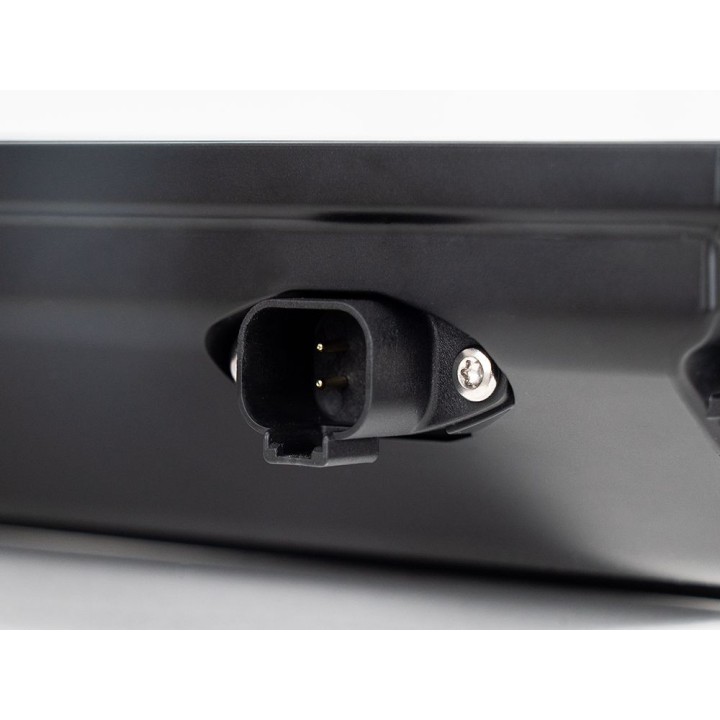

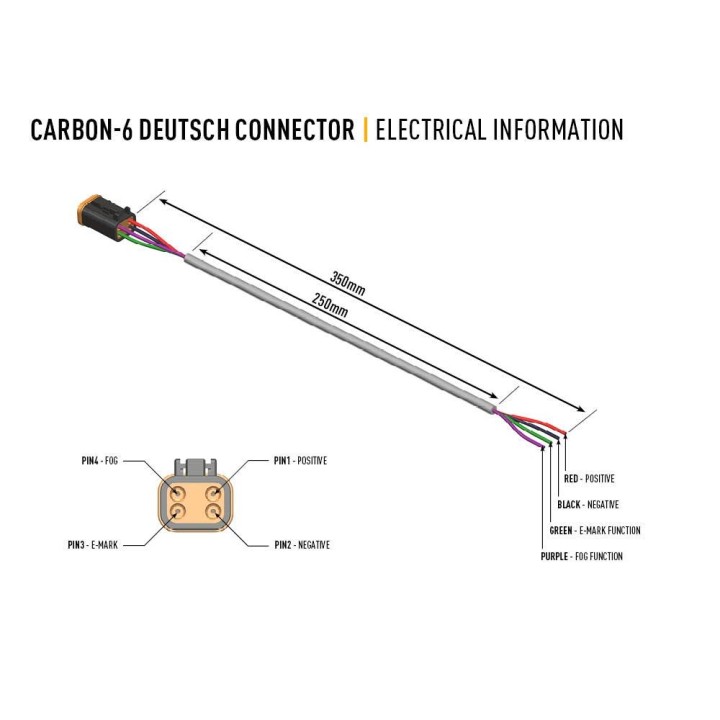

- Lamp features a built-in DT04-4P Deutsch Connector (gold plated solid DT contacts)
- Vehicle side connector, plus 300mm cable length supplied with each lamp.
- Compatible 2-lamp and 4-lamp wiring looms available
- Rally mounting solutions available including carbon-fibre rally pods

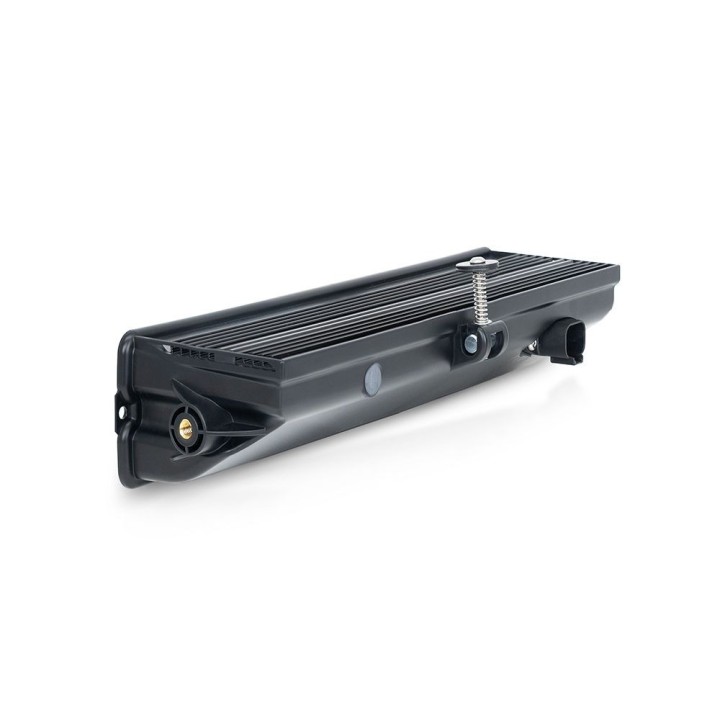

- Fine tune adjustment mechanism on each light for accurate aiming (when used with compatible rally pods)
- ‘Unbreakable’ polycarbonate lens
- IP68 watertight
- 5-year warranty
What is in the box
- x1 Carbon-6 Spot LED Lamp
- x1 Amber Lens Cover

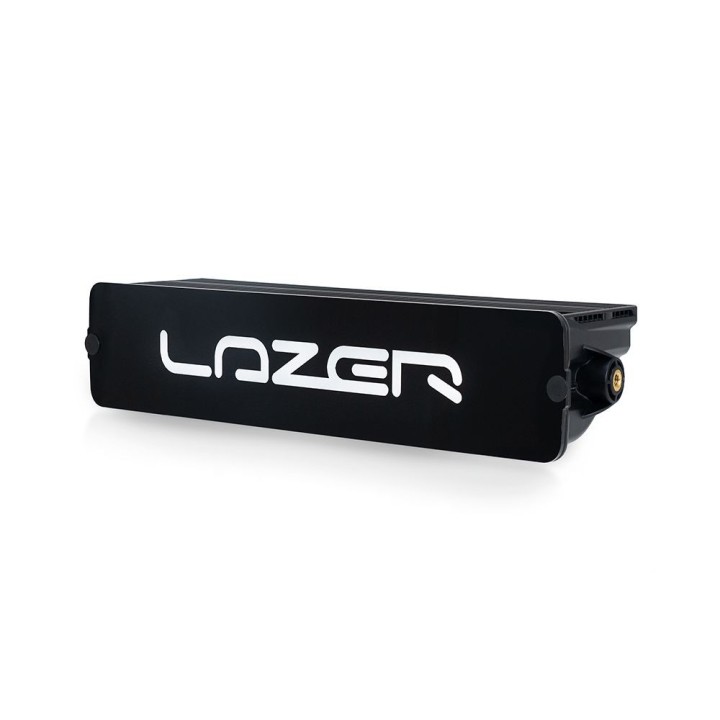

- x1 Black Lens Cover
- x1 Installation Instructions
Technical data
- Luminous flux: 9360 lm (full power mode) / 2340 lm (approved mode)
- Driver 'FOV' flux: 6560 lm (full power mode) / 1640 lm (approved mode)
- Colour temperature: 5000 K
- Number of LEDs: 6
- Power consumption: 85 W (full power mode) / 22 W (approved mode)
- Current draw: 7.2 A (full power mode) / 1.8 A (approved mode)
- Peak current draw: 7.2 A (full power mode) / 1.8 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 0.45 kg

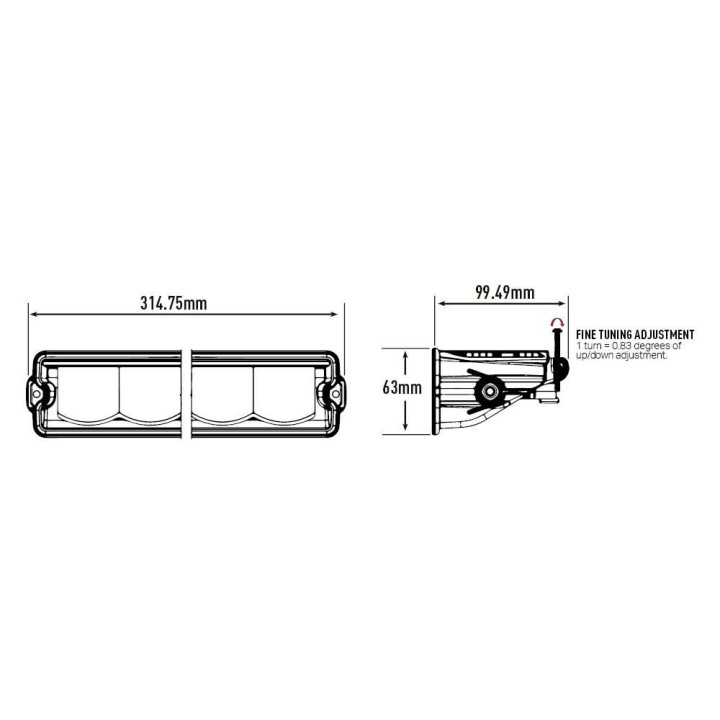

- Width: 315 mm
- Depth: 99 mm
- Height: 63 mm

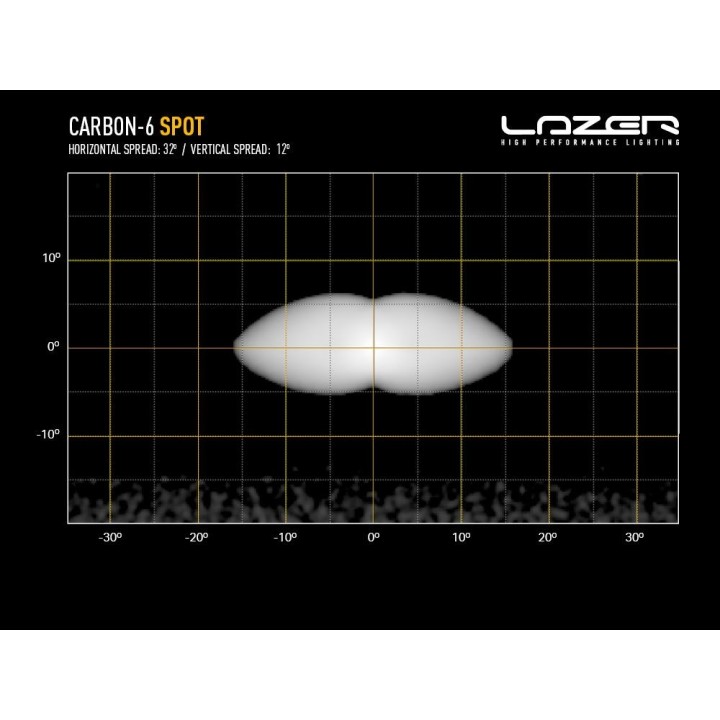

- Beam angle (horizontal / vertical): 32° / 12°
- Horizontal beam angle: 32° / 12°
- Vertical beam angle: 32° / 12°
- Connector: 4-Pin Deutsch DT (+25cm Cable)
- Ingress protection: IP68
- Driving beam approval: ECE R149 - Ref: 37.5 (in Low Output Mode only)
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
- Warranty: 5 years

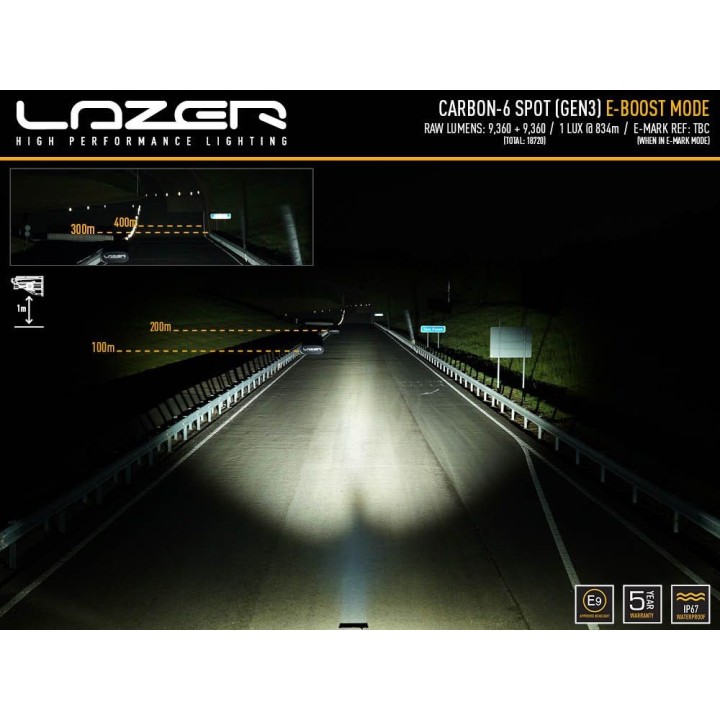

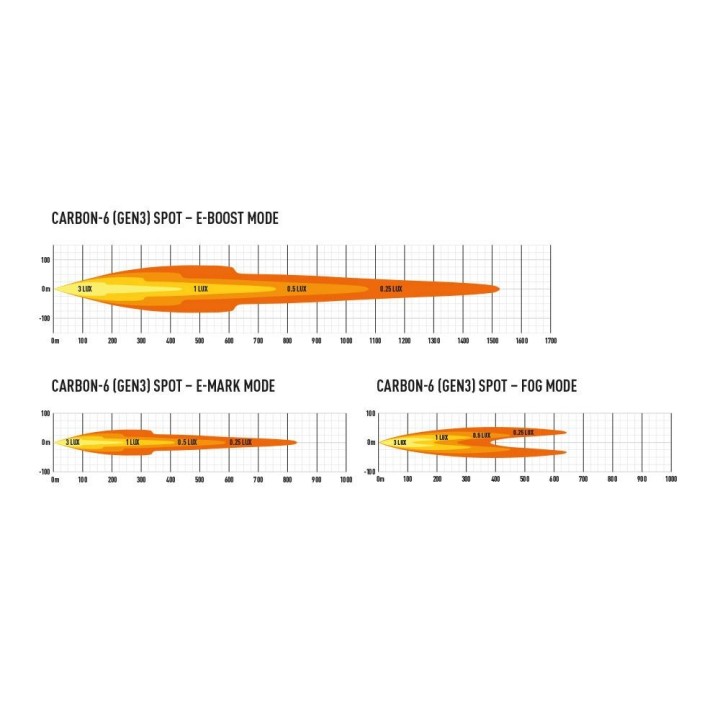

Beam range
| 0.25 lx | 1536m / 687m |
| 0.5 lx | 1086m / 486m |
| 1 lx | 768m / 344m |
| 3 lx | 443m / 198m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For lightweight installs — plastic grilles, bonnets, rally cars.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
The lamp lead ends in: 4-Pin Deutsch DT (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R149 - Ref: 37.5 (in Low Output Mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
Why it is worth it
- 9360 lm of output and 1536m of range on the 0.25 lx line
- ECE R149 - Ref: 37.5 (in Low Output Mode only) approval — a legal driving light
- IP68 ingress protection
- Manufacturer warranty: 5 years
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 - Ref: 37.5 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
What is in the box?
The box contains: x1 Carbon-6 Spot LED Lamp, x1 Amber Lens Cover, x1 Black Lens Cover, x1 Installation Instructions.
How far does it throw?
The manufacturer quotes 1536m on the 0.25 lx line, 1086m at 0.5 lx and 768m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 85 W, i.e. 7.2 A at 14.4 V.
