LAZER High Performance LED Lighting
Reference: 00R12-G2-PLUS-B
Light Bars

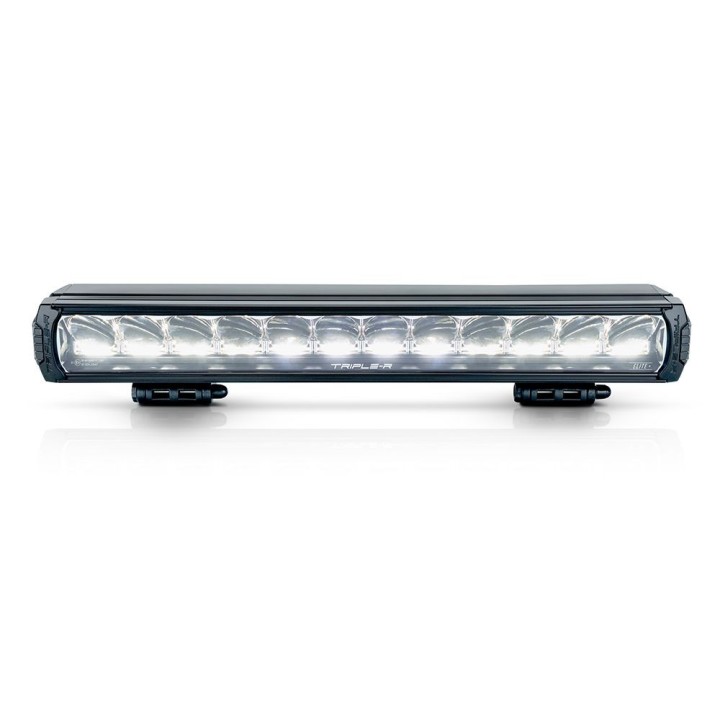

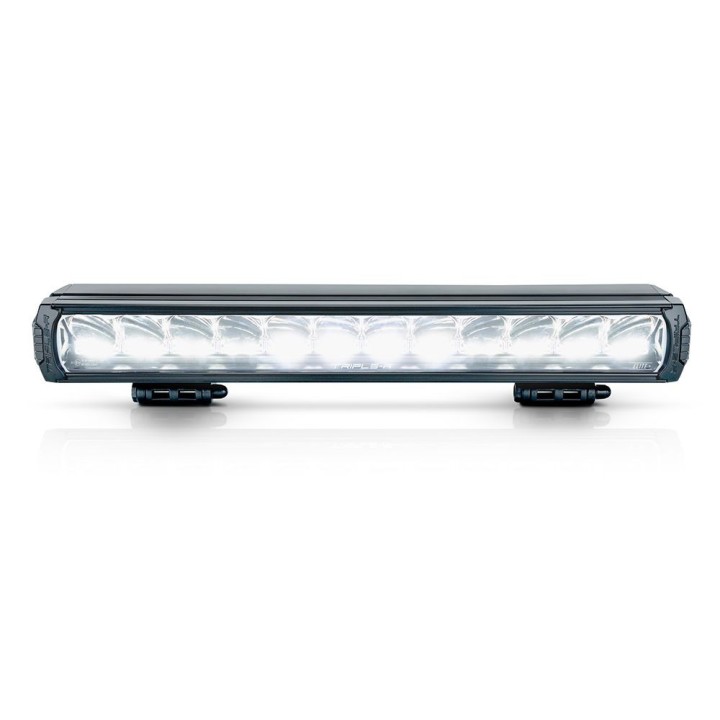

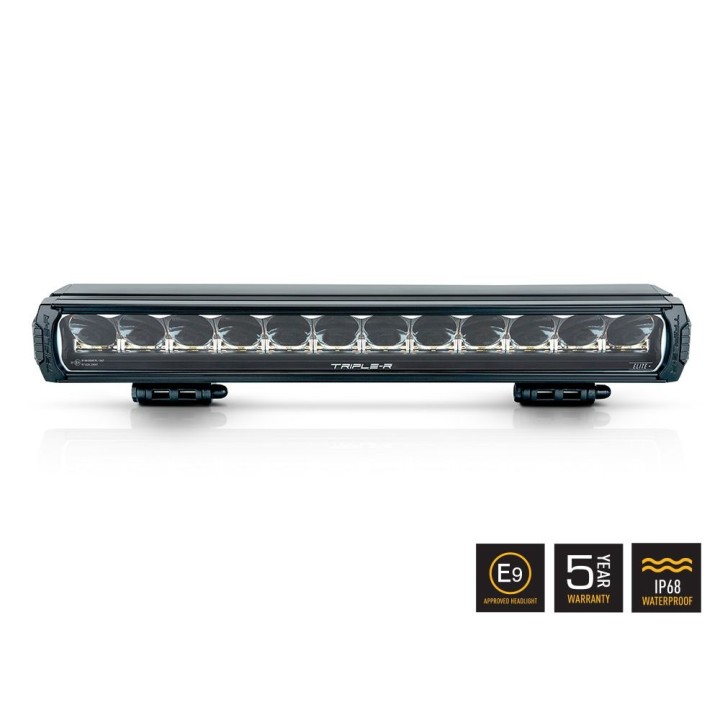

LAZER Triple-R 1250 Elite+
LAZER Triple-R 1250 Elite+. The manufacturer quotes luminous flux: 12,028 lm, range at 0.25 lx: 1470 m, power consumption: 131 W. ECE R149 - Ref: 20 (in Low Output Mode only) approval allows it to be used as a driving light.
LAZER Triple-R 1250 Elite+
On an unlit road what matters is not the number on the box but how far ahead you can see the edge of the tarmac. This lamp lights it to 1470 m on the 0.25 lx line.
The manufacturer quotes 12,028 lm of output, 590mm wide, 2.4 kg. ECE R149 - Ref: 20 (in Low Output Mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.
Luminous flux 12,028 lm | Range (0.25 lx) 1470 m | Ingress protection IP68 |
Key features

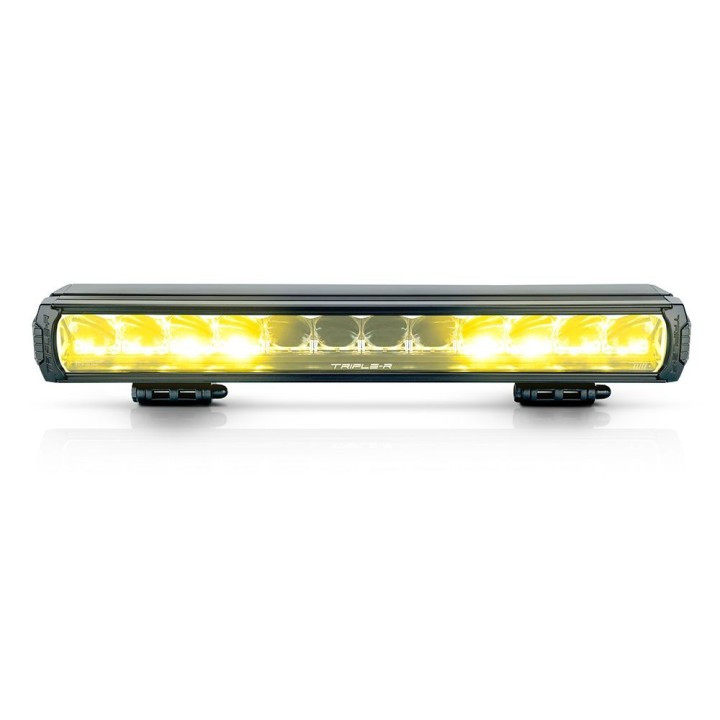

- Combination of highly efficient white (5000 K) and PC-yellow LEDs.
- Yellow LEDs optimised for use in snow / fog / dust conditions.
- Integrated white and amber position light function.

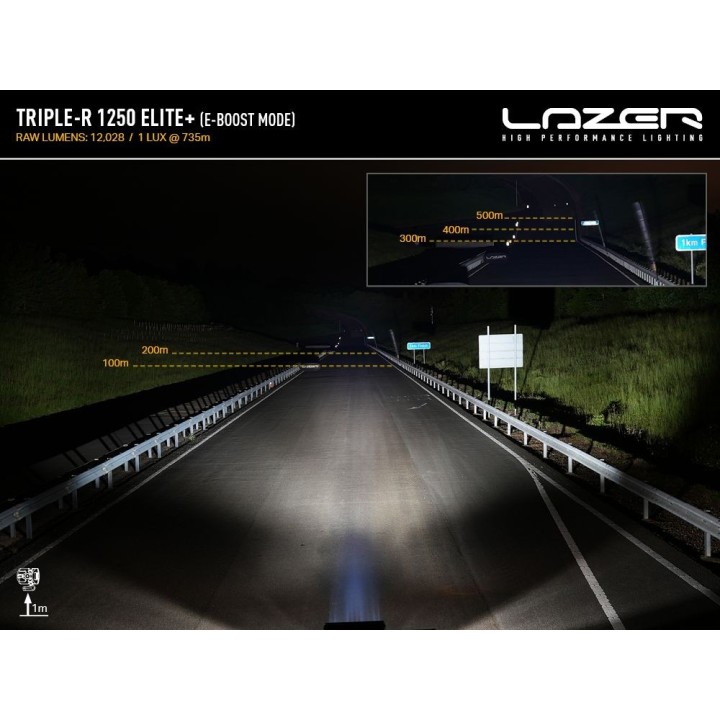

- White light ECE approved to Reg 149 (Class B, Driving Light) for on-road use (E-Boost technology), and Reg 148 position/side light function (white only).
- Features pre-wired male/female 2-pin Econoseal and 3-pin Superseal connectors.
- Supplied with One-Lamp Wiring Kit.
- Momentary switch facilitates switching lighting modes.
- Memory function recalls preferred lighting mode without needing to re-select each journey.
- Includes ‘Centre Mount’ and Side Mounting Kit.
- CAE optimised heatsink offers improved thermal dynamics.
- Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection.
- Electronic thermal management system optimises light output to preserve longevity of the LEDs .
- ‘Unbreakable’ and hardcoated polycarbonate lens
- IP68 watertight
- 5-year warranty
- Designed & manufactured in the UK
What is in the box
- x1 Triple-R 1250 Elite+ LED Lamp
- x2 Centre Mount (1114 K)
- x2 Wiring Kits (Econoseal & Superseal connections)
- x1 Installation Instructions
Technical data
- Luminous flux: 12,028 lm (full power mode) / 2,045 lm (approved mode)
- Driver 'FOV' flux: 7,464 lm (full power mode) / 1,269 lm (approved mode)
- Colour temperature: White LED's (5000 K))
- Number of LEDs: 24
- Power consumption: 131 W (full power mode) / 19.6 W (approved mode)
- Current draw: 9.1 A (full power mode) / 1.4 A (approved mode)
- Peak current draw: 12 A (full power mode) / 1.8 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 2.4 kg

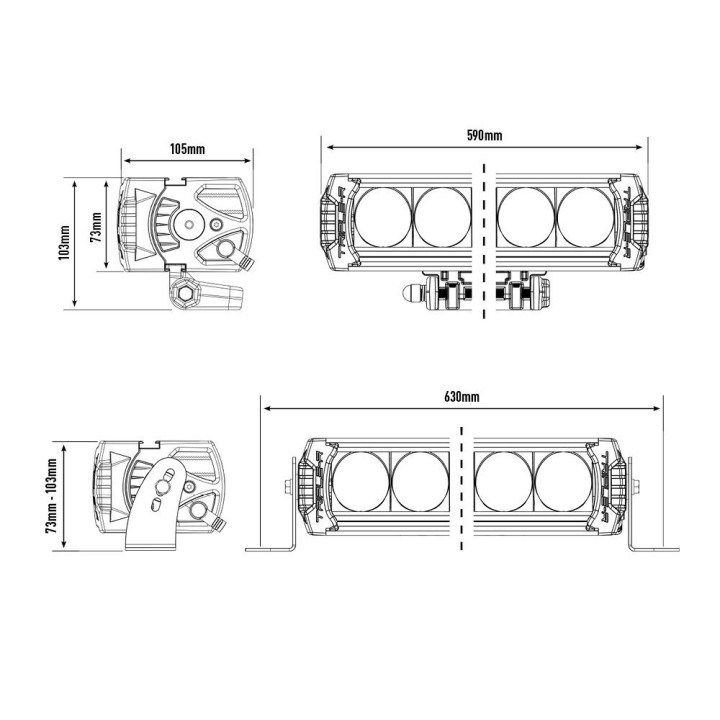

- Width: 590mm
- Depth: 105mm
- Height: 73mm
- Horizontal beam angle: 54°
- Vertical beam angle: 15°
- Connector: 2-Pin Econoseal & 3-Pin Superseal connections (+25cm Cable)
- Ingress protection: IP68
- Driving beam approval: ECE R149 - Ref: 20 (in Low Output Mode only)
- Position light: ECE R148
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2

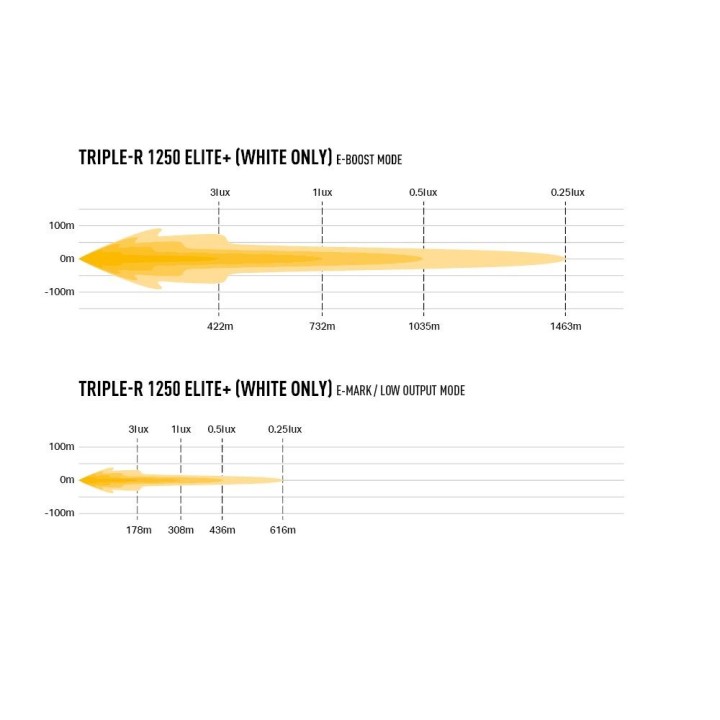

Beam range
| 0.25 lx | 1470 m / 616 m |
| 0.5 lx | 1039 m / 436 m |
| 1 lx | 735 m / 308 m |
| 3 lx | 424 m / 178 m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For covering distance at night: expeditions, forest tracks, utility vehicles, campers.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
The lamp lead ends in: 2-Pin Econoseal & 3-Pin Superseal connections (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R149 - Ref: 20 (in Low Output Mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
Why it is worth it
- 12,028 lm of output and 1470 m of range on the 0.25 lx line
- ECE R149 - Ref: 20 (in Low Output Mode only) approval — a legal driving light
- IP68 ingress protection
- LAZER — designed and manufactured in the United Kingdom
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 - Ref: 20 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
What is in the box?
The box contains: x1 Triple-R 1250 Elite+ LED Lamp, x2 Centre Mount (1114k), x2 Wiring Kits (Econoseal & Superseal connections), x1 Installation Instructions.
How far does it throw?
The manufacturer quotes 1470 m on the 0.25 lx line, 1039 m at 0.5 lx and 735 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 131 W, i.e. 9.1 A at 14.4 V.
