LAZER High Performance LED Lighting
Reference: 00R24-G2-PLUS-B
Light Bars

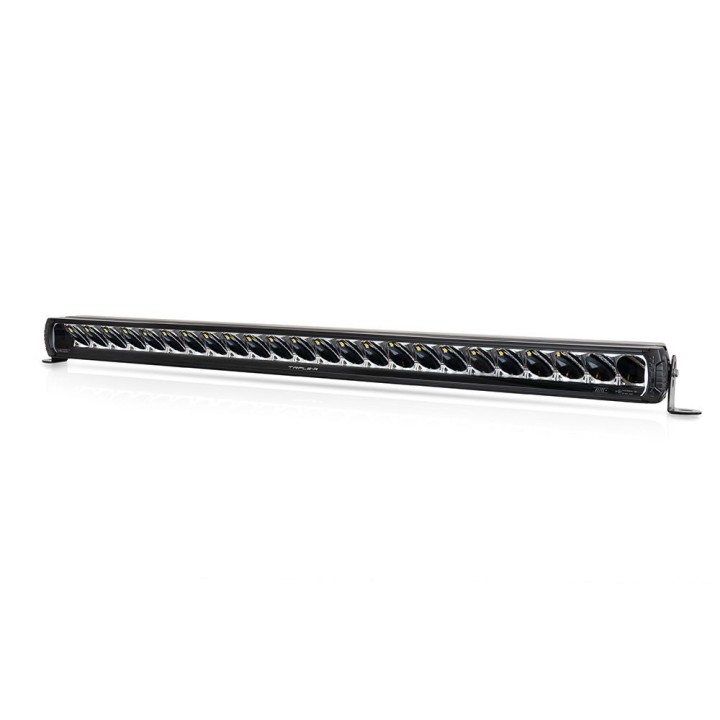

LAZER Triple-R 24 Elite+
LAZER Triple-R 24 Elite+. The manufacturer quotes luminous flux: 24,056 lm, range at 0.25 lx: 2145 m, power consumption: 256 W. ECE R149 - Ref: 2x 20, Double E-Mark (in Low Output Mode only) approval allows it to be used as a driving light.
LAZER Triple-R 24 Elite+
Factory main beam runs out exactly where the real risk begins — an animal on the verge, a pothole, a blind corner.
The manufacturer quotes 24,056 lm of output, 1125mm wide, 4.5 kg. ECE R149 - Ref: 2x 20, Double E-Mark (in Low Output Mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.
Luminous flux 24,056 lm | Range (0.25 lx) 2145 m | Ingress protection IP68 |
Key features

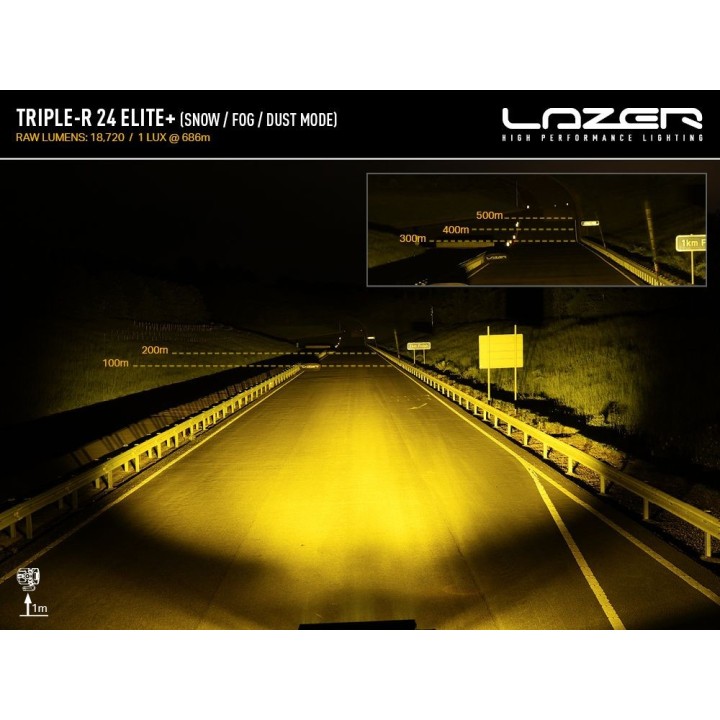

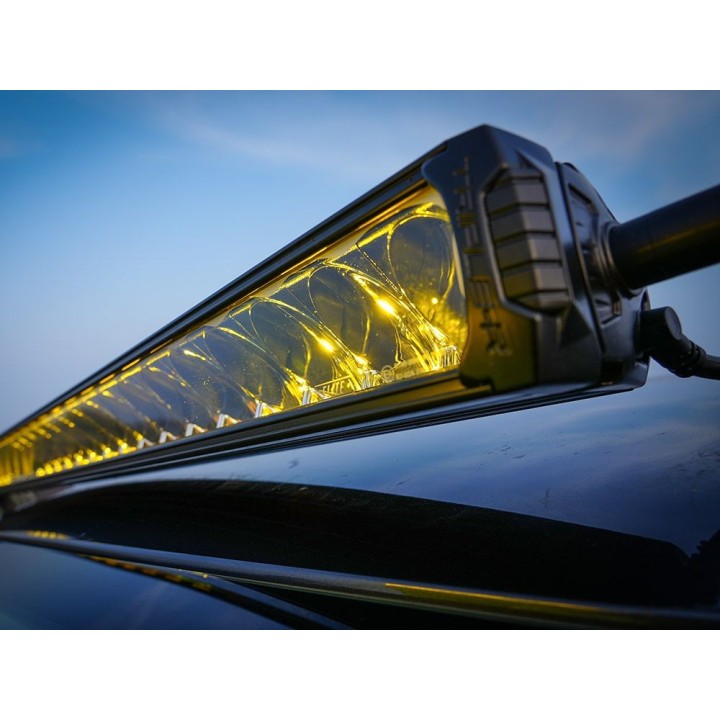

- Yellow LEDs optimised for use in snow / fog / dust conditions.
- Integrated white and amber position light function.
- White light ECE approved to Reg 149 (Class B, Driving Light) for on-road use (E-Boost technology), and Reg 148 position/side light function (white only).
- Features pre-wired male/female 2-pin Econoseal and 3-pin Superseal connectors.
- Supplied with One-Lamp Wiring Kit.

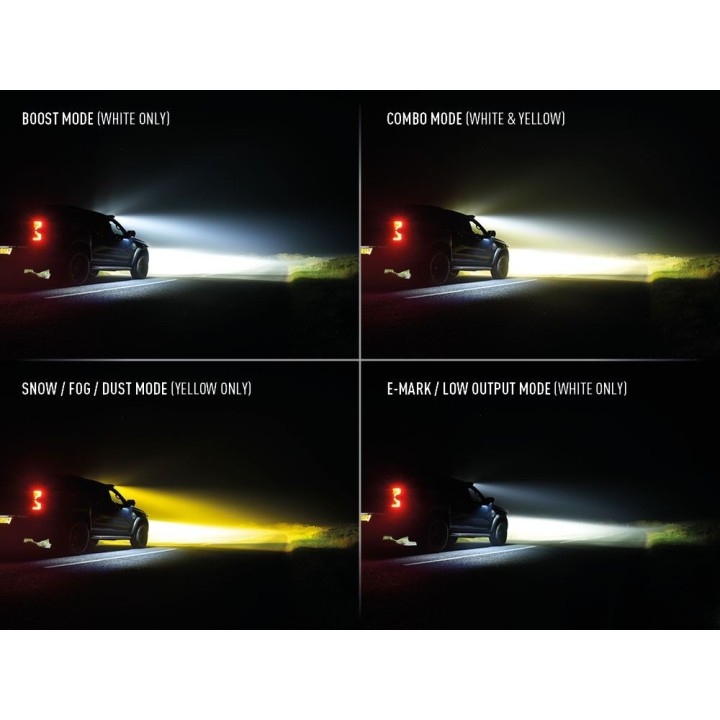

- Momentary switch facilitates switching lighting modes.
- Memory function recalls preferred lighting mode without needing to re-select each journey.
- Includes ‘Centre Mount’ and Side Mounting Kit.
- CAE optimised heatsink offers improved thermal dynamics.
- Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection.
- Electronic thermal management system optimises light output to preserve longevity of the LEDs.
- ‘Unbreakable’ and hardcoated polycarbonate lens.
- IP68 watertight.
- 5-year warranty.
- Designed & manufactured in the UK.
What is in the box

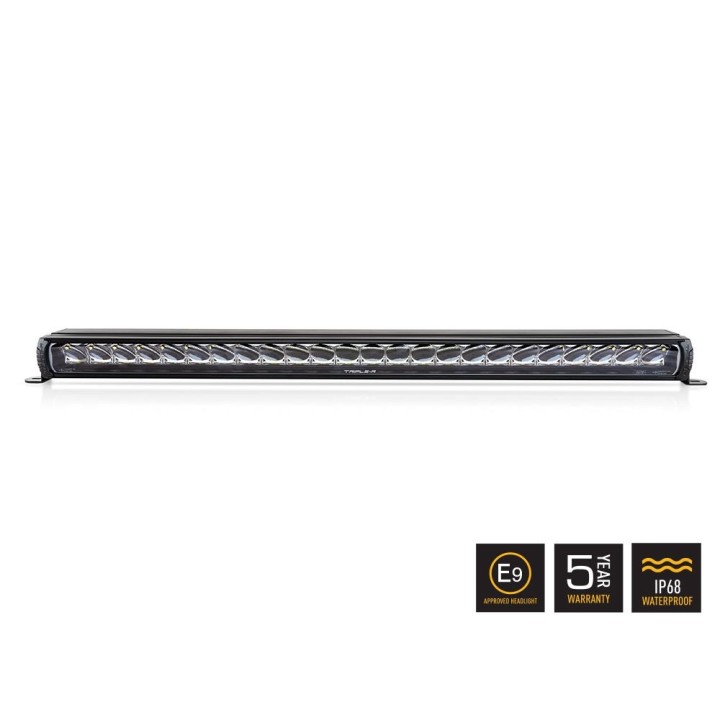

- x1 Triple-R 24 Elite+ LED Lightbar
- x3 Centre Mount (1114 K)
- x1 Side Mount Kit (1118 K)
- x2 Wiring Kits (Econoseal & Superseal connections)
- x1 Installation Instructions
Technical data
- Luminous flux: 24,056 lm (full power mode) / 4,090 lm (approved mode)
- Driver 'FOV' flux: 14,928 lm (full power mode) / 2,538 lm (approved mode)
- Colour temperature: White LED's (5000 K)
- Number of LEDs: 48
- Power consumption: 256 W (full power mode) / 37.8 W (approved mode)
- Current draw: 17.9 A (full power mode) / 2.6 A (approved mode)
- Peak current draw: 22.7 A (full power mode) / 3.3 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs

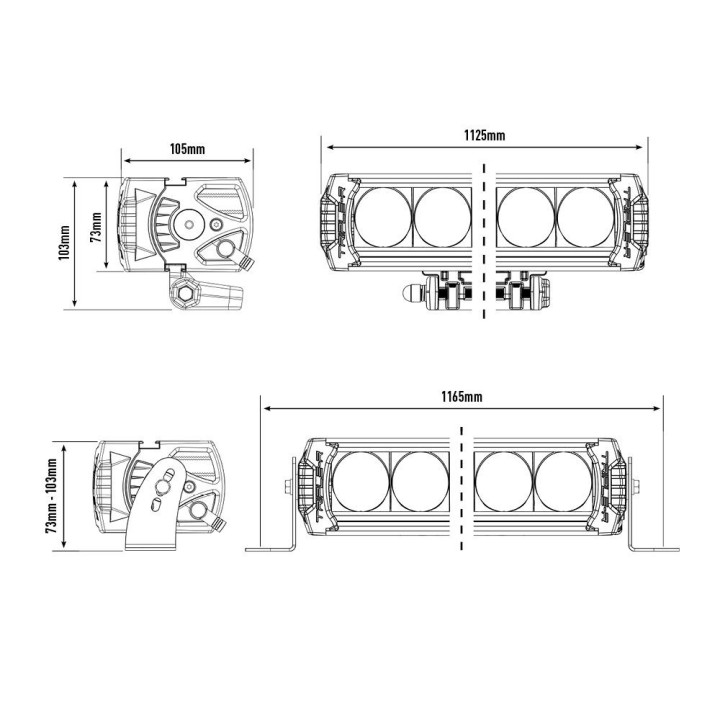

- Weight: 4.5 kg
- Width: 1125mm
- Depth: 105mm
- Height: 73mm

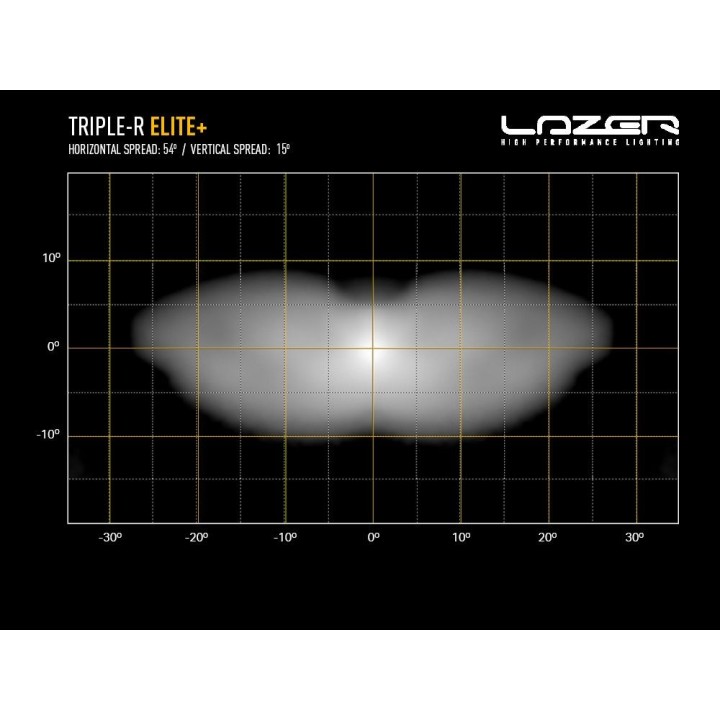

- Horizontal beam angle: 54°
- Vertical beam angle: 15°
- Connector: 2-Pin Econoseal & 3-Pin Superseal connections (+25cm Cable)
- Ingress protection: IP68
- Driving beam approval: ECE R149 - Ref: 2x 20, Double E-Mark (in Low Output Mode only)
- E-Mark reference: ECE R7
- Position light: ECE R148
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
- Warranty: 5 years

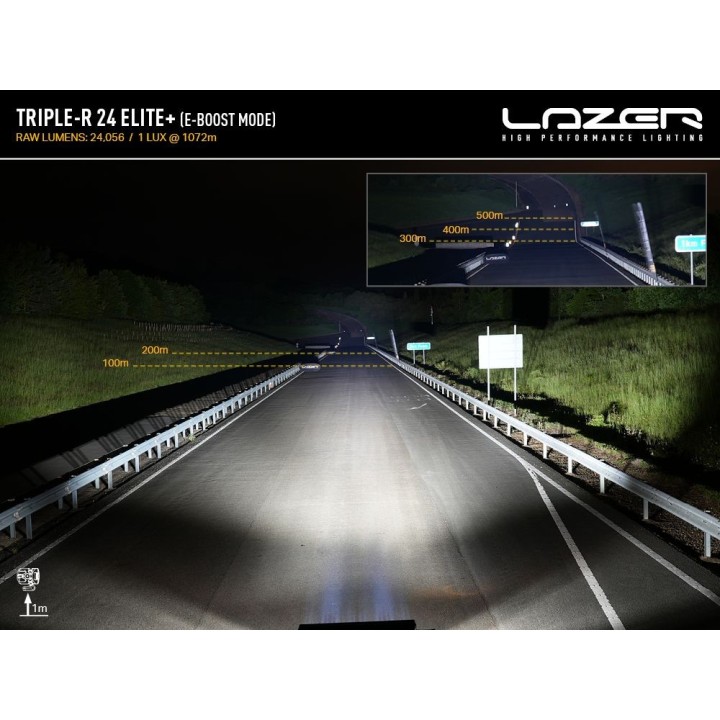

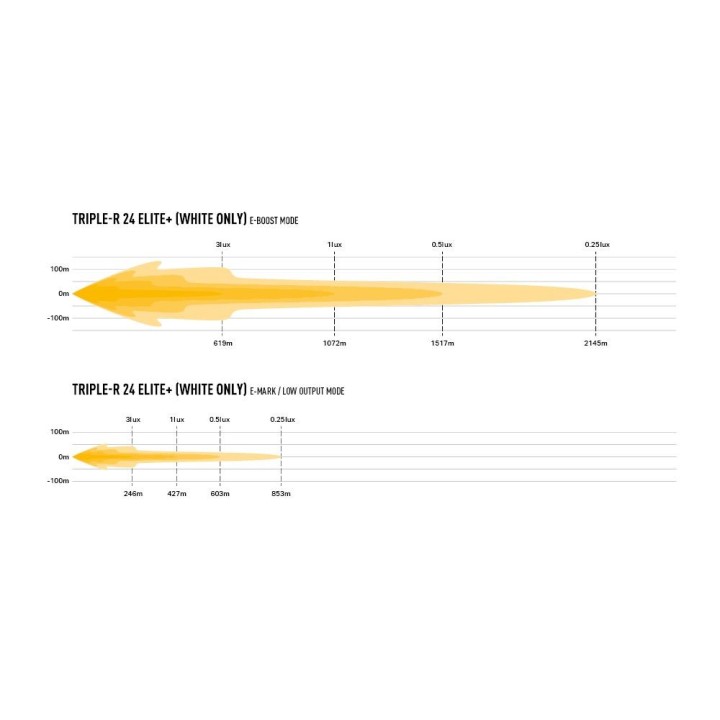

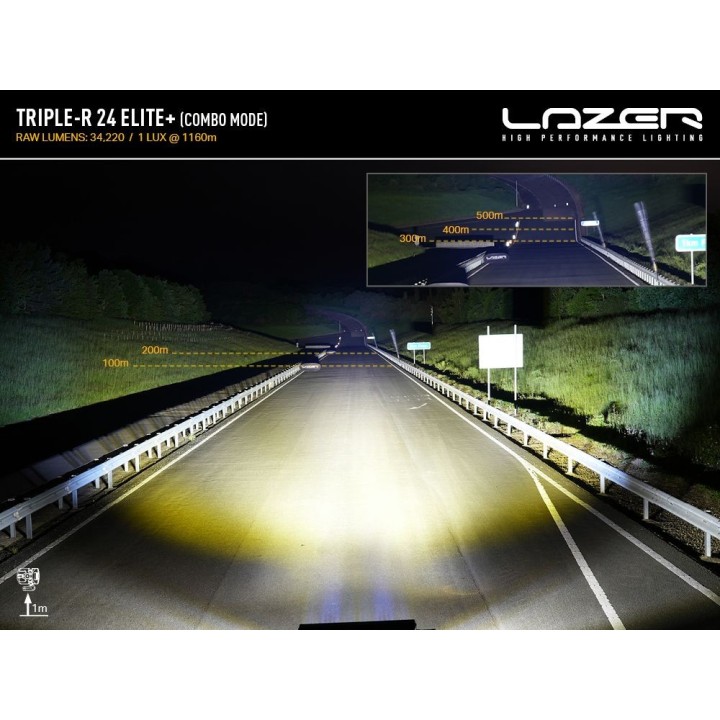

Beam range
| 0.25 lx | 2145 m / 853 m |
| 0.5 lx | 1517 m / 603 m |
| 1 lx | 1072 m / 427 m |
| 3 lx | 619 m / 246 m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For covering distance at night: expeditions, forest tracks, utility vehicles, campers.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
The lamp lead ends in: 2-Pin Econoseal & 3-Pin Superseal connections (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R149 - Ref: 2x 20, Double E-Mark (in Low Output Mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
Why it is worth it
- 24,056 lm of output and 2145 m of range on the 0.25 lx line
- ECE R149 - Ref: 2x 20, Double E-Mark (in Low Output Mode only) approval — a legal driving light
- IP68 ingress protection
- Manufacturer warranty: 5 years
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 - Ref: 2x 20, Double E-Mark (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
What is in the box?
The box contains: x1 Triple-R 24 Elite+ LED Lightbar, x3 Centre Mount (1114k), x1 Side Mount Kit (1118k), x2 Wiring Kits (Econoseal & Superseal connections), x1 Installation Instructions.
How far does it throw?
The manufacturer quotes 2145 m on the 0.25 lx line, 1517 m at 0.5 lx and 1072 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 256 W, i.e. 17.9 A at 14.4 V.
