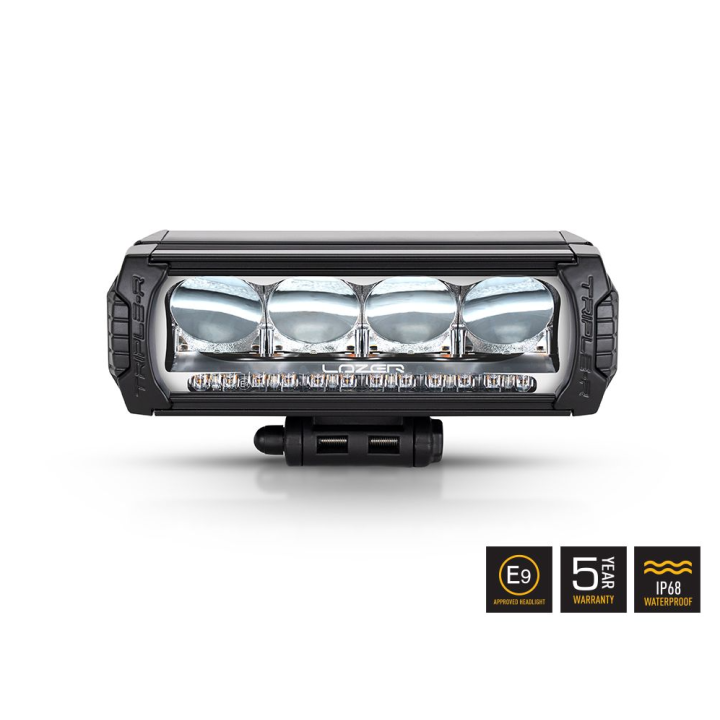

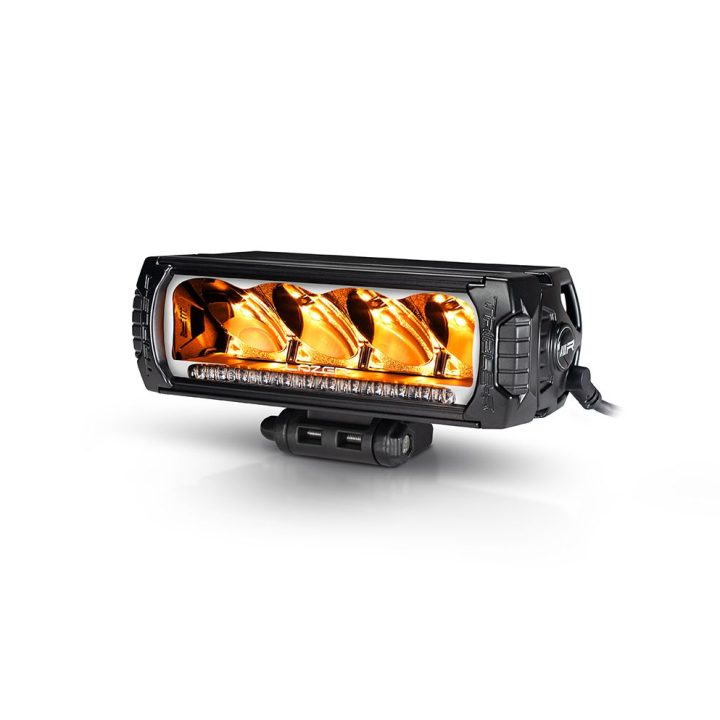

Beacon lamp LAZER Triple R 750 Beacon

A vehicle working at the roadside has to be seen before anyone has time to wonder what it is doing there.

This lamp combines a lighting function with a warning beacon and delivers 5,400 lm of output.

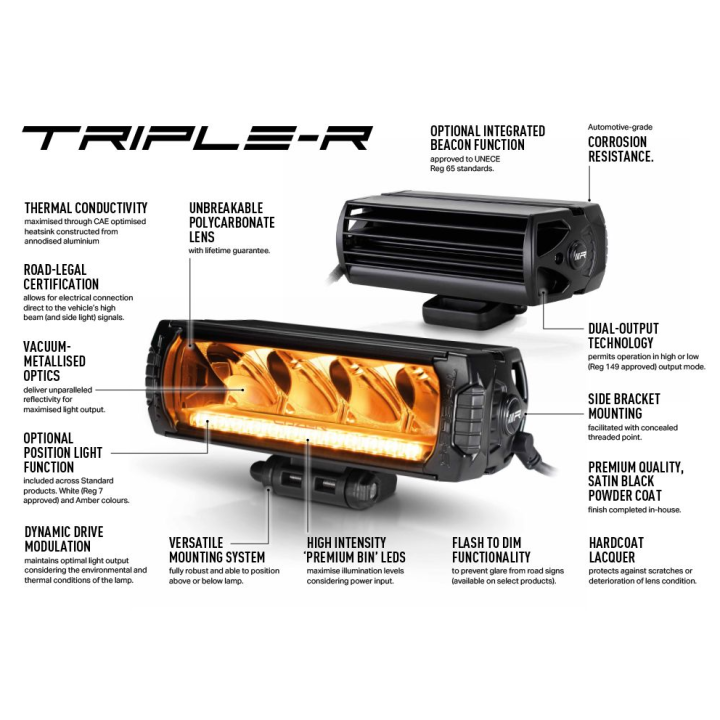

Key features

• High-efficiency 11W LEDs with a 5000 K colour temperature and 80CRI deliver maximum sharpness, definition, and long-range visibility.

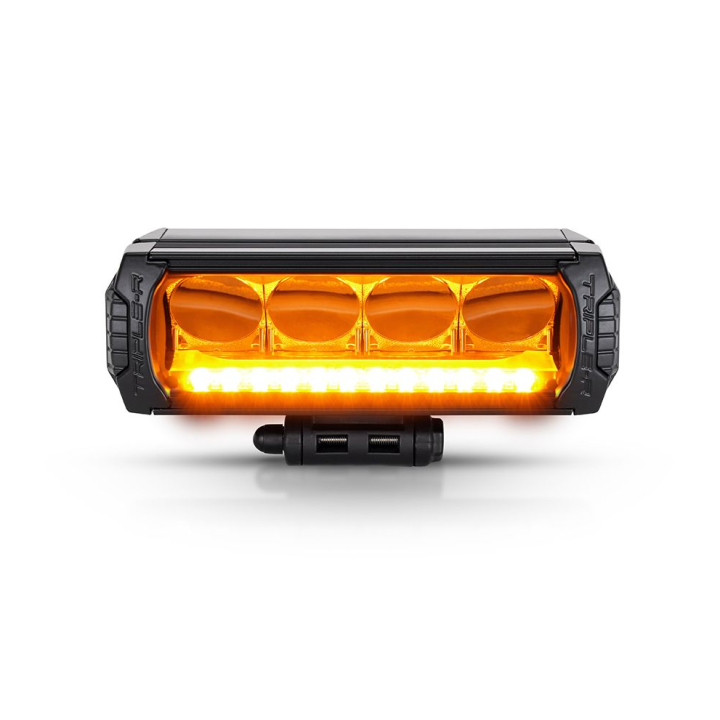

• Integrated amber flashing beacon function(UNECE Reg65 - XA1 approved)

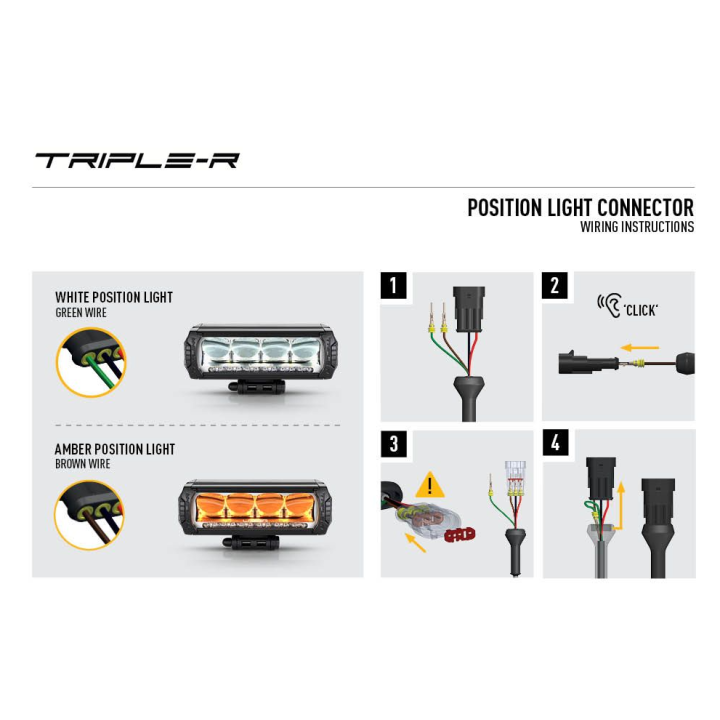

• Integrated white and amber position light function (UNECE Reg148 approved – white only)
• Gradual brightening and smooth colour transitions available via dynamic start-up/welcome mode.
• Ultra-reflective vacuum-metallised optics deliver spot beam pattern
• UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Dual-output technology via flash-to-dim)
• Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
• Electronic thermal management system optimises light output to preserve longevity of the LEDs
• Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
• CAE optimised heatsink offers improved thermal dynamics
• Over voltage and reverse polarity protected
• ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
• UNECE approved Reg 10
• IP68 watertight
• 5-year warranty
• Supplied with pre-wired male/female 6-pin Superseal connectors
• Designed & manufactured in the UK

What is in the box

• x1 Triple-R 750 with Beacon Function
• x1 Centre Mount (1114 K)
• x1 Installation Instructions

Technical data

• Luminous flux: 5,400 lm (full power mode) / 3,078 lm (approved mode)
• Driver 'FOV' flux: 1,242 lm (full power mode) / 707 lm (approved mode)
• Colour temperature: 5000 K
• Power consumption: 52 W (full power mode) / 10 W (approved mode)
• Current draw: 5.14 A (full power mode) / 0.88 A (approved mode)
• Peak current draw: 3.7 A (full power mode) / 0.7 A (approved mode)
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 1 kg

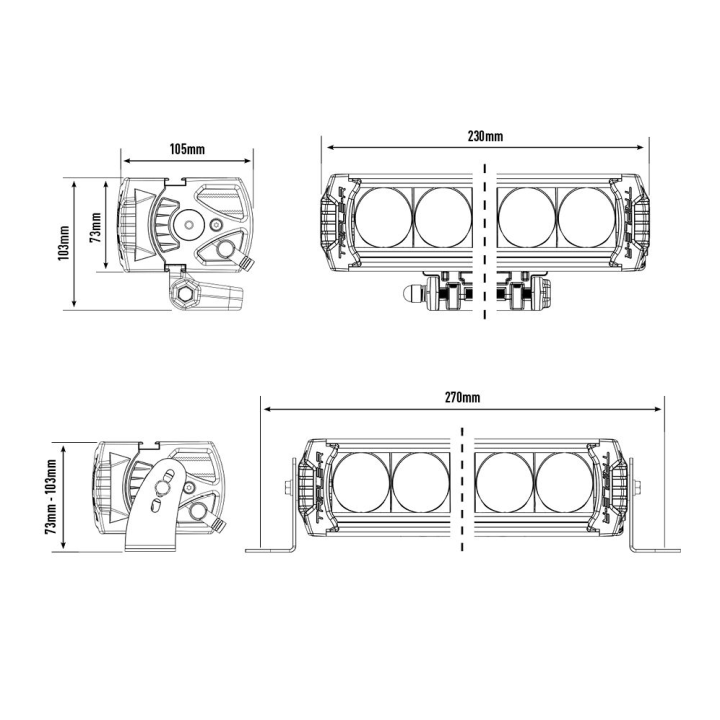

• Width: 230mm
• Depth: 105mm
• Height: 73mm

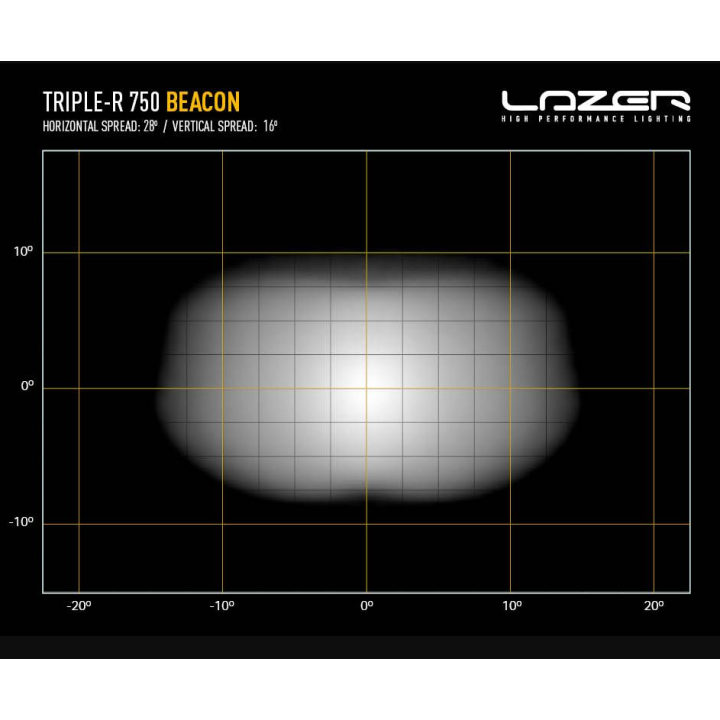

• Beam angle (horizontal / vertical): 28° / 16°
• Horizontal beam angle: 28°
• Vertical beam angle: 16°
• Connector: 6-Pin Superseal (+25cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R149 - Ref: 10 (in Low Output Mode only)
• Position light: ECE R148
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2
• Warranty: 5 years

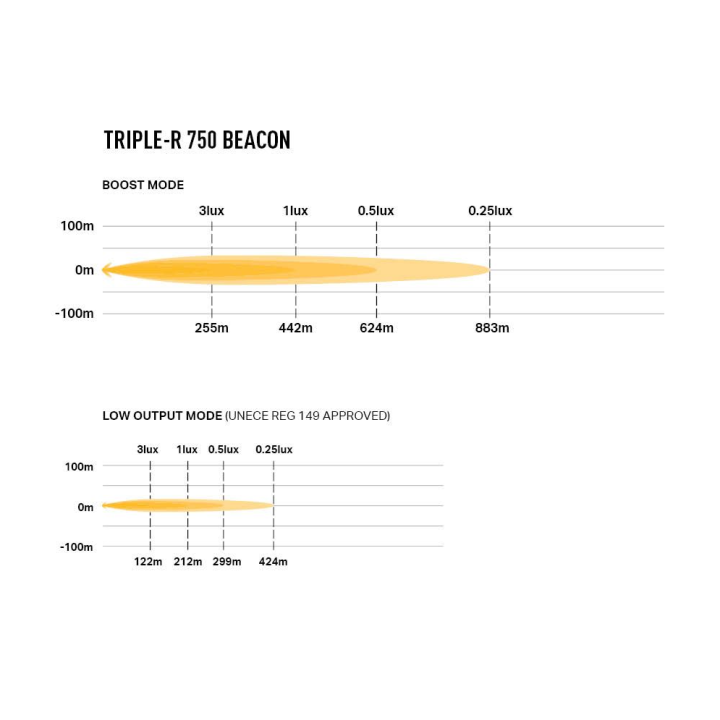

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

For vehicles working at the roadside and in areas that require signalling.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 6-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

Why it is worth it

• 5,400 lm of output and 883 m of range on the 0.25 lx line
• ECE R149 - Ref: 10 (in Low Output Mode only) approval — a legal driving light
• IP68 ingress protection
• Manufacturer warranty: 5 years

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R149 - Ref: 10 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 Triple-R 750 with Beacon Function, x1 Centre Mount (1114k), x1 Installation Instructions.

How far does it throw?

The manufacturer quotes 883 m on the 0.25 lx line, 624 m at 0.5 lx and 442 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 52 W, i.e. 5.14 A at 14.4 V.
