LAZER High Performance LED Lighting
Reference: 00R4-G2-WIDE-B
Light Bars

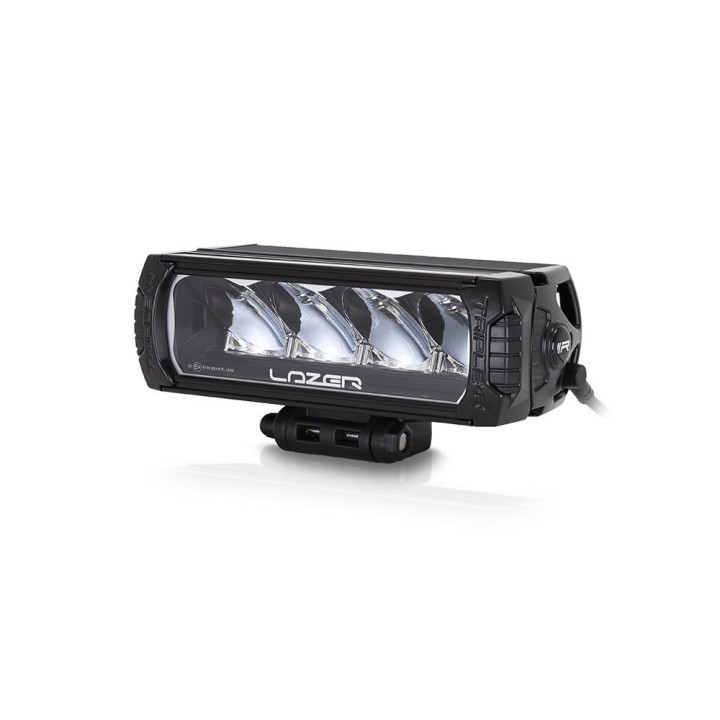

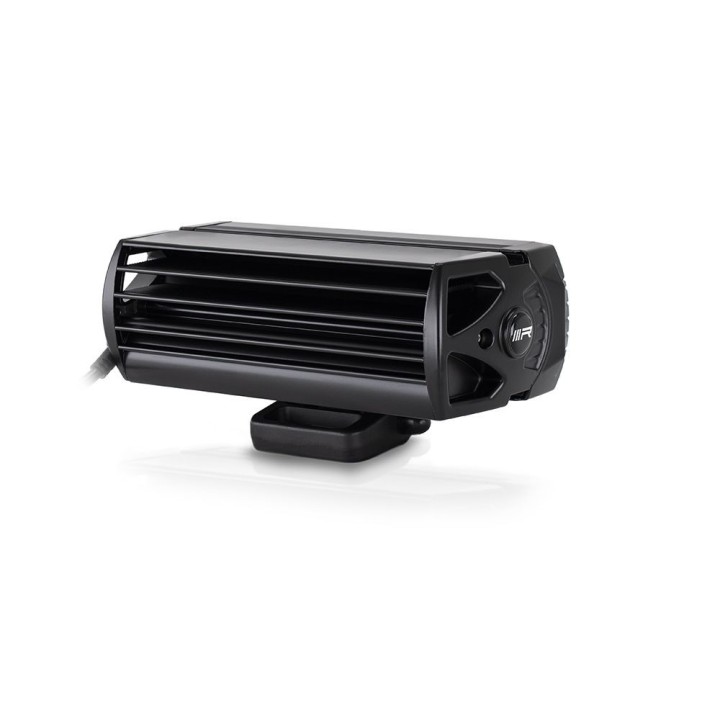

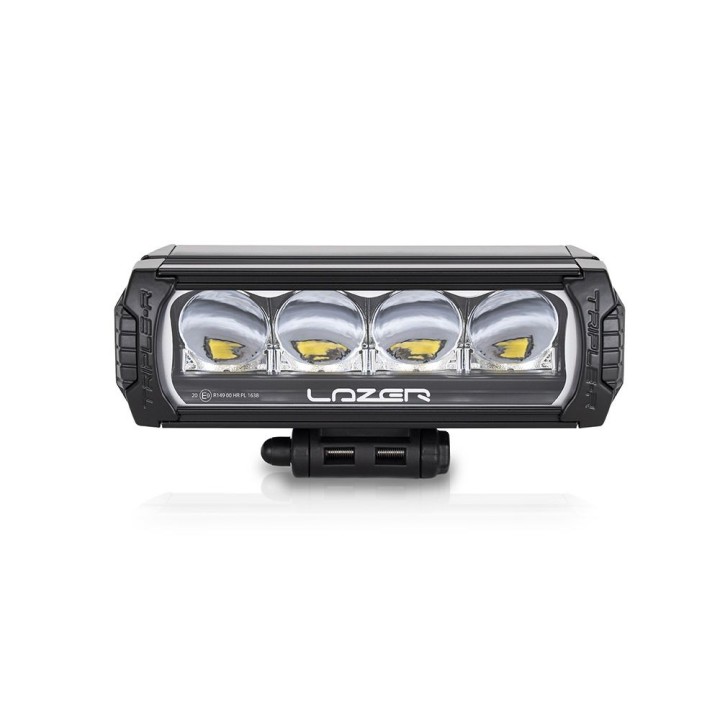

LAZER Triple-R 750 Wide
LAZER Triple-R 750 Wide. The manufacturer quotes luminous flux: 4,620 lm, range at 0.25 lx: 587 m, power consumption: 44 W. ECE R112 (Ref: 20) approval allows it to be used as a driving light. A genuine LAZER product available from Szekla4x4.pl.
LAZER Triple-R 750 Wide
Factory main beam runs out exactly where the real risk begins — an animal on the verge, a pothole, a blind corner.
The manufacturer quotes 4,620 lm of output, 230mm wide, 1 kg. ECE R112 (Ref: 20) approval means the lamp is homologated as a driving light, not restricted to off-road use.
Luminous flux 4,620 lm | Range (0.25 lx) 587 m | Ingress protection IP68 |

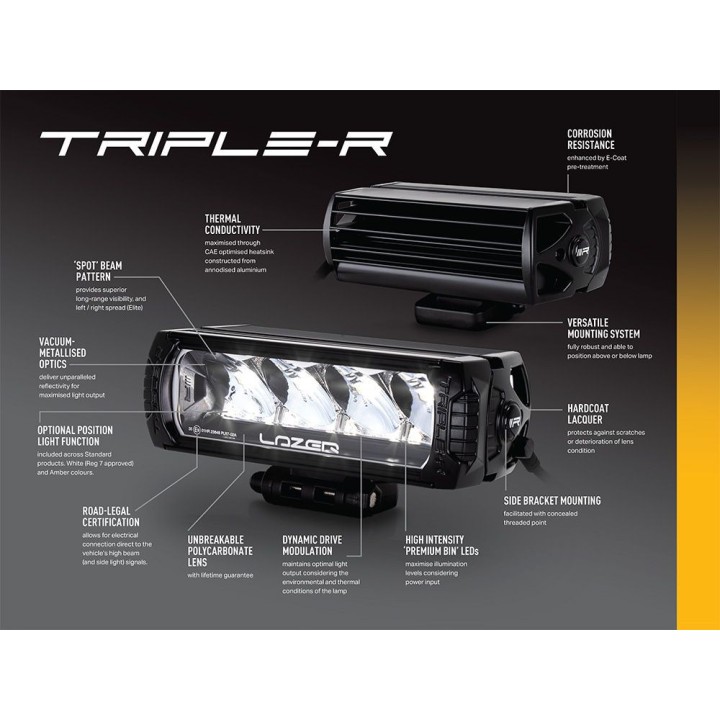

Key features
- Highly efficient 11W LED technology
- 5000 K LED colour temperature and 80CRI maximises sharpness and definition
- UNECE Reg 149 Class B Driving Light, approved for on-road high beam
- A wide 40° left/right spread of light qualifies the lamp for a lower E-Mark Reference number - 20
- Ultra-reflective vacuum-metallised optics deliver long-range beam pattern
- Contemporary lamp design
- Includes versatile ‘Centre Mount’ mounting system plus integral features to enable side mounting (brackets sold separately)
- Electronic thermal management system optimises light output to preserve longevity of the LEDs
- Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
- CAE optimised heatsink offers improved thermal dynamics
- Over voltage protected
- Reverse polarity protected
- ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
- UNECE approved Reg 10
- IP68 watertight
- 5-year warranty
- Supplied with pre-wired male/female 2-pin Superseal connectors
- Designed & manufactured in UK
What is in the box
- x1 Triple-R 750 Wide LED Lamp
- x1 Centre Mount (1114 K)
- x1 Installation Instructions
Technical data
- Luminous flux: 4,620 lm
- Driver 'FOV' flux: 2,633 lm
- Colour temperature: 5000 K
- Number of LEDs: 4
- Power consumption: 44 W
- Current draw: 4.3 A
- Peak current draw: 4.3 A
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 1 kg

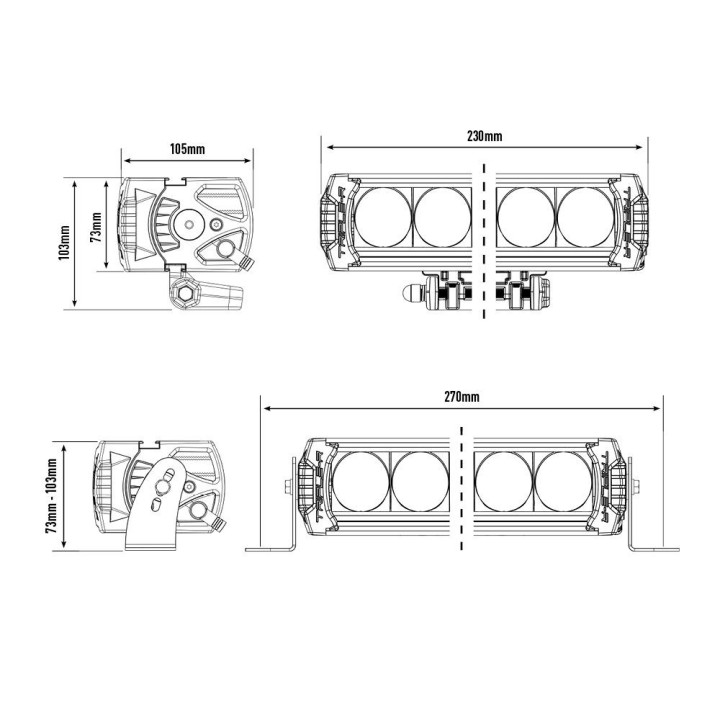

- Width: 230mm
- Depth: 105mm
- Height: 73mm

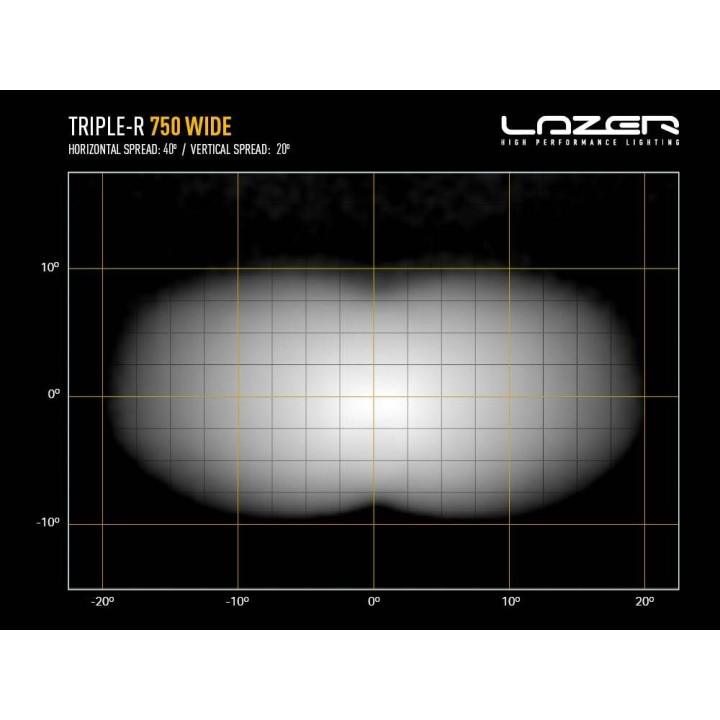

- Horizontal beam angle: 40°
- Vertical beam angle: 20°
- Connector: 2-Pin Superseal (+25cm Cable)
- Ingress protection: IP68
- Driving beam approval: ECE R112 (Ref: 20)
- E-Mark reference: 20
- Position light: ECE R7
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
- Warranty: 5 years

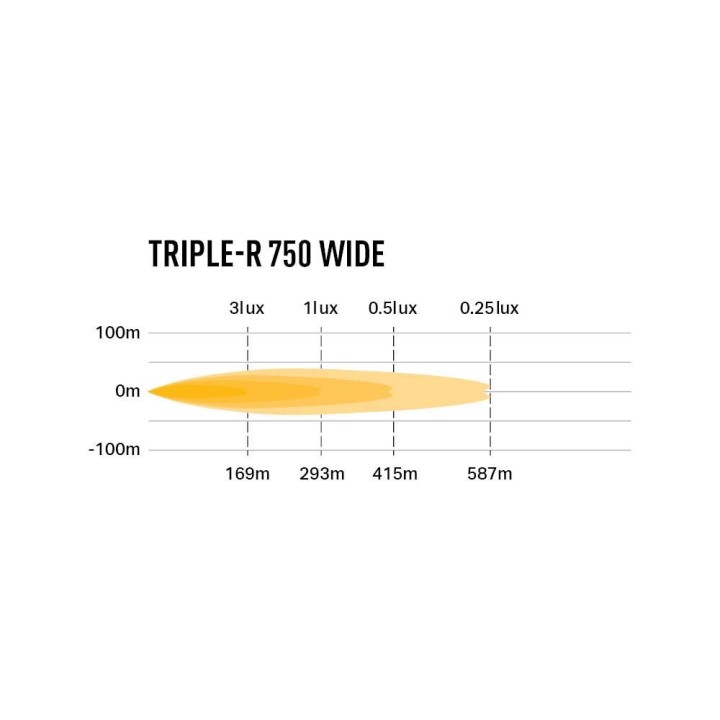

Beam range
| 0.25 lx | 587 m |
| 0.5 lx | 415 m |
| 1 lx | 293 m |
| 3 lx | 169 m |
Who it is for
For covering distance at night: expeditions, forest tracks, utility vehicles, campers.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes

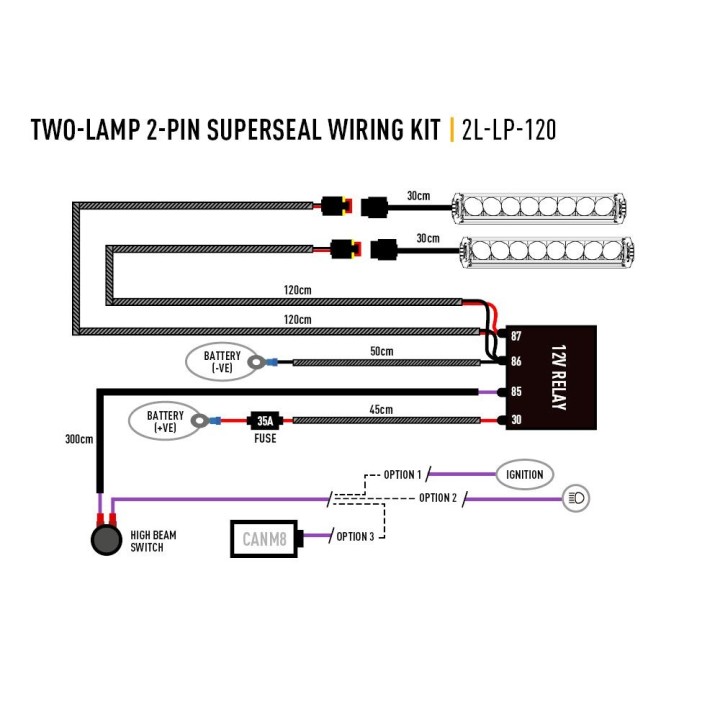

The lamp lead ends in: 2-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R112 (Ref: 20) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
Why it is worth it
- 4,620 lm of output and 587 m of range on the 0.25 lx line
- ECE R112 (Ref: 20) approval — a legal driving light
- IP68 ingress protection
- Manufacturer warranty: 5 years
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R112 (Ref: 20) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
What is in the box?
The box contains: x1 Triple-R 750 Wide LED Lamp, x1 Centre Mount (1114K), x1 Installation Instructions.
How far does it throw?
The manufacturer quotes 587 m on the 0.25 lx line, 415 m at 0.5 lx and 293 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 44 W, i.e. 4.3 A at 14.4 V.
