LAZER High Performance LED Lighting
Reference: 00R8-BCN-W
Light Bars

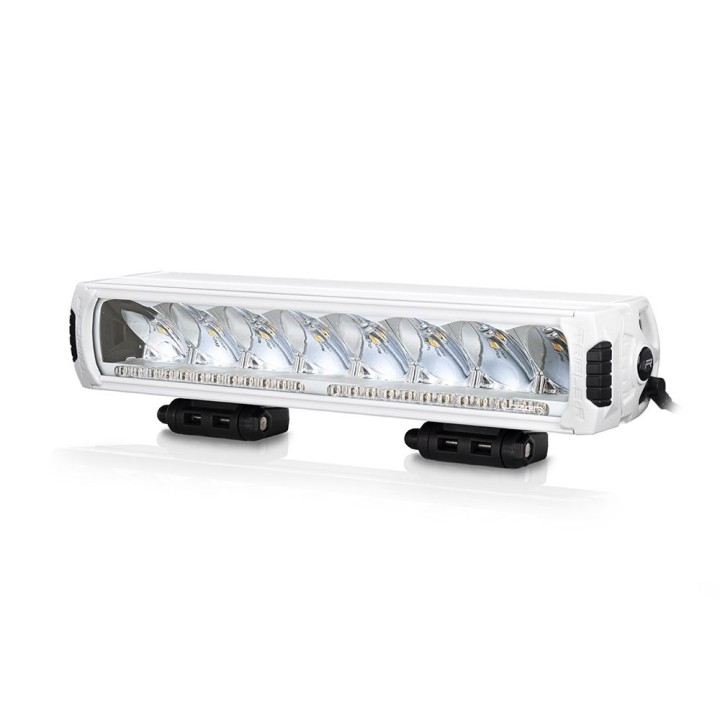

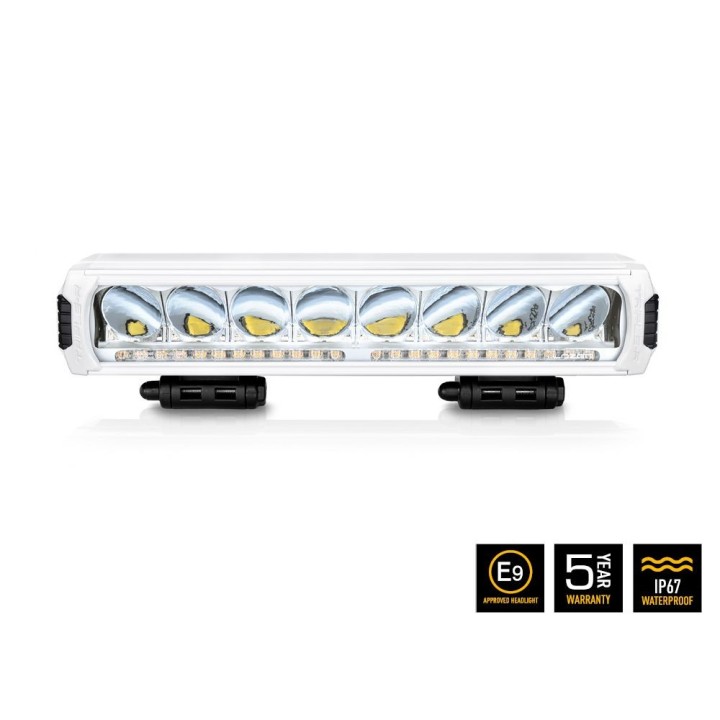

LAZER TRIPLE-R 1000 Beacon with warning beacon - in white
LAZER TRIPLE-R 1000 Beacon with warning beacon - in white. The manufacturer quotes luminous flux: 9240 lm, range at 0.25 lx: 1225 m, power consumption: 88 W. ECE R112 approval allows it to be used as a driving light.
LAZER TRIPLE-R 1000 Beacon with warning beacon - in white
A vehicle working at the roadside has to be seen before anyone has time to wonder what it is doing there.
This lamp combines a lighting function with a warning beacon and delivers 9240 lm of output.
Luminous flux 9240 lm | Range (0.25 lx) 1225 m | Ingress protection IP67 |
Technical data

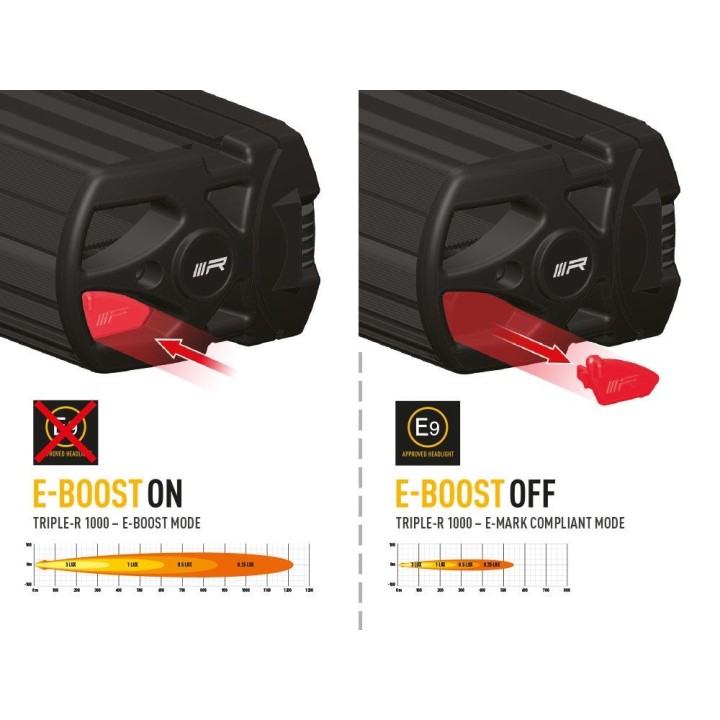

- Luminous flux: 9240 lm (full power mode) / 1848 lm (approved mode)
- Colour temperature: 5000 K
- Number of LEDs: 8
- Power consumption: 88 W (full power mode) / 17.6 W (approved mode)
- Current draw: 6.1 A (full power mode) / 1.2 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 1.7 kg

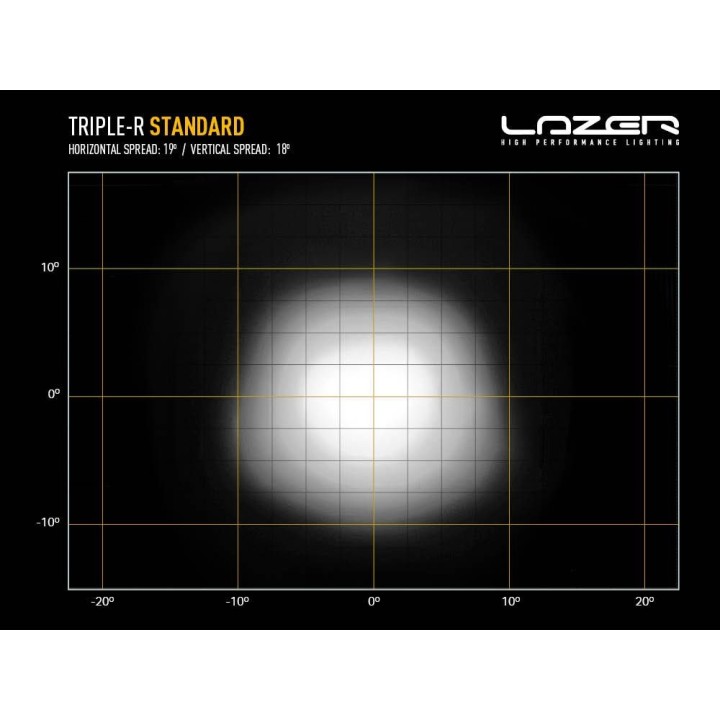

- Horizontal beam angle: 19°
- Ingress protection: IP67
- Driving beam approval: ECE R112
- E-Mark reference: 12.5
- Position light: ECE R7
- Warranty: 5 years

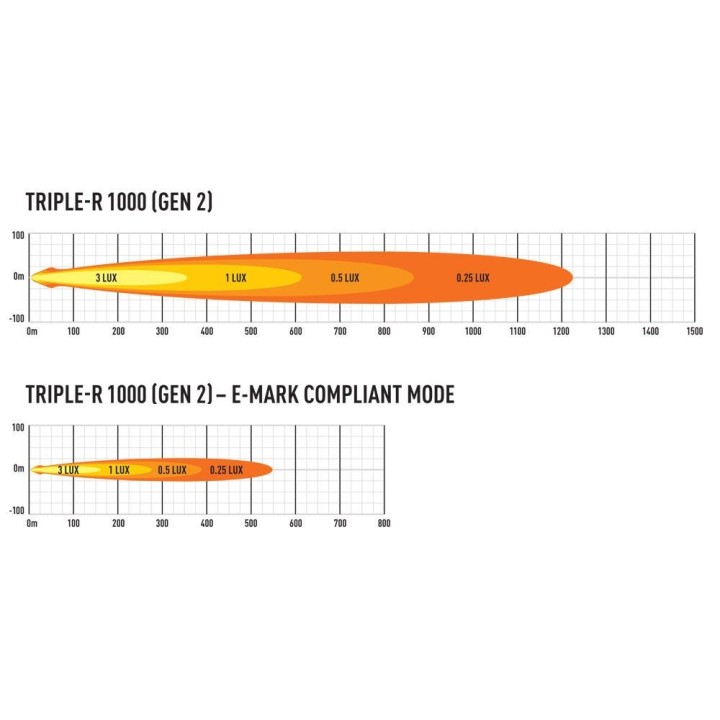

Beam range
| 0.25 lx | 1225 m / 548 m |
| 0.5 lx | 866 m / 387 m |
| 1 lx | 612 m / 274 m |
| 3 lx | 354 m / 158 m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For vehicles working at the roadside and in areas that require signalling.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Why it is worth it
- 9240 lm of output and 1225 m of range on the 0.25 lx line
- ECE R112 approval — a legal driving light
- IP67 ingress protection
- Manufacturer warranty: 5 years
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R112 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
How far does it throw?
The manufacturer quotes 1225 m on the 0.25 lx line, 866 m at 0.5 lx and 612 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP67 ingress protection.
How much power does it use?
Power consumption is 88 W, i.e. 6.1 A at 14.4 V.
How much does it weigh?
The manufacturer states 1.7 kg.
