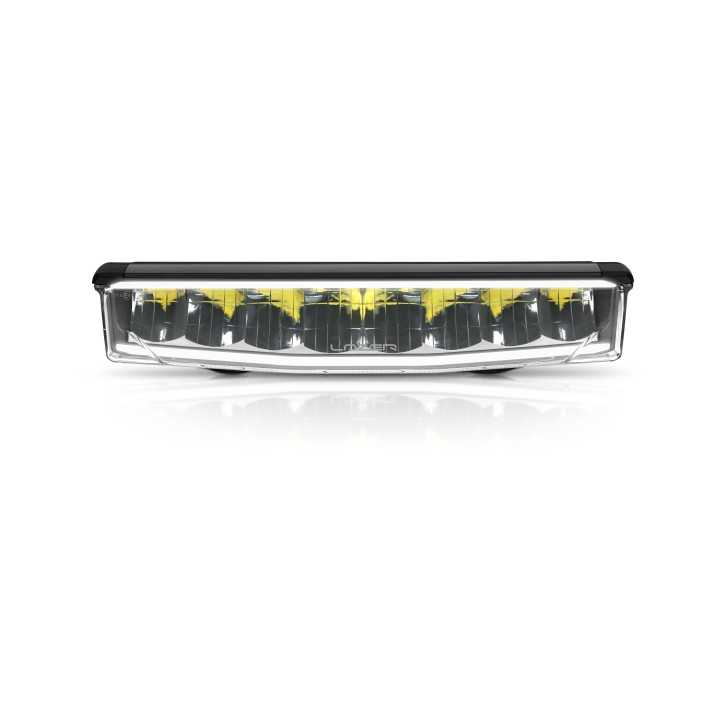

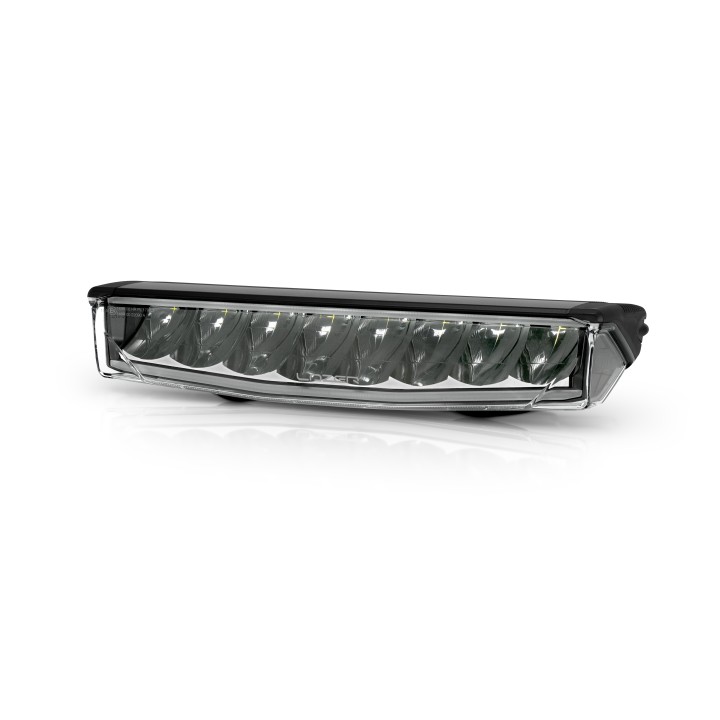

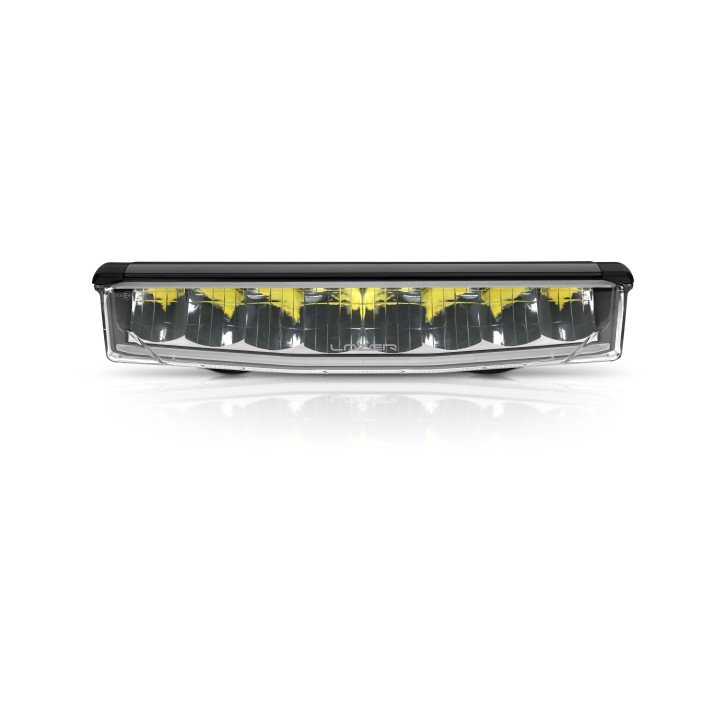

Lamp LAZER AIR-130 ELITE

Factory main beam runs out exactly where the real risk begins — an animal on the verge, a pothole, a blind corner.

The manufacturer quotes 12,500 lm of output, 411mm wide, 1.65 kg. ECE R149 - Ref: 17.5 (in Low Output Mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.

Key features

• Patent-pending injection moulded monocoque lens with texture effect to the underside
• Black PCBs present a unique stealth appearance
• Integrated white or amber position light guides
• Adoption of the latest high-efficiency premium-bin LEDs
• Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road
• Patent-pending lamp design
• ECE approved for on-road high beam (E-Boost technology) and position/side light function (white only)

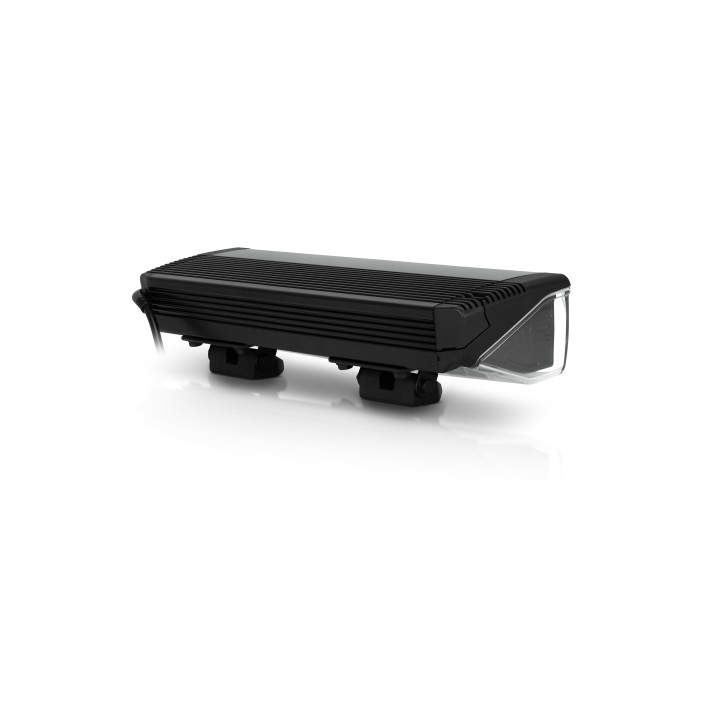

• Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point
• Threaded mounting locations to enable side mounting (brackets sold separately)
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management
• ‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee
• 20cm lamp cable complete with male/female 3-pin Superseal connectors
• IP68 watertight
• 5-year warranty
• Vehicle wiring kits available
• Designed & manufactured in Britain

What is in the box

• x1 AIR-130 Elite LED Lamp
• x2 Centre Mounting Kit (1151 K)
• Installation Instructions

Technical data

• Luminous flux: 12,500 lm (full power mode) / 3,125 lm (approved mode)
• Driver 'FOV' flux: 7,875 lm (full power mode) / 1,968 lm (approved mode)
• Colour temperature: 5000 K
• Number of LEDs: 8
• Power consumption: 130 W (full power mode) / 21 W (approved mode)
• Current draw: 10.2 A (full power mode) / 1.5 A (approved mode)
• Peak current draw: 11.6 A (full power mode) / 2.3 A (approved mode)
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 1.65 kg
• Width: 411mm
• Depth: 106mm
• Height: 82mm
• Horizontal beam angle: 34°
• Vertical beam angle: 17°
• Connector: 3-Pin Superseal (+20cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R149 - Ref: 17.5 (in Low Output Mode only)
• Position light: ECE R148
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2
• Warranty: 5 years

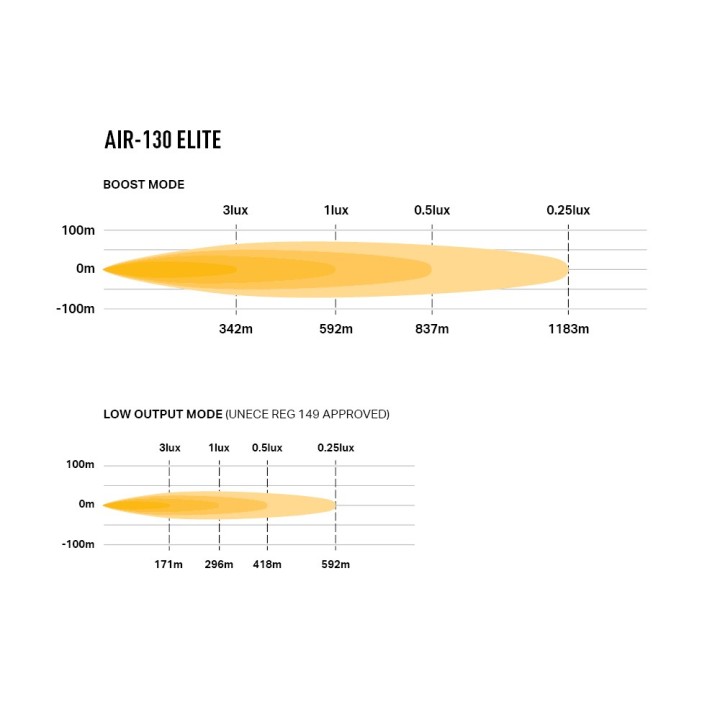

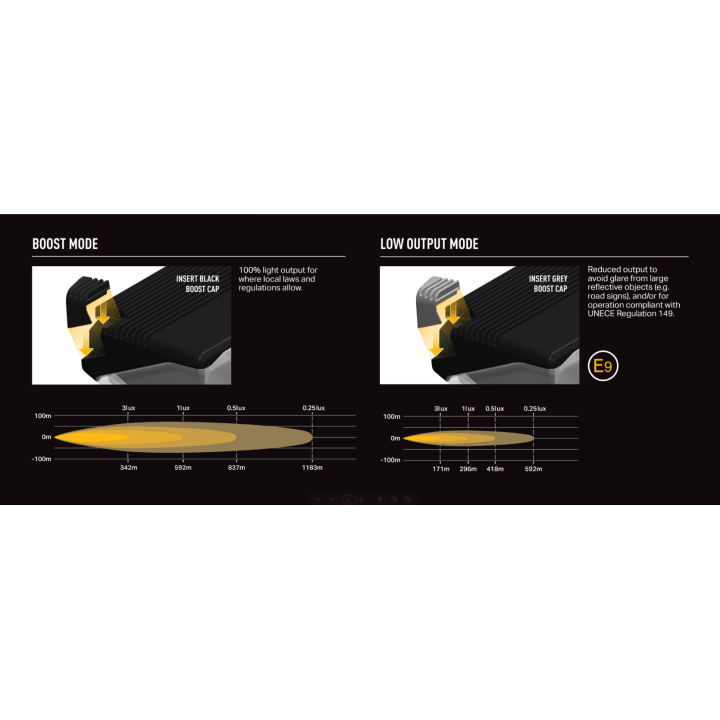

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

For vehicles where the look of the front matters as much as the light.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 3-Pin Superseal (+20cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R149 - Ref: 17.5 (in Low Output Mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

Why it is worth it

• 12,500 lm of output and 1183 m of range on the 0.25 lx line
• ECE R149 - Ref: 17.5 (in Low Output Mode only) approval — a legal driving light
• IP68 ingress protection
• Manufacturer warranty: 5 years

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R149 - Ref: 17.5 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 AIR-130 Elite LED Lamp, x2 Centre Mounting Kit (1151K), Installation Instructions.

How far does it throw?

The manufacturer quotes 1183 m on the 0.25 lx line, 837 m at 0.5 lx and 592 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 130 W, i.e. 10.2 A at 14.4 V.
