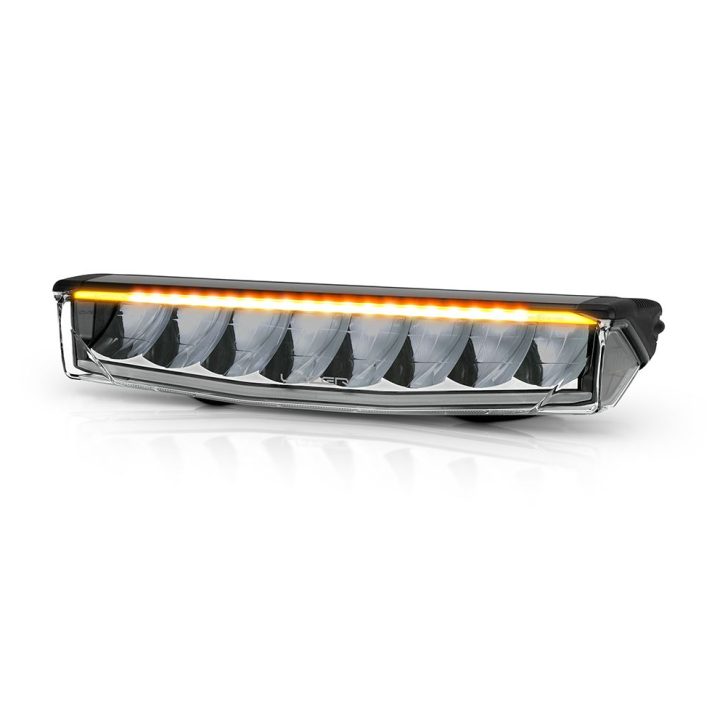

Beacon lamp LAZER AIR-55 BEACON

A vehicle working at the roadside has to be seen before anyone has time to wonder what it is doing there.

This lamp combines a lighting function with a warning beacon and delivers 6,800 lm of output.

Key features

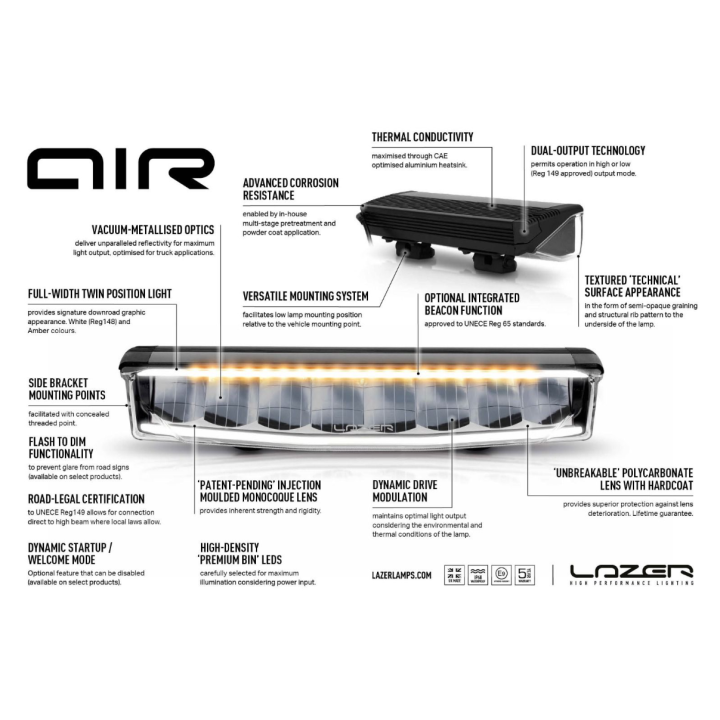

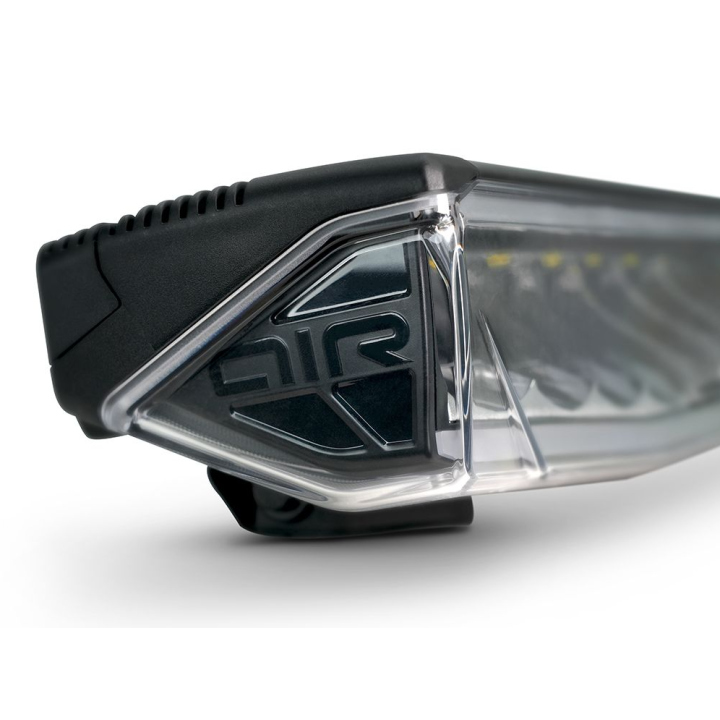

• Patent-pending injection moulded monocoque lens with texture effect to the underside
• Adoption of the latest high-efficiency premium-bin LEDs
• Ultra-reflective vacuum-metallised optics deliver optimised beam pattern for everyday on-road use, including at higher mounting positions above the road
• Flash-to-dim functionality for avoiding glare from road signs (for example)
• Dual-output functionality – High and Low output modes
• UNECE Reg 149 Class B Driving Light, approved for on-road high beam (Low output mode only)

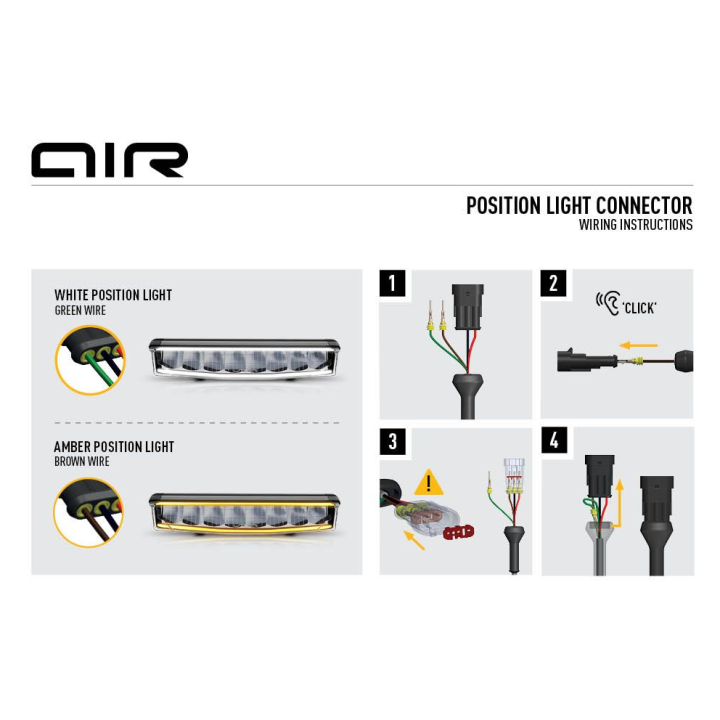

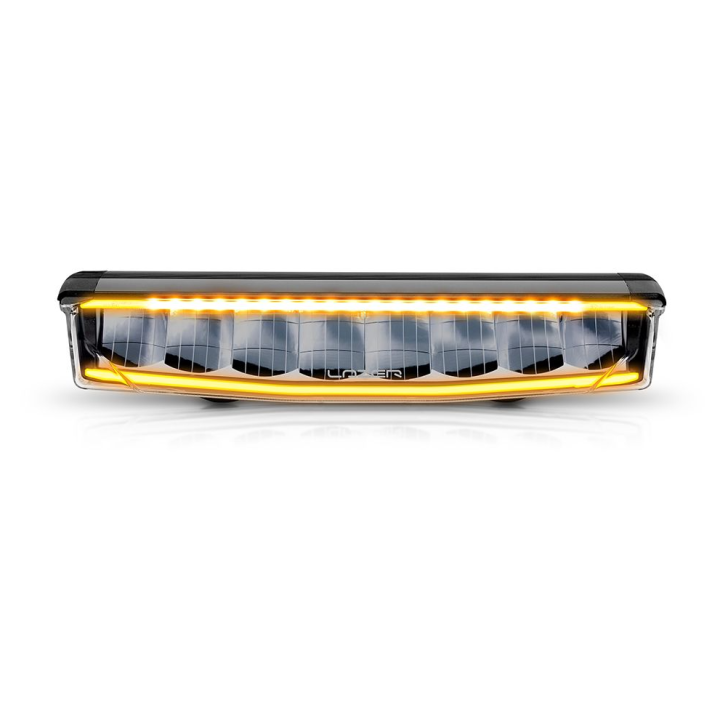

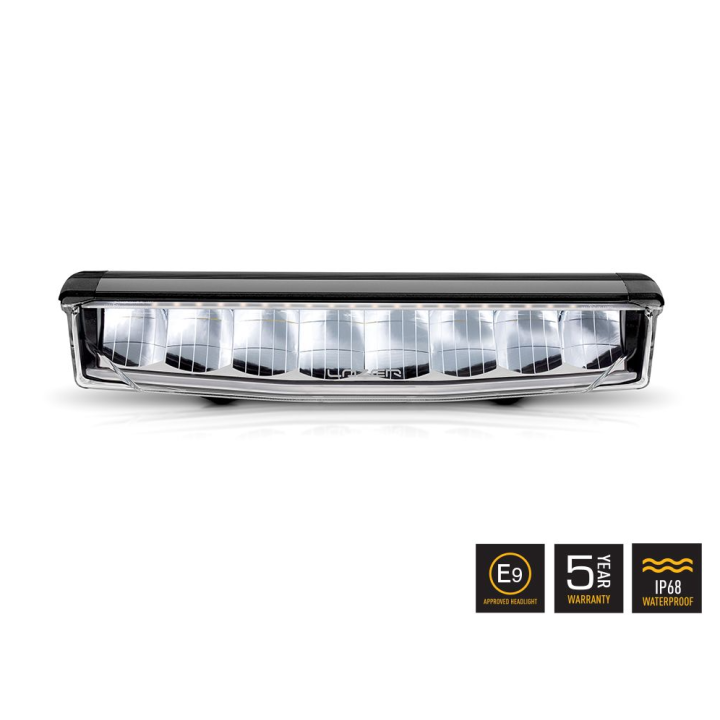

• Integrated white (UNECE Reg 148 approved) or amber position light function

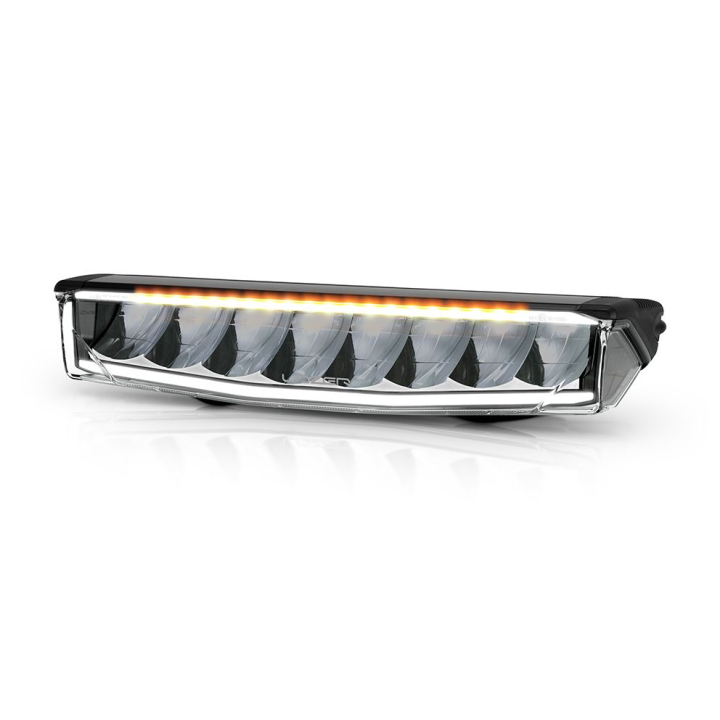

• Integrated amber flashing beacon function – UNECE Reg 65 (XA1)
• Includes versatile ‘Centre Mount’ mounting system facilitates low lamp positioning relative to the mounting point.
• Dynamic start-up / Welcome Mode – two options activated as/if required.
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management

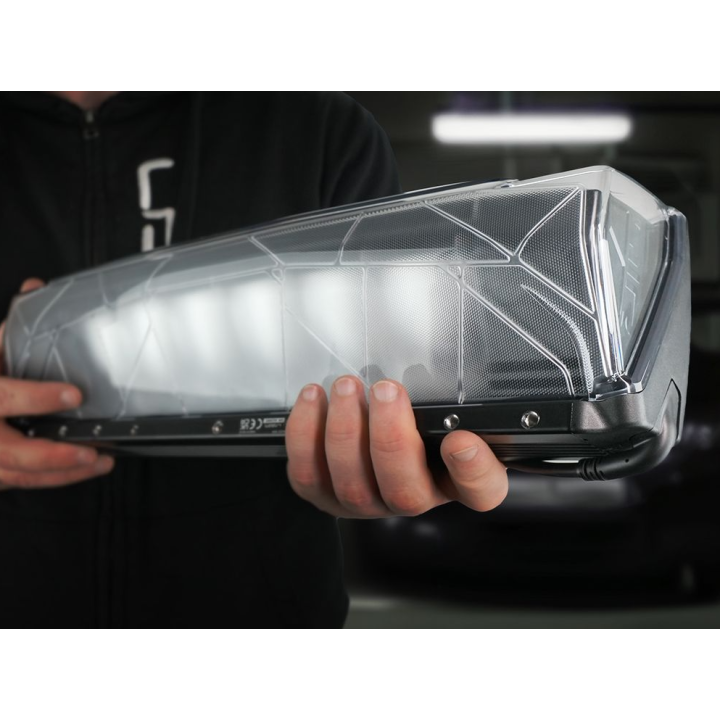

• ‘Unbreakable’ and hardcoated polycarbonate lens with lifetime guarantee
• IP68 watertight
• 5-year warranty
• 20cm lamp cable complete with male/female 6-pin Superseal connectors
• Designed & manufactured in the UK

What is in the box

• x1 AIR-55 with Beacon LED Lamp
• x2 Centre Mounting Kit (1151 K)
• Installation Instructions

Technical data

• Luminous flux: 6,800 lm (full power mode) / 1,224 lm (approved mode)
• Driver 'FOV' flux: 4,488 lm (full power mode) / 808 lm (approved mode)
• Colour temperature: 5000 K
• Power consumption: 55 W (full power mode) / 9 W (approved mode)
• Current draw: 4 A (full power mode) / 0.9 A (approved mode)
• Peak current draw: 6.1 A (full power mode) / 1.05 A (approved mode)
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 1.65 kg

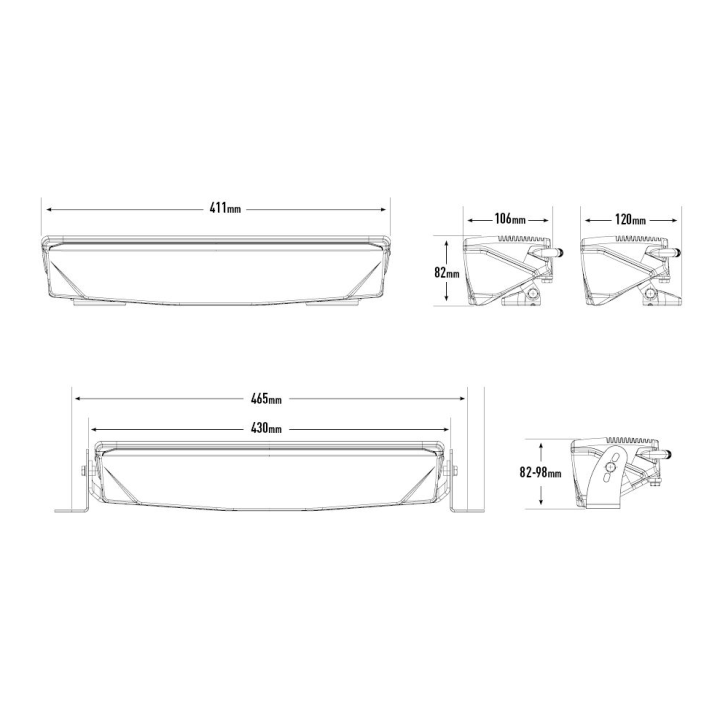

• Width: 411mm
• Depth: 106mm
• Height: 82mm

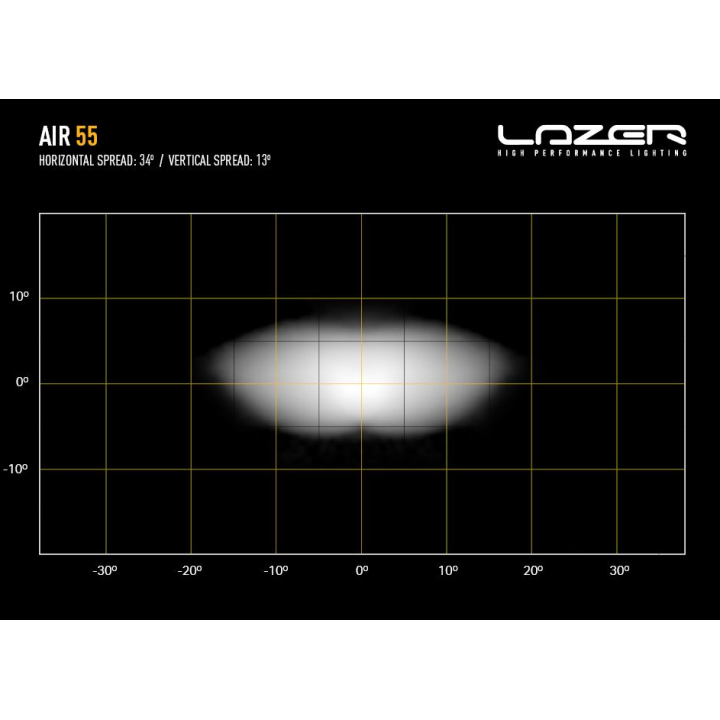

• Beam angle (horizontal / vertical): 34° / 13°
• Horizontal beam angle: 34°
• Vertical beam angle: 13°
• Connector: 6-Pin Superseal (+20cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R149 - Ref: 12.5 (in Low Output Mode only)
• Position light: ECE R148
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2
• Warranty: 5 years

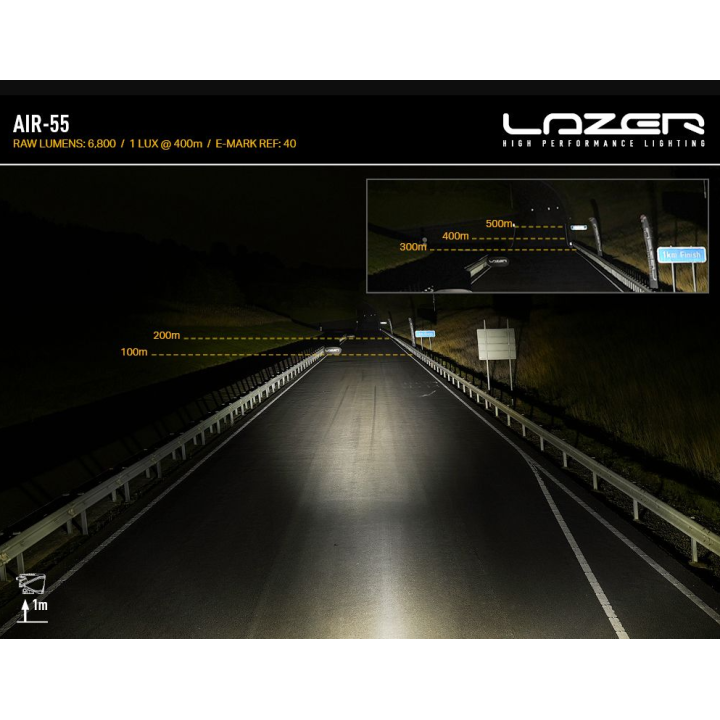

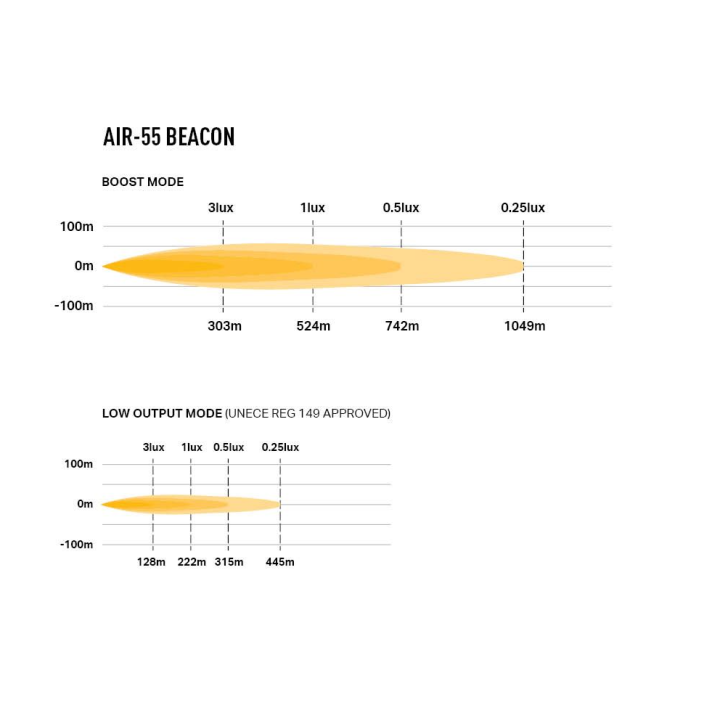

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

For vehicles working at the roadside and in areas that require signalling.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 6-Pin Superseal (+20cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

Why it is worth it

• 6,800 lm of output and 1049 m of range on the 0.25 lx line
• ECE R149 - Ref: 12.5 (in Low Output Mode only) approval — a legal driving light
• IP68 ingress protection
• Manufacturer warranty: 5 years

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R149 - Ref: 12.5 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 AIR-55 with Beacon LED Lamp, x2 Centre Mounting Kit (1151K), Installation Instructions.

How far does it throw?

The manufacturer quotes 1049 m on the 0.25 lx line, 742 m at 0.5 lx and 524 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 55 W, i.e. 4 A at 14.4 V.
