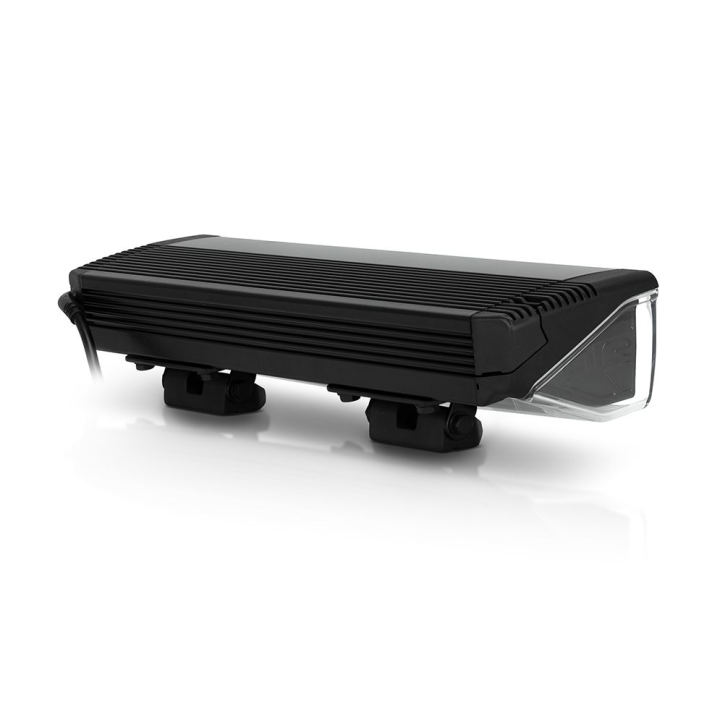

Beacon lamp LAZER AIR-90
Beacon lamp LAZER AIR-90. The manufacturer quotes luminous flux: 9160 lm, power consumption: 90 W, ingress protection: IP68. ECE R149 - Ref:17.5 (low output mode) approval allows it to be used as a driving light.
Beacon lamp LAZER AIR-90
A vehicle working at the roadside has to be seen before anyone has time to wonder what it is doing there.
This lamp combines a lighting function with a warning beacon and delivers 9160 lm of output.
Luminous flux 9160 lm | Beam angle (horizontal / vertical) 34° / 13° | Ingress protection IP68 |
Technical data
- Luminous flux: 9160 lm (full power mode) / 2290 lm (approved mode)
- Driver 'FOV' flux: 6229 lm (full power mode) / 1557 lm (approved mode)
- Colour temperature: 5000 K
- Power consumption: 90 W (full power mode) / 14 W (approved mode)
- Current draw: 7.1 A (full power mode) / 1 A (approved mode)
- Peak current draw: 8.5 A (full power mode) / 1.3 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 1.65 kg
- Width: 411 mm
- Depth: 106 mm
- Height: 82 mm

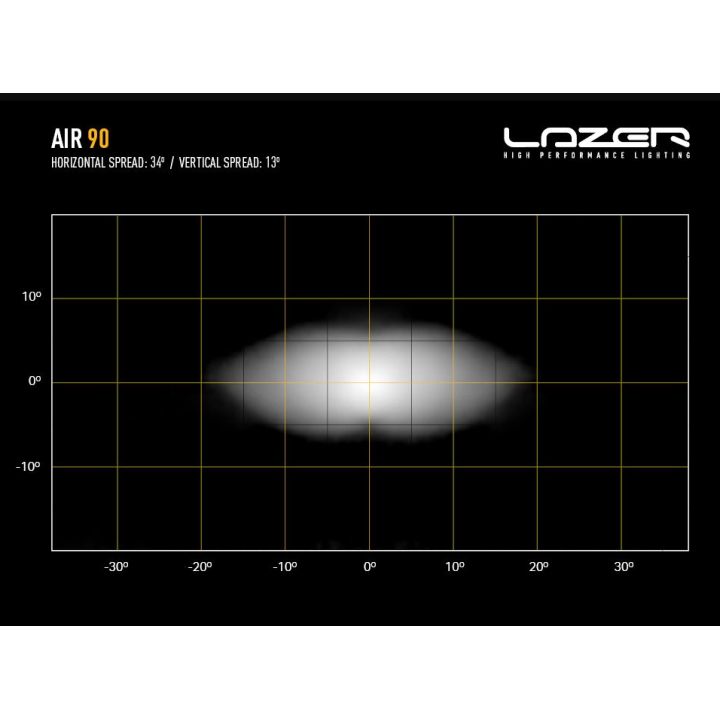

- Beam angle (horizontal / vertical): 34° / 13°
- Connector: 3-Pin Superseal (+25 cm cable)
- Ingress protection: IP68
- Driving beam approval: ECE R149 - Ref:17.5 (low output mode)

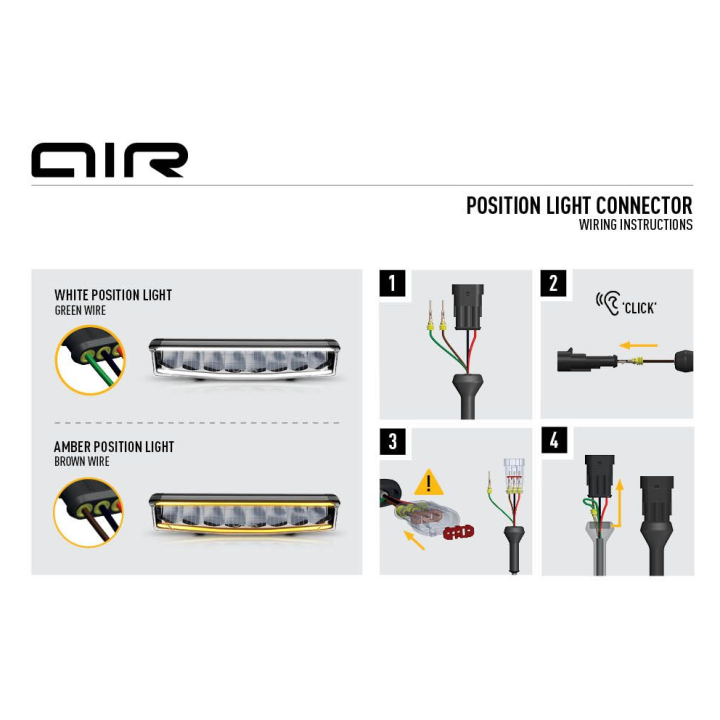

- Position light: ECE R148
- EMC: ECE R10
- Salt spray test: ISO 9227
- Warranty: 5 years

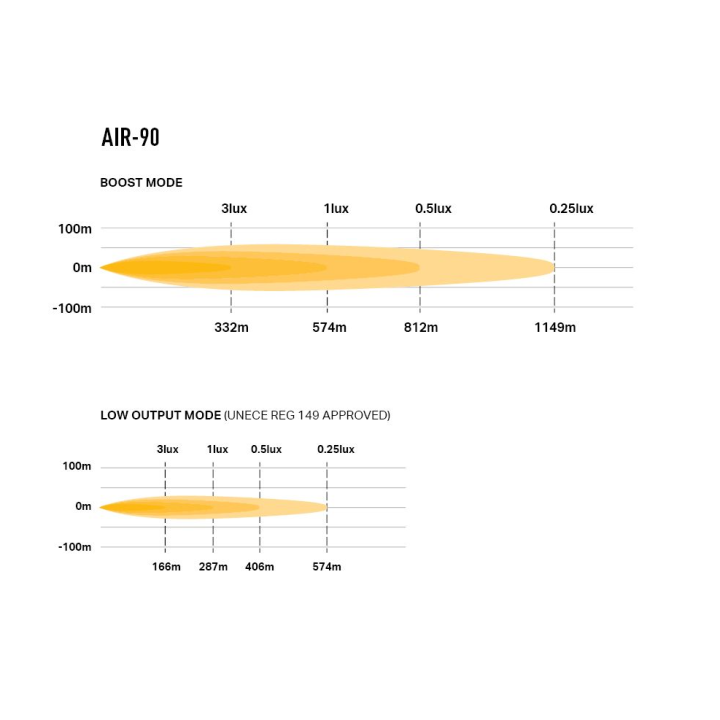

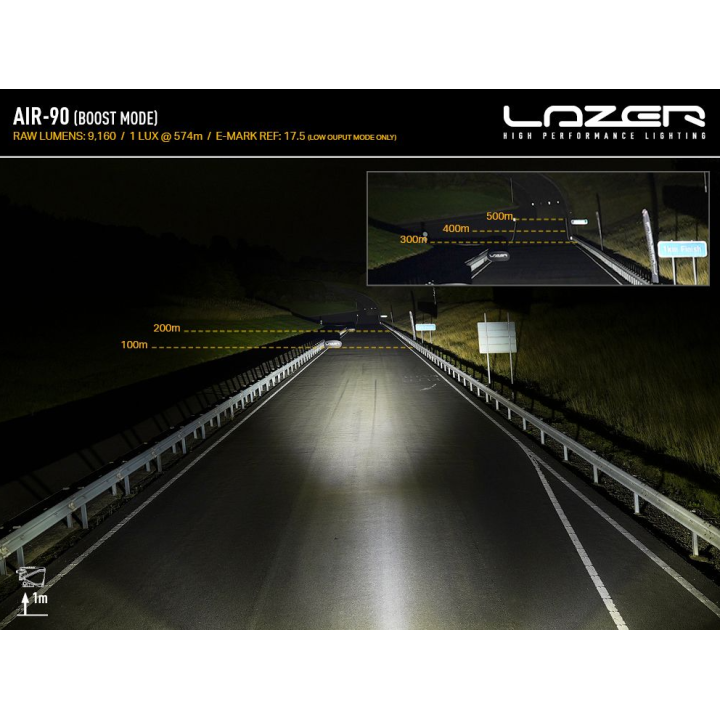

Beam range
| 1 lx | 574 m / 287 m |
| 3 lx | 332 m / 166 m |
Who it is for
For vehicles working at the roadside and in areas that require signalling.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
The lamp lead ends in: 3-Pin Superseal (+25 cm cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
Why it is worth it
- 9160 lm of luminous flux
- ECE R149 - Ref:17.5 (low output mode) approval — a legal driving light
- IP68 ingress protection
- Manufacturer warranty: 5 years
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 - Ref:17.5 (low output mode) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 90 W, i.e. 7.1 A at 14.4 V.

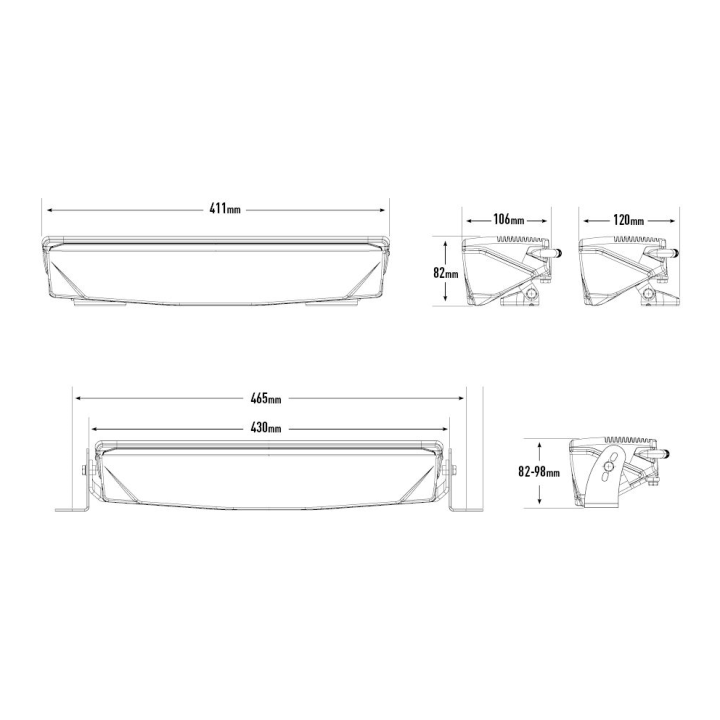

What are the dimensions?
Width 411 mm, depth 106 mm, height 82 mm, weight 1.65 kg.
What is the warranty?
The manufacturer states: 5 years.
