LAZER High Performance LED Lighting
Reference: 0G18-EL-PL-SM
Light Bars

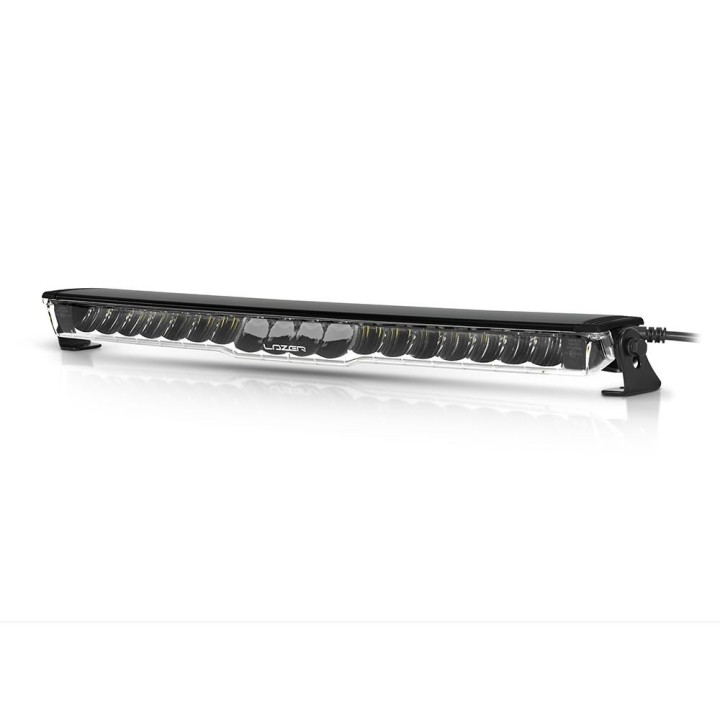

Lazer Glide 18 Elite with position lights
Lazer Glide 18 Elite with position lights. The manufacturer quotes luminous flux: 12800Lm, range at 0.25 lx: 1249 m, power consumption: 130 W. ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval allows it to be used as a driving light.
Lazer Glide 18 Elite with position lights
You can tell a good auxiliary light by one thing: after dark you stop slowing down "just in case".
The manufacturer quotes 12800Lm of output, 0.68 kg. ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.
Luminous flux 12800Lm | Range (0.25 lx) 1249 m | Beam angle (horizontal / vertical) 60 / 13° |
Technical data
- Luminous flux: 12800Lm (full power mode) / 3840Lm (approved mode)
- Driver 'FOV' flux: 8012Lm (full power mode) / 2403Lm (approved mode)
- Colour temperature: 5000 K
- Power consumption: 130 W (full power mode) / 38 W (approved mode)
- Current draw: 9.2 A (full power mode) / 2 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 0.68 kg

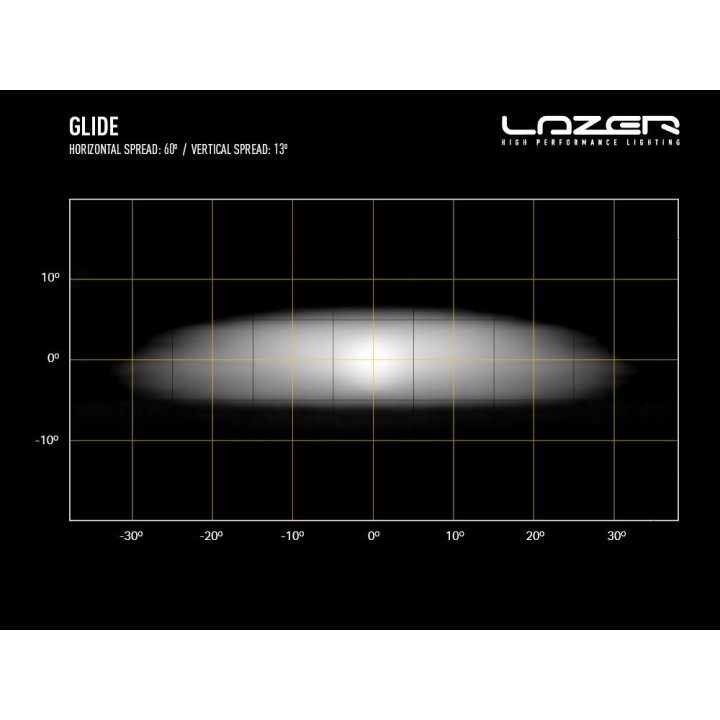

- Beam angle (horizontal / vertical): 60 / 13°
- Ingress protection: IP68
- Driving beam approval: ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only)
- Position light: ECE R148
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
- Warranty: 5 years

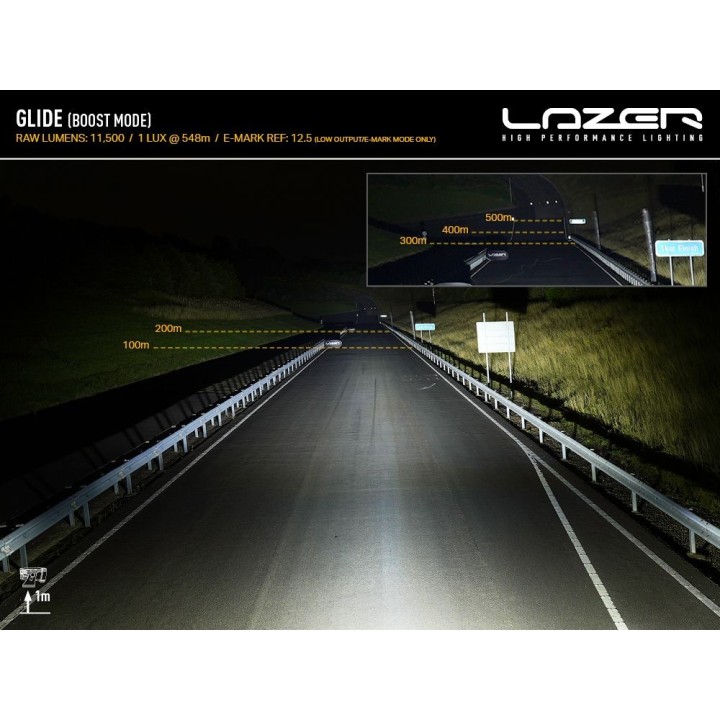

Beam range
| 0.25 lx | 1249 m / 682 m |
| 0.5 lx | 883 m / 484 m |
| 1 lx | 642 m / 342 m |
| 3 lx | 361 m / 197 m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For roof and bar installs where a low profile counts.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
Why it is worth it
- 12800Lm of output and 1249 m of range on the 0.25 lx line
- ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval — a legal driving light
- IP68 ingress protection
- Manufacturer warranty: 5 years
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
How far does it throw?
The manufacturer quotes 1249 m on the 0.25 lx line, 883 m at 0.5 lx and 642 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 130 W, i.e. 9.2 A at 14.4 V.
How much does it weigh?
The manufacturer states 0.68 kg.
