LAZER High Performance LED Lighting
Reference: 0G18-PL-SM
Light Bars

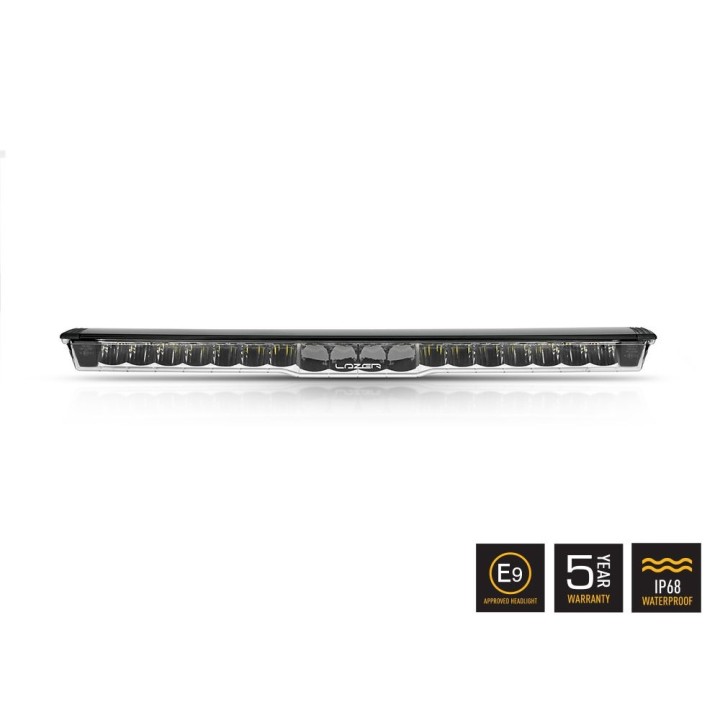

Lazer Glide 18 - LED light bar
Lazer Glide 18 - LED light bar. The manufacturer quotes luminous flux: 11500Lm, range at 0.25 lx: 1095 m, power consumption: 120 W. ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval allows it to be used as a driving light.
Lazer Glide 18 - LED light bar
You can tell a good auxiliary light by one thing: after dark you stop slowing down "just in case".
The manufacturer quotes 11500Lm of output, 0.68 kg. ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.
Luminous flux 11500Lm | Range (0.25 lx) 1095 m | Beam angle (horizontal / vertical) 60 / 13° |
Technical data
- Luminous flux: 11500Lm (full power mode) / 4025 lm (approved mode)
- Driver 'FOV' flux: 6958Lm (full power mode) / 2435Lm (approved mode)
- Colour temperature: 5000 K
- Number of LEDs: 48
- Power consumption: 120 W (full power mode) / 2.6 W (approved mode)
- Current draw: 8.3 A (full power mode) / 2.3 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 0.68 kg

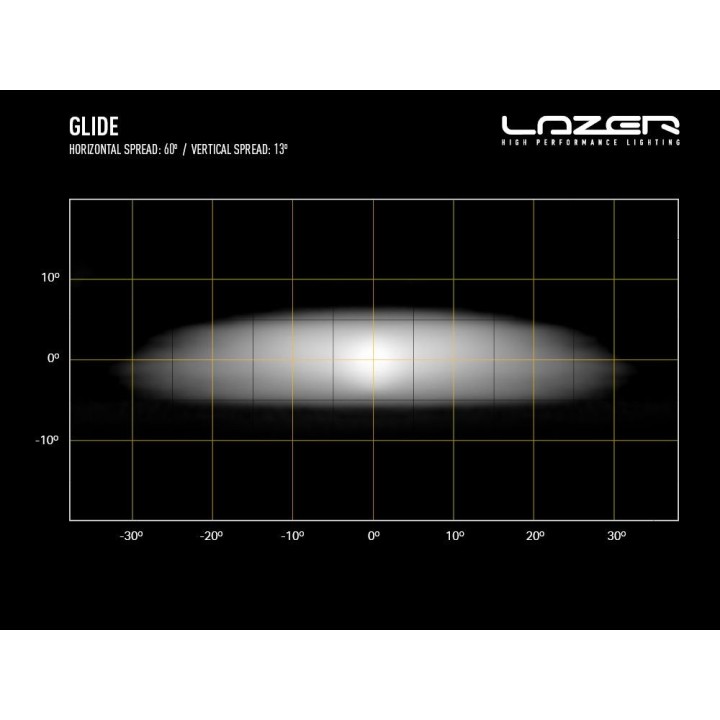

- Beam angle (horizontal / vertical): 60 / 13°
- Ingress protection: IP68
- Driving beam approval: ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only)
- Position light: ECE R148
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
- Warranty: 5 years

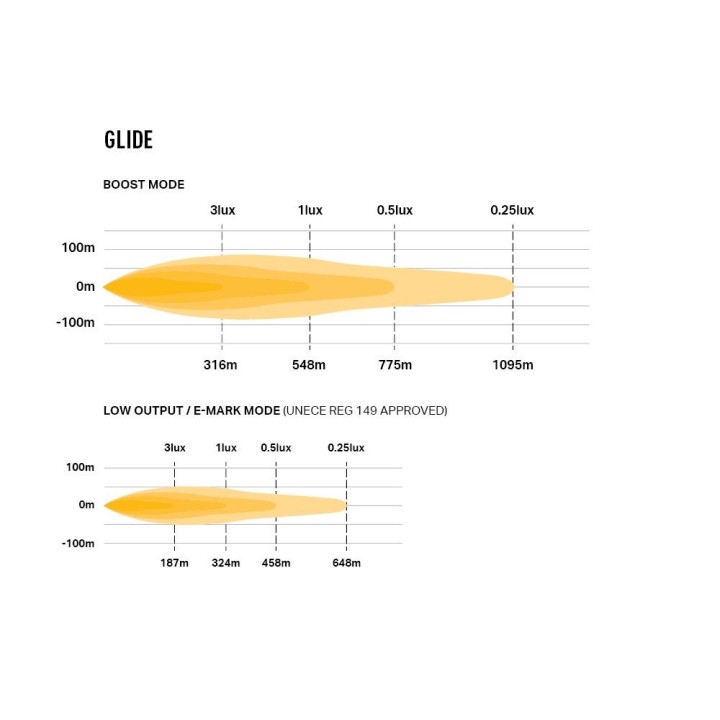

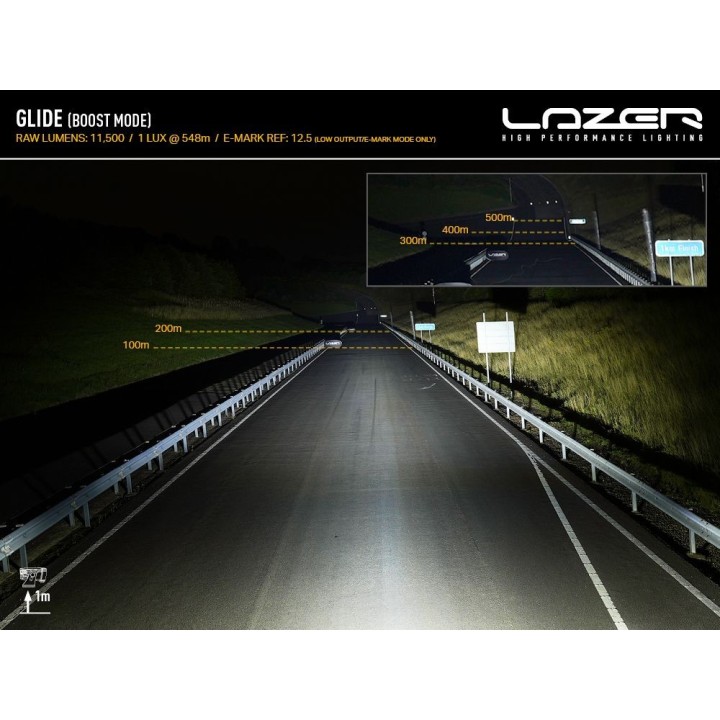

Beam range
| 0.25 lx | 1095 m / 648 m |
| 0.5 lx | 775 m / 458 m |
| 1 lx | 548 m / 324 m |
| 3 lx | 316 m / 187 m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for

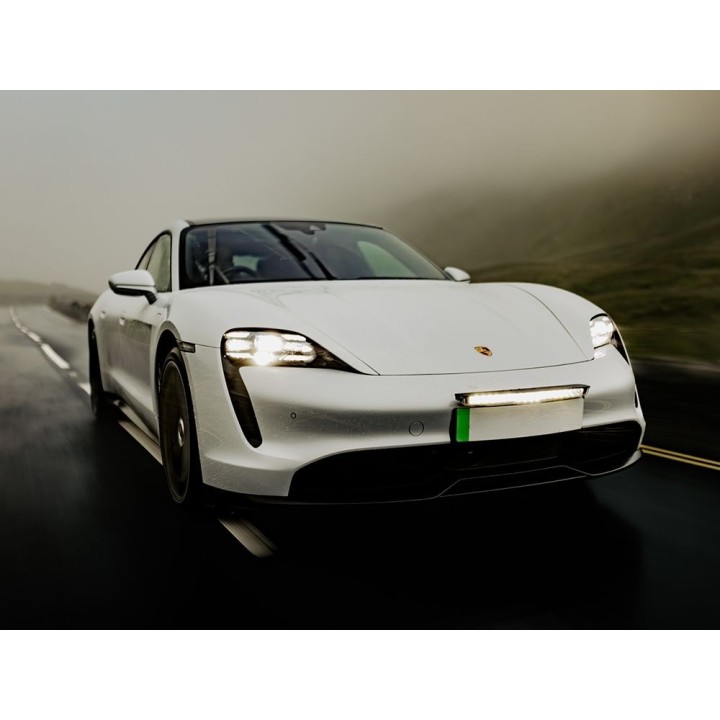

For roof and bar installs where a low profile counts.
If you are unsure whether it suits your vehicle, get in touch and we will match it.
Fitting and notes
ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
Why it is worth it
- 11500Lm of output and 1095 m of range on the 0.25 lx line
- ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval — a legal driving light
- IP68 ingress protection
- Manufacturer warranty: 5 years
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 (double E-mark) - Ref: 2x 12.5 (Low Output mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
How far does it throw?
The manufacturer quotes 1095 m on the 0.25 lx line, 775 m at 0.5 lx and 548 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 120 W, i.e. 8.3 A at 14.4 V.
How much does it weigh?
The manufacturer states 0.68 kg.
