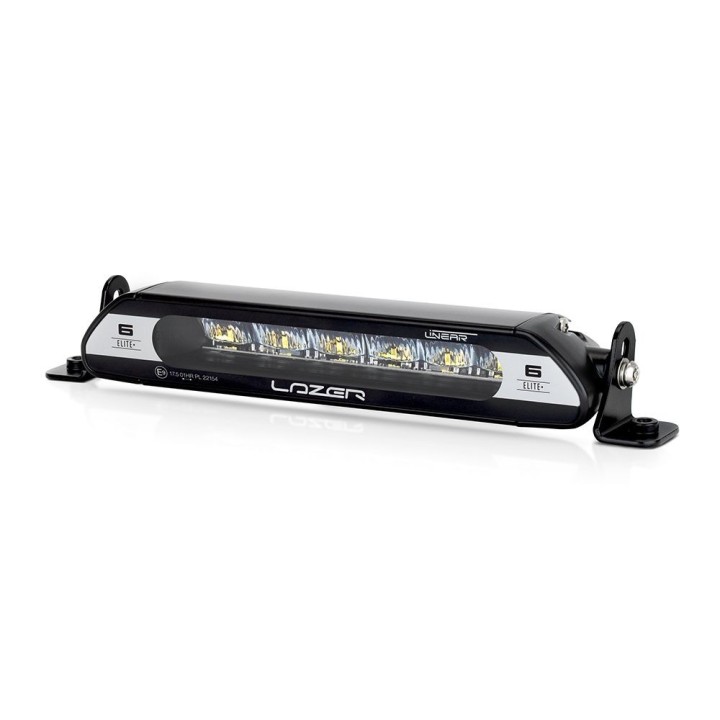

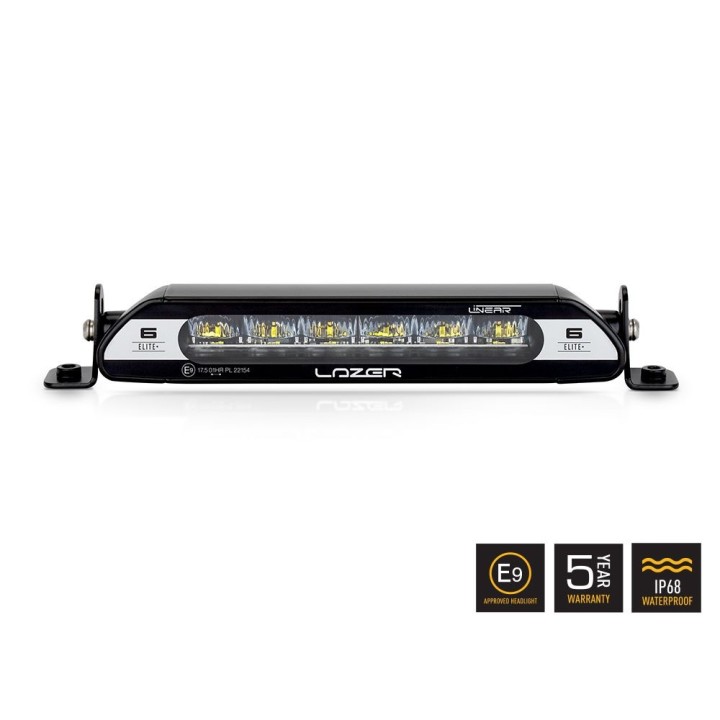

LAZER Linear 6 Elite+

Factory main beam runs out exactly where the real risk begins — an animal on the verge, a pothole, a blind corner.

The manufacturer quotes 5,100 lm of output, 232 mm wide, 0.495 kg. ECE R149 - 12.5 (in Low Output Mode only) approval means the lamp is homologated as a driving light, not restricted to off-road use.

Key features

• Combination of highly efficient white (5000 K) and PC-yellow LEDs.

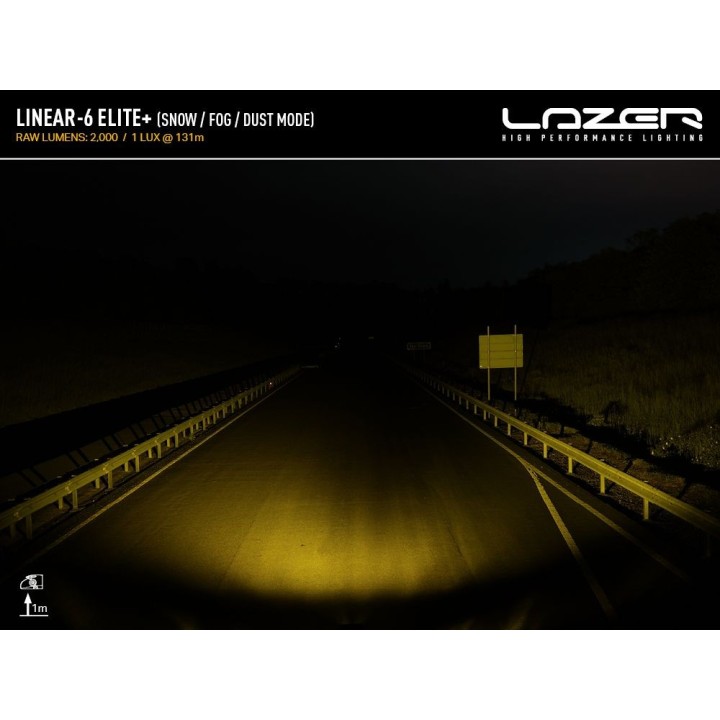

• Yellow LEDs optimised for use in snow / fog / dust conditions.
• White light ECE approved to Reg 149 (Class B, Driving Light) for on-road use (E-Boost technology).
• Compatible One-Lamp / Two-Lamp Wiring Kits available.

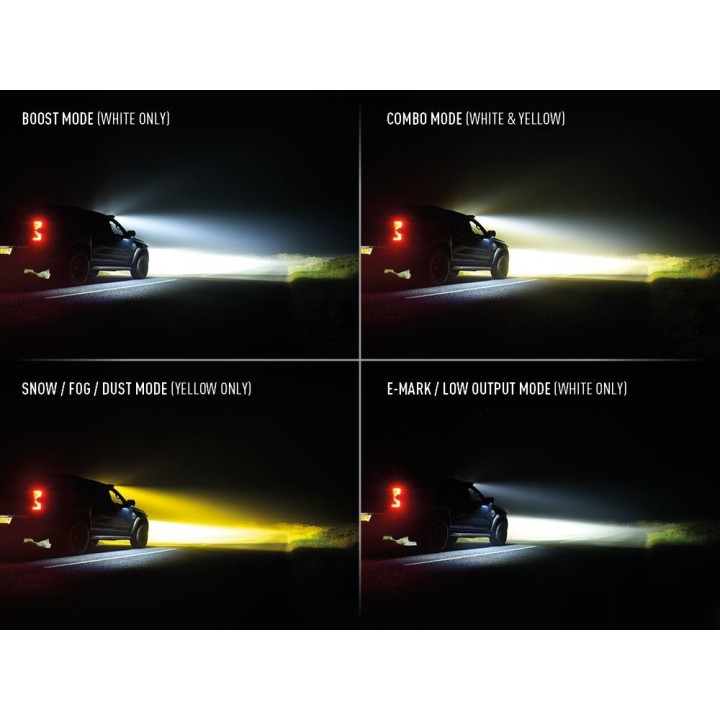

• Momentary switch facilitates switching lighting modes.
• Memory function recalls preferred lighting mode without needing to re-select each journey.
• Sleek, low profile design facilitates installation
• Flexible mounting options – anti-theft mounting brackets included
• CAE optimised heatsink offers improved thermal dynamics
• Anodised pre-treatment and Automotive grade powder top-coat for ultimate corrosion and chemical protection
• Electronic thermal management system optimises light output to preserve longevity of the LEDs .
• ‘Unbreakable’ and hardcoated polycarbonate lens
• IP68 watertight
• 5-year warranty
• Designed & manufactured in the UK

What is in the box

• x1 Linear-6 Elite+ LED Lamp
• x1 Anti-Theft Side Mount (1127 K)
• x1 Installation Instructions

Technical data

• Luminous flux: 5,100 lm (full power mode) / 2,500 lm (approved mode)
• Driver 'FOV' flux: 3,645 lm (full power mode) / 1,822 lm (approved mode)
• Colour temperature: White LED's (5000 K)
• Number of LEDs: 12
• Power consumption: 48 W (full power mode) / 24 W (approved mode)
• Current draw: 3.6 A (full power mode) / 1.8 A (approved mode)
• Peak current draw: 4.9 A (full power mode) / 2.5 A (approved mode)
• Voltage range: 10-32V
• LED life: 50,000 hrs
• Weight: 0.495 kg

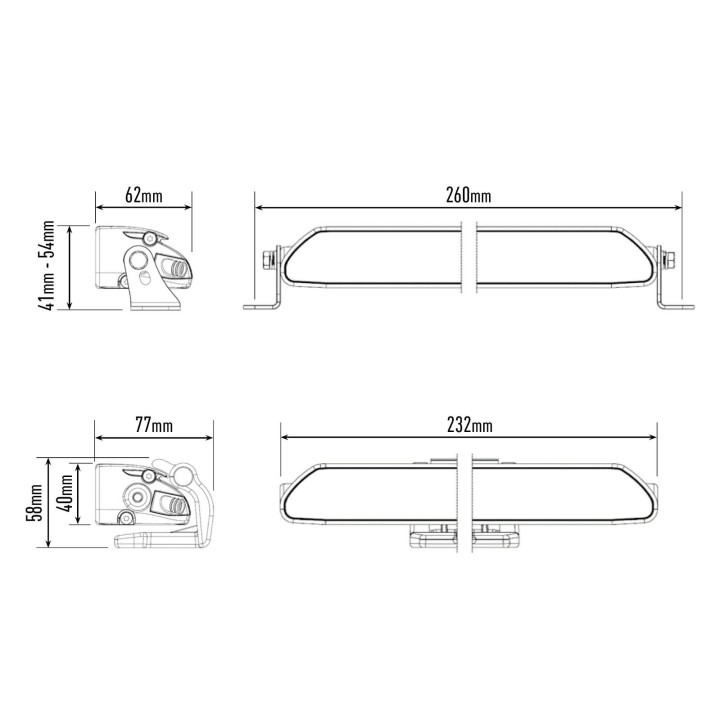

• Width: 232 mm
• Depth: 62 mm
• Height: 40 mm

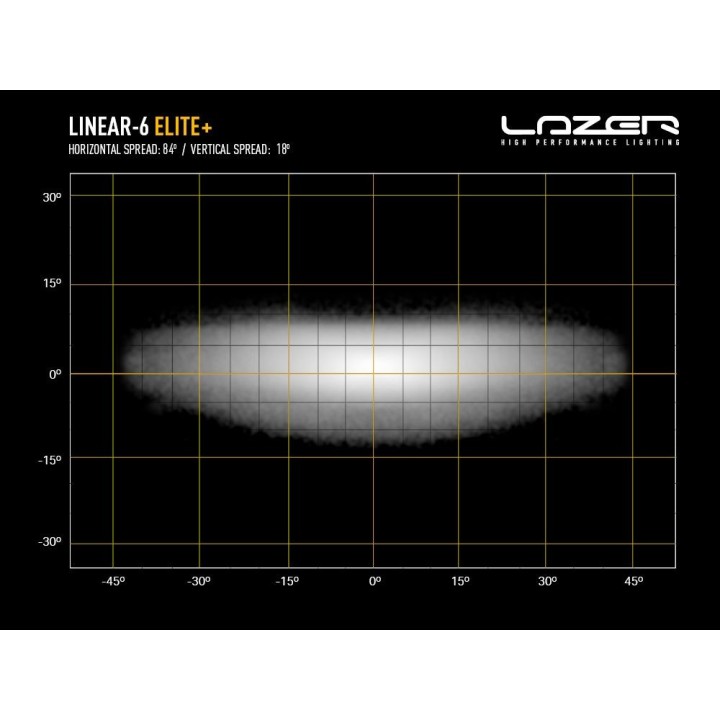

• Horizontal beam angle: 84°
• Vertical beam angle: 18°
• Connector: 3-Pin Superseal (+25cm Cable)
• Ingress protection: IP68
• Driving beam approval: ECE R149 - 12.5 (in Low Output Mode only)
• EMC: ECE R10
• Salt spray test: ISO 9227
• Dump load protection: ISO 7637-2

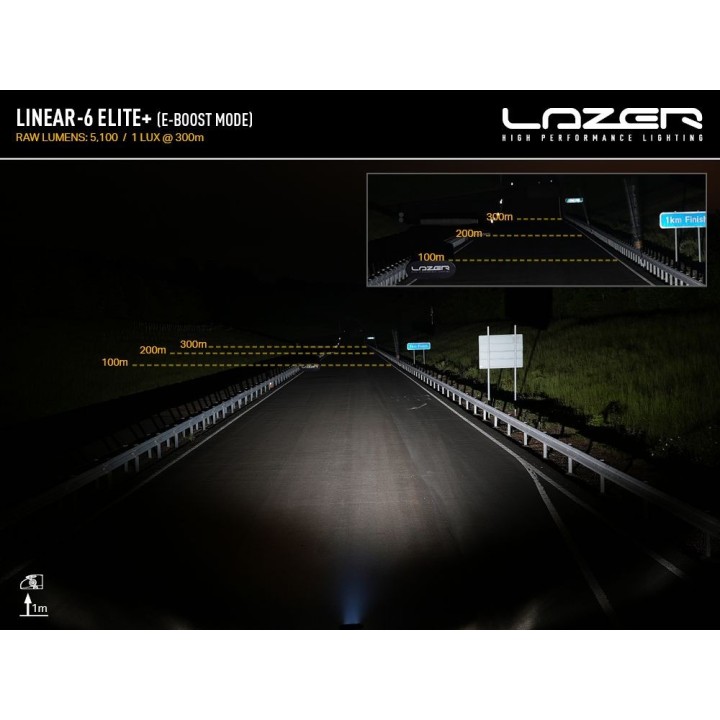

Beam range

Range given for full power mode and, where the lamp has one, the approved mode.

Who it is for

For installs where space is tight — grille, bumper, windscreen mount, roof.

If you are unsure whether it suits your vehicle, get in touch and we will match it.

Fitting and notes

The lamp lead ends in: 3-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.

ECE R149 - 12.5 (in Low Output Mode only) approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

Why it is worth it

• 5,100 lm of output and 600 m of range on the 0.25 lx line
• ECE R149 - 12.5 (in Low Output Mode only) approval — a legal driving light
• IP68 ingress protection
• LAZER — designed and manufactured in the United Kingdom

Frequently asked questions

Is the lamp road legal?

The manufacturer lists ECE R149 - 12.5 (in Low Output Mode only) approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.

What is in the box?

The box contains: x1 Linear-6 Elite+ LED Lamp, x1 Anti-Theft Side Mount (1127k), x1 Installation Instructions.

How far does it throw?

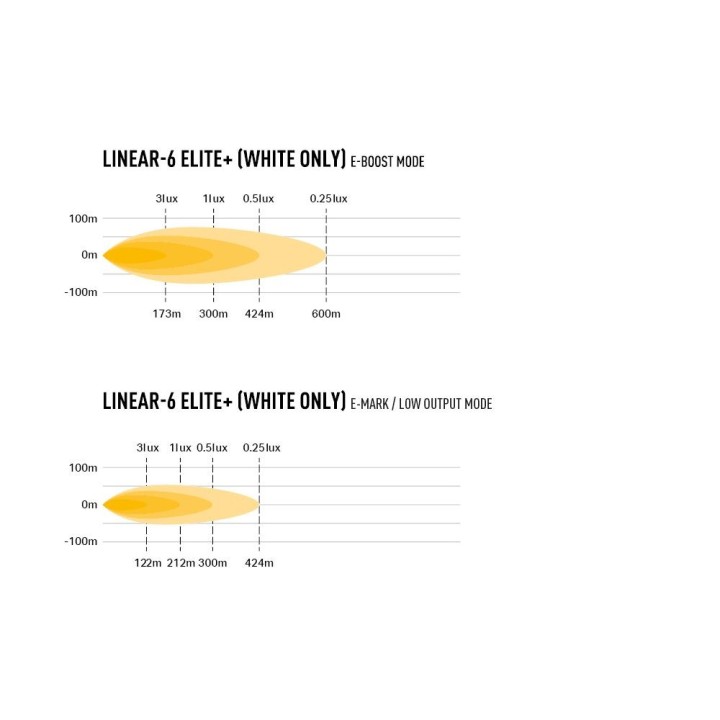

The manufacturer quotes 600 m on the 0.25 lx line, 424 m at 0.5 lx and 300 m at 1 lx.

Will it survive washing and road salt?

The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.

How much power does it use?

Power consumption is 48 W, i.e. 3.6 A at 14.4 V.
