LAZER High Performance LED Lighting
Reference: GK-FD-WIDE-02K
Zestawy Lamp LED dedykowanych do samochodów

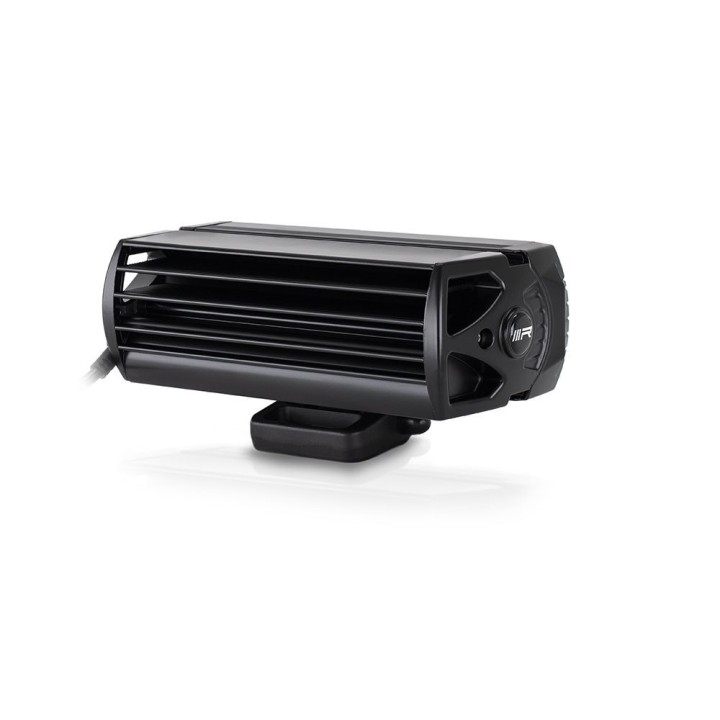

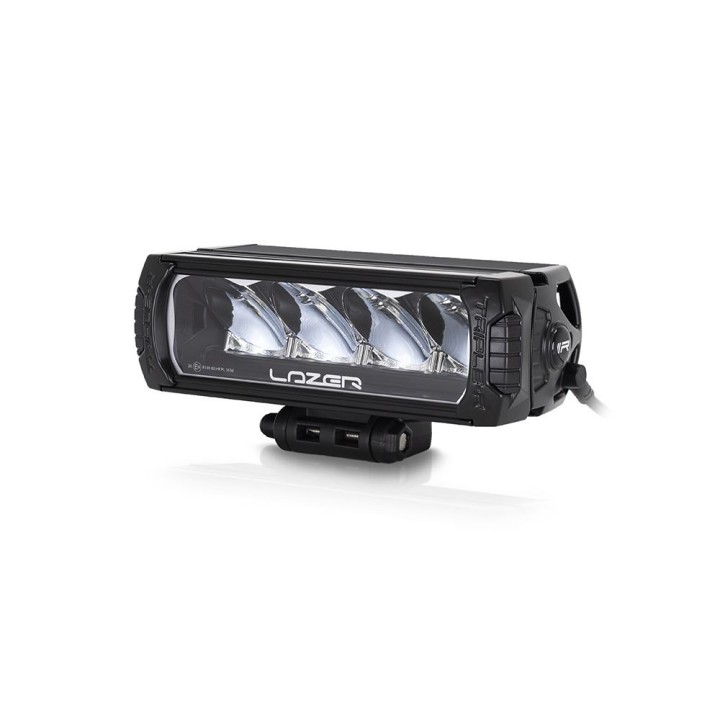

Dedicated kit lamp LAZER TRIPLE-R 750 Wide for mounting w factory grille Fiat Ducato (2022 -)
Dedicated kit lamp LAZER TRIPLE-R 750 Wide for mounting w factory grille Fiat Ducato (2022 -). The manufacturer quotes luminous flux: 4320 lm, range at 0.25 lx: 587 m, power consumption: 44 W. ECE R149 approval allows it to be used as a driving light. The kit is built for the Fiat Ducato (2022 -).
Dedicated kit lamp LAZER TRIPLE-R 750 Wide for mounting w factory grille Fiat Ducato (2022 -)

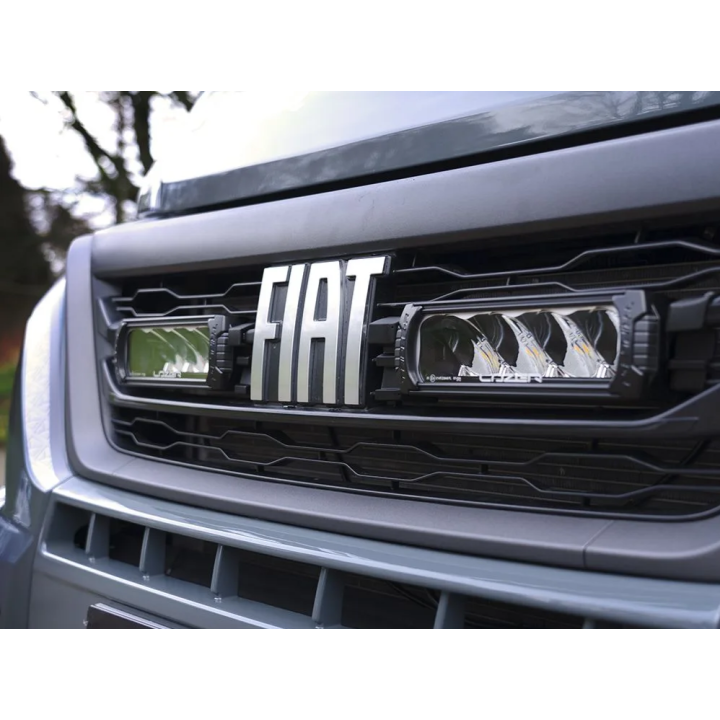

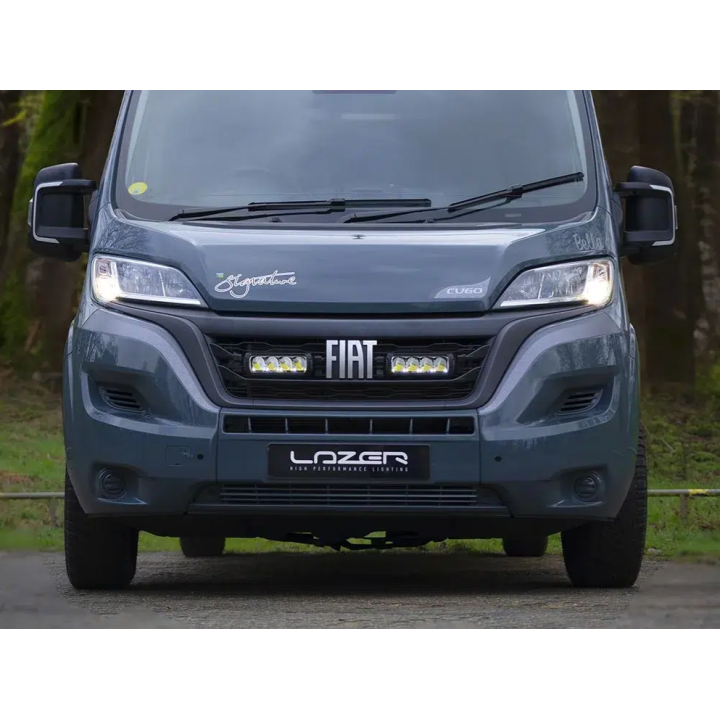

A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Fiat Ducato (2022 -) — the brackets land on factory points.
One box gives you the complete answer: the lamps and the mounting system made for them.
Luminous flux 4320 lm | Range (0.25 lx) 587 m | Weight 1kg |
Technical data
- Luminous flux: 4320 lm
- Colour temperature: 5000 K
- Number of LEDs: 4
- Power consumption: 44 W
- Current draw: 3.1 A
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 1kg

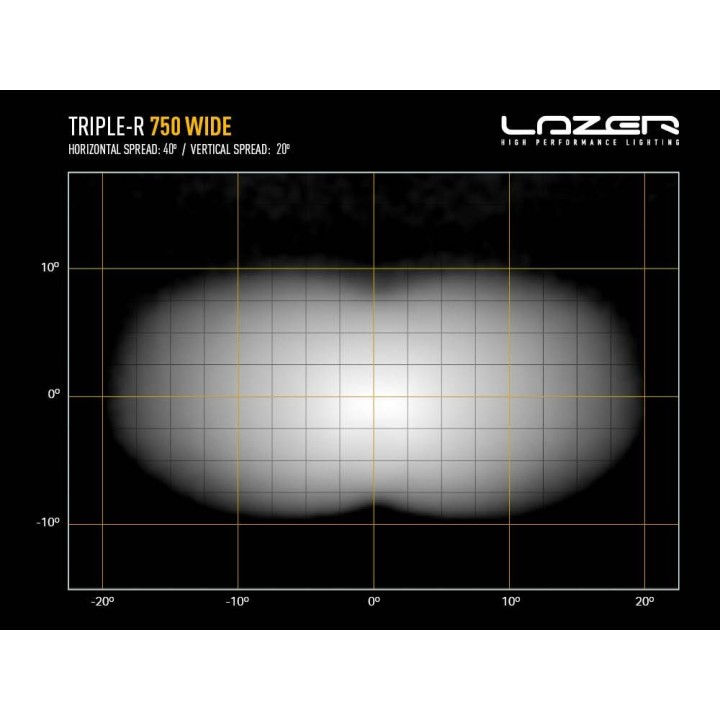

- Horizontal beam angle: 40° (dwa razy szerszy od Triple-R 750 2 generacji)
- Driving beam approval: ECE R149
- E-Mark reference: 20
- Position light: ECE R7
- Warranty: 5 years

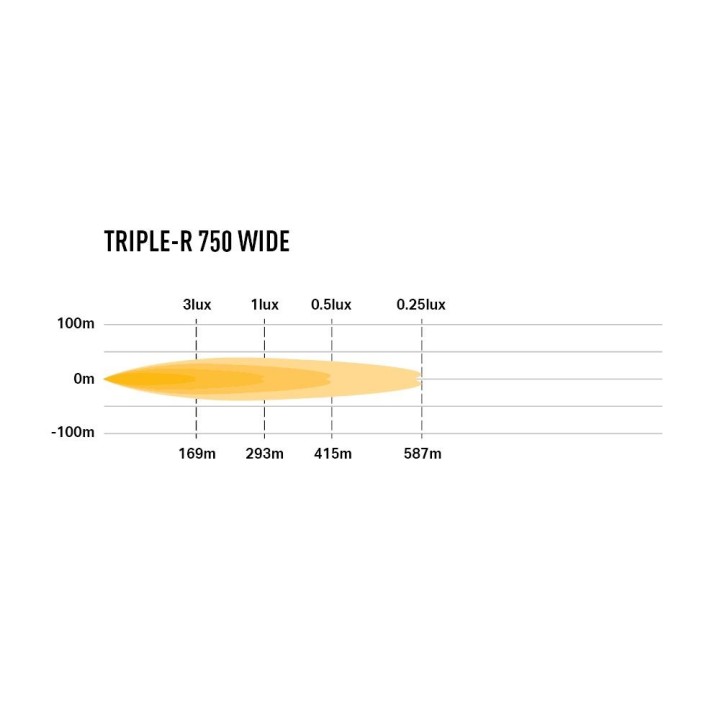

Beam range
| 0.25 lx | 587 m |
| 0.5 lx | 415 m |
| 1 lx | 293 m |
| 3 lx | 169 m |
Who it is for
For owners of this specific model who want a fit with no modifications.
The kit is built for the Fiat Ducato (2022 -) — another vehicle needs a different version.
Fitting and notes
ECE R149 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

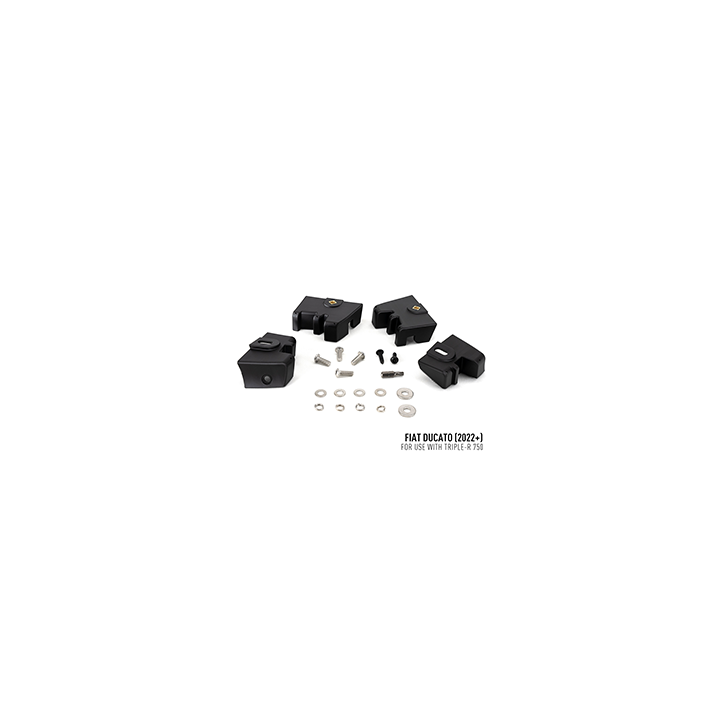

The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.
Why it is worth it
- 4320 lm of output and 587 m of range on the 0.25 lx line
- ECE R149 approval — a legal driving light
- A complete kit for one specific model — no drilling, no modifications
- Manufacturer warranty: 5 years
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
How far does it throw?
The manufacturer quotes 587 m on the 0.25 lx line, 415 m at 0.5 lx and 293 m at 1 lx.
How much power does it use?
Power consumption is 44 W, i.e. 3.1 A at 14.4 V.
How much does it weigh?
The manufacturer states 1kg.
Which vehicle does this kit fit?
The manufacturer lists the fitment as: Fiat Ducato (2022 -). Other versions and model years need a different kit variant.
