Kit of two LAZER TRIPLE-R 750 (Gen2) with factory grille mounting system - Toyota Hilux GR Sport II (2025 -)
Kit of two LAZER TRIPLE-R 750 (Gen2) with factory grille mounting system - Toyota Hilux GR Sport II (2025 -). The manufacturer quotes luminous flux: 9240 lm, range at 0.25 lx: 866 m, power consumption: 88 W. ECE R112: Ref: 2 x 35 approval allows it to be used as a driving light. The kit is built for the Toyota Hilux GR Sport II (2025 -).
Kit of two LAZER TRIPLE-R 750 (Gen2) with factory grille mounting system - Toyota Hilux GR Sport II (2025 -)

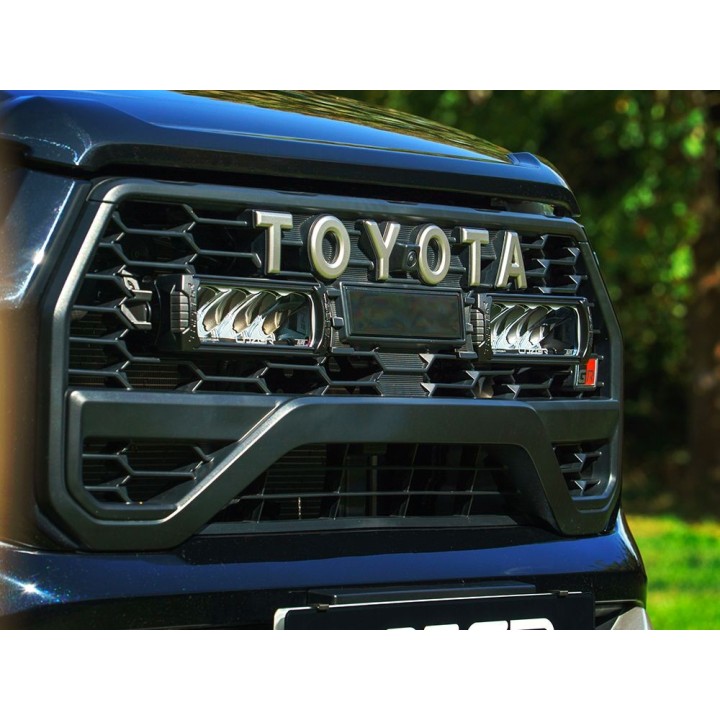

A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Toyota Hilux GR Sport II (2025 -) — the brackets land on factory points.
One box gives you the complete answer: the lamps and the mounting system made for them.
Luminous flux 9240 lm | Range (0.25 lx) 866 m | Ingress protection IP67 |
Technical data
- Luminous flux: 9240 lm
- Driver 'FOV' flux: 5572
- Colour temperature: 5000 K
- Power consumption: 88 W
- Current draw: 6.2 A
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 2.6 kg
- Horizontal beam angle: 19° / 18°
- Vertical beam angle: 19° / 18°
- Connector: 3-Pin Superseal (+25 cm cable)
- Ingress protection: IP67
- Driving beam approval: ECE R112: Ref: 2 x 35
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
- Warranty: 5 years

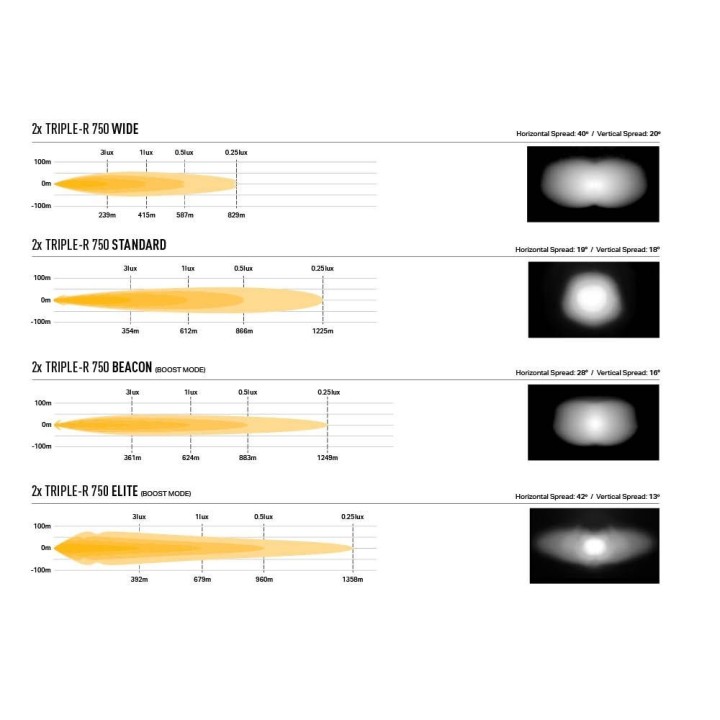

Beam range
| 0.25 lx | 866 m |
| 0.5 lx | 612 m |
| 1 lx | 433 m |
| 3 lx | 250 m |
Who it is for
For owners of this specific model who want a fit with no modifications.
The kit is built for the Toyota Hilux GR Sport II (2025 -) — another vehicle needs a different version.
Fitting and notes

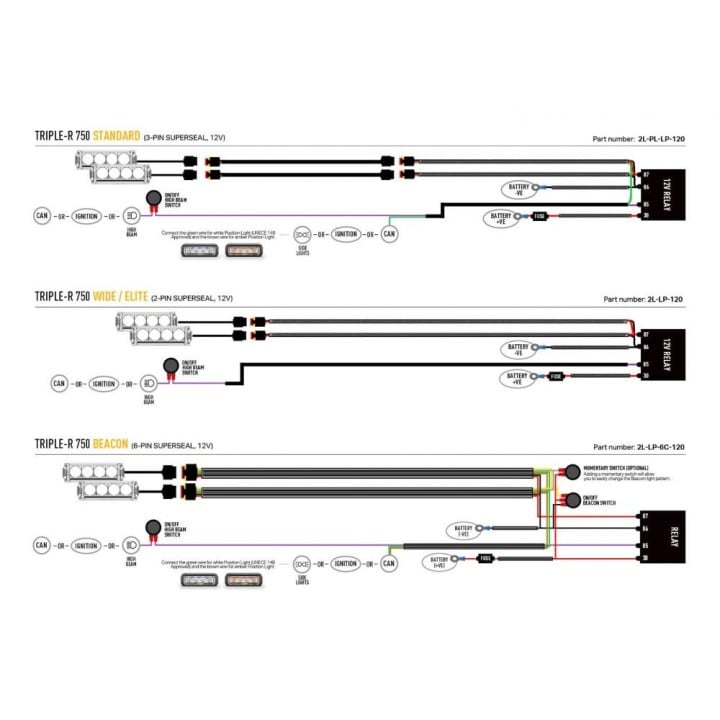

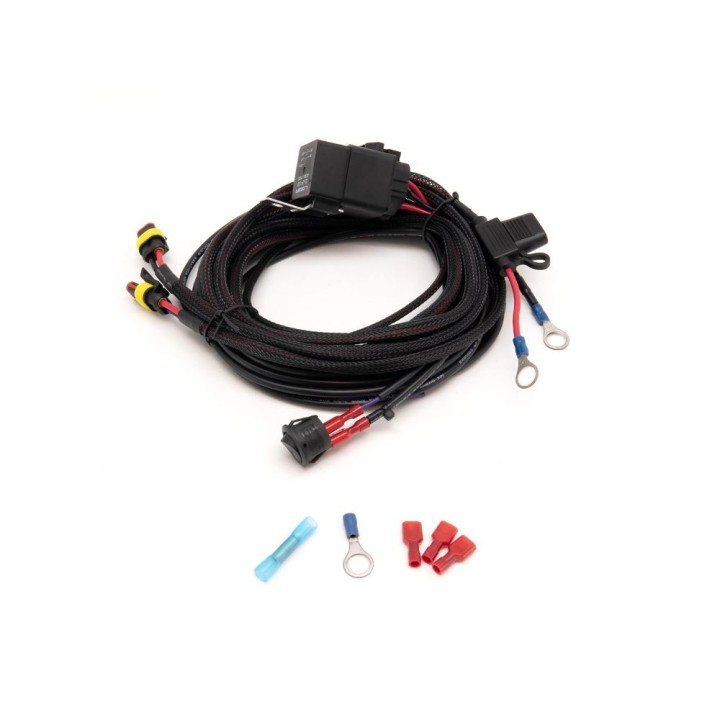

The lamp lead ends in: 3-Pin Superseal (+25 cm cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R112: Ref: 2 x 35 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

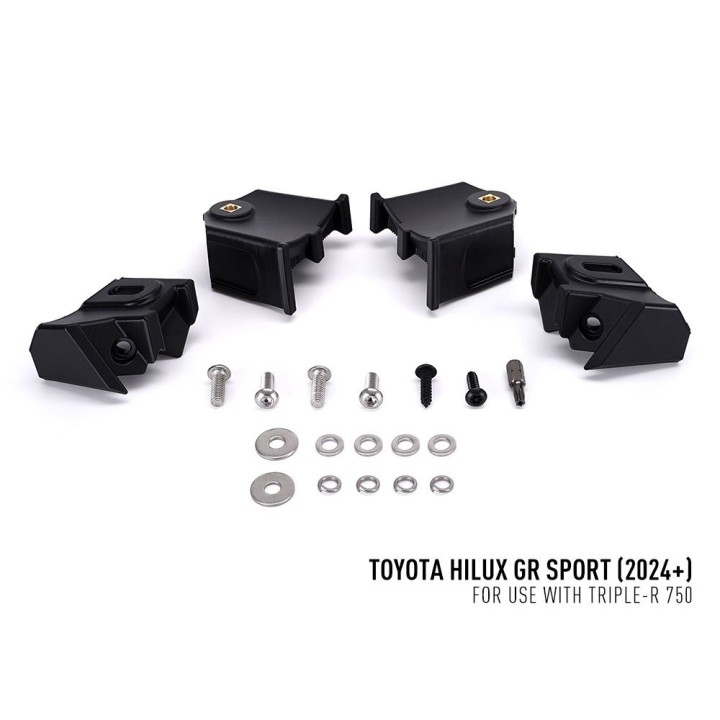

The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.
Why it is worth it
- 9240 lm of output and 866 m of range on the 0.25 lx line
- ECE R112: Ref: 2 x 35 approval — a legal driving light
- IP67 ingress protection
- A complete kit for one specific model — no drilling, no modifications
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R112: Ref: 2 x 35 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
How far does it throw?
The manufacturer quotes 866 m on the 0.25 lx line, 612 m at 0.5 lx and 433 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP67 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 88 W, i.e. 6.2 A at 14.4 V.
How much does it weigh?
The manufacturer states 2.6 kg.
