Kit with LAZER Linear-18 Elite PLUS with factory grille mounting system - Toyota Proace (2023 - )
Kit with LAZER Linear-18 Elite PLUS with factory grille mounting system - Toyota Proace (2023 - ). The manufacturer quotes luminous flux: 14850 lm, power consumption: 134 W, ingress protection: IP68. ECE R149 - Ref:27.5* approval allows it to be used as a driving light. The kit is built for the Toyota Proace (2023 - ).
Kit with LAZER Linear-18 Elite PLUS with factory grille mounting system - Toyota Proace (2023 - )

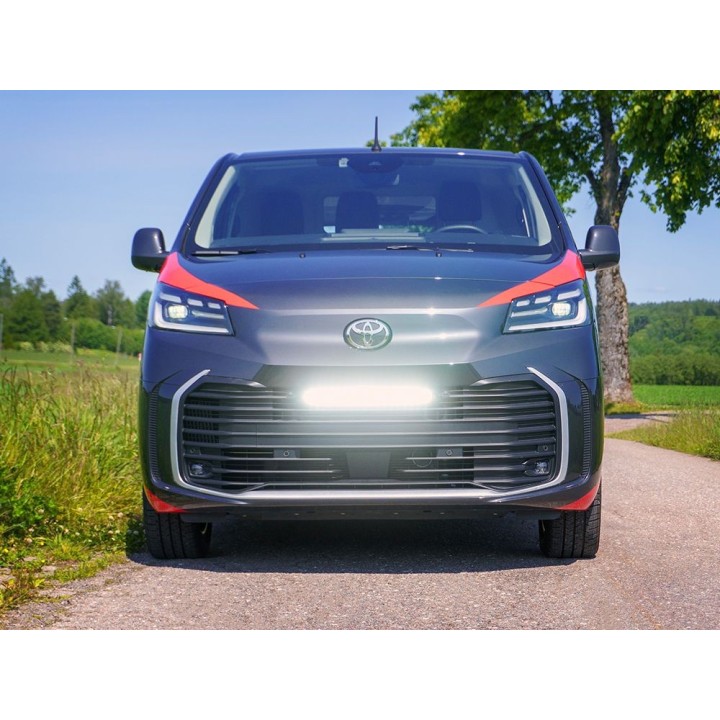

A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Toyota Proace (2023 - ) — the brackets land on factory points.
One box gives you the complete answer: the lamps and the mounting system made for them.
Luminous flux 14850 lm | Beam angle (horizontal / vertical) 84° / 20° | Ingress protection IP68 |
Technical data
- Luminous flux: 14850 lm
- Driver 'FOV' flux: 10573 lm
- Colour temperature: 5000 K
- Power consumption: 134 W
- Current draw: 9.9 A
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 1.1 kg
- Beam angle (horizontal / vertical): 84° / 20°
- Connector: 3-Pin Aptiv (+25 cm cable)
- Ingress protection: IP68
- Driving beam approval: ECE R149 - Ref:27.5*
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637 - 2
- Warranty: 5 years

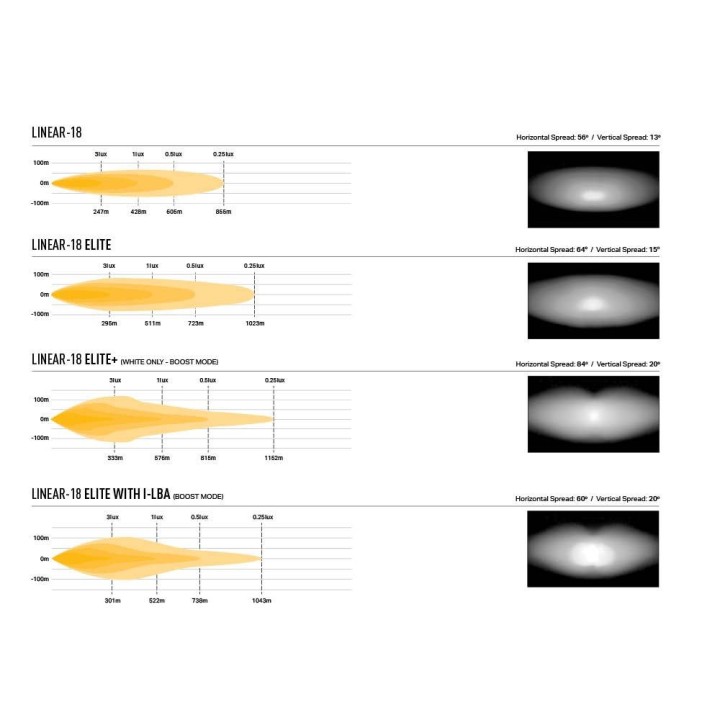

Beam range
| 1 lx | 576 m |
| 3 lx | 333 m |
Who it is for
For owners of this specific model who want a fit with no modifications.
The kit is built for the Toyota Proace (2023 - ) — another vehicle needs a different version.
Fitting and notes

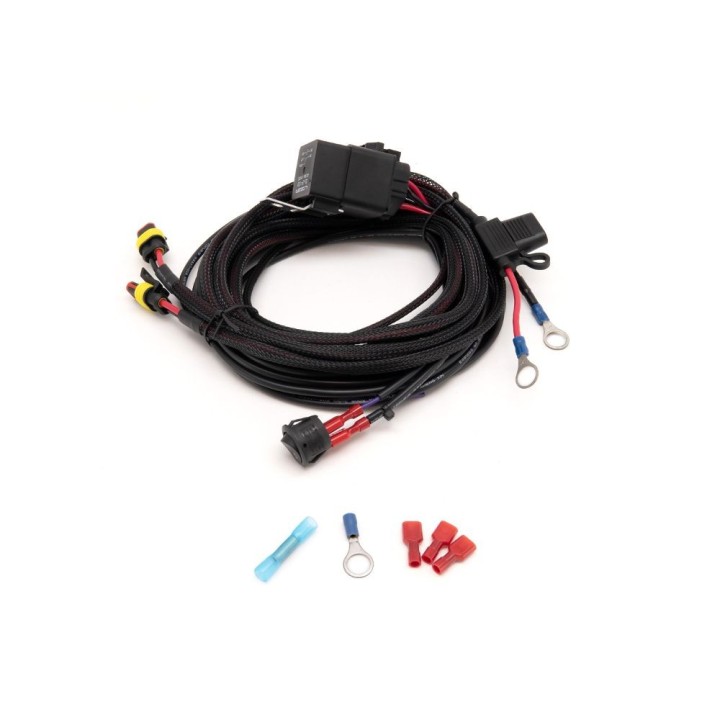

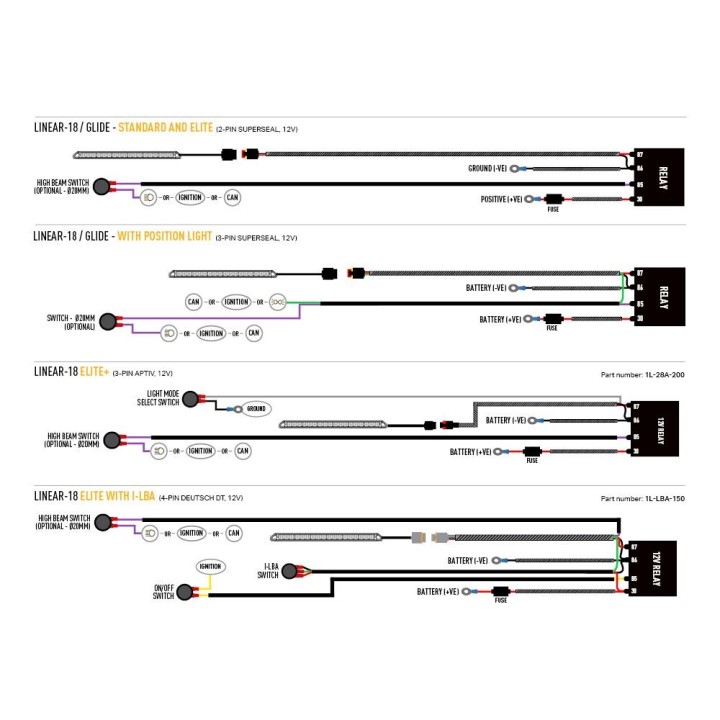

The lamp lead ends in: 3-Pin Aptiv (+25 cm cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R149 - Ref:27.5* approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

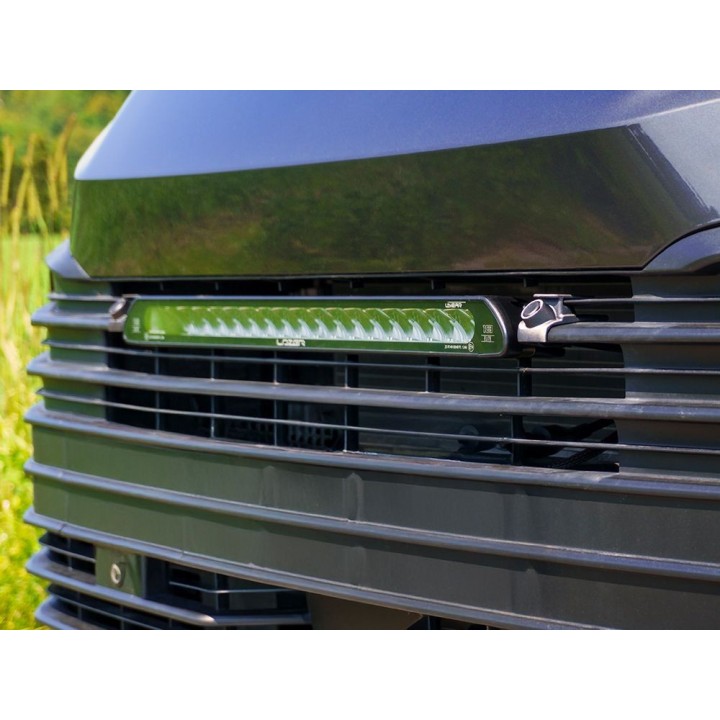

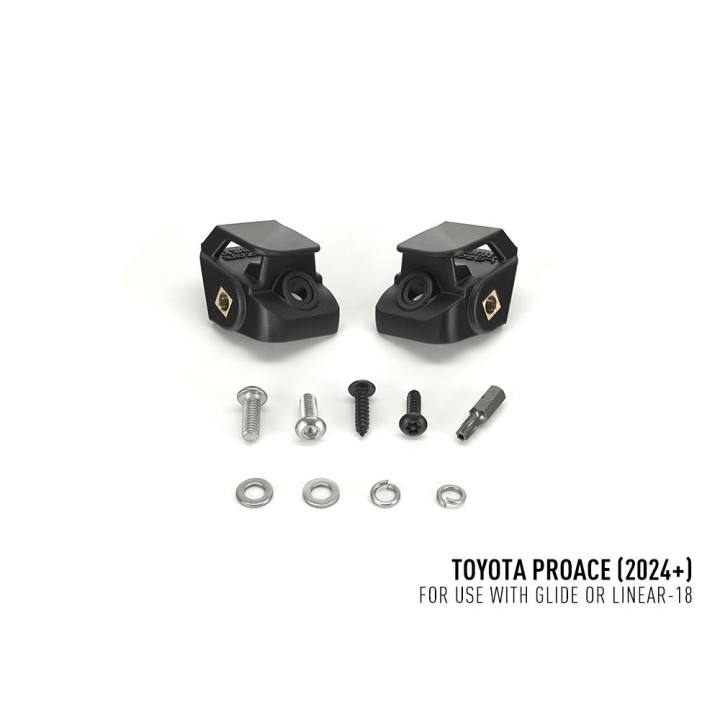

The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.
Why it is worth it
- 14850 lm of luminous flux
- ECE R149 - Ref:27.5* approval — a legal driving light
- IP68 ingress protection
- A complete kit for one specific model — no drilling, no modifications
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 - Ref:27.5* approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 134 W, i.e. 9.9 A at 14.4 V.
How much does it weigh?
The manufacturer states 1.1 kg.
Which vehicle does this kit fit?
The manufacturer lists the fitment as: Toyota Proace (2023 - ). Other versions and model years need a different kit variant.
