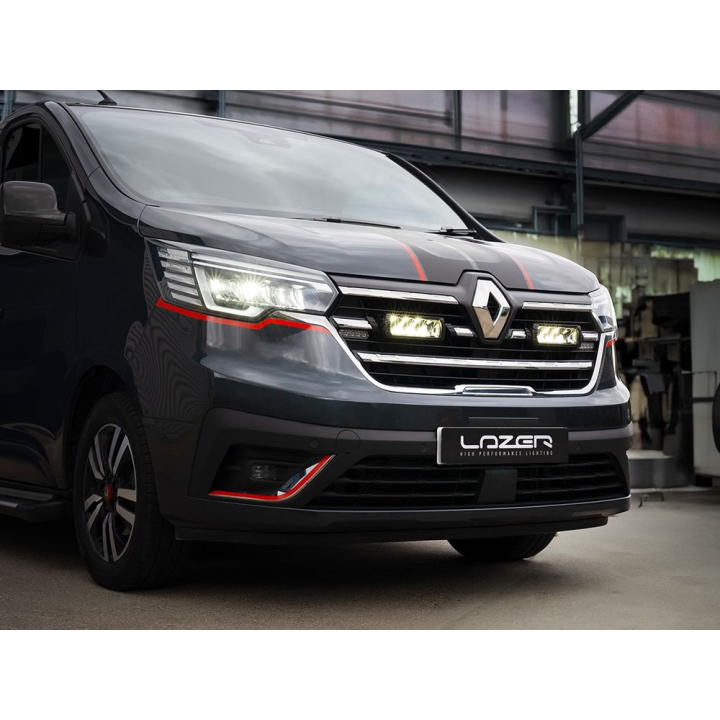

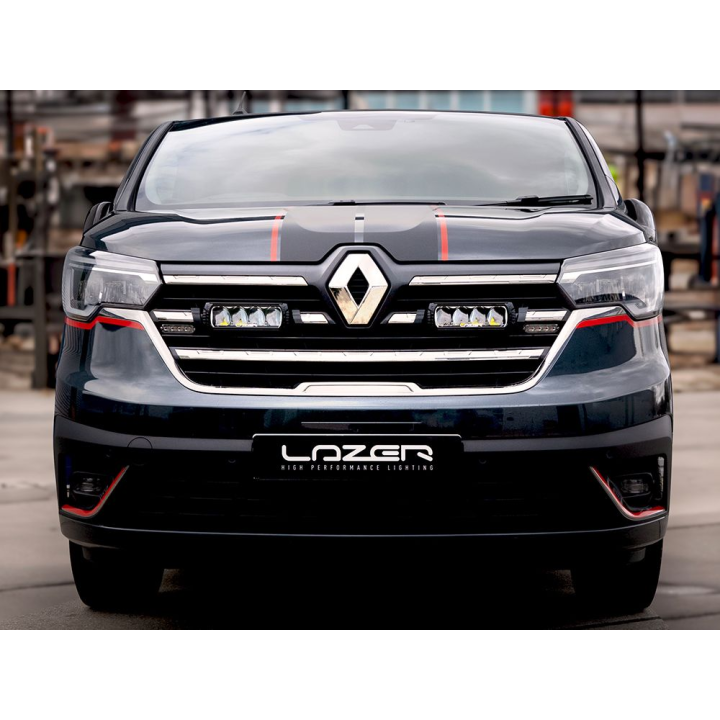

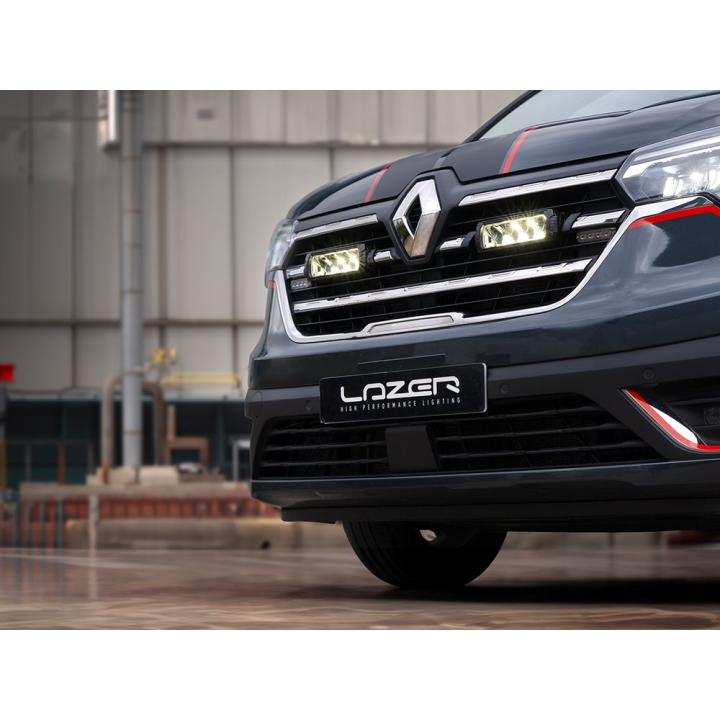

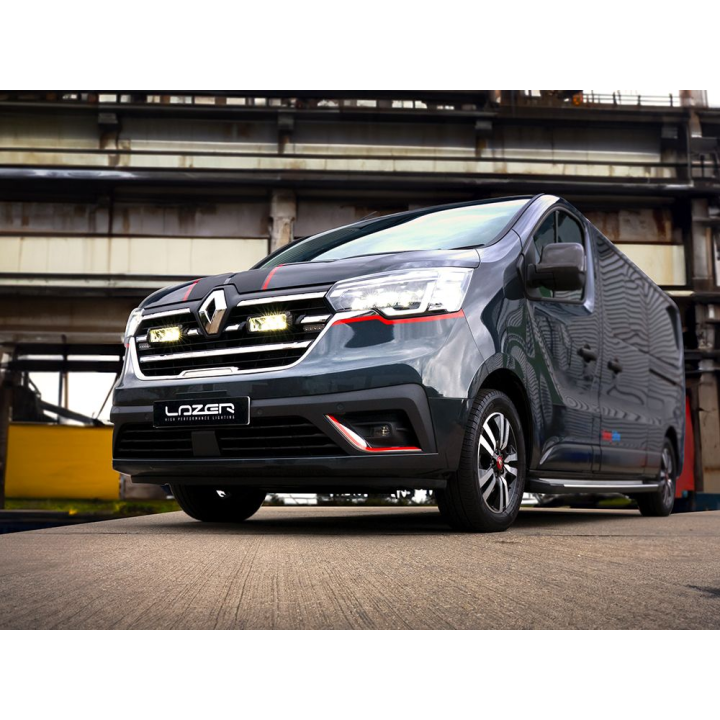

Kit of two LAZER TRIPLE-R 750 Elite (Gen2) with factory grille mounting system - Renault Trafic (2023 -)
Kit of two LAZER TRIPLE-R 750 Elite (Gen2) with factory grille mounting system - Renault Trafic (2023 -). The manufacturer quotes luminous flux: 5068 lm, range at 0.25 lx: 1033 m, power consumption: 45 W. ECE R112 approval allows it to be used as a driving light. The kit is built for the Renault Trafic (2023 -).
Kit of two LAZER TRIPLE-R 750 Elite (Gen2) with factory grille mounting system - Renault Trafic (2023 -)
A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Renault Trafic (2023 -) — the brackets land on factory points.
One box gives you the complete answer: the lamps and the mounting system made for them.
Luminous flux 5068 lm | Range (0.25 lx) 1033 m | Ingress protection IP67 |
Technical data
- Luminous flux: 5068 lm (full power mode) / 1267 lm (approved mode)
- Colour temperature: 5000 K
- Number of LEDs: 4
- Power consumption: 45 W (full power mode) / 11.5 W (approved mode)
- Current draw: 3.1 A (full power mode) / 0.8 A (approved mode)
- Voltage range: 9-32V
- LED life: 50,000 hrs
- Weight: 1kg
- Horizontal beam angle: 42°
- Ingress protection: IP67
- Driving beam approval: ECE R112
- E-Mark reference: 12.5
- Warranty: 5 years

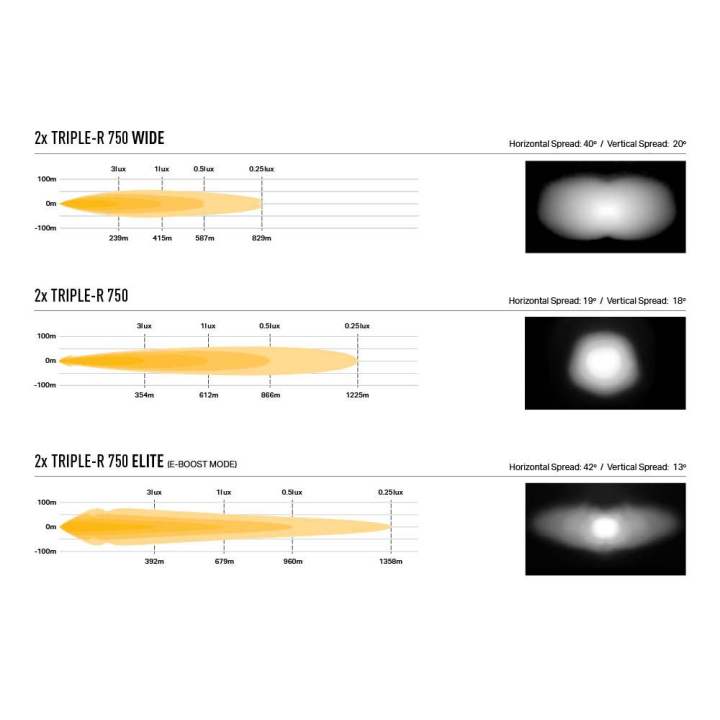

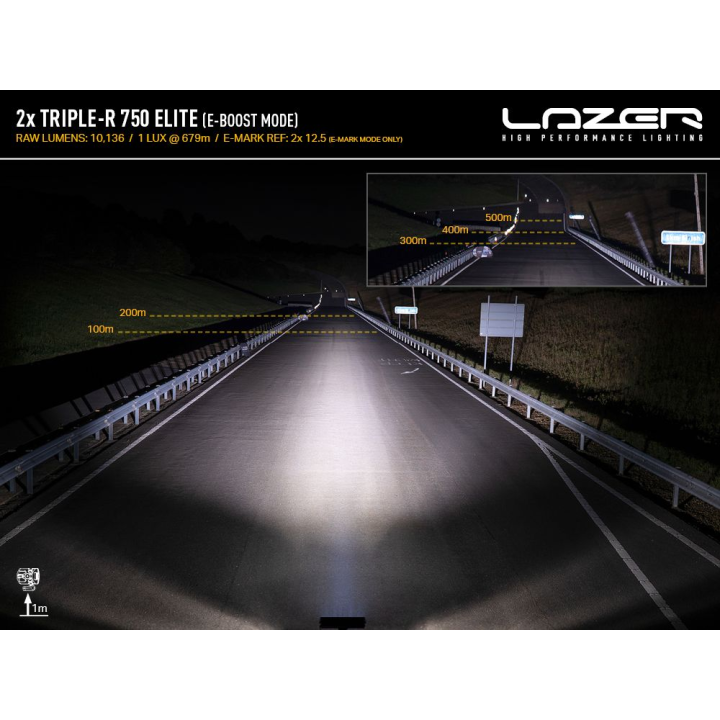

Beam range
| 0.25 lx | 1033 m / 462 m |
| 0.5 lx | 731 m / 327 m |
| 1 lx | 517 m / 231 m |
| 3 lx | 298 m / 133 m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For owners of this specific model who want a fit with no modifications.
The kit is built for the Renault Trafic (2023 -) — another vehicle needs a different version.
Fitting and notes

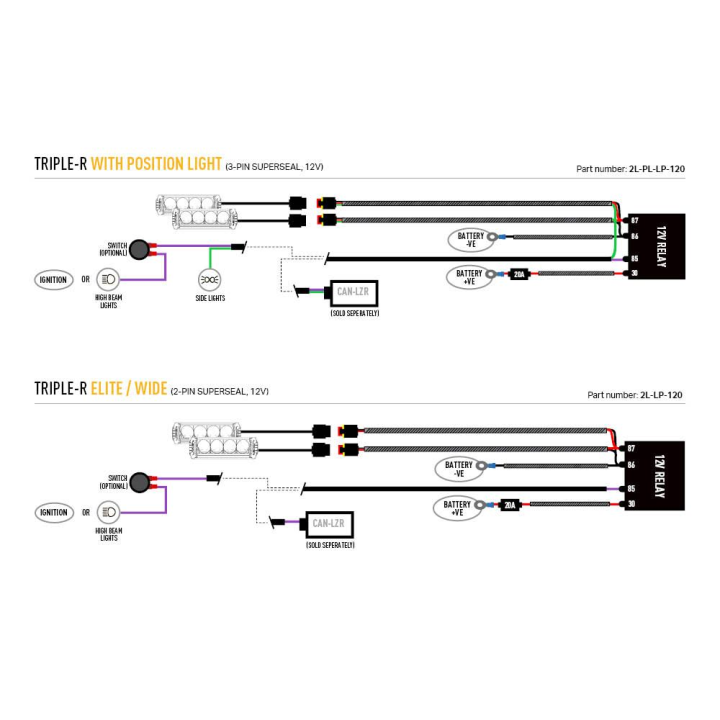

ECE R112 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.
Why it is worth it
- 5068 lm of output and 1033 m of range on the 0.25 lx line
- ECE R112 approval — a legal driving light
- IP67 ingress protection
- A complete kit for one specific model — no drilling, no modifications
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R112 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
How far does it throw?
The manufacturer quotes 1033 m on the 0.25 lx line, 731 m at 0.5 lx and 517 m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP67 ingress protection.
How much power does it use?
Power consumption is 45 W, i.e. 3.1 A at 14.4 V.
How much does it weigh?
The manufacturer states 1kg.
