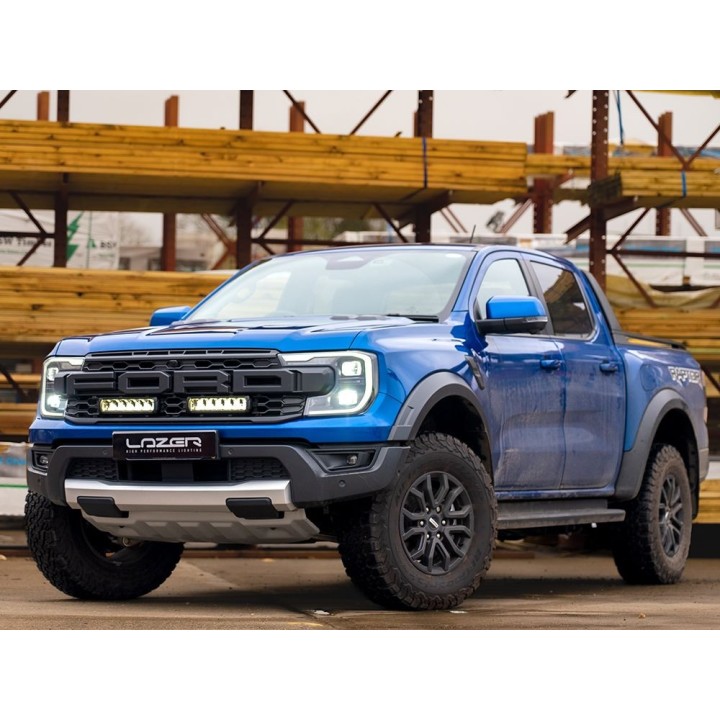

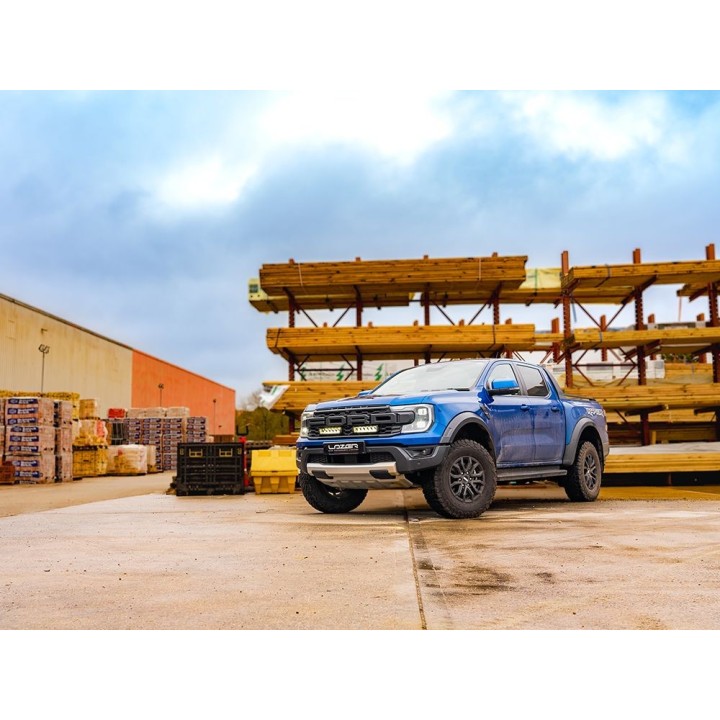

Kit of two LAZER TRIPLE-R 850 Elite (Gen2) with factory grille mounting system – Ford Ranger Raptor (2023 -)
Kit of two LAZER TRIPLE-R 850 Elite (Gen2) with factory grille mounting system – Ford Ranger Raptor (2023 -). The manufacturer quotes luminous flux: 13860 lm, range at 0.25 lx: 1500m, power consumption: 132 W. ECE R112 - Ref: 2x 45 approval allows it to be used as a driving light. The kit is built for the Ford Ranger Raptor (2023 -).
Kit of two LAZER TRIPLE-R 850 Elite (Gen2) with factory grille mounting system – Ford Ranger Raptor (2023 -)
A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Ford Ranger Raptor (2023 -) — the brackets land on factory points.
One box gives you the complete answer: the lamps and the mounting system made for them.
Luminous flux 13860 lm | Range (0.25 lx) 1500m | Beam angle (horizontal / vertical) 19° / 18° |

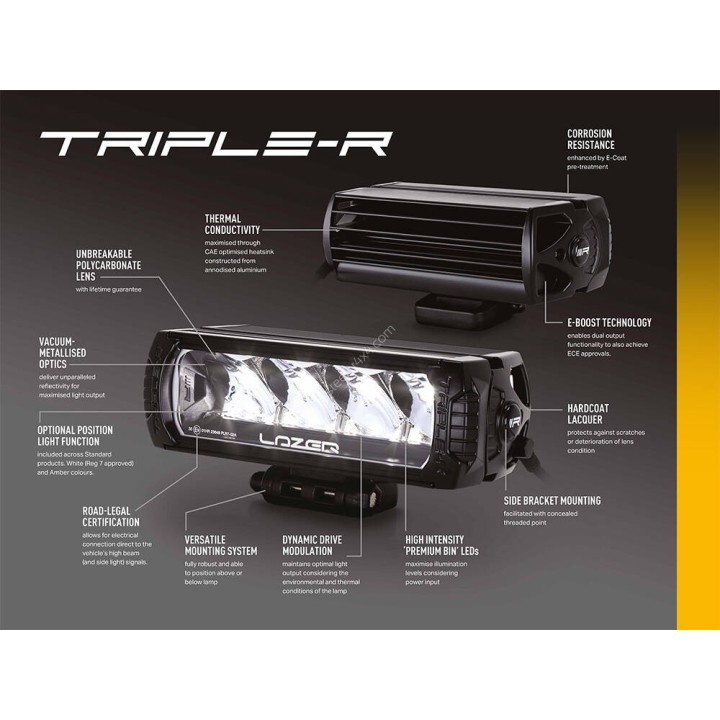

Key features
- Bespoke vehicle integration kit for Lazer LED Spotlight installation
- Custom fit for Ford Ranger Raptor (MY 2023)
- Available with: Triple-R 850 High Performance LED Spotlights
- Added option for integrated white and amber backlight function (white only approved for on-road use - Standard model only)
- Kit also includes bespoke mounting brackets and two-lamp wiring kit
- Cutting guides included
- Brackets made from high strength, UV -stable, composite material
- Fully road-legal
- 5-year warranty
- Made in Britain
What is in the box

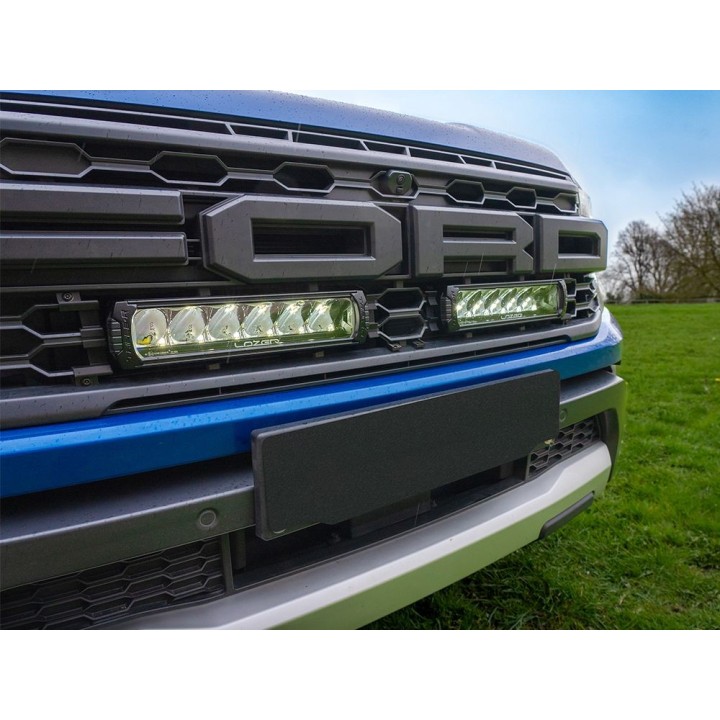

- 1x Grille Mounting Kit (includes cutting guides)

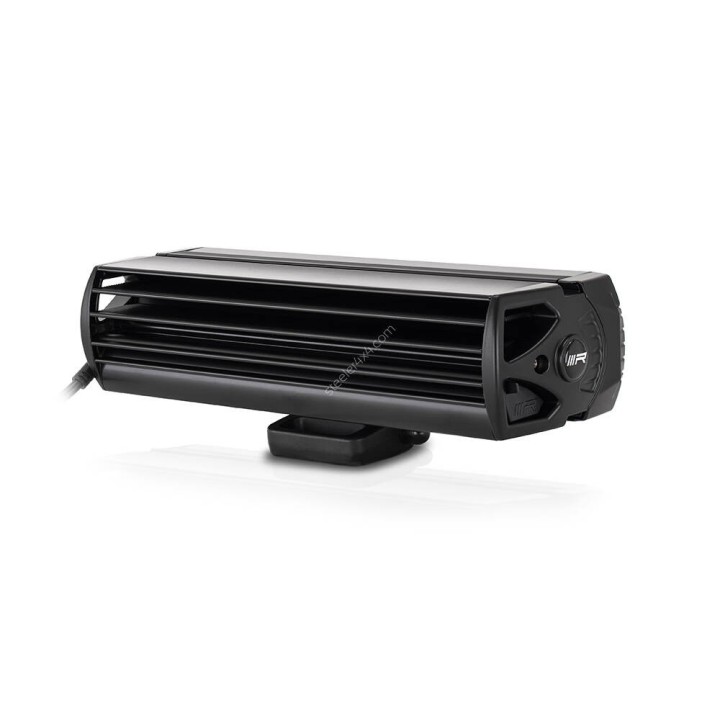

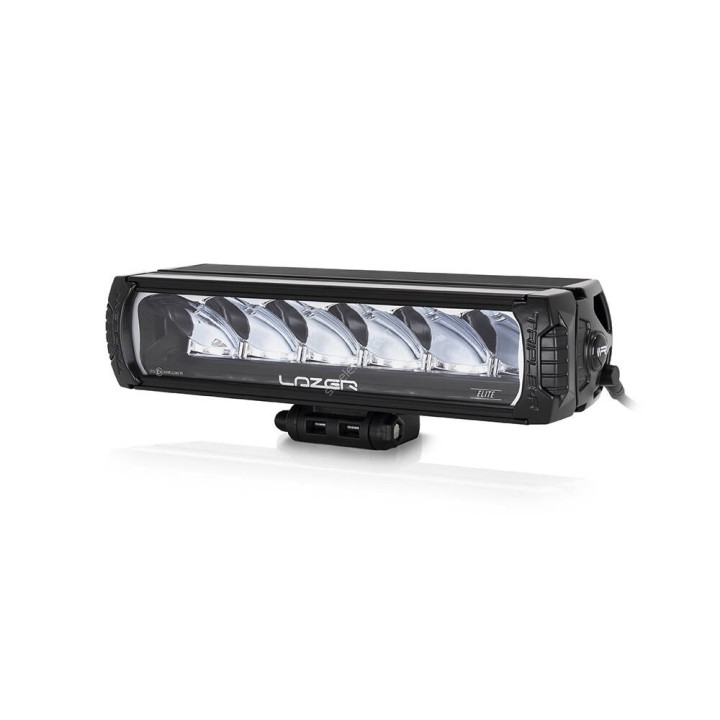

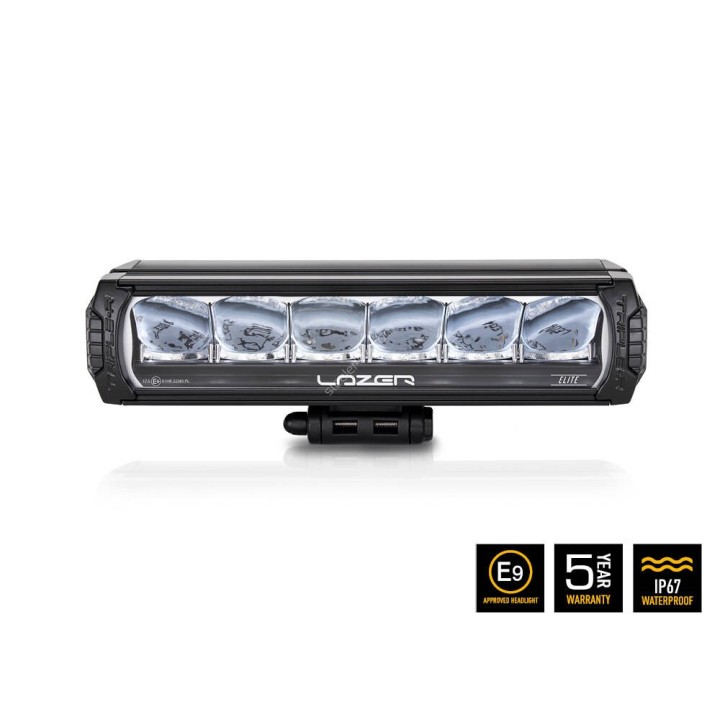

- 2x Triple-R 850 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
Technical data
- Luminous flux: 13860 lm (full power mode) / 2017 lm (approved mode)
- Driver 'FOV' flux: 8358 lm
- Colour temperature: 5000 K
- Number of LEDs: 6
- Power consumption: 132 W (full power mode) / 18 W (approved mode)
- Current draw: 10.2 A (full power mode) / 1.3 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 2.6 kg
- Beam angle (horizontal / vertical): 19° / 18°
- Horizontal beam angle: 19° / 18°
- Vertical beam angle: 19° / 18°
- Connector: 3-Pin Superseal (+25cm Cable)
- Ingress protection: IP68
- Driving beam approval: ECE R112 - Ref: 2x 45
- E-Mark reference: 17.5
- Position light: ECE R148
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2
- Warranty: 5 years

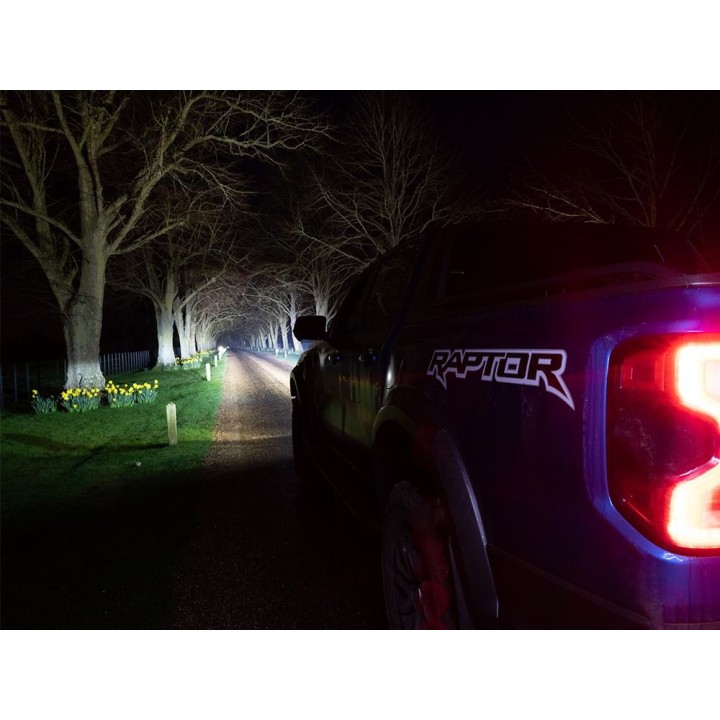

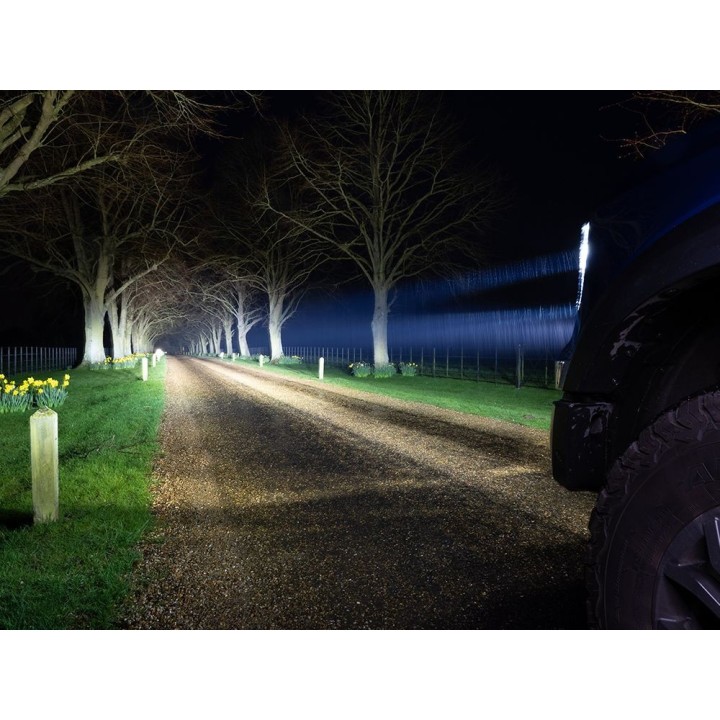

Beam range
| 0.25 lx | 1500m / 520 m |
| 0.5 lx | 1061m / 367 m |
| 1 lx | 750m / 260 m |
| 3 lx | 433m / 150 m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For owners of this specific model who want a fit with no modifications.
The kit is built for the Ford Ranger Raptor (2023 -) — another vehicle needs a different version.
Fitting and notes
The lamp lead ends in: 3-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R112 - Ref: 2x 45 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.

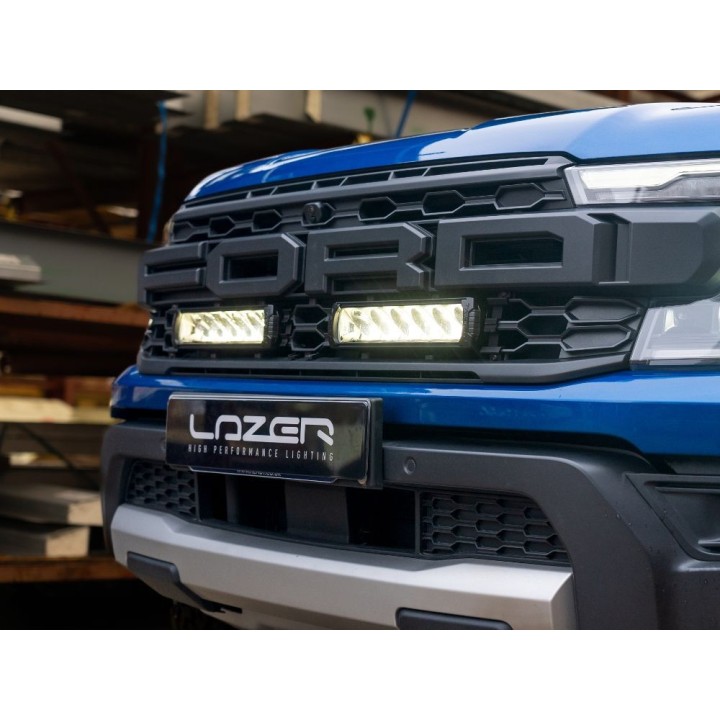

The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.
Why it is worth it
- 13860 lm of output and 1500m of range on the 0.25 lx line
- ECE R112 - Ref: 2x 45 approval — a legal driving light
- IP68 ingress protection
- A complete kit for one specific model — no drilling, no modifications
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R112 - Ref: 2x 45 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
What is in the box?
The box contains: 1x Grille Mounting Kit (includes cutting guides), 2x Triple-R 850 LED Lamps, 1x Two-Lamp Wiring Kit, Installation Instructions.
How far does it throw?
The manufacturer quotes 1500m on the 0.25 lx line, 1061m at 0.5 lx and 750m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 132 W, i.e. 10.2 A at 14.4 V.
