LAZER High Performance LED Lighting
Reference: GK-T7-01K
Zestawy Lamp LED dedykowanych do samochodów

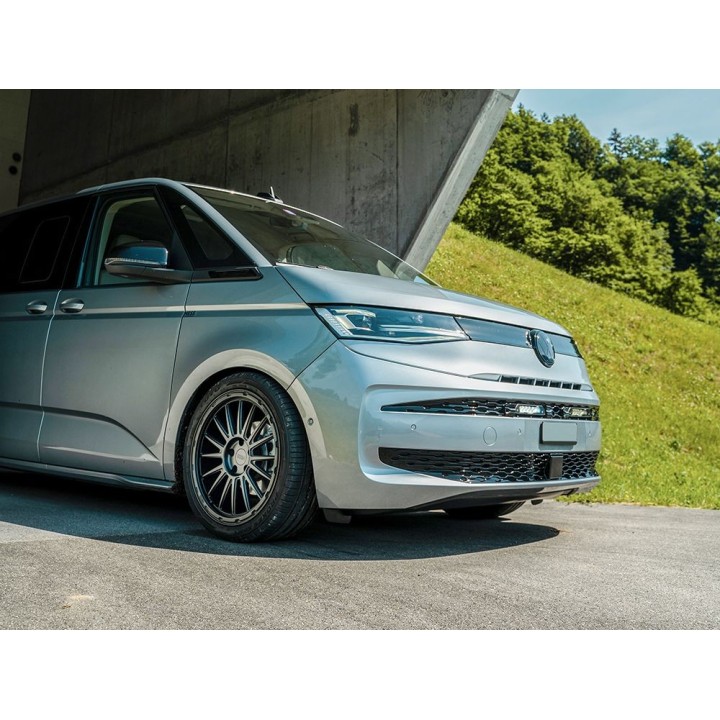

Kit of two LAZER Linear 6 with factory grille mounting system - Volkswagen T7
Kit of two LAZER Linear 6 with factory grille mounting system - Volkswagen T7. The manufacturer quotes luminous flux: 4500 lm, range at 0.25 lx: 698m, power consumption: 42 W. ECE R112 - Ref: 2x 12.5 approval allows it to be used as a driving light. The kit is built for the Volkswagen T7.
Kit of two LAZER Linear 6 with factory grille mounting system - Volkswagen T7
A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Volkswagen T7 — the brackets land on factory points.
One box gives you the complete answer: the lamps and the mounting system made for them.
Luminous flux 4500 lm | Range (0.25 lx) 698m | Beam angle (horizontal / vertical) 56° / 13° |
Key features
- Bespoke mounting bracket kit for Lazer LED Spotlight installation
- Custom fit for VW T7 Multivan
- Optimised for use with Linear-6 LED Lights

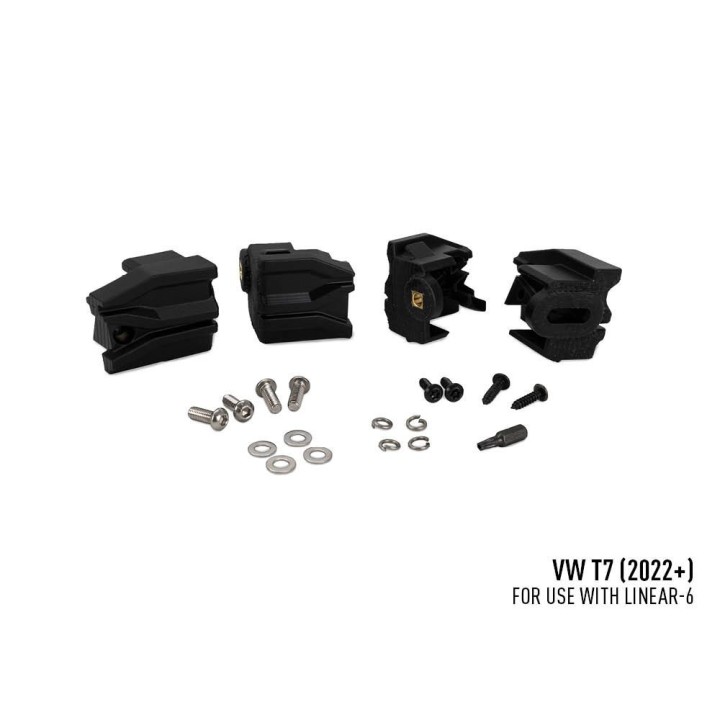

- Kits include: 4x brackets, cutting guides, and fasteners
- Made from high strength, UV-stable, composite material
- 5-year warranty
- Made in Britain
What is in the box
- 1x Grille Mounting Kit (Includes cutting guides)
- 2x Linear-6 LED Lamps
- 1x Two-Lamp Wiring Kit
- Installation Instructions
Technical data
- Luminous flux: 4500 lm (full power mode) / 8100 lm (approved mode)
- Driver 'FOV' flux: 3204 lm (full power mode) / 5767 lm (approved mode)
- Colour temperature: 5000 K
- Number of LEDs: 2 x 6
- Power consumption: 42 W (full power mode) / 84 W (approved mode)
- Current draw: 2.92 A (full power mode) / 5.8 A (approved mode)
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 0.99 kg
- Width: 232 mm
- Depth: 62 mm
- Height: 40 mm
- Beam angle (horizontal / vertical): 56° / 13°
- Horizontal beam angle: 56° / 13°
- Vertical beam angle: 56° / 13°
- Connector: 2-Pin Superseal (+25cm Cable)
- Ingress protection: IP68
- Driving beam approval: ECE R112 - Ref: 2x 12.5
- EMC: ECE R10
- Salt spray test: ISO 9227
- Dump load protection: ISO 7637-2

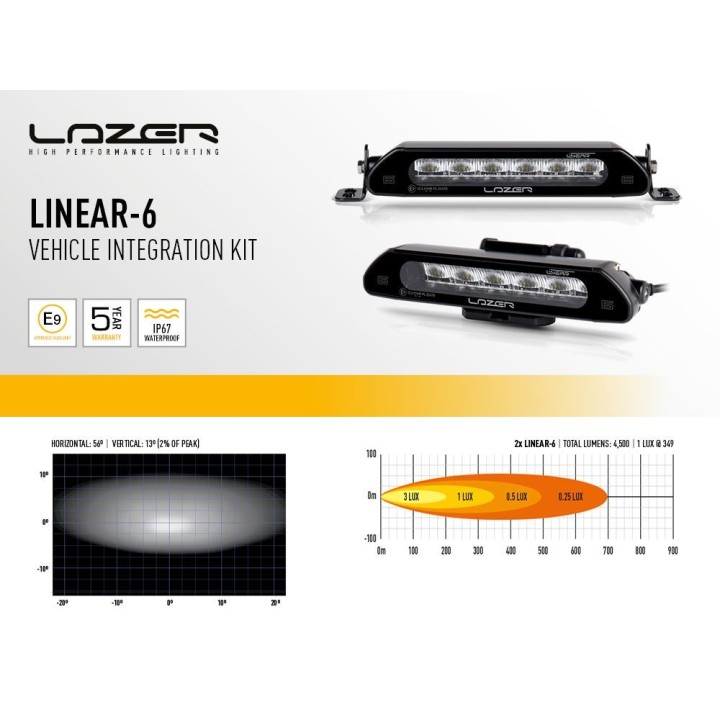

Beam range
| 0.25 lx | 698m / 796m |
| 0.5 lx | 494m / 563m |
| 1 lx | 349m / 398m |
| 3 lx | 202m / 230m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For owners of this specific model who want a fit with no modifications.
The kit is built for the Volkswagen T7 — another vehicle needs a different version.
Fitting and notes
The lamp lead ends in: 2-Pin Superseal (+25cm Cable). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R112 - Ref: 2x 12.5 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.
Why it is worth it
- 4500 lm of output and 698m of range on the 0.25 lx line
- ECE R112 - Ref: 2x 12.5 approval — a legal driving light
- IP68 ingress protection
- A complete kit for one specific model — no drilling, no modifications
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R112 - Ref: 2x 12.5 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
What is in the box?
The box contains: 1x Grille Mounting Kit (Includes cutting guides), 2x Linear-6 LED Lamps, 1x Two-Lamp Wiring Kit, Installation Instructions.
How far does it throw?
The manufacturer quotes 698m on the 0.25 lx line, 494m at 0.5 lx and 349m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection and salt spray testing to ISO 9227.
How much power does it use?
Power consumption is 42 W, i.e. 2.92 A at 14.4 V.
