LAZER High Performance LED Lighting
Reference: GK-HILUX-BCN-04K
Zestawy Lamp LED dedykowanych do samochodów

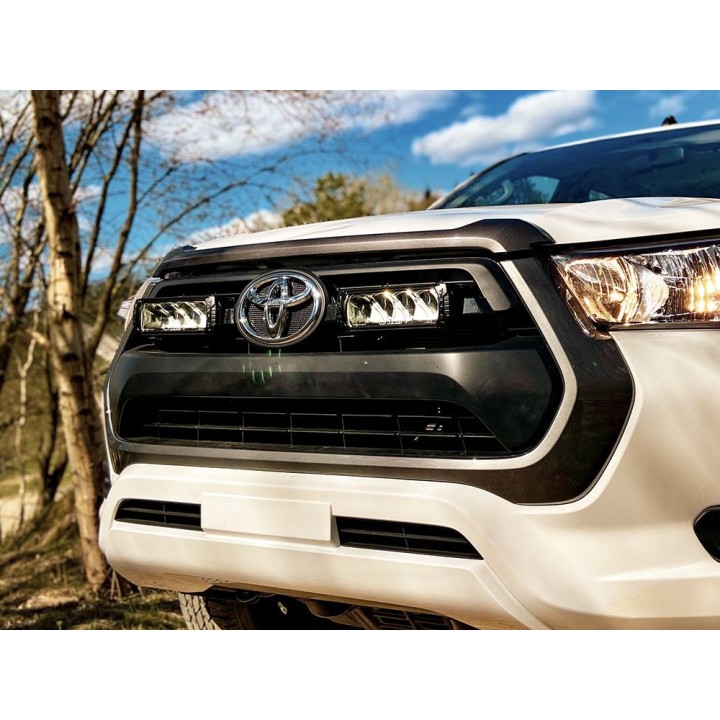

Kit of two LAZER TRIPLE-R 750 BEACON (Gen2) with factory grille mounting system - Toyota Hilux (2021 - )
Kit of two LAZER TRIPLE-R 750 BEACON (Gen2) with factory grille mounting system - Toyota Hilux (2021 - ). The manufacturer quotes luminous flux: 9240 lm, range at 0.25 lx: 829m, power consumption: 88 W. ECE R149 - Ref: 2x 20 approval allows it to be used as a driving light. The kit is built for the Toyota Hilux (2021 - ).
Kit of two LAZER TRIPLE-R 750 BEACON (Gen2) with factory grille mounting system - Toyota Hilux (2021 - )
A universal bracket usually ends in drilling the bumper and hunting for a route for the cable. This kit is built for the Toyota Hilux (2021 - ) — the brackets land on factory points.
One box gives you the complete answer: the lamps and the mounting system made for them.
Luminous flux 9240 lm | Range (0.25 lx) 829m | Ingress protection IP68 |
Technical data
- Luminous flux: 9240 lm
- Colour temperature: 5000 K
- Power consumption: 88 W
- Current draw: 6.2 A
- Voltage range: 10-32V
- LED life: 50,000 hrs
- Weight: 2.6 kg
- Horizontal beam angle: 40° / 20°
- Vertical beam angle: 40° / 20°
- Connector: 2-Pin Superseal (+Kabel 25cm)
- Ingress protection: IP68
- Driving beam approval: ECE R149 - Ref: 2x 20
- Position light: Brak danych
- EMC: ECE R10
- Dump load protection: ISO 7637-2
Beam range
| 0.25 lx | 829m / 1225m |
| 0.5 lx | 587m / 866m |
| 1 lx | 415m / 612m |
| 3 lx | 239m / 354m |
Range given for full power mode and, where the lamp has one, the approved mode.
Who it is for
For owners of this specific model who want a fit with no modifications.
The kit is built for the Toyota Hilux (2021 - ) — another vehicle needs a different version.
Fitting and notes
The lamp lead ends in: 2-Pin Superseal (+Kabel 25cm). A relay wiring kit is chosen separately unless it is listed in the box contents above.
ECE R149 - Ref: 2x 20 approval covers the driving beam function. A driving light must not be used with dipped beam — the harness has to switch it off together with the vehicle main beam.
The kit uses the factory mounting points of the vehicle. Fitting instructions are supplied by the manufacturer.
Why it is worth it
- 9240 lm of output and 829m of range on the 0.25 lx line
- ECE R149 - Ref: 2x 20 approval — a legal driving light
- IP68 ingress protection
- A complete kit for one specific model — no drilling, no modifications
Frequently asked questions
Is the lamp road legal?
The manufacturer lists ECE R149 - Ref: 2x 20 approval for the driving beam function. It must be wired so that it lights only together with the vehicle main beam.
How far does it throw?
The manufacturer quotes 829m on the 0.25 lx line, 587m at 0.5 lx and 415m at 1 lx.
Will it survive washing and road salt?
The manufacturer states IP68 ingress protection.
How much power does it use?
Power consumption is 88 W, i.e. 6.2 A at 14.4 V.
How much does it weigh?
The manufacturer states 2.6 kg.
