Bushranger X-Jack pneumatic jack

A factory jack works as long as there is firm ground under the wheel. In sand, mud and wet grass the foot simply sinks, and a Hi-Lift needs a jacking point that many modern vehicles no longer have.

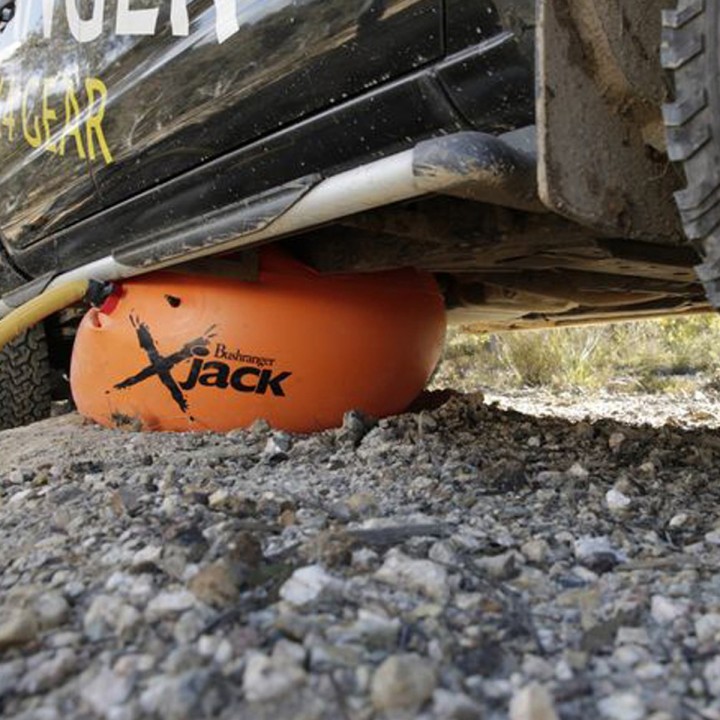

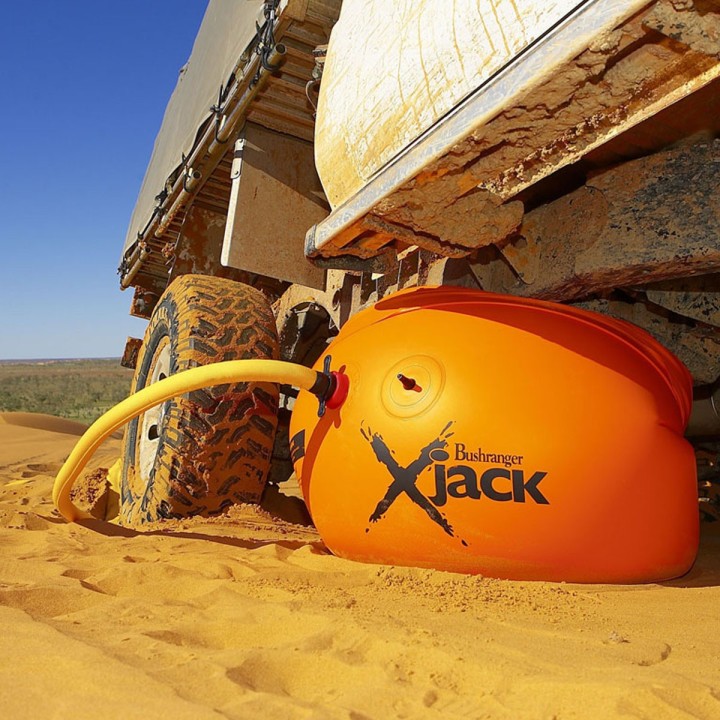

The X-Jack solves it differently: it is an air bag you slide under the vehicle and inflate from a compressor or from the exhaust. Its large footprint spreads the load, so it works where a conventional jack digs itself in.

Key features

• Two air sources – a compressor or the vehicle's own exhaust. Even if the compressor fails, the vehicle still goes up.
• Large footprint – the load spreads across sand, mud and snow instead of concentrating in one point.
• Double-reinforced PVC – a material chosen for repeated field use.
• Lifts 2000 kg to 75 cm, for vehicles up to 4000 kg GVM.
• No jacking point required in the sill or chassis – it bears against a flat area of the underbody.

Application

Universal – rated for vehicles up to 4000 kg GVM. It comes into its own exactly where a bottle jack or a Hi-Lift fails: sand, mud, wet grass, and underbodies without clear jacking points.

Important: before using it, work out which part of the underbody the bag will bear against. It must be flat and strong – not lines, not the exhaust, not a plastic shield.

Specifications

• Part number: 72X10
• Brand: Bushranger (ARB group)
• Lifting capacity: 2000 kg
• Lift height: 75 cm
• Maximum vehicle GVM: 4000 kg
• Material: double-reinforced PVC
• Air source: compressed air from a compressor, or exhaust gas
• Manufacturer warranty: 12 months

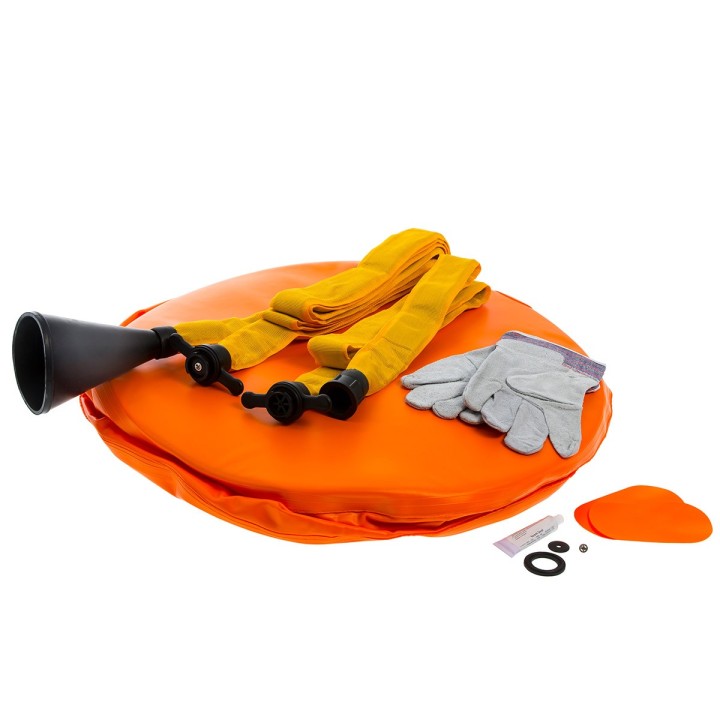

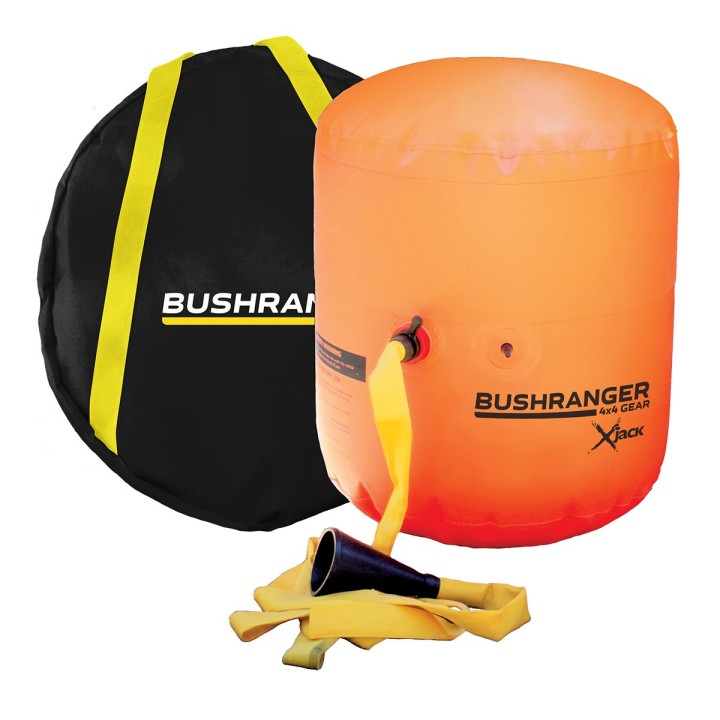

What is in the box

• 1 × Bushranger X-Jack

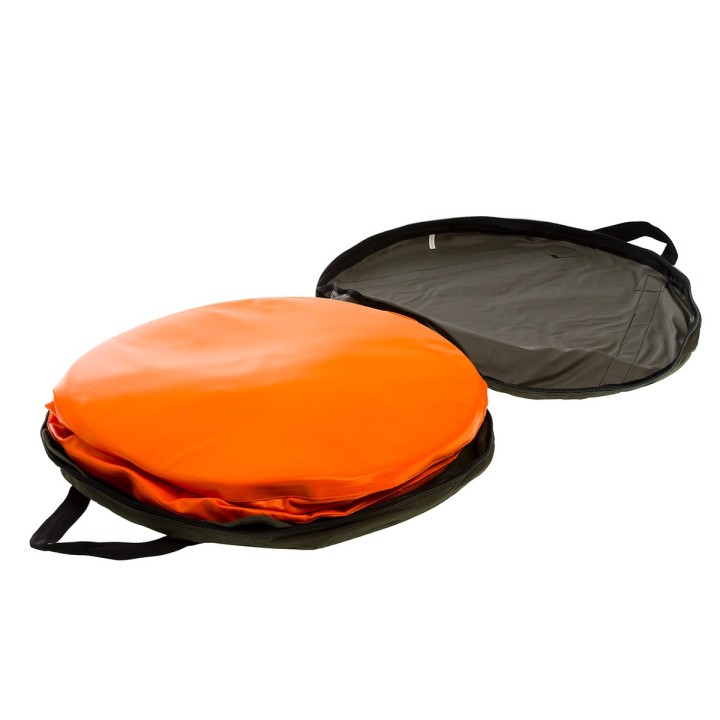

• 1 × heavy-duty storage bag
• 1 × repair kit
• 1 × pair of gloves

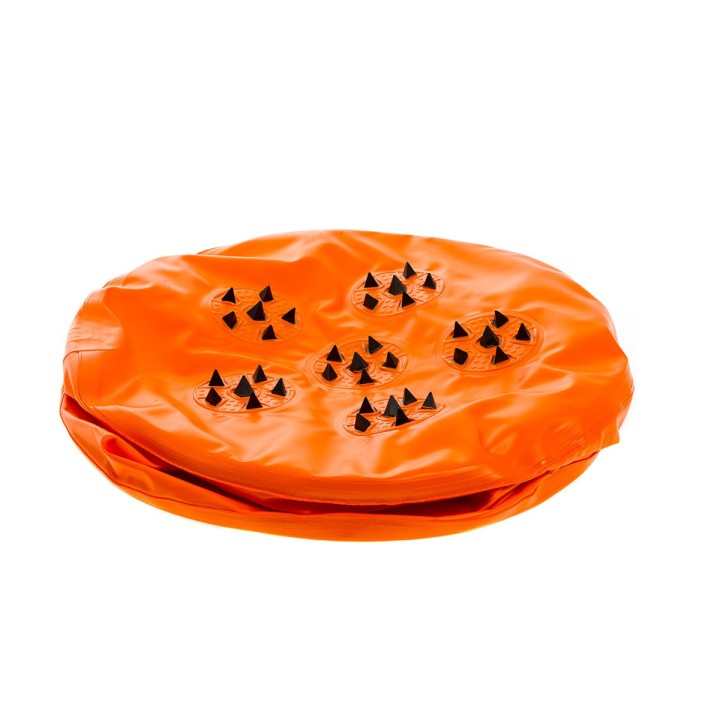

• 1 × protective mat
• 2 × inflation kit

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

Do I need a compressor?

Not necessarily – the X-Jack can be inflated from the exhaust. A compressor is faster and cleaner, so use one if the vehicle has it.

Won't the bag get punctured by the underbody?

The kit includes a protective mat to place between the bag and the ground or the underbody, and a repair kit in case of damage. Sharp edges, bolts and a hot exhaust should still be avoided.

Will it suit my vehicle?

If its gross vehicle mass does not exceed 4000 kg, yes. For heavier vehicles look for a different solution.

Does it replace a Hi-Lift?

They answer different problems. A Hi-Lift needs a jacking point and firm ground, but lifts higher and lets you shift the vehicle sideways. The X-Jack works where the ground is soft and there is no jacking point.

Why buy it

• It works in sand and mud, where a factory jack sinks and a Hi-Lift has nothing to grab.
• It lifts a whole side of the vehicle in one go, with no hunting for jacking points.
• Exhaust inflation means you still have an option if the compressor dies.

We can match a compressor and the rest of the recovery kit to your vehicle – just ask.
