ARB
Reference: ARB-RD1355
Storage

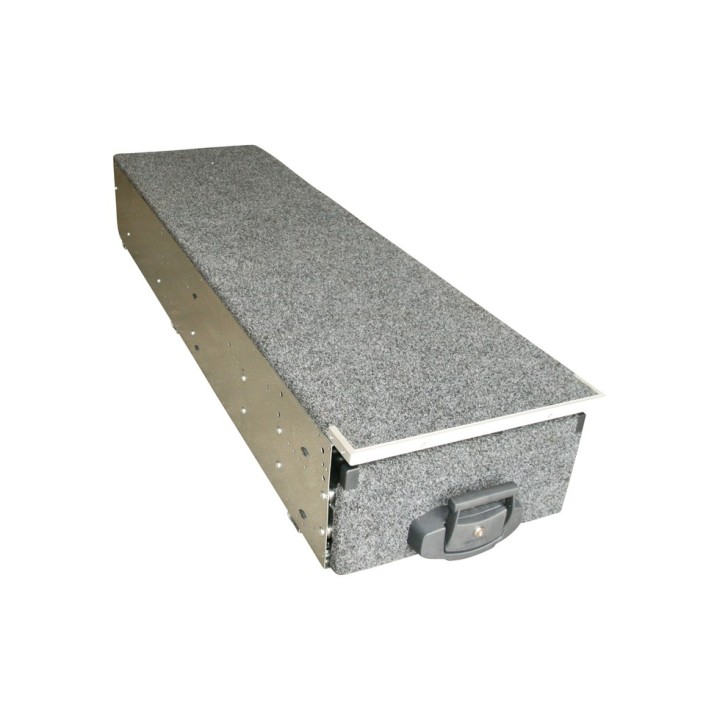

ARB Outback Solutions drawer RD1355, with a fixed top
ARB Outback Solutions modular drawer, with a fixed top. 125 kg load rating at 72% extension, key lockable, with push-pull latches and folding stainless steel bearing slides on sealed bearings. It self-locks at full extension, so it will not close on a slope. Dimensions 135,50 × 31 × 50,50 cm. For pick-ups with a canopy or hardtop.
ARB Outback Solutions RD1355 drawer, with a fixed top
A pick-up tray without a drawer system is one big box where everything sits on top of everything else. Finding anything means unloading half of it onto the ground – usually in the rain and usually when you are in a hurry.
The top is a fixed platform. It will take another drawer module or a portable fridge.
Dimensions 135,50 × 31 × 50,50 cm (L × H × W) | Load rating 125 kg | Extension 72% |
Key features
- 125 kg load rating per drawer at 72% extension – this is a load-bearing structure, not an organiser.
- Key-lockable, push-pull latches – one-handed operation, and the gear stays secured when you walk away.
- Fully sealed, dust and water resistant bearings – the slides do not fill with grit after the first gravel road.
- Folding stainless steel bearing slides – the drawer runs smoothly even loaded.
- Self-locking at full extension – the drawer will not close itself on a slope while your hands are full.
- Reinforced steel in the load-bearing structure.
- UV-resistant lining – it does not fade or go brittle in a sun-baked canopy.
- Modular construction – modules can be extended and rearranged rather than bought once in a single configuration.
- Fixed top platform – a base for another drawer module or a portable fridge.
Fitting
Two important fitting notes from the manufacturer:

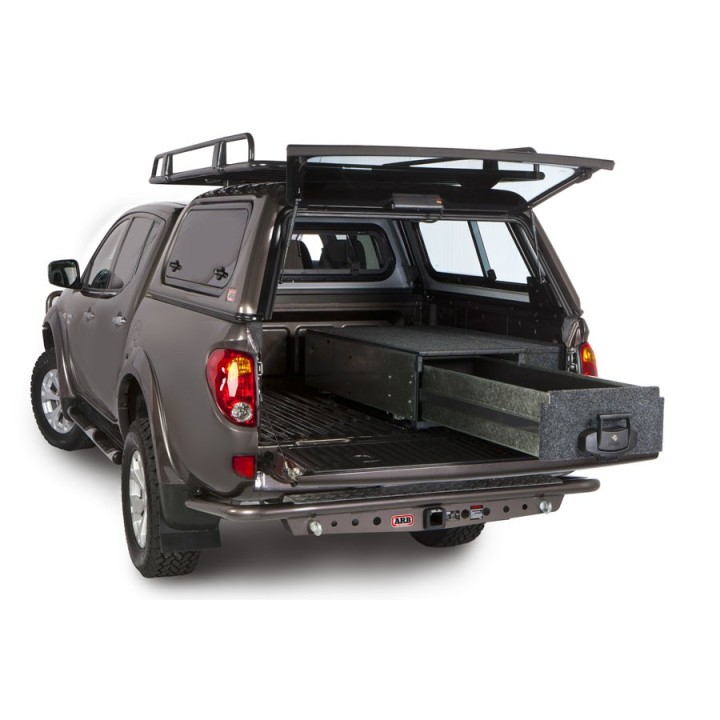

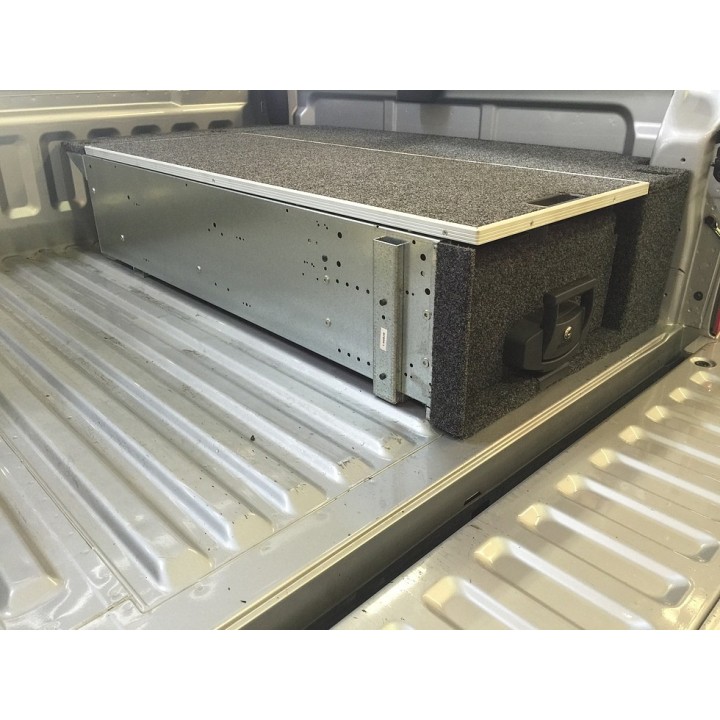

- The drawer is intended for pick-ups with a canopy or hardtop over the tray.
- It is not compatible with a drop-in bed liner. It does work with a sprayed-in liner such as Line-X.
A fully level floor also needs vehicle-specific side infill panels, bought separately. Send us the model and year and we will pick the right part number.
Specifications
- Part number: RD1355
- Brand: ARB
- Range: Outback Solutions modular system
- Type: drawer with a fixed top
- Dimensions: length 135,50 cm, height 31 cm, width 50,50 cm
- Internal drawer height: 250 mm
- Drawer load rating: 125 kg
- Extension: 72%
- Slides: folding stainless steel bearing slides, sealed bearings
- Locking: key lock, push-pull latches
- Lining: UV resistant
Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.
Frequently asked questions
Will it fit my vehicle?
That depends on the tray dimensions and the canopy. Send us the model, year and cab type and we will check before you order, along with the matching infill panels.
Can I put a fridge on top?
Yes, that is one of the standard uses for the top surface. On the sliding-top versions the fridge can also be slid out past the vehicle so the lid can open.
Does it work with a drop-in bed liner?
No. The manufacturer explicitly rules out a drop-in liner. A sprayed-in liner such as Line-X is not a problem.
Are the side panels included?
No. They are vehicle-specific and bought separately – we will match them to your vehicle.
Why buy it
- Gear is reachable from the tailgate without unloading half the tray onto the ground.
- A key lock – you can walk away from the vehicle without taking all the kit with you.
- A modular system, so the installation can grow in stages.
We can put the whole installation together: drawer, vehicle-specific infill panels, fridge mount and the fridge itself. Send us the model and year.
