ARB
Reference: ARB-3412760
Bumpers and Bullbars

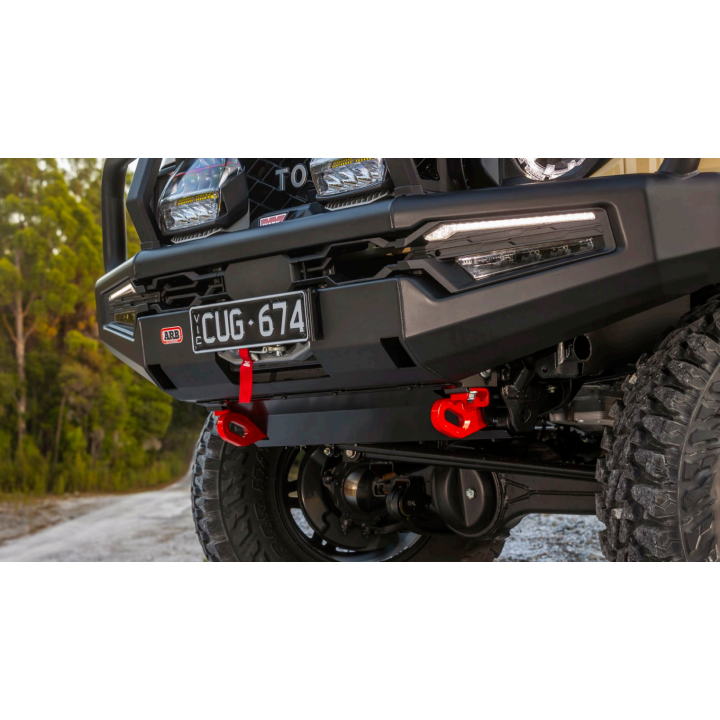

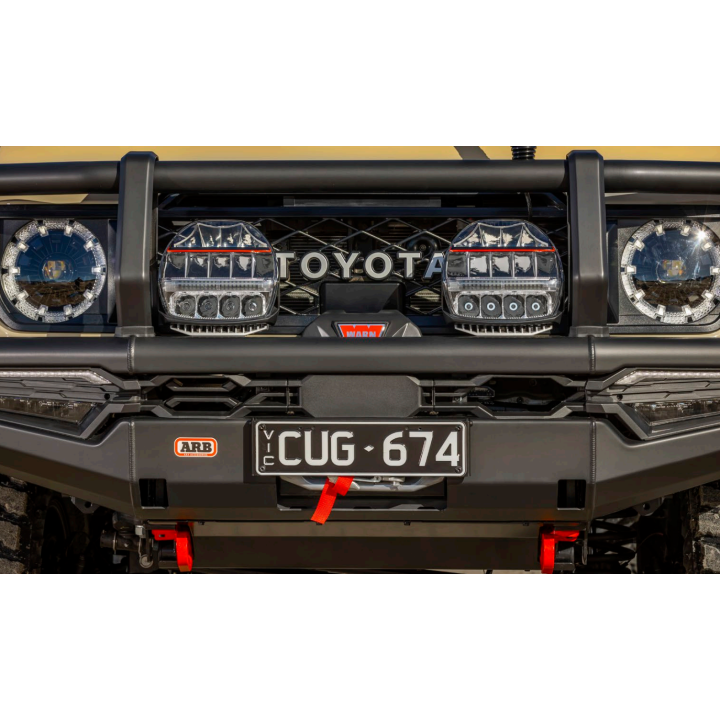

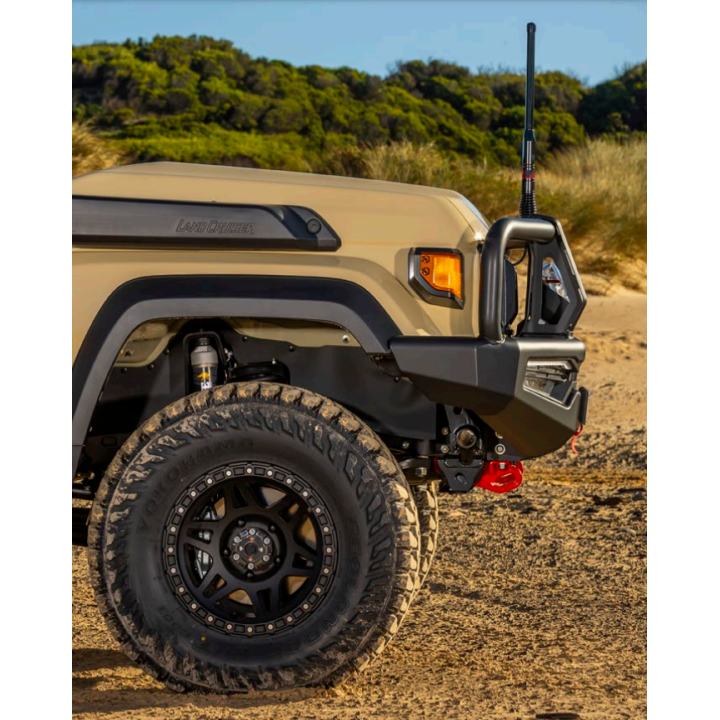

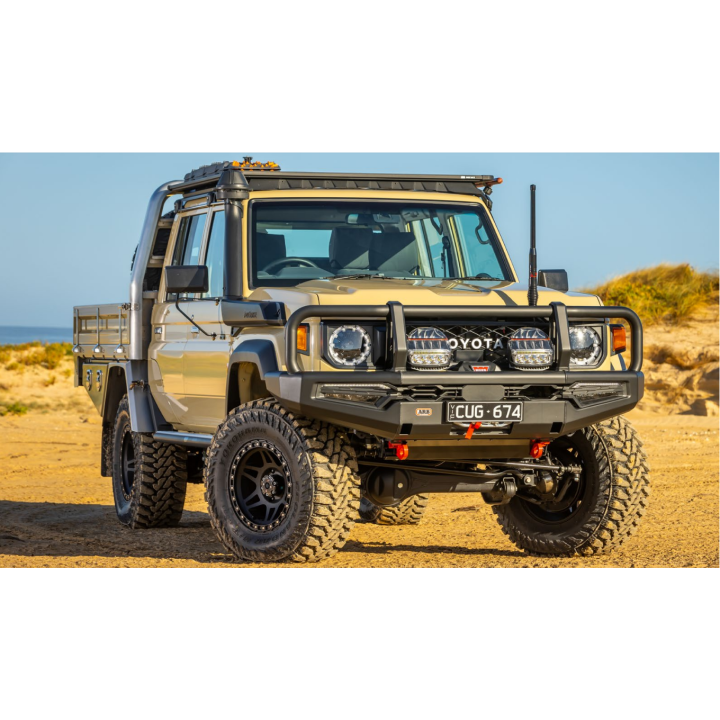

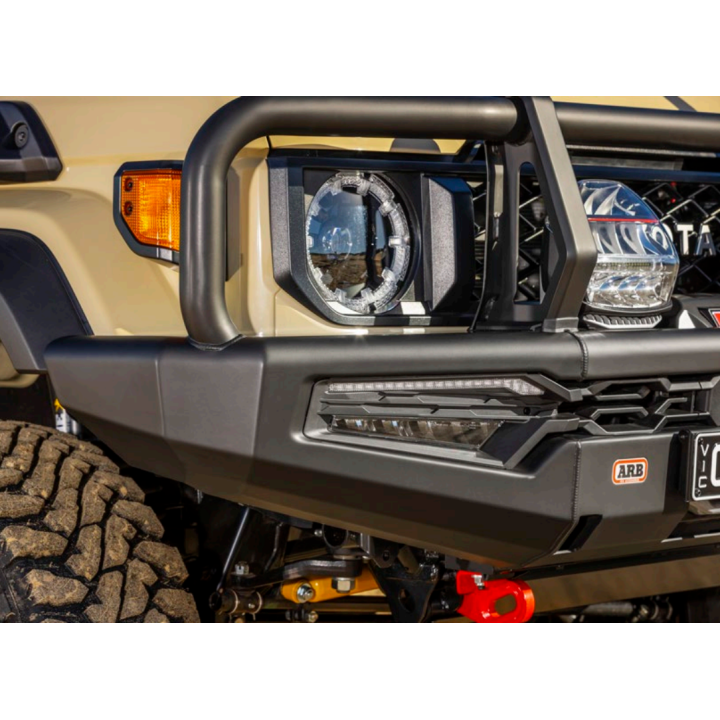

ARB Summit MKII bull bar - Land Cruiser 70, 76, 78, 2024+
ARB Summit MKII steel bull bar for the Toyota Land Cruiser 70 Double Cab, 76 Wagon and 78 Troop Carrier from 2024. It integrates fully with Toyota Safety Sense and supports the Panoramic View Monitor. 60.3 mm frame, airbag-compatible chassis mounting, two jacking points and complete LED lighting included. Winch ready to 4535 kg. It does not fit Single Cab models.
ARB Summit MKII steel bull bar – Toyota Land Cruiser 70, 76 and 78 (2024 on)
On the new Land Cruiser 70 the problem is no longer mounting a bar, but what sits behind it: the Toyota Safety Sense radar, the 360-degree camera, the sensors. A bar that blocks or upsets them turns a modern vehicle into one that beeps for no reason and disables half its systems.
The Summit MKII is engineered around that electronics package – with full Toyota Safety Sense integration and Panoramic View Monitor support on camera-equipped variants.
Material steel, 60.3 mm frame | Kit weight approx. 62 kg (27.5 kg removed) | Added length approx. 45 mm |
Key features
- Full Toyota Safety Sense integration and Panoramic View Monitor support on variants with the front 360-degree camera. The camera relocation kit is part of the fitting kit.
- Airbag compatible – bolted to the chassis with high-tensile fasteners, without interfering with the crush structure.
- 60.3 mm outer frame and centre cross tube, 30 mm radius on the wings and centre section – ARB's modern wing shape, built around approach angle.
- Two ARB Jack or Hi-Lift points in the lower panel.
- Complete lighting included: LED fog lights, LED daytime running lights, LED indicators and position lights.
- Winch ready to 4535 kg (Warn, Magnum, Bushranger, Smittybilt). The ARB-3512150 winch mount kit and ARB-3500605 spacers are optional.
- Provision for ARB Intensity, Intensity IQ and Solis LED lights, plus Bushranger and IPF lamps.
- Two antenna mounts on the centre frame.
- Pressed top panel and aluminium winch cover in matte black powder coat.
- Metaprep primer for additional corrosion resistance.
Fitment
The bar suits the Toyota Land Cruiser 70 Series from 2024 in three body styles:
- Land Cruiser 70 Double Cab,
- Land Cruiser 76 Wagon,
- Land Cruiser 78 Troop Carrier.
Manufacturer's note: the Summit MKII does not fit Single Cab models. ARB has announced a separate bar for those.
The bar has no lower panels. It is compatible with the current ARB Land Cruiser accessory range, including recovery points, side steps and underbody protection (UVP). An optional roller fairlead cover, ARB-3501070, is available.
Specifications
- Part number: 3412760
- Brand: ARB
- Range: Summit MKII
- Material: steel
- Outer frame and centre cross tube: 60.3 mm
- Radius on wings and centre section: 30 mm
- Mounting: to the chassis with high-tensile fasteners, airbag compatible
- Weight of bar, chassis mounts and fitting kit: approx. 62 kg
- Mass removed from the vehicle: approx. 27.5 kg
- Added vehicle length: approx. 45 mm
- Winch: up to 4535 kg, requires the ARB-3512150 mount kit (optional)
- Finish: matte black powder coat over Metaprep primer
- Included: LED fog lights, LED DRLs, LED indicators, position lights, camera relocation kit
Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.
Frequently asked questions
Does it fit the Single Cab Land Cruiser 70?
No. The manufacturer explicitly excludes the Single Cab and has announced a separate bar for it.
Will the bar break Toyota Safety Sense?
No – the Summit MKII is engineered with full integration, and camera-equipped variants keep the Panoramic View Monitor. The camera relocation kit is part of the fitting kit.
Is a winch included?
No. The bar is winch ready to 4535 kg, but the mount kit (ARB-3512150) and spacers (ARB-3500605) are optional, and the winch is chosen separately.
What does this really add in weight?
The bar with mounts is about 62 kg, but around 27.5 kg of factory parts come off during fitting. The real increase is roughly 35 kg, plus a winch if you add one.
Is the bar type-approved?
The manufacturer does not state this for this part number, so we will not claim it. Ask us if approval is a condition of purchase and we will check with the supplier.
Why buy it
- Engineered around the new LC70's electronics rather than adapted to them afterwards.
- Complete LED lighting included – no separate indicators or DRLs to buy.
- Winch, jack and ARB light ready, so the build can grow in stages.
We fit bars and winches in our own workshop, including the lighting connections and a check of the safety systems afterwards. Get in touch to book a slot.
