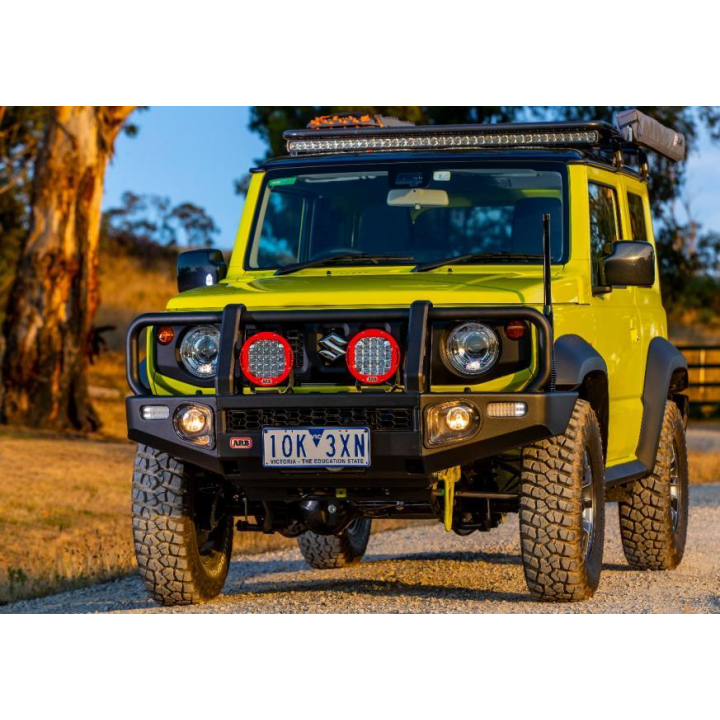

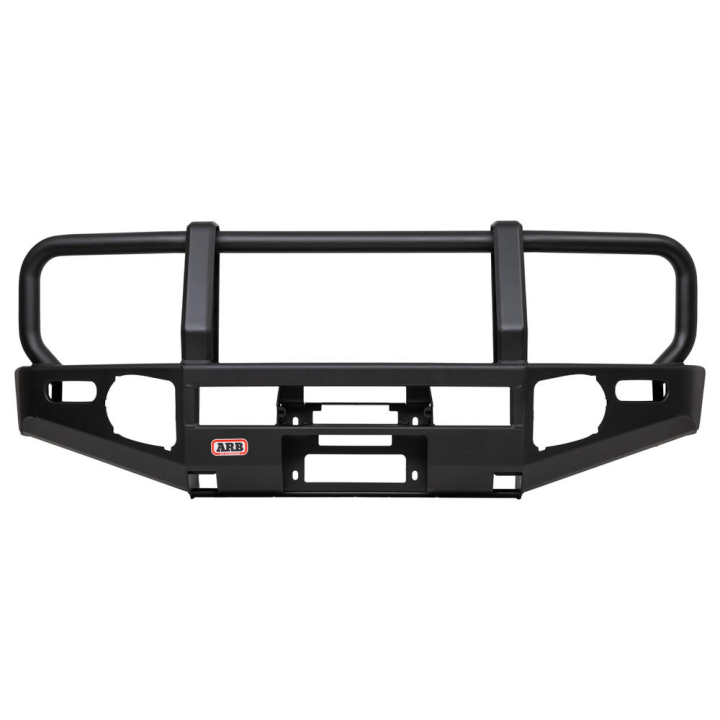

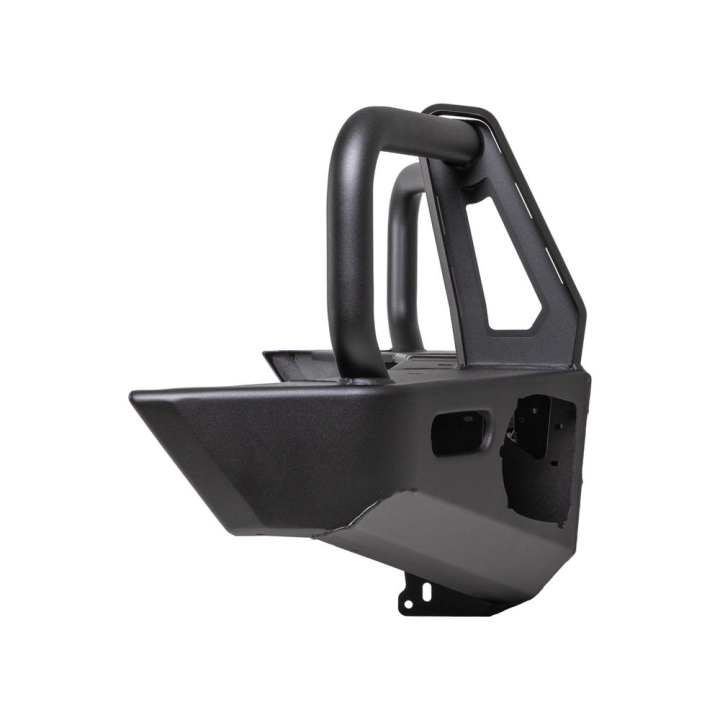

ARB Summit steel bull bar – Suzuki Jimny (2019 on)

The Jimny has short overhangs and good geometry, right up until it meets reality: the factory plastic bumper does not survive contact with anything harder than a bush, and there is nothing under it to bolt a winch to.

The Summit Bar solves both, and along the way improves the approach angle from 35° to 37° – a real difference on a ledge in a car this small.

Key features

• Approach angle improves from 35° to 37° – with the Jimny's wheelbase that is a noticeable difference climbing a ledge.
• 3 mm steel, 47.6 mm tube for the outer and centre cross tubes, 20 mm for the side and centre tubes.
• Airbag compatible, bolted to the chassis with M10 fasteners.
• Split construction – maximum strength with airflow to the radiator preserved.
• Twin ARB Jack and Hi-Lift points.

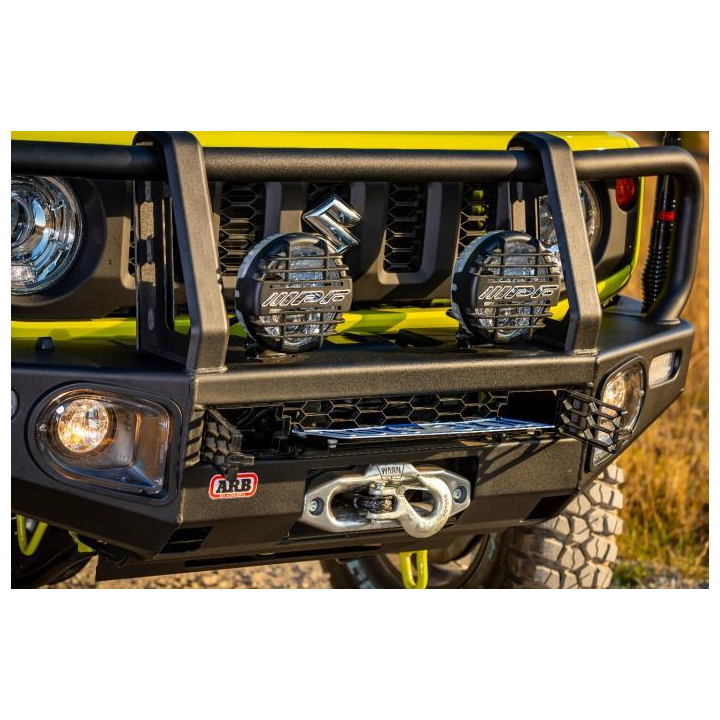

• Ready for Warn winches to 3500 kg, with a pressed top panel and a powder coated aluminium winch cover.
• LED indicator included, with provision for ARB Intensity lights and Bushranger and IPF lamps.
• Keeps the factory washers and allows the factory fog lights to be relocated – you do not lose equipment you already have.
• Two CB antenna mounts.
• Three-year manufacturer warranty.

Fitment

Suzuki Jimny from 2019.

An important note on the finish: the bar comes in textured black powder coat and is not suitable for painting in body colour. If a colour-matched bar is what you want, this is not the product – tell us and we will look for an alternative.

Optional ARB-3500680 fog light covers are available. The bar matches the ARB Rock Sliders for the Jimny, finished in the same Integrit coating.

Specifications

• Part number: 3424050
• Brand: ARB
• Range: Summit
• Vehicle: Suzuki Jimny from 2019
• Material: steel
• Thickness: 3 mm
• Tube diameter: 47.6 mm (outer and centre cross), 20 mm (side and centre)
• Mounting: to the chassis with M10 fasteners, airbag compatible
• Approach angle: improved from 35° to 37°
• Added vehicle length: approx. 120 mm
• Weight: approx. 45 kg (approx. 8 kg removed from the vehicle)
• Winch: Warn up to 3500 kg
• CB antenna mounts: 2
• Finish: black textured powder coat (not suitable for body colour paint)
• Fitting time: approx. 120 minutes
• Warranty: 3 years

Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.

Frequently asked questions

Can I have it painted in body colour?

No. The manufacturer states that the textured powder coat is not suitable for body colour paint.

Do I lose the factory fog lights?

No. The bar allows them to be relocated, and optional ARB-3500680 covers are available.

Which winch fits?

The bar is set up for Warn winches up to 3500 kg. Send us the model and we will check whether an extra mount kit is needed.

How much weight does it really add?

The bar weighs about 45 kg and roughly 8 kg comes off the vehicle during fitting. The real increase is about 37 kg – on a Jimny that is significant, so the suspension is worth thinking about.

How long does fitting take?

The manufacturer quotes about 120 minutes. We do it in our own workshop, including the indicator wiring.

Why buy it

• A better approach angle, not just more steel at the front.
• Set up for a winch, jack, lights and antenna – the build can grow in stages.
• Three-year manufacturer warranty.

We fit bars and winches in our own workshop. On a Jimny it is worth discussing the suspension at the same time – get in touch for a full quote.
