ARB
Reference: ARB-4424020
Strefa Suzuki Jimny JB74

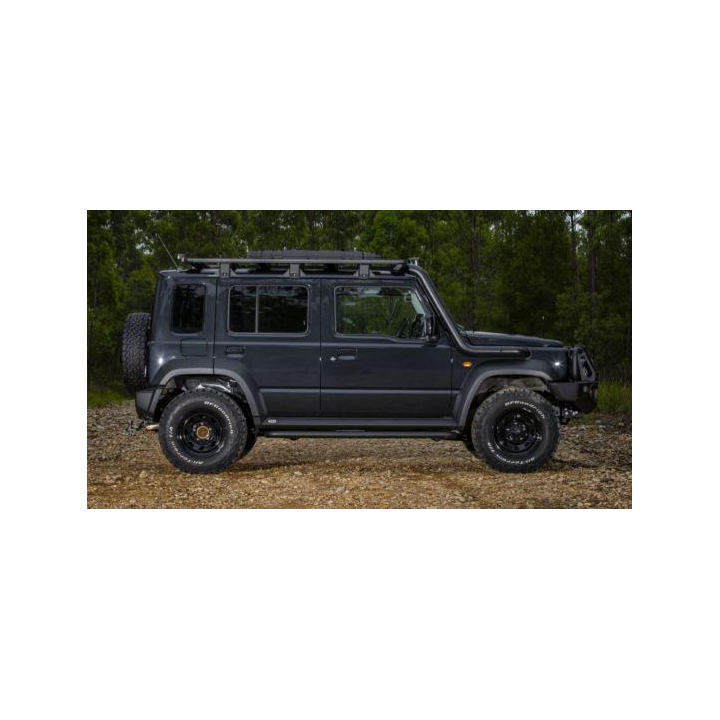

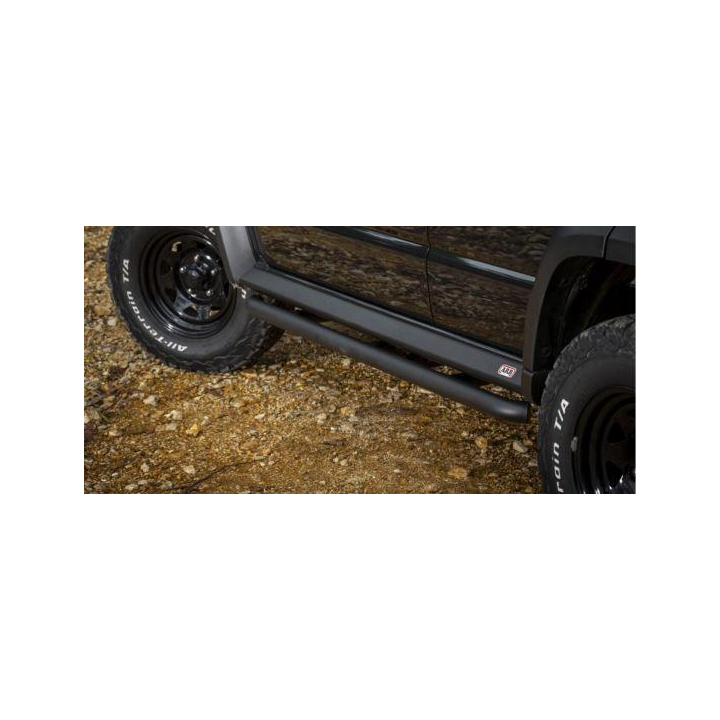

ARB Rock Sliders - Suzuki Jimny 5-door, 2024 on
ARB Rock Sliders made for the Suzuki Jimny 5-door from 2024. A 60.3 mm protection tube bolts to the chassis at three points per side, so the vehicle's weight is carried along the whole sill. 47.6 × 2.6 mm steel support tubes and 4 mm plate brackets. 24 kg the pair, finished in Integrit black textured powder coat.
ARB Rock Sliders – Suzuki Jimny 5-door (2024 on)
The five-door Jimny has a longer wheelbase than the three-door, which means one thing: more sill hanging between the axles, and more sill landing on a rock when the car slides off line. The factory sill is not a structural member – after the first serious contact you are left with a dent that cannot be pushed out without stripping the panel.
Rock Sliders take that contact instead and carry the vehicle's weight into the chassis.
Protection tube 60.3 mm | Mounting points three per side | Weight 24 kg (pair) |
Key features
- 60.3 mm protection tube bolted to the chassis – a structural member, not a trim strip.
- Three mounting points per side – the vehicle's weight is carried along the whole sill rather than at one point that would bend.
- 47.6 × 2.6 mm steel support tubes and 4 mm laser-cut, folded and welded brackets.
- M10 fasteners into the vehicle chassis.
- Integrit black textured powder coat – the same finish as the ARB Jimny Summit Bar, so the build looks consistent.
- 24 kg the pair – a real structure, not decoration.
Fitment
The set is made for the Suzuki Jimny 5-door from 2024.
The three-door Jimny (from 2019) takes different sliders – these will not fit, because the difference is in wheelbase and sill length. If you are not sure which version you have, get in touch.
The sliders are compatible with the ARB Summit alloy bar and share its finish.
Specifications
- Part number: 4424020
- Brand: ARB
- Vehicle: Suzuki Jimny 5-door from 2024
- Protection tube: 60.3 mm
- Support tubes: 47.6 × 2.6 mm steel
- Brackets: 4 mm laser-cut, folded and welded plate; M10 fasteners
- Mounting points: three per side
- Weight: 24 kg (pair)
- Finish: Integrit black textured powder coat
Szekla4x4.pl is an online shop, a walk-in store and a workshop specialising in off-road and overlanding. If you would like us to fit this for you or match the rest of the setup, get in touch.
Frequently asked questions
Do they fit the three-door Jimny?
No. This set is specific to the five-door from 2024. The three-door has a different wheelbase and sill length.
Can the vehicle be jacked on them?
The structure is designed to carry the vehicle's weight along the whole sill, but the manufacturer does not define separate jacking points, so we will not claim them. Ask us and we will check with the supplier.
Do they match the ARB bar?
Yes, they are compatible with the ARB Summit alloy bar for the Jimny and share its Integrit finish.
Does fitting require drilling?
The manufacturer states the system uses M10 fasteners into the chassis. The details vary by vehicle – we check that on the spot when we fit them.
Why buy it
- Steel takes the rock strike instead of the sill panel.
- Three mounting points per side – the vehicle's weight spreads instead of bending one bracket.
- A finish that matches the ARB bar if you are building the vehicle in stages.
